Projectiondesign F12 WUXGA Manuale utente

professional projector series

F12

WUXGA, 1080p or SXGA+ resolution

DLP® technology

RealColor colour management

24/7 operation warranty

www.projectiondesign.com

COMPATIBLE

The projectiondesign professional series of projectors

include high resolution, high performance products

made and conceived especially for graphically

challenging appllications such as scientiﬁc

visualisation, motion simulation, medical imaging, and

public displays.

As our utmost concern is image quality and operational

reliability, all professional series projectors are available

with 24/7 operation warranties, and a wide range

of conﬁguration options to ensure the best possible

application ﬁt and customer satisfaction.

Professional

series

projector F12 series

The F12 is a professional grade DLP® projector that offers a

unique blend of features and beneﬁts in reliability, image quality,

and unbelieveably small size for demanding applications.

Markets and applications

The F12 series is designed with several applications in mind, and it is especially suitable for inclusion in motion

simulators, scientiﬁc visualization applications, and applications that require an ultra reliable projector that can handle

rough handling and at the same time provide the ultimate in image quality.

www.projectiondesign.com

WUXGA resolution relative to 1080p, SXGA+, and XGA.

WUXGA, 1080p, or SXGA+ resolution

The projectiondesign F12 can be conﬁgured with both WUXGA, 1080p and SXGA+ resolution for computer or video

centric applications. Where computer based image generation with maximum detail and accuracy is the primary concern,

1920x1200 pixels (WUXGA) is the obvious choice, and fully compatible with the legacy 1600x1200 format. Furthermore,

for video centric applications, the 1920x1080 (1080p) pixel resolution perfectly ﬁts HD video and data. Whether computer

or video, wide screen or legacy 4:3, there is a model with the right resolution available. In fact, with this range of

resolutions, the F12 covers nearly any requirement in virtually any professional AV installation.

www.projectiondesign.com

overview

DLP technology

– chosen for reliability

The DLP technology from Texas Instruments® is chosen for its unmatched reliability

performance, and its unique coupling with long lasting image quality. With a widely

recognized and proven reliability record, and high brightness and contrast, all whilst

displaying utterly natural colours, it is the obvious choice for heavy duty applications, or

applications that are that run continuously, or are mission critical. Independent testing

has proven DLP technology to be the most reliable of all microdisplays; not degrading

when subjected to UV light, inherent in all projectors. Unlike competing technologies,

showing severe image quality degradation after only a few thousand hours,

DLP technology remains constant over hundreds of thousands of hours.

Greatly improved grey scale

tracking with VIDI technology.

Posterisation with traditional

lamp technology.

RealColor colour management

RealColor provides a unique and quick way to calibrate and set up perfect

images for any number of projectors. RealColor can alter imagery by

changing simple characteristics such as the colour temperature of the image – perfectly

along the black body curve, or very complex attributes such as each colour’s relative

saturation and x/y coordiantes. In fact, it is perfect to within 0.002 along all axis of

measurement. RealColor works by mathematically calculating each colour independently.

VIDI™ technology improves grey scale

VIDI™ technology from Philips enables dynamic lamp driving over time, and enhances

image quality. It greatly reduces grey scale artefacts, adds to colour saturation,

enhances contrast, and improves lamp stability. Each projector conﬁguration’s lamp

runs differently from that of others, and ensures a lamp that is speciﬁcally tailored

to the application it is used for. Unlike non-VIDI based projectors, the lamp power is

digitally controlled, as is its performance over time.

active

stereo

Original VIDI lamp with projectiondesign

optimised ﬁxture mechanics.

Low Total Cost of Ownership

Thanks to its robust build and construction, the F12

series requires close to no maintenance and in-life

servicing. There are no user serviceable parts inside,

and it does not have any ﬁlters or other parts that

need periodical replacement. That means it does

not require a costly and high frequency maintenance

contract. Typical lamp replacement cost is low*, and

typical lamp life is long. In total, the F12 is a very

cost effective projector over time, resulting in a fully

predictable and very low Total Cost of Ownership.

* When replacing lamps, it is adviced to use only original

parts and accessories, as aftermarket lamps may reduce

performance, and damage the projector.

Low Frequency

Maintenace programme

Our Low Frequency Maintenance programme can be set to automatically notify

of required service and maintenace. When run continuously, moving parts such

as fans and colour wheels require periodic replacement in order to secure and

enable heavy duty continuous operation. With the F12, the duty cycle of any

one component is as long as 8000 hours, meaning a full year’s operation in 24/7

without any maintenance.

Designed for full 24/7 operation

All projectiondesign professional projectors feature full

24/7 operation warranties. That means they are designed

to operate continuously. There is no ﬁne print. Designing

for 24/7 operation requires a lot of attention to detail.

Some technologies are better than others when it comes

to withstand the abuse of time. We use only components

that have predictable behaviours, for instance fans,

colour wheel motors, and electronic components that

are designed by their respective manufacturers to do the

same - withstand time. There are no off-

the-shelf components. That is why we also

closely monitor the creation of every detail,

apply dedicated thermal management,

and use speciﬁc materials in all parts of

the process.

ownership and beneﬁts

The innards of the F12 series is packed with

technology to provide the best possible projector.

active

stereo

Designed for use in

multi-channel systems

With the unique colour matching and calibration tools provided in the RealColor colour

management suite, the F12 series is virtually made for matching of images, edge blending

and multi-channel installations. No matter whether the process is done electronically in

software or by using external hardware solutions. Deep black levels and and a high level of

black and white level uniformity, add to the impressive performance. As a custom option,

projectiondesign also offers industry unique manual optical colour matching.

active

stereo

www.projectiondesign.com

projectiondesign in-house EMC lab.

In-house component testing and veriﬁcation.

Every single F12 projector is rigorously tested, and

characterised in-house. We keep test records and

performance statistics for every single unit. Also, as

we put our pride into making great projectors, they are

not passed down an automated production line, but

enjoy the careful management of people at all stages of

their manufacture. That also means we are personally

responsible for all of them. In addition, every single

projector is made to speciﬁc order. That means that the

conﬁguration ordered is the conﬁguration built, and only

existing in that particular installation.

Immaculate

process

management

In house development and process management

Every single part of the F12 series projectors is developed and veriﬁed in-house at projectiondesign. With more than 800

models and variations of projectors in regular manufacture, testing facilities include everything from acoustical analysis

labs, to a full featured FCC Class EMC lab, environmental labs for lifetime and operational testing, as well as our own

optics labs and various test and demo labs.

www.projectiondesign.com

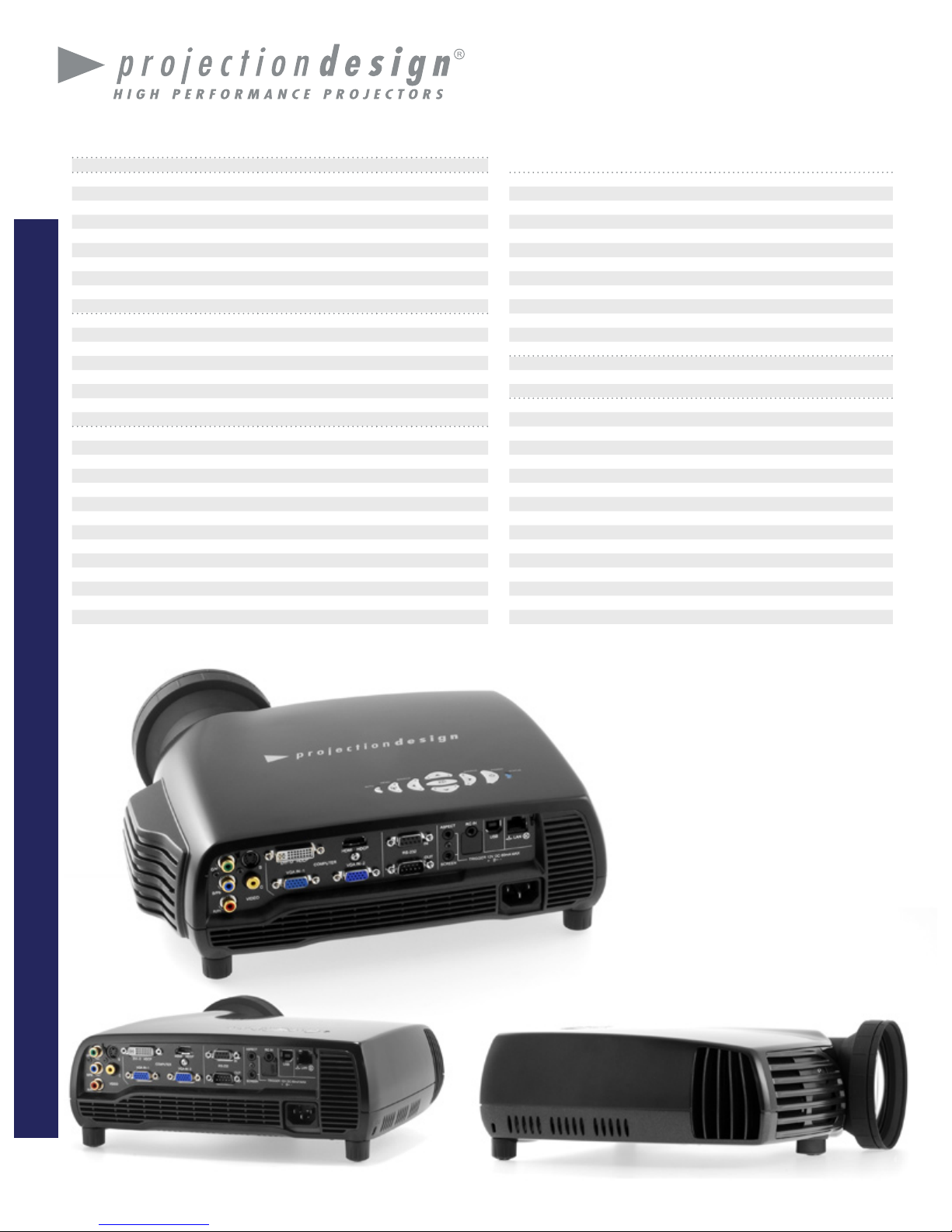

technical speciﬁcations

Technical speciﬁcations

projector DLP® digital projector

display technology single chip DMD™ (Digital Micromirror Device™) connectivity computer 1x HDMI

concept sealed, all-glass optical design with ﬁxed offset 1x DVI-D

available resolutions 1920x1200 1920x1080 1400x1050 2x VGA (15-pin DSUB)

brightness1HighBrightness 3500/2600 3500/2600 3900/2900 video 1x HDMI (HDCP)

Graphics 2400/1800 2400/1800 2600/2000 1x DVI-D (HDCP)

VizSim 1800/1400 1800/1400 2000/1500 1x RCA x3 YPbPr (component video)

contrast ratio up to 4000 : 1 (on/off) 1x 4-pin mini DIN Y/C (S-video)

colours 30-bit 1x RCA composite video

colour management accuracy ± 0.002 on x, y, z axis communications 1x RJ45 TCP/IP network port

image processing latency ~ 22 ms on graphics port 2x RS232 9-pin DSUB (in / out)

input signal compatibility computer up to 1920 x 1200 pixels 1x USB – mouse control & ﬁrmware upgrade

RGBHV, RGBS, RGsB 2x 12V (60mA) triggers (screen drop / aspect)

horizontal scan frequency 15 - 150 kHz 1x RC repeater, 3.5mm mini jack

vertical scan frequency 48 - 190 Hz supplied accessories cables complete cable kit

video HDTV (1080p,1080i, 720p), 24p, 25p, 30p other backlit IR remote control

NTSC 3.56/4.43, PAL BGHI, M, N, SECAM quick start product documentation, safety guidelines

bandwidth 205 MHz analog RGB general dimensions (dwh) 268 x 300 x 104 mm (with standard zoom lens)

165 MHz digital RGB (DVI or HDMI) weight about 3.5 kg (with standard zoom lens)

optics available lenses ﬁxed focal wide angle EN10 (503-0035-00) environmental RoHS, WEEE

standard zoom EN08 (503-0034-00) security 4-digit PIN code, Kensington lock

focusing distance 1.5 - 10m power requirements 100 – 240 VAC, 50/60 Hz, +/- 10%

lens offset WUXGA: 110% (standard) or 115% (optional) < 450W power consumption

1080p: 110% (standard) or 123% (optional) BTU/hr < 1650

SXGA+: 109% conformances CE, CSA “C/US”, FCC Class A, CCC

colour wheel options VizSim (RGBRGB) operating temperature 10 – 40ºC / 32 – 104ºF, 0 – 1500 m

Graphics (RGBCMY) 10 – 35ºC / 32 – 95ºF, 1500 – 3000 m

High Brightness (RGBCYW) operating and storage 20 – 90% RH

lamp 300W UHP or 220W UHP available colours black metallic, pearl white

lamp life 2000 hrs / 2250 hrs (max typical) warranties standard 2 years, full 24/7 operation

2500 hrs / 3000 hrs (eco mode) 500 hours or 90 days on lamp

replacement lamp part no. 300W: 400-0401-00 up to 5 years total extended warranty available.

220W: 400-0600-00 conditions apply.

1) brightness for 300W/220W option

technical speciﬁcations

www.projectiondesign.com

Model Lamp Colour Wheel Wide Angle Lens Standard Zoom Lens

F12 wuxga 300W High Brightness 101-1150-xx 101-1148-xx

Graphics 101-1145-xx 101-1141-xx

VizSim 101-1144-xx 101-1140-xx

220W High Brightness – –

Graphics 101-1147-xx 101-1143-xx

VizSim 101-1046-xx 101-1142-xx

F12 1080 300W High Brightness 101-1137-xx 101-1132-xx

Graphics 101-1136-xx 101-1131-xx

VizSim 101-1135-xx 101-1130-xx

220W High Brightness – –

Graphics 101-1139-xx 101-1134-xx

VizSim 101-1038-xx 101-1133-xx

F12 sx+ 300W High Brightness 101-1094-xx 101-1092-xx

Graphics 101-1098-xx 101-1096-xx

VizSim 101-1090-xx 101-1088-xx

220W High Brightness – –

Graphics 101-1057-xx 101-1052-xx

VizSim 101-1056-xx 101-1051-xx

Available colours: -08 Black Metallic (standard), -05 Pearl White (option). Extra Offset on request.

See separate documentation for 3D stereoscopic model options and variants.

Standard available versions

The F12 can be rotated 360 degrees around the side-to-side axis, and for instance project

straight down or up, as well as +20/-20 degrees around the lens axis.

Rotation

360°

+20°

-20°

Both an ultra wide angle with full offset, and a standard zoom lens

makes installation placement very ﬂexible.

High resolution projection lenses

WUXGA 1080p sxga+

wide angle 0.95 : 1 0.95 : 1 1.03 : 1

standard zoom 1.6 - 2.0 : 1 1.6 - 2.0 : 1 1.70 - 2.20 : 1

±5% accuracy

Throw ratios

WUXGA 1080p sxga+

wide angle 110% (115% option) 110% (123% option) 109% (116% option)

standard zoom 110% (115% option) 110% (123% option) 109% (116% option)

±5% accuracy

Fixed lens offset

Standard bolt-on ceiling mount interface

95.2

24.238.2 38.2

54.7

79.5 3x M4 thread holes for ceiling mount ﬁxation.

regional offices

the Americas

projectiondesign LLC

295 North Street,

Teterboro, NJ 07608, USA

ph +1 888 588 1024

fx +1 201 288 1034

[email protected]

Sweden

projectiondesign as

Göteborg, Sweden

ph +47 69 30 45 50

fx +47 69 30 45 80

[email protected]

Germany, Austria, Switzerland

projectiondesign as

Stuttgart

ph +49 7153 958263

mo +49 (176) 2316 0345

fx +47 69 30 45 80

[email protected]

Southern Europe

projectiondesign as

Via Plinio 43, I-20129 Milano (MI), Italy

ph +39 02 45471864

fx +39 02 45471865

[email protected]

BeNeLux

projectiondesign as

J. A. L. J. van Meertenstraat 4

4194WL Meteren, The Netherlands

ph +31 (0) 345753314

fx +31 (0) 345753314

[email protected]

United Kingdom

projectiondesign as

Regus House, Herons Way, Chester Business Park,

Chester, CH4 9QR, United Kingdom

ph +44 (0)1244 893 231

fx +47 69 30 45 80

[email protected]

head office

projectiondesign as

Habornveien 53

N-1630 Gamle Fredrikstad, Norway

ph +47 69 30 45 50

fx +47 69 30 45 80

[email protected]

Asia

projectiondesign as

161 Kallang Way,

#04-05 Kolam Ayer Industrial Estate, Singapore 349247

ph +65 9621 7421

fx +47 69 30 45 80

[email protected]

Spain and Portugal

projectiondesign as

Gorrondatxe15, bajo A

48640 Berango, Spain

ph 34 676 266 301

fx +47 69 30 45 80

[email protected]

India, including SAARC

projectiondesign as

Mumbai

ph +91 982 061 0670

fx +47 69 30 45 80

[email protected]

South Africa, Africa, Middle East and Oceania

projectiondesign as

1 Peterhof Close

Hout Bay 7806, South Africa

ph + 27 21 79 00 018

fx +47 69 30 45 80

[email protected]

projectiondesign locations

602-0350-00

www.projectiondesign.com

change without prior notice. All values are typical and may vary. Please visit our website for latest speciﬁcations and product offerings.

Altri manuali per F12 WUXGA

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Projectiondesign Proiettore

Projectiondesign

Projectiondesign Action one mk II Manuale

Projectiondesign

Projectiondesign F1 sxga Manuale utente

Projectiondesign

Projectiondesign evo2sx+ Manuale utente

Projectiondesign

Projectiondesign cineo Manuale

Projectiondesign

Projectiondesign F12 WUXGA Manuale utente

Projectiondesign

Projectiondesign F1 sxga Manuale utente

Projectiondesign

Projectiondesign F22 Manuale utente

Projectiondesign

Projectiondesign Action three 1080 Manuale utente

Projectiondesign

Projectiondesign cineo3+ 1080 Manuale utente

Projectiondesign

Projectiondesign F1+ SXGA+ Manuale utente

Projectiondesign

Projectiondesign FS35 WQXGA Istruzioni per l'installazione e il funzionamento

Projectiondesign

Projectiondesign evo XGA Manuale utente

Projectiondesign

Projectiondesign avielo spectra Manuale utente

Projectiondesign

Projectiondesign Action one mk II Manuale utente

Projectiondesign

Projectiondesign WUXGA 1080 Manuale utente

Projectiondesign

Projectiondesign F35 Manuale utente

Projectiondesign

Projectiondesign F82 series Manuale utente

Projectiondesign

Projectiondesign three 1080 Manuale utente

Projectiondesign

Projectiondesign evo2sx+ Manuale utente

Projectiondesign

Projectiondesign F1 sxga Manuale utente

Projectiondesign

Projectiondesign one mk II Manuale utente

Projectiondesign

Projectiondesign F1+ SXGA+ Manuale utente

Projectiondesign

Projectiondesign WUXGA 720/1080 SXGA+ Manuale utente

Projectiondesign

Projectiondesign F32 Manuale utente

Manuali Proiettore popolari di altre marche

iEmmet

iEmmet MP-312 Manuale utente

Epson

Epson VS400 Manuale utente

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuale utente

Sony

Sony VPL-HW65ES Manuale di servizio

Toshiba

Toshiba TLP-791U Manuale utente

Philips

Philips LC1341 Guida di riferimento

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuale utente

NEC

NEC NP600S EDU Manuale utente

BenQ

BenQ SH753P Manuale utente

Eiki

Eiki EK-623U series Manuale utente

Epson

Epson PowerLite Pro Cinema 6020UB Manuale utente

Epson

Epson PowerLite Home Cinema 705HD Manuale utente

Christie

Christie LHD700 Manuale utente

Navitar

Navitar FX Manuale utente

InFocus

InFocus LitePro 560 Manuale utente

Sony

Sony SRX-R815P Manuale utente

Vivitar

Vivitar DP1500 X Manuale utente

Acer

Acer C20 Series Manuale utente
