F82 series

WUXGA,1080p or SXGA+ resolution

3-chip DLP® technology

up to 10 000 ANSI lumens

Advanced Color Optical Processing

Black------

Grey------

White------

Silver-------

Black------

Grey------

White------

Silver-------

Black------

Grey------

White------

Silver-------

Black------

Grey------

White------

Silver-------

F82 series

The projectiondesign F82 series of three-chip DLP® projectors is

our top professional model, and is made for large screen imaging

and the ultimate image quality for demanding users.

Markets and applications

With its brightness and numerous conﬁguration, performance and warranty options, the F82 series is made

for users with extra high requirements and expectations. It ﬁlls large screens in auditoriums, on stages or other

applications that require high brightness and the ultimate in image quality and reliability.

www.projectiondesign.com

Key features

• RealColor™ colour management provides completely unique colour management accuracy

• Full 24/7 warranty covers nearly any operating environment and installation requirement

• DynamicBlack™ gives totally unique dynamic range for a three-chip projector

• ACOP optical colour processing enables user selectable color management without loss of bit depth

• 3-chip DLP® technology provides outstanding colours and dynamics

• Comprehensive lens range designed for high resolution

• Choice of WUXGA,1080p or SXGA+ resolution options

The projectiondesign professional series of projectors

include high resolution, high performance products

designed and made speciﬁcally for graphically

challenging appllications such as scientiﬁc

visualisation, training and simulation, media and

entertainment in public displays, and other similar

applications.

Our utmost concern is customer satisfaction through

image quality and operational reliability. All professional

series projectors come with a 24/7 operation warranty,

and a wide range of conﬁguration options to ensure the

best possible application ﬁt.

series

professional

projector

www.projectiondesign.com

DLP technology

– chosen for reliability

The DLP technology from Texas Instruments® is

chosen for its unmatched reliability, and its unique

coupling with long lasting image quality. With a

widely recognised and proven reliability record and

high brightness and contrast, all whilst displaying

utterly natural colours, it is the obvious choice for

heavy duty applications that run continuously, or are

mission critical. Independent testing has proven DLP

technology to be the most reliable of all microdisplays;

not degrading when subjected to UV light, inherent in

all projectors. Unlike competing technologies, showing

severe image quality degradation after only a few

thousand hours, DLP technology remains constant

over hundreds of thousands of hours.

overview

3-chip DLP®

3-chip DLP technology is renowned for producing

formidable on-screen images, as it uses three DMD®

(Digital Micromirrod Device) imagers for strongly saturated

and accurate colours. With lots of brightness from

the 3-chip engine’s high efciency, and many options

for adjusting colour and brightness performance, the

F82 series can be tailored to suit a a vast number of

applications, focusing on large screen video centric

displays and events.

WUXGA, 1080p or SXGA+

resolution

The projectiondesign F82 can be conﬁgured with either

WUXGA, 1080p or SXGA+ resolution for computer or

video centric applications. In large auditoriums and with

large screens, where computer imaging with maximum

level of detail is a primary requirement, 1920x1200 pixels

(WUXGA) is the obvious choice and fully compatible with

the legacy 1600x1200 format. Furthermore, for video

centric applications, the 1920x1080 (Full HD 1080p)

pixel resolution perfectly ts high dention video and

data. For editing and video centric applications where

a menu line, or additional information is needed on

screen simultaneously with the unaltered 1080p video

image, WUXGA resolution gives just that. FInally, SXGA+

resolution at 1400 x 1050 pixels is perfect for multi tiled

projection applications in domes or with curved screens,

with minimum amount of overlap and wasted pixels.

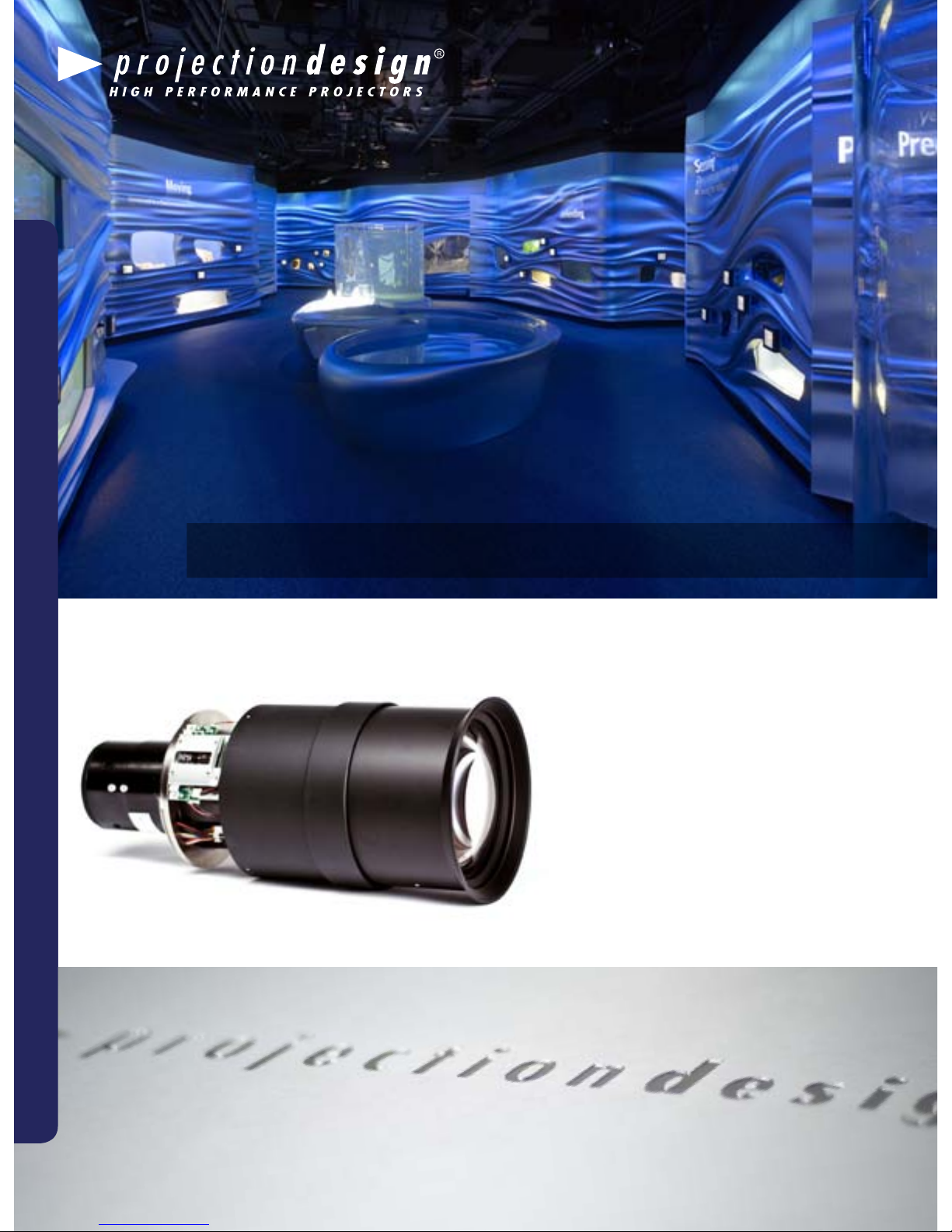

California Academy of Sciences, California, USA.

The California Academy of Sciences in San Fransisco, USA, uses more than 30 projectiondesign projectors in various configurations

Precision projection lenses

The F82 series features a wide range of custom designed, precision

projection lenses for the best image quality, and the most reliable setups.

Key features include innitely adjustable IRIS and aperture settings,

and motorized zoom, focus and lens shift with proﬁle memories for

use in multiple settings and installations with programmed calibration

and screen congurations. Most importantly, every single lens uses

Low Dispersion (LD) glass and aspherical lens elements for high quality

focusing and sharpness, as well as high optical interﬁeld contrast,

resulting in very high image quality. Unlike many competing projector

ranges, the lenses are designed and made with high resolution in mind,

not taking standard, off the shelf lenses for use in higher performance

applications. The range of lenses span from an an ultra wide angle

0.74 : 1, to a long tele zoom at 6.24 : 1, and comprises ve options.

Advanced Color Optical Processing

The F82 series projectors feature new and revolutionary projectiondesign

A wide range of lenses, from ultra wide 0.74 : 1 to 6.24 : 1 gives unique flexibility in

installations and placement of product

optics and applications

RealColor™ colour calibration

Each F82 projector is uniquely characterised and calibrated during manufacture. Unique optical performance values are

recorded and matched to the electronic image processing to secure perfect on-site calibration. With RealColor, it is possible

to match any number of projectors, and ensure they all project the same primaries and grey scale, without going through a

very complicated process. Using our ProNet 2.0 software automates this process.

What RealColor gives

RealColor provides a unique and quick way to calibrate and set up perfect images for any number of projectors. RealColor

can alter imagery by changing simple characteristics such as the colour temperature of the image – perfectly along the

black body curve, or very complex details such as each colour’s relative saturation and x,y coordiantes. RealColor works by

mathematically calculating each colour independently, in fact, it is perfect to within 0.002 along all axes of measurement.

optical color processing technology. By combining xed and motorised optical

ﬁlters for each colour channel, red, green, and blue, the projector can be

optically calibrated with near innite accuracy. It also means that by the ick of

a switch, you can change the projected colour gamut from standard computer

graphics optimised, to comply with for instance REC709 (High Denition

programming) All this without any loss of bit depth, as the compensation is

purely optical, and not electronic. Unlike competing projectors, where colour

calibration is based upon a simple yellow notch ﬁlter to change the green point

of the picture, or simply by changing electronic values, ACOP gives vastly

superior performance on all important levels.

0.9

0.8

0.5

0.3

0.2

0.1

0.6

0.7

0.90.80.50.40.30.20.1 0.6 0.7

0.4

colour management and performance

ACOP

2560

1600

Colour matching

Like all other projectiondesign professional projectors, the F82 series features numerous possibilities and alternatives for matching of several projectors, so that they all appear

and perform similarly. Actual colour matching is realised through several process steps, including that of hand selecting units that are optically similar. Additionally, colour matching

is realised using extensive features of the RealColor colour management suite, so that every single projector performs absolutely similarly. ProNet 2.0 calibration software suite

automates this process.

www.projectiondesign.com

DynamicBlack™ for outstanding dynamics

The F82 series features unmatched imaging dynamics amongst large venue

projectors. The unique DynamicBlack functionality automatically adapts to

the input histogram of the image, and adjusts so that image output contrast

is maximised at any one point in time. This creates much more dynamic

imaging, and a more involving experience. If DynamicBlack functionality

is not desired, the user can manually adjust IRIS and settings to match

a constant, desired output level, with constrast up to 15 000 : 1, and

brightness levels to match that of the desired screen size requirement.

DynamicBlack automatically adjusts output to the input signal, and maximises available contrast in the image.

The result is unmatched dynamic performance

ACOP

2560

1600

revolutionary

colour

performance

Original lamp with projectiondesign optimised fixture mechanics

Low Total Cost of Ownership

Thanks to its complex and robust build and

construction, the F82 series requires very little

maintenance and in-life maintenance. There are no

user serviceable parts, and it does not have any

ﬁlters or other parts that need periodical replacement.

That means it does not require a costly and high

frequency maintenance contract. At the same time,

and compared to similarly performing xenon high

power lamps, lamp replacement cost is low*, and

typical lamp life is long. In total, a very cost effective

projector over time, resulting in low and predictable,

cost of ownership.

* When replacing lamps, it is advised to use only original

parts and accessories, as non original aftermarket lamps

may reduce performance, damage the projector, and void

warranties.

Low Frequency Maintenace programme

Our Low Frequency Maintenance programme can be set to automatically notify of required services and maintenace.

When run continuously, moving parts such as fans and colour wheels require periodic replacement in order to secure

and enable heavy duty and uninterrupted operation. With the F82, the shortest duty cycle of any one component – run in

full power mode, is as long as 8000 hours, meaning a full year’s operation in 24/7 without maintenance. Add to that hot

swappable lamps, and you have a projector that simply does not need to be turned off, running either in automatic lamp

relay mode, or even with two lamps at any power setting around the clock.

Designed for full 24/7 operation

All projectiondesign professional projectors feature full

24/7 operation warranties. That means they are designed

to operate continuously. There is no ﬁne print. Designing

for 24/7 operation requires a lot of attention to detail.

Some technologies are better than others when it comes

to withstand the abuse of time. We use only components

that have predictable behaviours, for instance fans,

colour wheel motors, and electronic components that

are designed by their respective manufacturers to do

the same - withstand time. There are no off-the-shelf

components. That is why we also closely monitor

the creation of every detail, apply dedicated thermal

management, and use speciﬁc materials in all parts of the

process.

applications and features

Black------

Grey------

White------

Silver-------

Black------

Grey------

White------

Silver-------

Black------

Grey------

White------

Silver-------

Black------

Grey------

White------

Silver-------

Changing lamps is easily done from the side of the projector

ACOP

2560

1600

www.projectiondesign.com

projectiondesign in-house EMC lab

In-house acoustics lab

Every single F82 projector is rigorously tested, and

characterised in-house. We keep test records and

performance statistics for every single unit. Also, as we put

our pride into making great projectors, they are not passed

down an automated production line, but enjoy the careful

management of people at all stages of their manufacture.

That also means we are personally responsible for all of

them. In addition, every single projector is made to specic

order. The conﬁguration ordered is the conﬁguration built,

and only existing in that particular installation.

immaculate

process

management

In house development and

process management

Every single part of the F82 series projectors is

developed, rigorously tested, and veried in-house

at projectiondesign. With more than 800 models and

variations of projectors in regular manufacture, test,

research and verication facilities include everything from

acoustical analysis labs, to a full featured FCC certied

EMC lab, environmental labs for lifetime and operational

testing, such as temperature variations and testing of

vibration resistance, as well as our own optics lab and

various test and demo facilities.

www.projectiondesign.com

RoHS compliant PCB assembly line

F82 series undergoing vibration testing

projectiondesign warehouse is completely automatic

Extensive input compatibility

Two discrete digital inputs, HDMI and DVI-D enables simple and source switching setups in smaller installations. Both inputs feature HDCP - High bandwidth Digital Content

Protection. The F82 also features legacy formats such as RGBHV over VGA, and a 5-BNC input, in addtion to standard video formats. Importantly, the F82 features a

projectiondesign unique interface, XPort™, for connection to third party modules, as well as standard modules provided by projectiondesign. An HD-SDI module is available from

projectiondesign.

ProNet 2.0 asset management and calibration

Adding to the serviceability and in-life monitoring features, projectiondesign ProNet 2.0 asset management suite can be set up to monitor and report on an unlimted number of

projectors in a dedicated or corporate network, in a single site, or in multiple sites. ProNet 2.0 monitors every single aspect of the projector, from individual lamp and fan status, to

operating hours, use statistics, and any other related information. ProNet 2.0 offers ProNet.calibrator which extends features to simplify and automate colour matching and projector

calibration.

ProNet.enterprise

ProNet.site 1

ProNet.site n

ProNet.site 2

ftp

service

www.projectiondesign.com

fundamentals

www.projectiondesign.com

fundamentals

Black------

Grey------

White------

Silver-------

Black------

Grey------

White------

Silver-------

Black------

Grey------

White------

Silver-------

Black------

Grey------

White------

Silver-------

techncal speciﬁcations

Technical speciﬁcations

projector DLP® digital projector

display technology 3-chip DMD™ (Digital Micromirror Device™) connectivity computer 1x HDMI (1.3)

concept sealed, all-glass optical design with lens shift 1x DVI-D

available resolutions 1920 x 1200 1920 x 1080 1400 x 1050 1x 15-pin DSUB

brightness centre lumens 10000 10000 10000 1x BNC x5

REC709 7000 7000 7000 video 1x HDMI (v1.3) (HDCP)

1x DVI-D (HDCP)

contrast ratio up to 15 000 : 1 (on/off) (automatically adaptive) 1x RCA x3 YUV

colours 30-bit 1x 4-pin mini DIN Y/C

colour management accuracy ± 0.002 on x, y, z axes 1x RCA composite video

image processing latency ~ 22 ms on graphics port control and communication 1x RJ45 TCP/IP network port

input signal compatibility computer up to 1920 x 1200 pixels 2x RS232 9-pin DSUB (in / out)

RGBHV, RGBS, RGsB 1x USB – mouse control & ﬁrmware upgrade

horizontal scan frequency 15 - 150 kHz 2x 12V (60mA) triggers (screen drop / aspect)

vertical scan frequency 48 - 190 Hz 1x RC repeater, 3.5mm mini jack

video HDTV (1080i, 720p, 576i/p, 480i/p) other 2x conﬁgurable XPort™ (front- / back end)

NTSC 3.56/4.43, PAL BGHI, M, N, SECAM supplied accessories cables 4m power cord (country dependant)

bandwidth 205 MHz analog RGB other backlit IR remote control

165 MHz digital RGB (DVI or HDMI) product documentation

optics available lenses ﬁxed focal ultra wide angle EN22 (503-0172-00) general dimensions (dwh) 505 x 604 x 250 mm (ex. lens)

ﬁxed focal wide angle EN23 (503-0173-00) weight about 24 kg (net, ex. lens)

standard zoom EN21 (503-0136-00) about 38 kg (shipping)

short tele zoom EN24 (503-0174-00) environmental RoHS, WEEE

short tele zoom EN26 (503-0176-00) security 4-digit PIN code, Kensington lock

focusing distance 0.7 - 20m power requirements 12.5A or 6.5A, 100-120V or 200-240V, 50-60Hz

optical lens shift vertical and horizontal <1050W power consumption

EN22 on axis only BTU/hr <2900

lens iris control F/2.1 – 6.5 for all lenses, continuously adjustable conformances CE, CSA cUL, FCC Class A, CCC

DynamicBlack™user adjustable operating temperature 10 – 40ºC / 32 – 104ºF, 0 – 1500 m

shutter mechanical 0 – 35ºC / 32 – 95ºF, 1500 – 3000 m

ACOP colour ﬁlters standard RGB operating and storage 20 – 90% RH

motorised REC 709 available colours soft touch rubber black matte

warranties standard 2 years, full 24/7 operation

lamp 2 x 330W UHP™ 500 hours or 90 days on lamp

lamp life 2000 hrs (max typical) (5000 hrs in eco relay mode) up to 5 years total extended warranty available.

replacement lamp part no. 400-0700-00 conditions apply.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Projectiondesign Proiettore

Projectiondesign

Projectiondesign WUXGA 720/1080 SXGA+ Manuale utente

Projectiondesign

Projectiondesign cineo Manuale

Projectiondesign

Projectiondesign F3 xga Manuale

Projectiondesign

Projectiondesign Action three Manuale utente

Projectiondesign

Projectiondesign F10 AS3D Manuale utente

Projectiondesign

Projectiondesign F22 Manuale utente

Projectiondesign

Projectiondesign FS35 WQXGA Istruzioni per l'installazione e il funzionamento

Projectiondesign

Projectiondesign F1+ SXGA+ Manuale utente

Projectiondesign

Projectiondesign F35 Manuale utente

Projectiondesign

Projectiondesign FS33 IR Manuale utente

Projectiondesign

Projectiondesign cineo3+ 1080 Manuale utente

Projectiondesign

Projectiondesign WUXGA 1080 Manuale utente

Projectiondesign

Projectiondesign Action one mk III Manuale

Projectiondesign

Projectiondesign F3 xga Manuale utente

Projectiondesign

Projectiondesign F1+ SXGA+ Manuale utente

Projectiondesign

Projectiondesign FR12 Manuale utente

Projectiondesign

Projectiondesign avielo spectra Manuale utente

Projectiondesign

Projectiondesign Action one mk II Manuale

Projectiondesign

Projectiondesign Action three 1080 Manuale utente

Projectiondesign

Projectiondesign evo XGA Manuale utente

Projectiondesign

Projectiondesign F85 Manuale utente

Projectiondesign

Projectiondesign F10 AS3D Manuale utente

Projectiondesign

Projectiondesign F1 sxga Manuale utente

Projectiondesign

Projectiondesign F82 WUXGA Manuale utente

Manuali Proiettore popolari di altre marche

iEmmet

iEmmet MP-312 Manuale utente

Epson

Epson VS400 Manuale utente

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuale utente

Sony

Sony VPL-HW65ES Manuale di servizio

Toshiba

Toshiba TLP-791U Manuale utente

Philips

Philips LC1341 Guida di riferimento

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuale utente

NEC

NEC NP600S EDU Manuale utente

BenQ

BenQ SH753P Manuale utente

Eiki

Eiki EK-623U series Manuale utente

Epson

Epson PowerLite Pro Cinema 6020UB Manuale utente

Epson

Epson PowerLite Home Cinema 705HD Manuale utente

Christie

Christie LHD700 Manuale utente

Navitar

Navitar FX Manuale utente

InFocus

InFocus LitePro 560 Manuale utente

Sony

Sony SRX-R815P Manuale utente

Vivitar

Vivitar DP1500 X Manuale utente

Acer

Acer C20 Series Manuale utente
