Promate Globo-2 Manuale utente
User Guide
Globo-2
Universal Bluetooth
®
3.0 Mini-Speaker
with In-built Mic and Vacuum Base
B
u
i
l
t
i
n
M
i
c
Handsfree
On The Go
Thank you for purchasing Promate Globo-2, the penultimate mini Bluetooth® v3.0
speaker. An aesthetically designed wireless speaker that provides superior quality
wireless music along with pristine quality call streaming with its noise cancellation
mic. Globo-2 features a suction mount that attaches onto any smooth surface to
transform it into a stand for your smartphone or tablet. Globo-2, can be placed
anywhere; in the car, on your desk or window, presented in a modern range of
colors that will brighten up your style.
Introduction
•Bluetooth® Version: v3.0
•Input Power: 5V, 1A
•Output Power: 3W
•Impedance: 4 Ohms
•Speaker frequency: 150-18KHz
•Signal-to-noise ratio: ≥80dB
•Charging time: 2 Hours
•Playing time: 4 Hours (approx.)
•Battery capacity: 400mAh
•Operating distance: 10 meters
•Battery type: Lithium-ion
Specification
•Mini Bluetooth® v3.0 speaker
•Built-in crystal clear quality Mic
•Superior quality call and music streaming
•On board call and volume controls
•Quick pairing capability
•Secure suction mount
Features
•Globo-2
•Micro-USB cable
•User Guide
•Warranty Card
Packing Contents
Appearance & Interface Description
1
2
3
4
5
1. Speaker
2. Microphone
3. Multifunction Button
4. Volume + /Toggle Forward Button
5. Volume - / Toggle Backward Button
6. Micro-USB Input
7. Power Switch
Side View
Zoom View
6 7
USB ON OFF
USB ON OFF
1. Connect Globo-2 to a PC/Laptop/Mac or 5V USB adaptor (not included) with the USB
cable included.
2. Red LED turns ON during charging, turns OFF after the device is fully charged.
3. Red LED twinkles when the device has low power.
Operation Instructions:

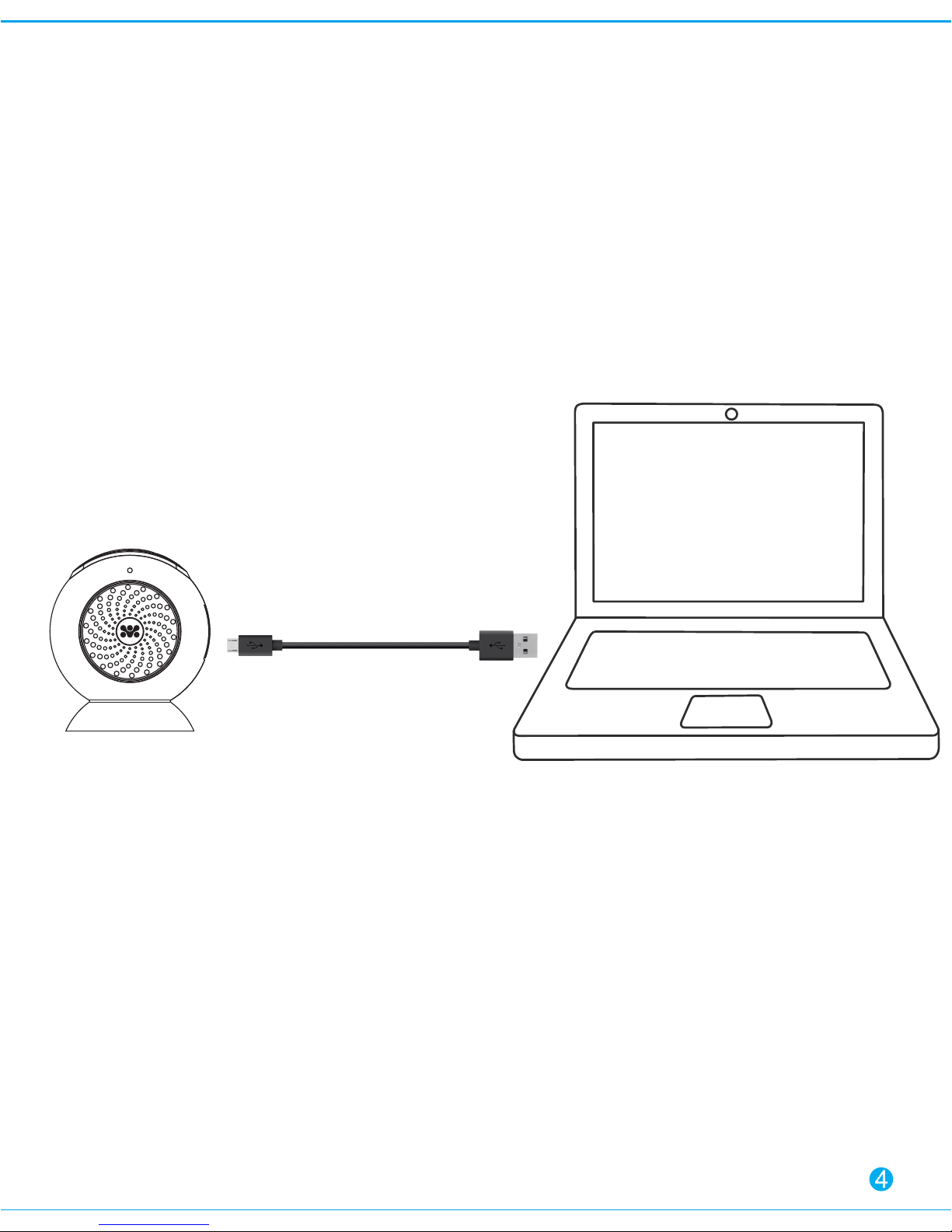

Charging Globo-2
1. Turn on Globo-2 using the power switch.
2. Press and hold the Multifunction button for a few seconds.
3. The blue LED starts blinking, the speaker is standby for pairing.
4. Turn on the Bluetooth function on your phone and search for “Globo-2” in the
available device list.
5. Pair the device to your phone using the passkey (0000)
6. After successful pairing, LED changes to solid Blue.

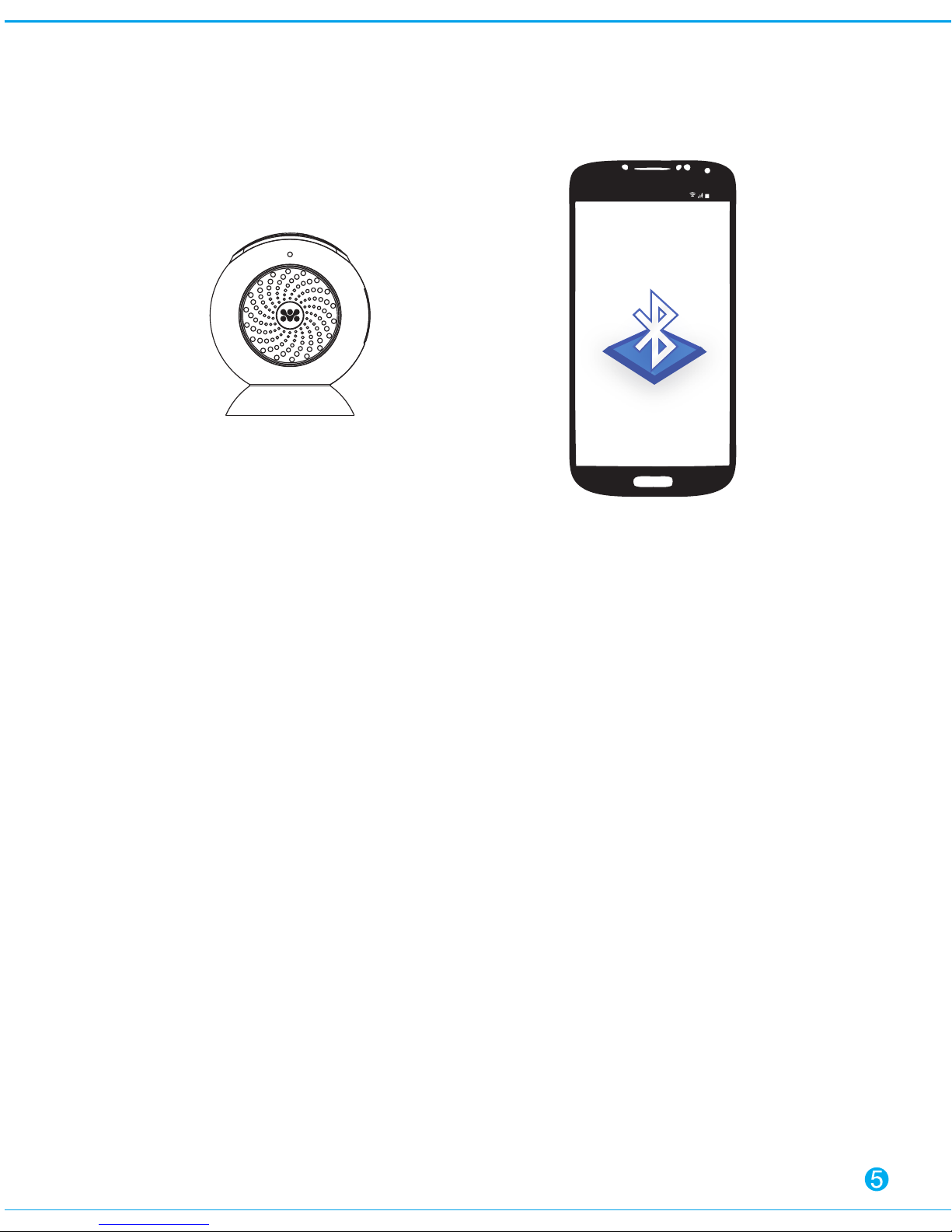

Paring Globo-2 with mobiles (Bluetooth enabled) and Tablets.
1. Connect Globo-2 to a PC/Laptop/Mac or 5V USB adaptor (not included) with the USB
cable included.
2. Red LED turns ON during charging, turns OFF after the device is fully charged.
3. Red LED twinkles when the device has low power.
1. Turn on Globo-2 using the power switch.
2. Press and hold the Multifunction button for a few seconds.
3. The blue LED starts blinking, the speaker is standby for pairing.
4. Turn on the Bluetooth function on your phone and search for “Globo-2” in the
available device list.
5. Pair the device to your phone using the passkey (0000)
6. After successful pairing, LED changes to solid Blue.
1. Turn on Globo-2 using the power switch.
2. Press and hold the Multifunction button for a few seconds.
3. The blue LED starts blinking, the speaker is standby for pairing.
4. Run Bluetooth program on your system.
5. Turn on the Bluetooth function on your system and search for “Globo-2” in the
available device list
6. Pair the device to your system using the passkey (0000)
7. After successful pairing, LED changes to solid white

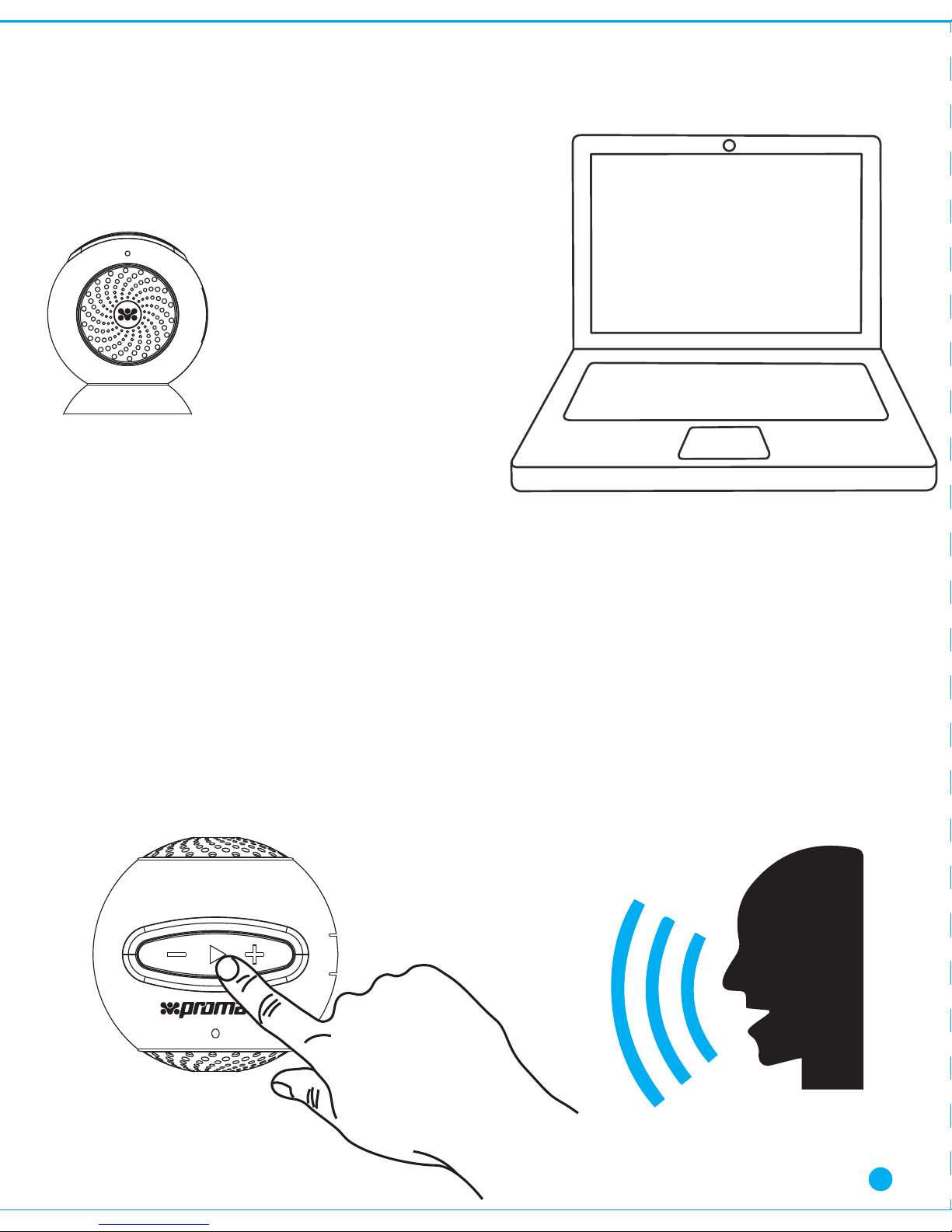

Paring Globo-2 with PC or notebook
)
)
)
)
)
)
)
)
)
)
1. Turn on Globo-2 using the power switch.
2. Press and hold the Multifunction button for a few seconds.
3. The blue LED starts blinking, the speaker is standby for pairing.
4. Run Bluetooth program on your system.
5. Turn on the Bluetooth function on your system and search for “Globo-2” in the
available device list
6. Pair the device to your system using the passkey (0000)
7. After successful pairing, LED changes to solid white
1. Short press the Multifunction button to answer the phone call.
2. Short press the Multifunction button again to end a call.
3. Long press the Multifunction button to refuse a call.
4. Double press the Multifunction button to re-dial the last dialed phone number
Answering Calls
)
)
)
)
)
)
)
)
)
)
6
Please read all safety instructions and warnings thoroughly before using this
product. Improper use of this product may result in damage to this or attached
products.
• Do not disassemble the device or attempt to fix it.
• Kindly use the included Micro-USB Cable to charge the product.
• Do not attempt to replace any part of this case or battery inside.
• Do not crush, puncture or dispose of in fire.
• Do not store or use the battery in a high temperature environment, including
intense sunlight or heat.
• Avoid excessive drops, bumps, abrasions and impacts.
• If there is any reason to believe that there is internal damage to the device,
discontinue use immediately.
• If you find that the device is too hot, is emitting and odor is deformed, punctured
or exhibits any suspicious or abnormal behavior, discontinue use immediately
Precautions
Control volume via the paired device or using the Volume + or Volume - buttons on the
device.
Volume control
7
Please read all safety instructions and warnings thoroughly before using this
product. Improper use of this product may result in damage to this or attached
products.
• Do not disassemble the device or attempt to fix it.
• Kindly use the included Micro-USB Cable to charge the product.
• Do not attempt to replace any part of this case or battery inside.
• Do not crush, puncture or dispose of in fire.
• Do not store or use the battery in a high temperature environment, including
intense sunlight or heat.
• Avoid excessive drops, bumps, abrasions and impacts.
• If there is any reason to believe that there is internal damage to the device,
discontinue use immediately.
• If you find that the device is too hot, is emitting and odor is deformed, punctured
or exhibits any suspicious or abnormal behavior, discontinue use immediately
Control volume via the paired device or using the Volume + or Volume - buttons on the
device.
