High End Sound Systems designed, and manufactured in Sweden
MF10(A)
2-way 10” / 1”- (Self-Powered / Bi-amped ) Multi Purpose speaker
The PROPHON MF10 is a lightweight, two-way Bi-amped or self-powered Multi Purpose speaker with a 10”-Neodymium
woofer, and a 1”-compression driver mounted on an exponential turnable horn with a 60o 90o dispersion.
MF10 is one of the most versatile speakers on the market, with an abundance of features.
The MF10 was designed to be a true companion on the road, and can be used as a monitor, frontll, sidell,
downll, delay, stand alone unit, mid/high with a Self-powered subwoofer in an active system
(Prophon B18HPA, B2A, B1HPA), please see separate datasheet for our self-powered range of subwoofers.
The frequency responce was carefully designed to be neutral and ”open” to ensure an uncolored sound reproduction.
So wether using for recorded music, live applications or speach, the MF10 will reproduce the sound as it sounds without adding or
subtracting vital information.
In short, the MF10 is all you need in a multi purpose, fullrange speaker!
MF10A are avaliable in passive version, bi-amplied with external amplier or self-powered with built in 700W class-D amplier.
The self-powered version have a huga advantage with a built in 700W amplier with on board DSP.
Active, self-powered version
TheMF10A houses a 700W Amplier with on-board DSP.
Neutrik XLR in / out for signal
Neutrik Powercon in / out for power
Four presets with different setting depending on application (push the ”preset select” for changing setup)
Preset4) High-Pass lter2 @ 95Hz, the same frequency responce as preset2, but cut at 95Hz,
for use as a stage monitor or as a top in an active sound system with subwoofers.
Preset3) High-Pass lter1 @ 95Hz, for use as a stage monitor
or as a topp speaker in an active system with subwoofers.
Preset2) Extended fullrange, for use as ”stand-alone” sound system,
with extended fullrange frequency responce.
Preset1) Fullrange, using this preset the active version has the same frequency responce
as the passive / bi-amped.
FEATURES
- Volume control (self-powered)
- Built in limiter (self-powered)
- Top Hat for use eith speaker stand or wall mount bracket.
The top hat can be changed to a M10 plate for using ightare or installation bracket (see picture)
- Monitor angle for use as a high power stage monitor
- The handle is hidden when using as a monitor, for best visual experience.
- fully covering, protective perfored steel grille, with minimum air ow resistance
- fully covering protective speaker foam.
- Painted with a specially developed 2-component hardened paint.
- Rails for protecting against damage when using as a stage monitor.
MF10 / MF10A
Manual / User guide / Technical data sheet
Technical data MF10(A):
Model MF10, Passive Bi-amped
MF10A, active, self-powered
Low frequency driver 1 x 10” Neodymium woofer, 2,5”-
voice coil,
High frequency driver 1 x 1”- throat exit driver,
with 1,7”- voice coil mounted on an
exponential horn.
Construction Bi-amped, passive crossover,
Tuned bassreex
Sensitivity 99 dB@1W/1m.
Nominal impedance 8 ohm
Power handling R.M.S. 300W
Power Handling cont. 600W
Max SPL, open space (calc.) 127 @ 600W
frequency responce +/- 6dB 50Hz - 19kHz
Vertical dispersion -6dB 60o
Horisontal dispersion -6dB 90o
Measurements H x W x D mm. 460 x 335 x 295
Weight passive: 11,5 kg. Active: 12,6
Recommended crossover
in an active system with
subwoofers
HP@100Hz, 48dB/oct
Recommended Amplier PROPHON P3000, P1300,
P3000DSP
Recommended pre-
programmed DSP processors
PROPHON DSP260,
PROPHON DSP480
Recommended Powerage 300W - 600W
Connections
(bi-amped version)
2 x Neutrik Speakon
1+ /1- Input / through
2+ / 2- Link
Applications - Fixed Installations.
- Live performances.
- Monitor.
- Fullrange speaker
- Mid/high in a PA- system with
subwoofer
Accessories - Transportation case
- Flightware for rigging
Extended Technical data
Active version:
Built in amplier 700W @ 8 ohm
Input Neutrik XLR female
Out / Through Neutrik XLR male
Power chord in Neutrik Powercon
blue in / grey out, (Max 7A, 1600W)
volume control mute to +6dB
DSP PRESETS Four DSP PRESETS
4) TOP / MONITOR 2 (HP-FILTER2)
3) TOP / MONITOR 1 (HP-FILTER1)
2) EXTENDED FULLRANGE
1) FULLRANGE
Power 115V-230V +/- 15%, 50-60Hz

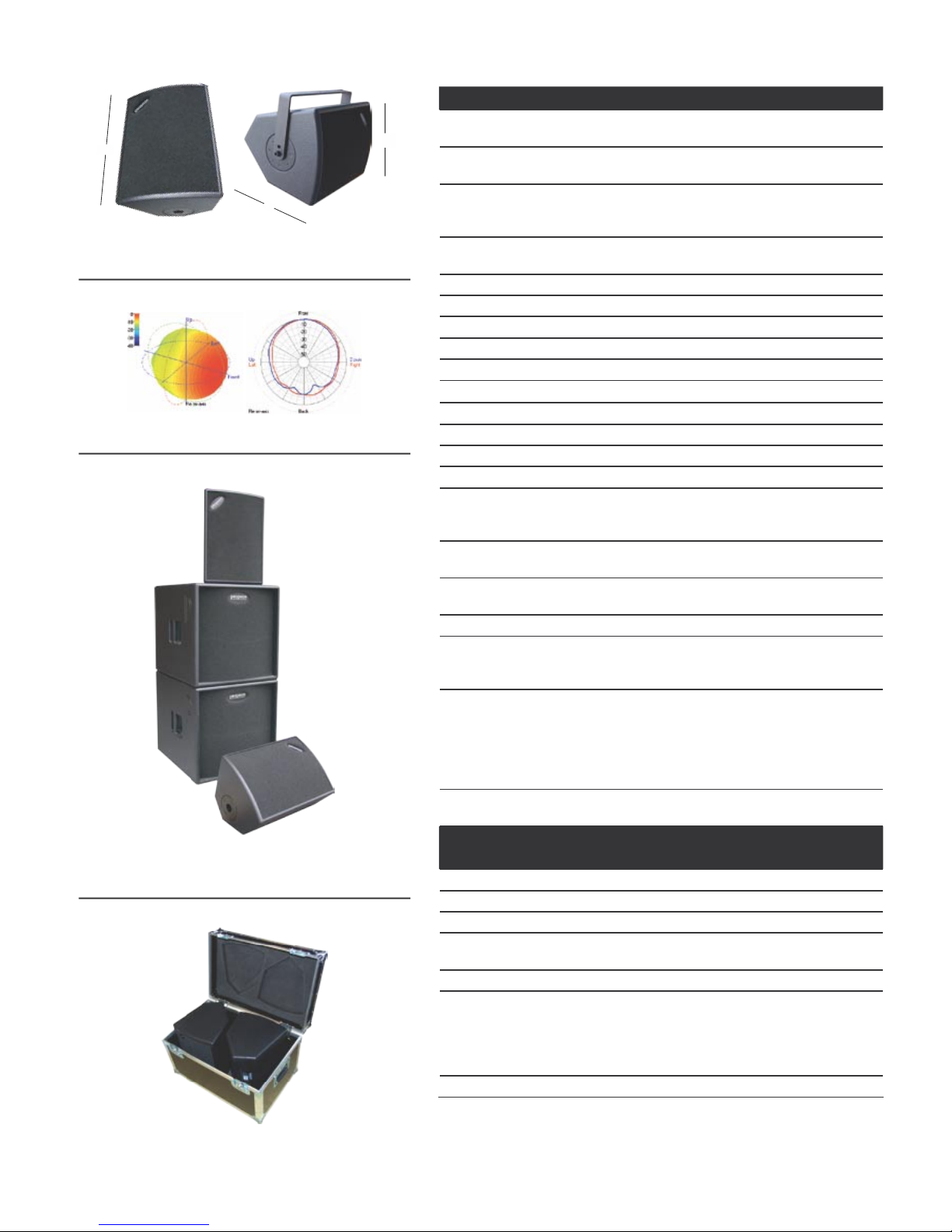

H
D
W
Dimensions
Dispersion pattern, 3D and 2D
2 x MF10 in an active sound system,
with 2 x B1HPA self-powered subwoofers.
Transportation case for 2 x MF10
(case for 4 x MF10 are also avaliable)
Prophon Audio & Teknik AB,
Stockholm, Sweden,
All data subjects to change without prior notice
Tel: +46 8 92 86 00, Fax: +46 8 623 07 98, Mail: [email protected], web: www.prophon.com
