Prorack K121 Manuale utente

K121

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 4 x 4 x 4 x 4

Revision No: 3C 1

Fitting Kit K121

MAX kgs (lbs)

W/P WHD

Nissan

Primera, 4dr Sedan 97-01 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

Primera, 4dr Sedan Jul 97-01 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

2

Fitting Kit K121

X

A B C 1 2 3

Primera, 4dr Sedan 97-01 (ZA) -320mm 280mm - 776mm 758mm -

-12 -5/8ths" 11" - 30 9/16ths" 29 13/16ths" -

Primera, 4dr Sedan Jul 97-01 (NZ) -320mm 280mm - 776mm 758mm -

-12 -5/8ths" 11" - 30 9/16ths" 29 13/16ths" -

3

Fitting Kit EN

K121

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

4

Fitting Kit EN

K121

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

5

Fitting Kit EN

K121

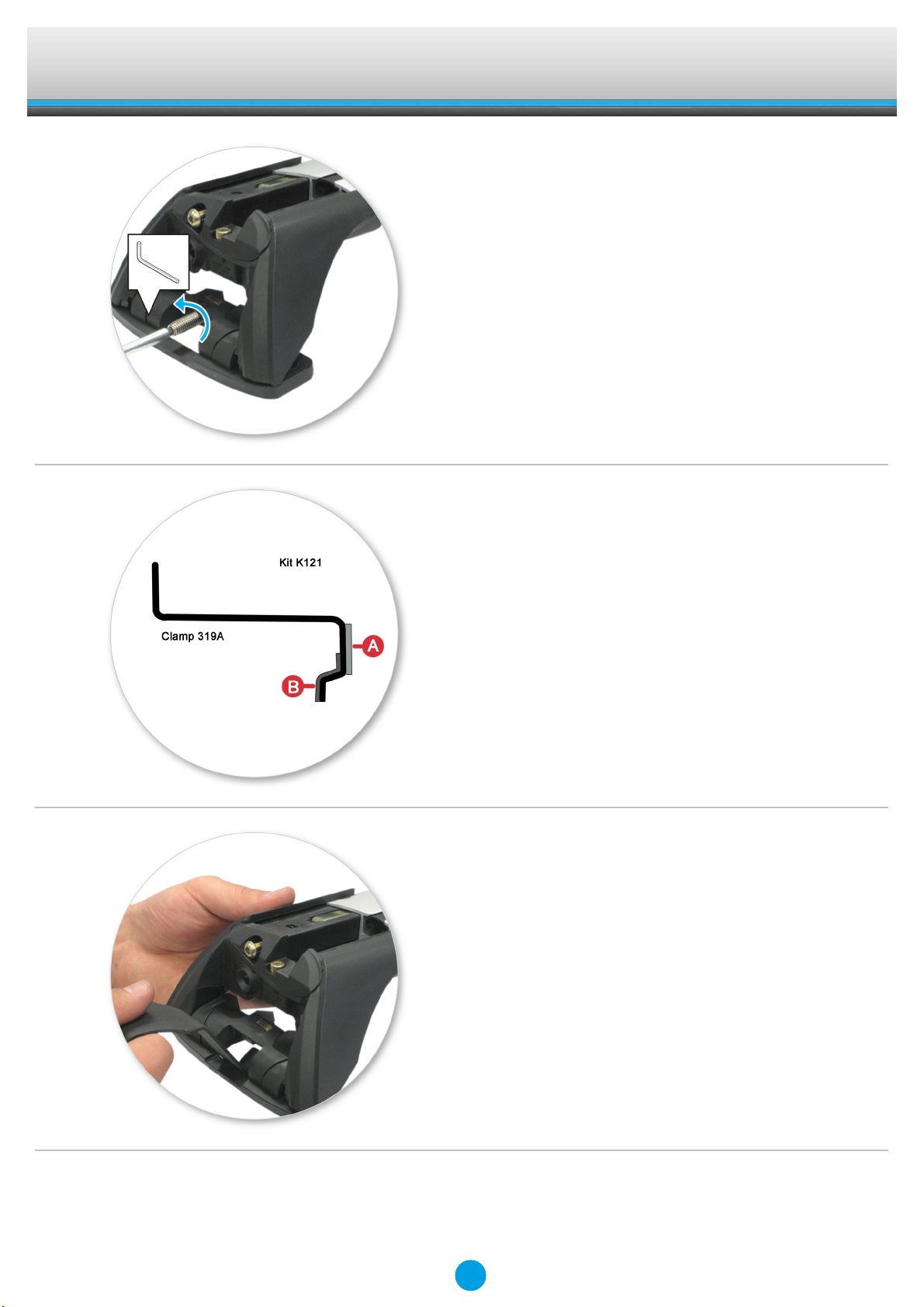

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●A = Grey

B = Black

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

6

Fitting Kit EN

K121

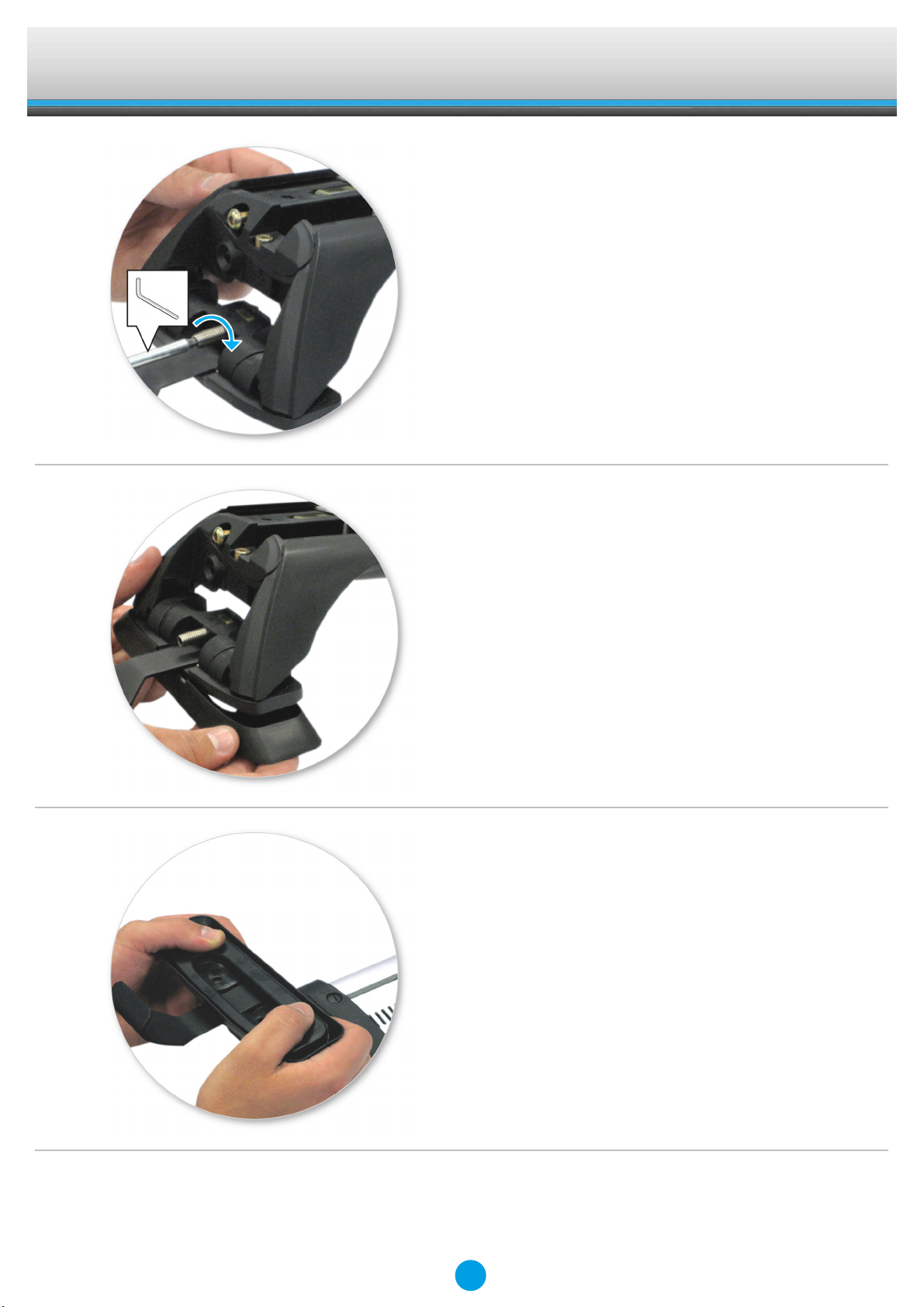

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●Fit rubber pads (supplied with fitting kit) to

foot.

●Make sure the pad fits into the holes

underneath the foot.

7

Fitting Kit EN

K121

Fitment

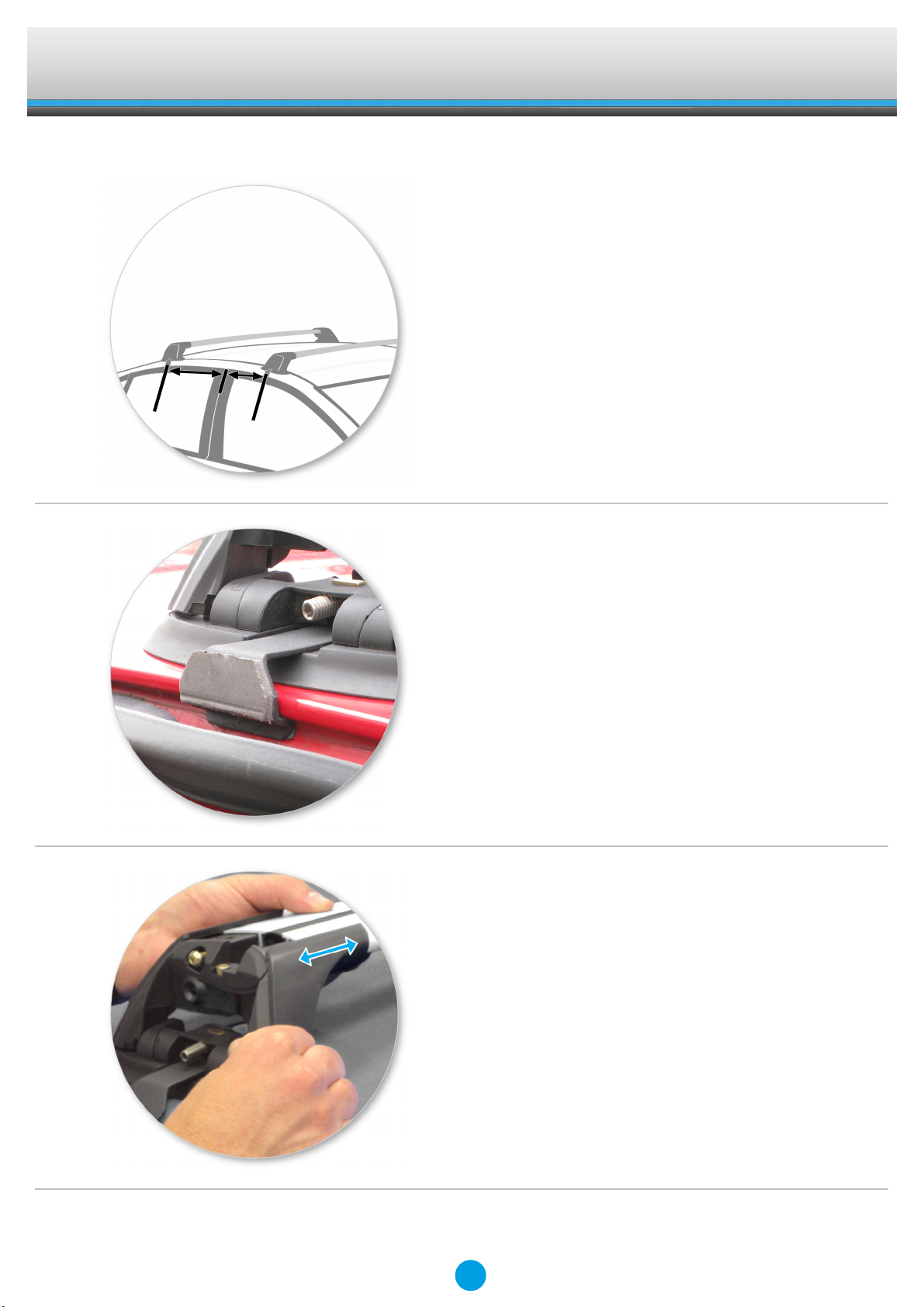

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Clamps directly to edge of roof under the

doors

●Press adjusting screw to adjust the leg

positions on the crossbar.

8

Fitting Kit EN

K121

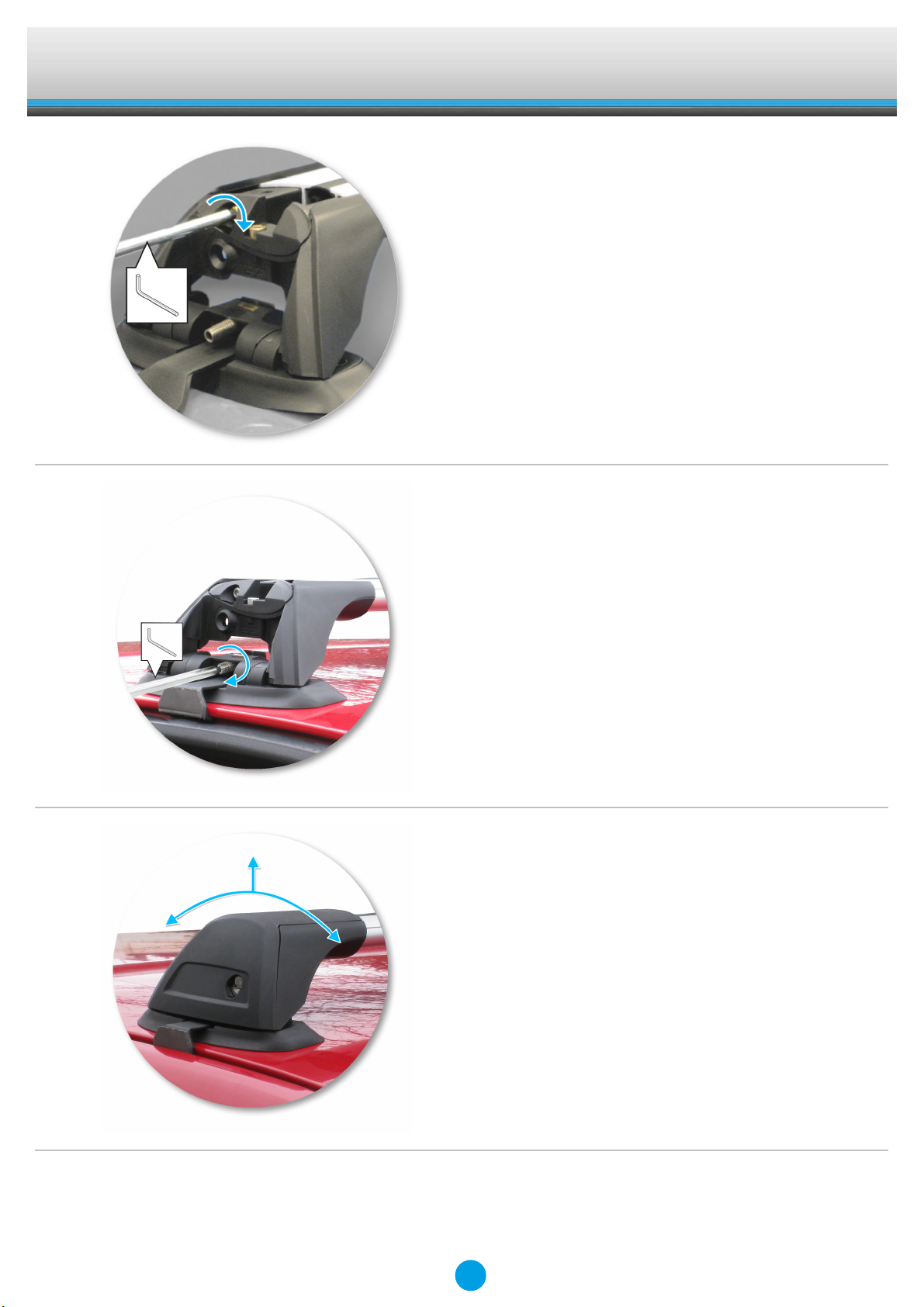

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

●Tighten locking screw on both legs evenly.

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

9

Fitting Kit EN

K121

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.

10
