EN Fitting Instructions for Basic Carrier

x 4 x 4 x 4 x 4

Revision No: 5E 1

Fitting Kit EN

K327

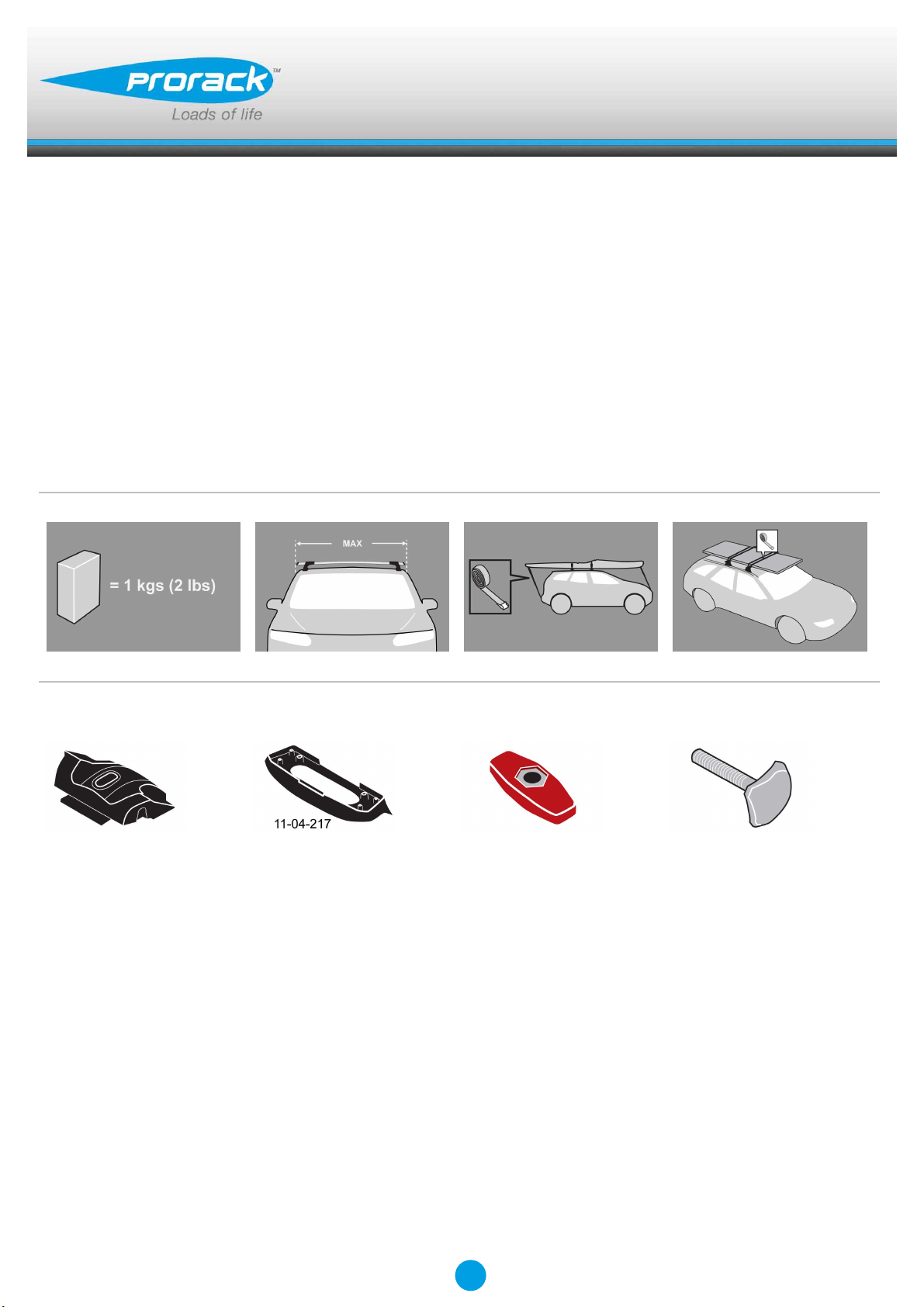

Items you will require:

●Tape measure

Pen

Flat-head screwdriver

Craft knife

Side cutters or tin snips

Hammer

8mm (3/8") punch

Cordless drill

Depth stop

Vacuum cleaner

Rust inhibitor

Small paint brush

Neutral cure silicon sealant

Rivet gun

Attention:

●Attaches with permanent tracks riveted to

roof. Bar can be removed

●Professional installation recommended.

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

Fitting Kit EN

K327

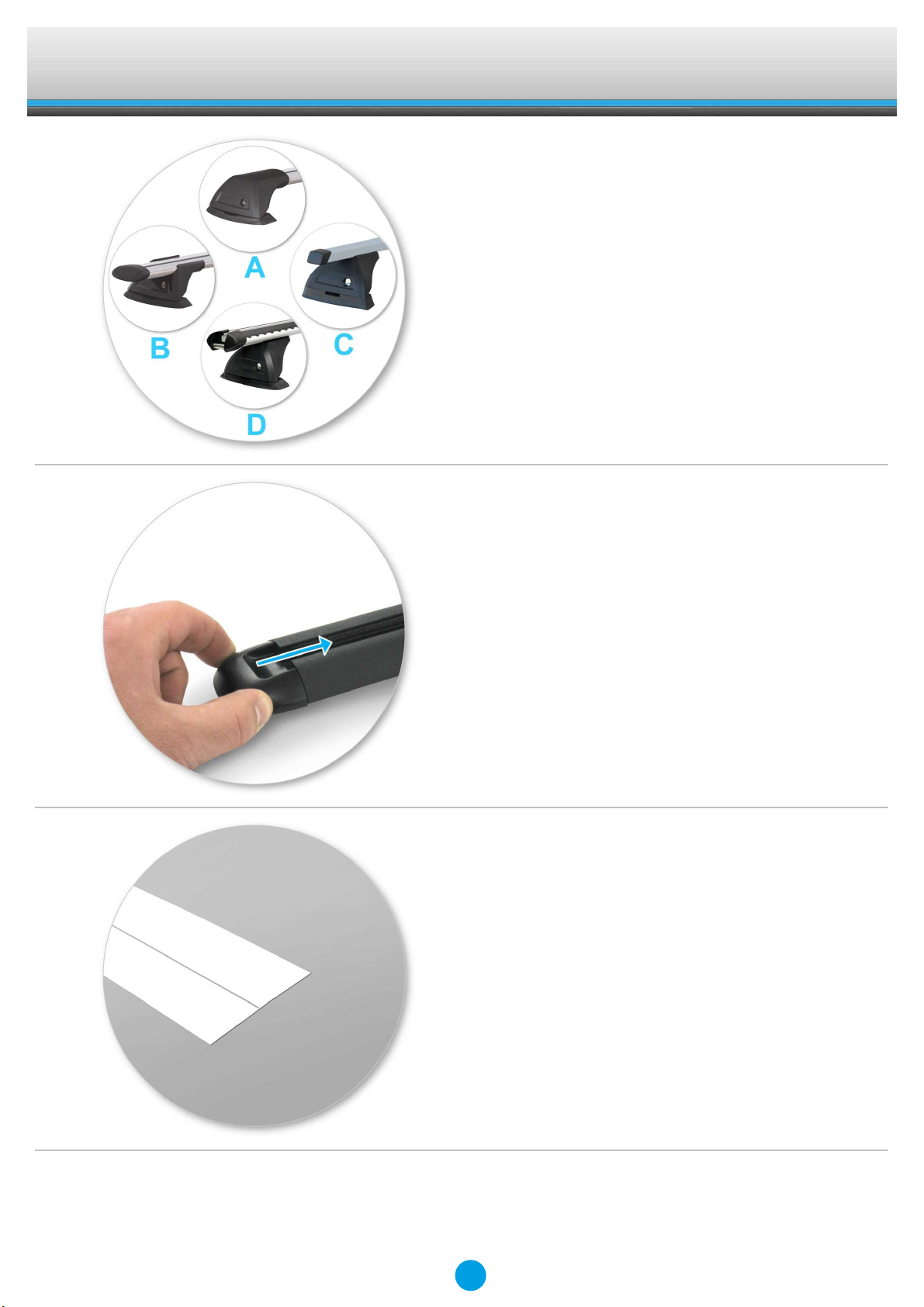

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Assemble front and rear plugs to tracks.

Note: Rear plug shown in picture.

●Carefully select position on vehicle roof

making sure that your crossbar lengths will

match selected positions for the tracks.

●Apply long lengths of masking tape to

vehicle roof in both positions.

●Make sure there is no interference between

what you intend to carry with aerials,

sunroof or tailgate.

Fitting Kit EN

K327

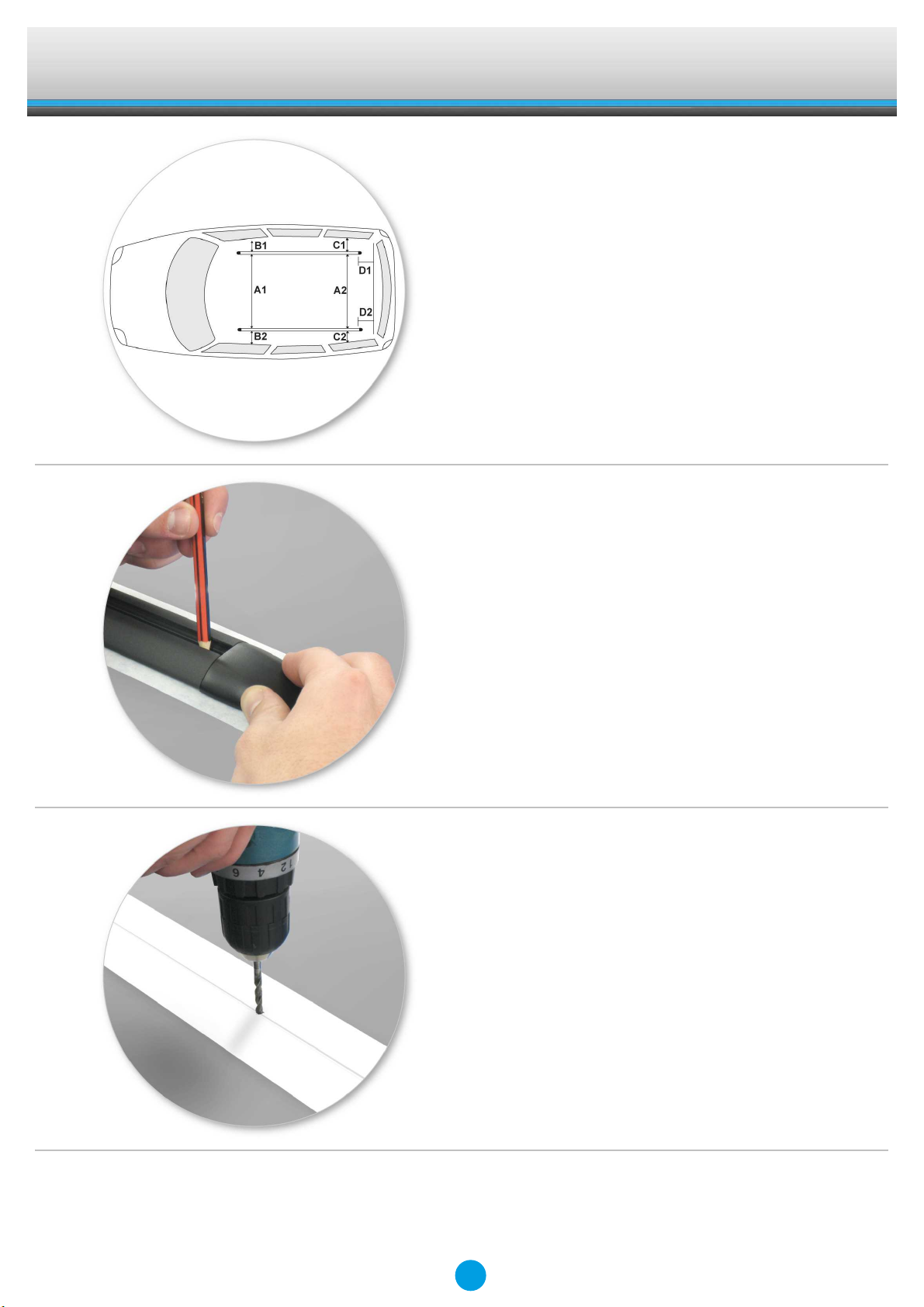

●Tracks can be fitted either parallel or

tapered to match vehicle roof shape.

●Parallel Tracks:

A1 & A2 are equal

B1 & B2 are equal

C1 & C2 are equal

D1 & D2 are equal

●Tapered Tracks:

A1 & A2 are different

B1 & B2 are equal

C1 & С2 are equal

D1 & D2 are equal

●With help from another person, carefully lay

tracks over the masking tape and mark

rivet hole positions with a pencil or pen.

●Take care not to move the tracks until the

holes are marked out.

●Use drill bit supplied, to drill rivet holes in

marked positions.

●Take care not to drill too deep.

●Vacuum and clean swarf from channel.

●Treat holes to prevent corrosion.

Fitting Kit EN

K327

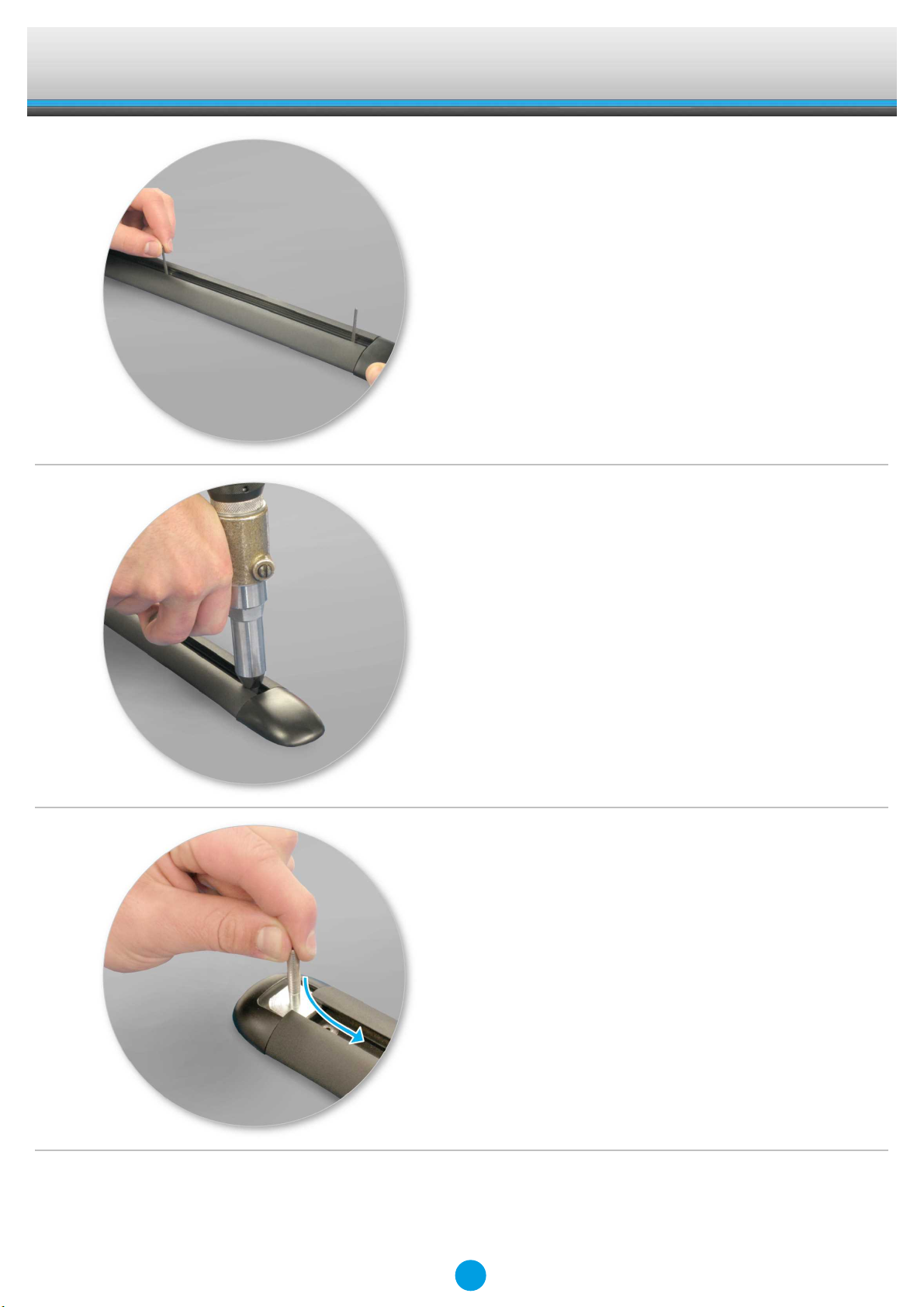

●Remove masking tape and apply silicon

sealant around drilled holes.

●Sit tracks on roof and line up tracks with

drilled holes.

●Insert rivets through the tracks and into

drilled holes.

●Fit pop rivet nozzle supplied with tracks to

your rivet gun.

Note: It is a standard thread to fit most rivet

guns. Use low pressure on air rivet guns.

●Ensure that the front plugs are at the front

of the track and rear plugs at the rear.

●Rivet tracks to roof.

●Slide metal T-bolt into the track channel via

the entrance on the rear end plug. Two per

track.

Fitting Kit EN

K327

Fitment

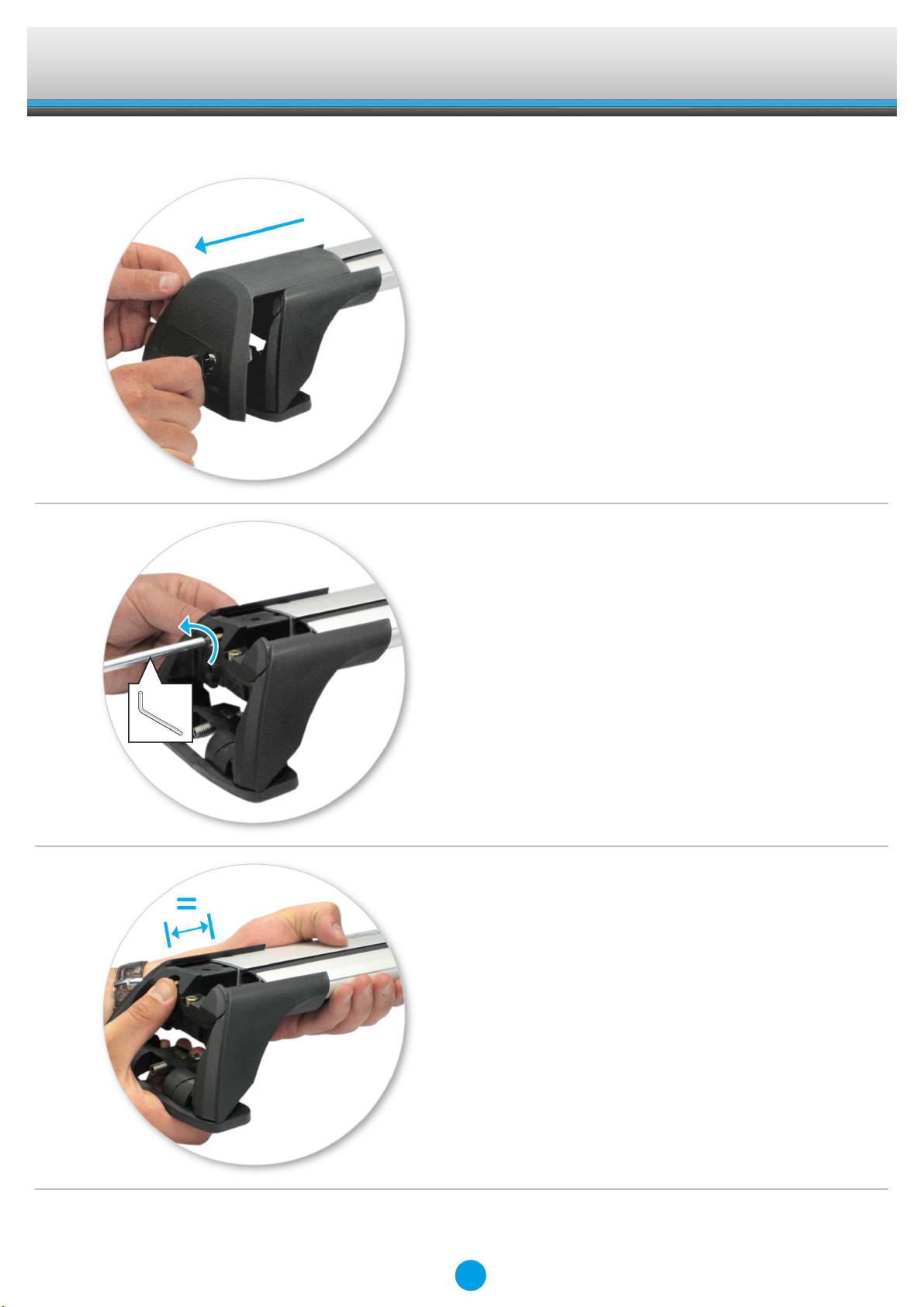

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

Fitting Kit EN

K327

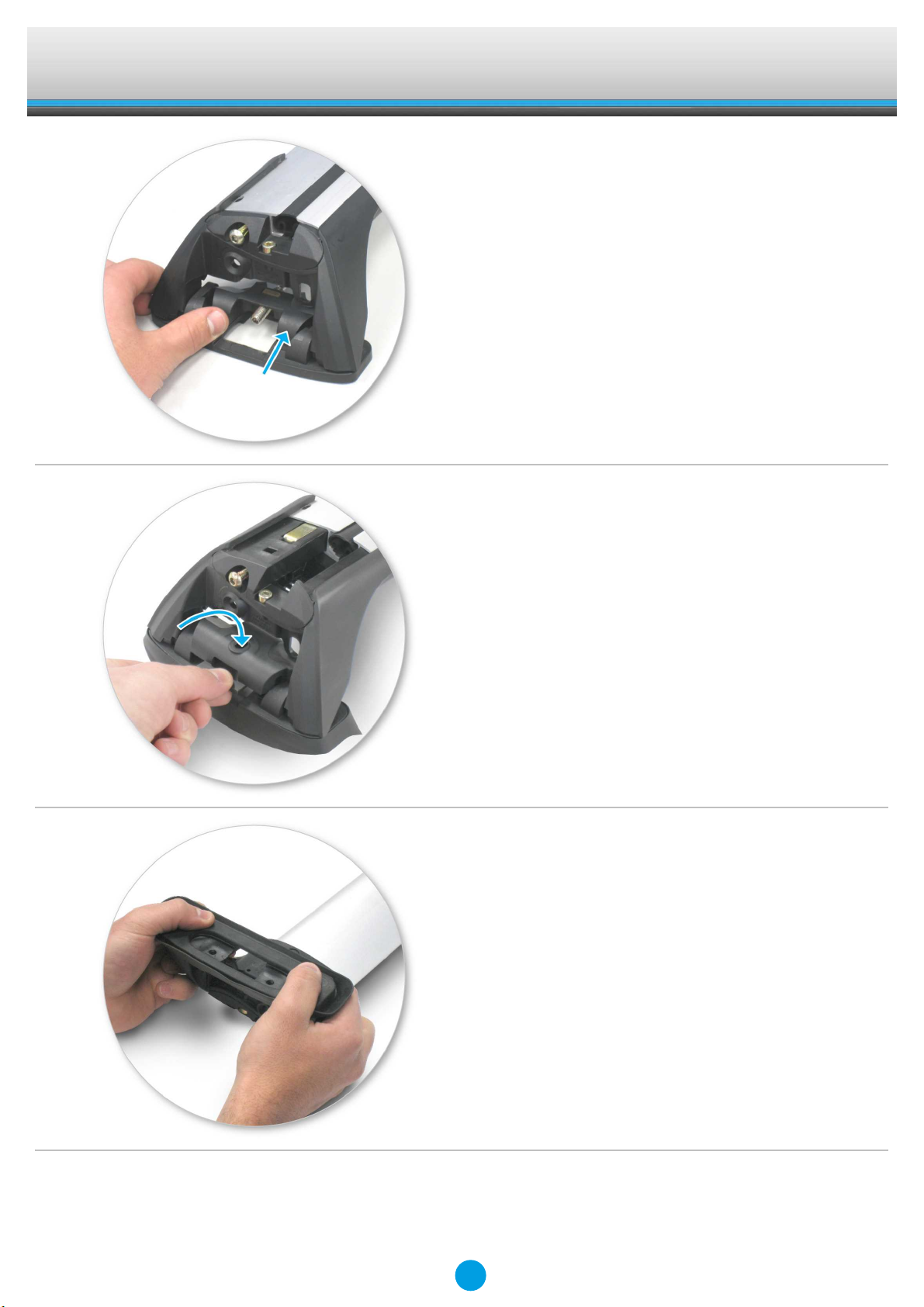

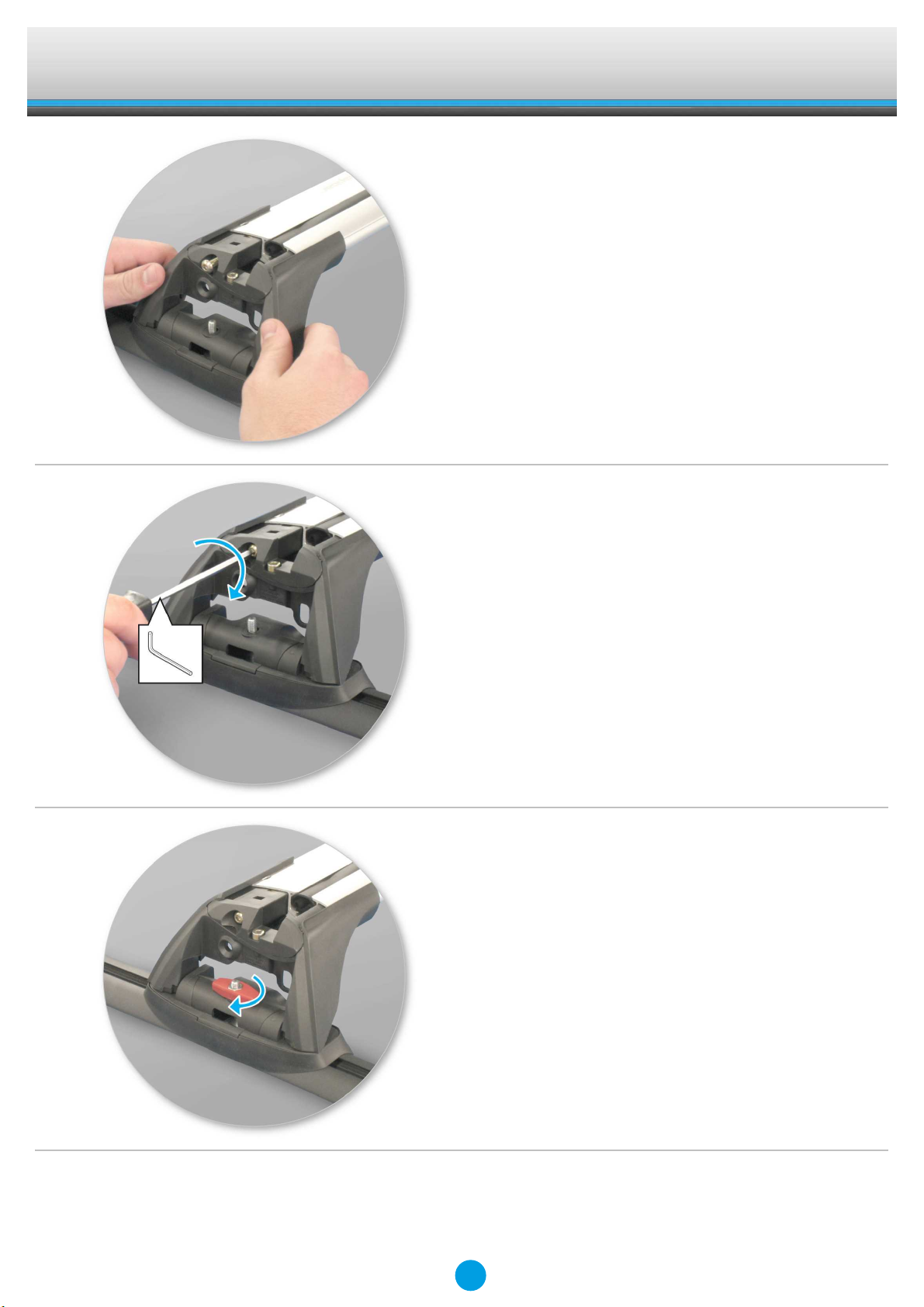

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

●Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

●Make sure the pad fits into the holes

underneath the foot.

Fitting Kit EN

K327

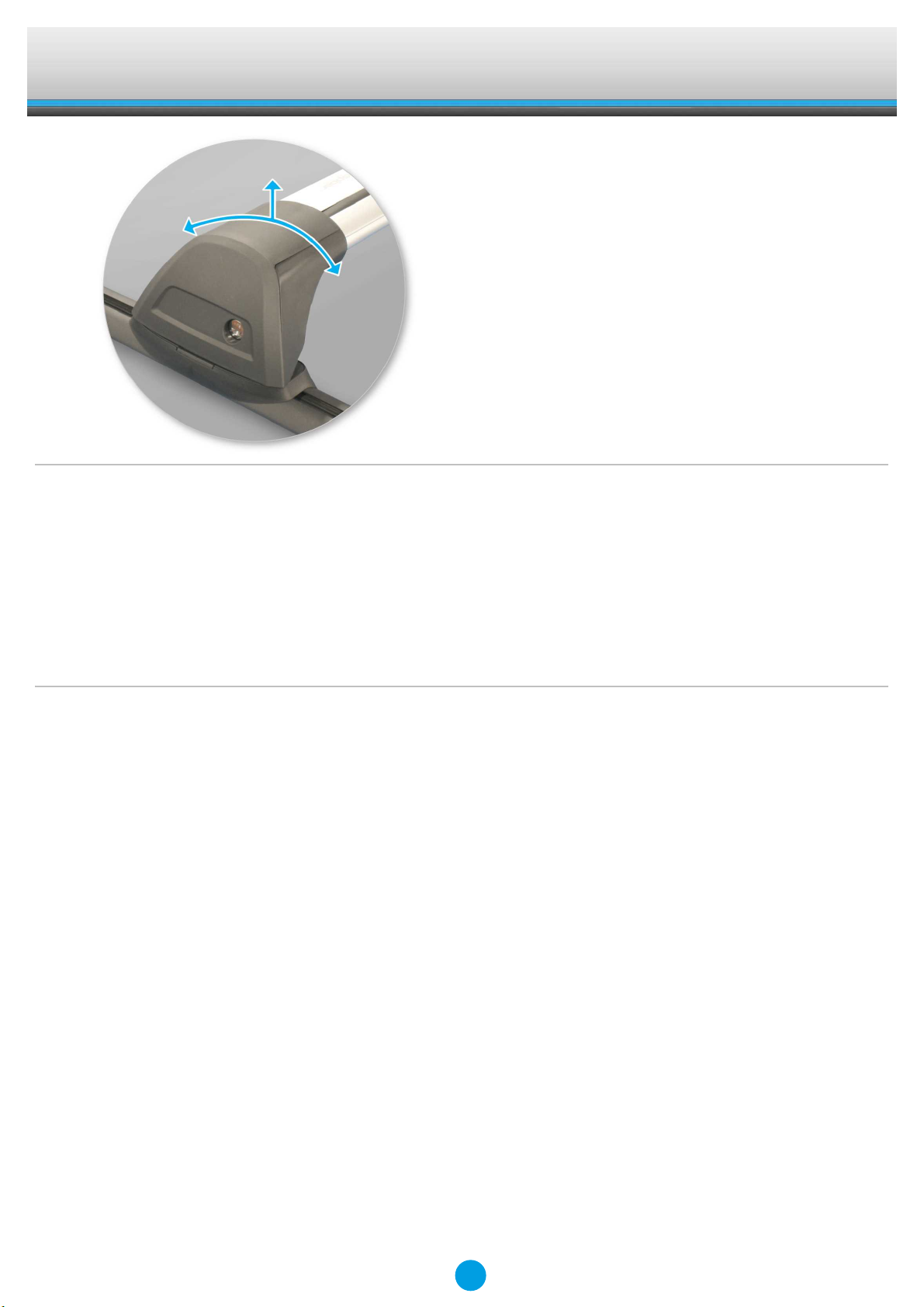

●Adjust crossbar in or out to suit vehicle.

Refer to the crossbar instructions for

crossbar adjustment.

●Ensure that the crossbar is adjusted evenly

at both ends.

●Mount crossbar over metal T-bolt.

●Tighten adjusting screw to 2 Nm (1.5 ft lb)

hand tight.

●Tighten the plastic knob.

●Ensure the plastic knob is in the position

shown when fully tightened.

Fitting Kit EN

K327

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.

Fitting Kit EN

K327

Maintenance

●Clean the car roof and surfaces of the

product that will be in contact with the car

roof.

●Follow the fitting instructions for fitting the

product to your vehicle. Make sure all steps

are carried out in order.

●Set crossbars a minimum distance of

700mm (27 1/2") apart where no other

distance is specified in the fitting

instructions. This is especially important

when carrying long loads.

●Check unit is securely attached whenever

you refit it to the vehicle. If the unit feels

loose, refer to the fitting instructions and

readjust.

●Some glass/panoramic roofs and radio

antennae may not be able to be used when

the product is fitted.

●Do not modify this product.

●Refer to the maximum permitted load

capacity specified in the fitting instructions.

Do not exceed the vehicle manufacturers

roof load rating if it is lower than the

maximum load capacity specified in the

fitting instructions.

●Loads should not overhang the sides of the

product and be evenly distributed with the

lowest possible centre of gravity.

●Long loads should be secured with non-

elastic straps to the front and rear of the

vehicle.

●Objects with pointed ends (e.g. ski poles)

should be carried with the pointed ends to

the rear of the vehicle.

●Remove all loose or removable objects

from the load prior to loading.

●Make sure all loads are securely fastened

with non-elastic straps. Check regularly

during longer journeys.

●A loaded roof rack system can alter the

performance of your vehicle. Be especially

aware of the effects of side winds,

changing of direction, and braking

performance. Avoid rapid acceleration and

deceleration. Drive carefully.

●Note that the total height of the vehicle

increases when upright loads are carried.

●Products should be locked during transport

if they have locks fitted.
