Prorack K146 Manuale utente

K146

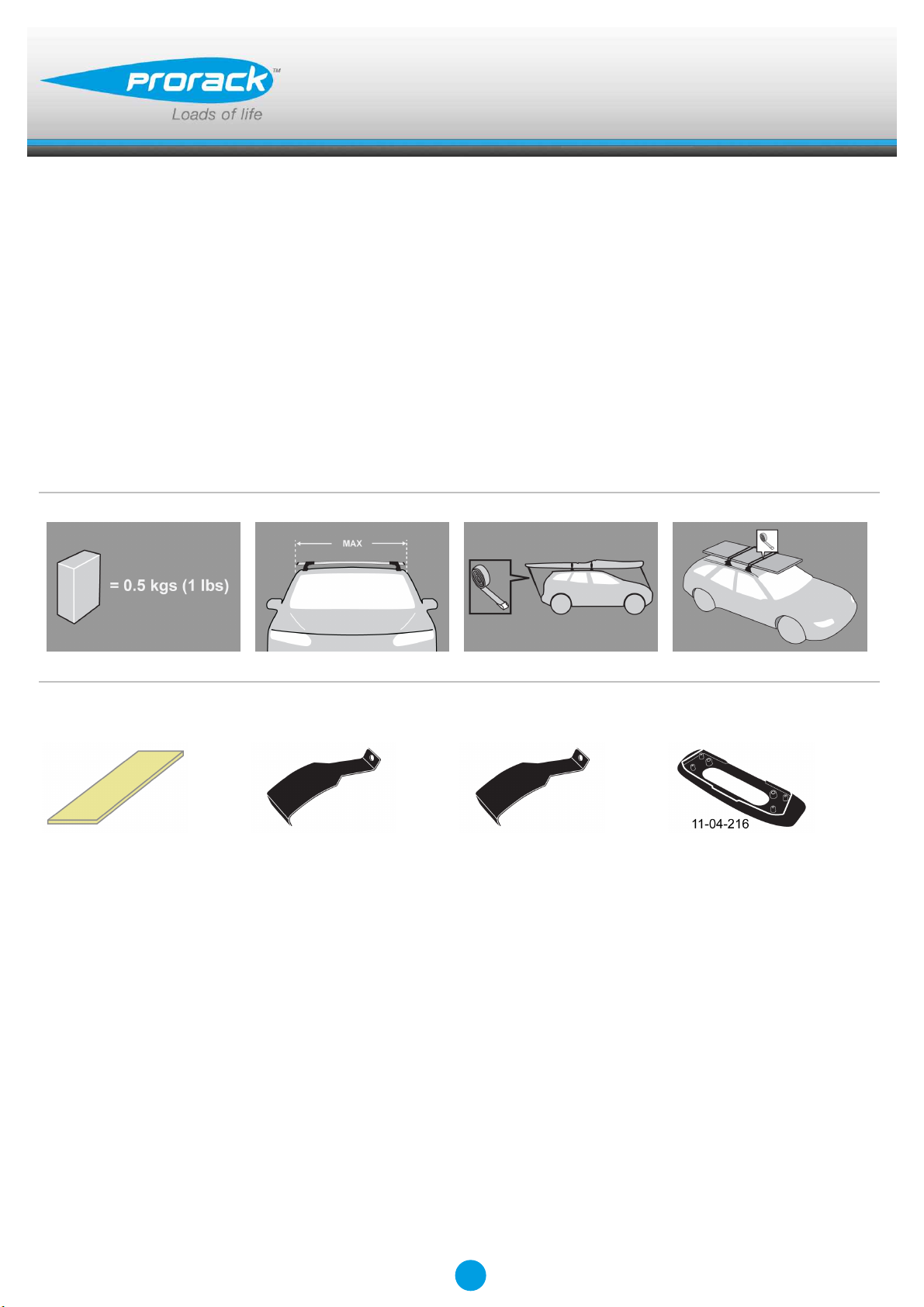

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 4 x 2 x 2 x 4

Revision No: 5E 1

Fitting Kit K146

MAX kgs (lbs)

W/P WHD

Toyota

Corolla Spacio, 5dr MPV 01-06 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Corolla Spacio, 5dr MPV 01-06 AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Corolla Verso, 5dr MPV 01-06 EU 75 kgs (165 lbs) 75 kgs (165 lbs)

Daihatsu

Sirion, 5dr Hatch 98-04 EU 75 kgs (165 lbs) 75 kgs (165 lbs)

Sirion, 5dr Hatch Apr 02-Feb 05 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Sirion, 5dr Hatch Apr 02-Jan 05 AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Storia, 5dr Hatch 98-04 EU 75 kgs (165 lbs) 75 kgs (165 lbs)

Fitting Kit K146

A B C 1 2 3

Corolla Spacio, 5dr MPV 01-06 (NZ) -240mm 470mm - 825mm 805mm -

-9 -7/16ths" 18 1/2ths" - 32 1/2ths" 31 11/16ths" -

Corolla Spacio, 5dr MPV 01-06 (AU) -240mm 470mm - 825mm 805mm -

-9 -7/16ths" 18 1/2ths" - 32 1/2ths" 31 11/16ths" -

Corolla Verso, 5dr MPV 01-06 (EU) -240mm 470mm - 825mm 805mm -

-9 -7/16ths" 18 1/2ths" - 32 1/2ths" 31 11/16ths" -

Sirion, 5dr Hatch 98-04 (EU) - - - - - -

- - - - - -

Sirion, 5dr Hatch Apr 02-Feb 05 (NZ) - - - - - -

- - - - - -

Sirion, 5dr Hatch Apr 02-Jan 05 (AU) - - - - - -

- - - - - -

Storia, 5dr Hatch 98-04 (EU) - - - - - -

- - - - - -

Fitting Kit EN

K146

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

Fitting Kit EN

K146

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

Fitting Kit EN

K146

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = 359A

B = 360A

Fitting Kit EN

K146

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●Fit rubber pads (supplied with fitting kit) to

foot.

Fitting Kit EN

K146

●Make sure the pad fits into the holes

underneath the foot.

Fitment

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Clamps directly to edge of roof under the

doors

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Adjust the legs on the crossbar so that they

are positioned equally from the ends of the

crossbar, and the clamps engage firmly on

the body work of the vehicle.

Fitting Kit EN

K146

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

●Tighten locking screw on both legs evenly.

●Check crossbar is securely attached to the

vehicle.

Fitting Kit EN

K146

●Use keys to fit and lock covers

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
