Prorack K319 Manuale utente

K319

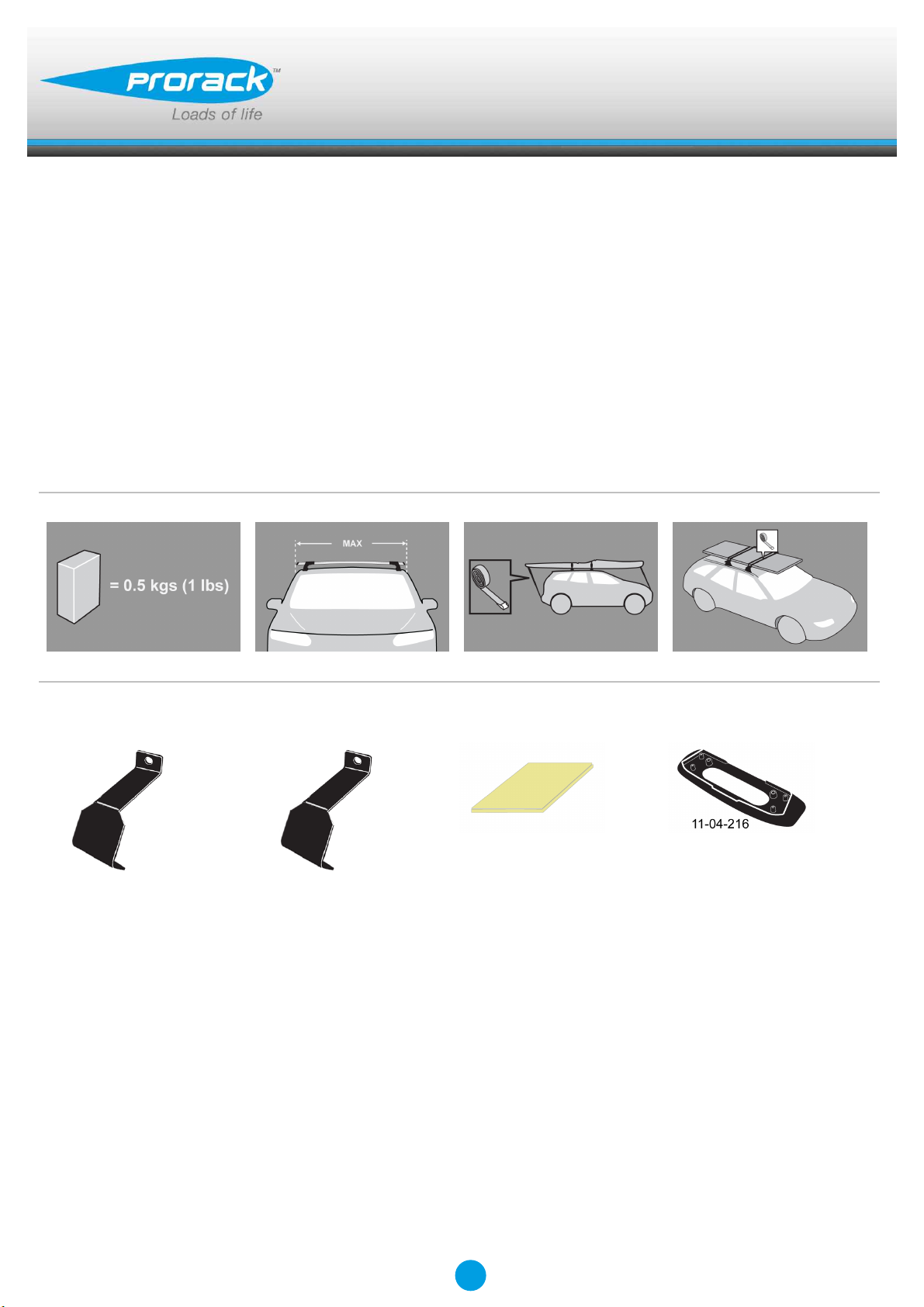

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 2 x 2 x 4 x 4

Revision No: 7G 1

Fitting Kit K319

MAX kgs (lbs)

W/P WHD

Toyota

Corolla, 4dr Sedan 07-13 ZA 40 kgs (88 lbs) 40 kgs (88 lbs)

Corolla, 4dr Sedan 07-13 EU 40 kgs (88 lbs) 40 kgs (88 lbs)

Corolla, 4dr Sedan 07-13 CN 40 kgs (88 lbs) 40 kgs (88 lbs)

Corolla, 4dr Sedan 09-13 US 40 kgs (88 lbs) 40 kgs (88 lbs)

Corolla, 4dr Sedan May 07-13 AU 40 kgs (88 lbs) 40 kgs (88 lbs)

Corolla, 4dr Sedan May 07-13 NZ 40 kgs (88 lbs) 40 kgs (88 lbs)

2

Fitting Kit K319

X

A B C 1 2 3

Corolla, 4dr Sedan 07-13 (ZA) -250mm 450mm - 886mm 880mm -

-9 -13/16ths" 17 3/4ths" - 34 7/8ths" 34 5/8ths" -

Corolla, 4dr Sedan 07-13 (EU) -250mm 450mm - 886mm 880mm -

-9 -13/16ths" 17 3/4ths" - 34 7/8ths" 34 5/8ths" -

Corolla, 4dr Sedan 07-13 (CN) -250mm 450mm - 886mm 880mm -

-9 -13/16ths" 17 3/4ths" - 34 7/8ths" 34 5/8ths" -

Corolla, 4dr Sedan 09-13 (US) -250mm 450mm - 886mm 880mm -

-9 -13/16ths" 17 3/4ths" - 34 7/8ths" 34 5/8ths" -

Corolla, 4dr Sedan May 07-13 (AU) -250mm 450mm - 886mm 880mm -

-9 -13/16ths" 17 3/4ths" - 34 7/8ths" 34 5/8ths" -

Corolla, 4dr Sedan May 07-13 (NZ) -250mm 450mm - 886mm 880mm -

-9 -13/16ths" 17 3/4ths" - 34 7/8ths" 34 5/8ths" -

3

Fitting Kit EN

K319

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

4

Fitting Kit EN

K319

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

5

Fitting Kit EN

K319

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = 218B

B = 414A

6

Fitting Kit EN

K319

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●Fit rubber pads (supplied with fitting kit) to

foot.

7

Fitting Kit EN

K319

●Make sure the pad fits into the holes

underneath the foot.

Fitment

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Clamps directly to edge of roof under the

doors

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Adjust the legs on the crossbar so that they

are positioned equally from the ends of the

crossbar, and the clamps engage firmly on

the body work of the vehicle.

8

Fitting Kit EN

K319

●Tighten adjusting screw to 3 Nm (2.2 ft lb)

hand tight.

●Tighten locking screw on both legs evenly.

●Check crossbar is securely attached to the

vehicle.

9

Fitting Kit EN

K319

●Use keys to fit and lock covers

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.

10
