Prorack K330 Manuale utente

K330

Fitting Kit

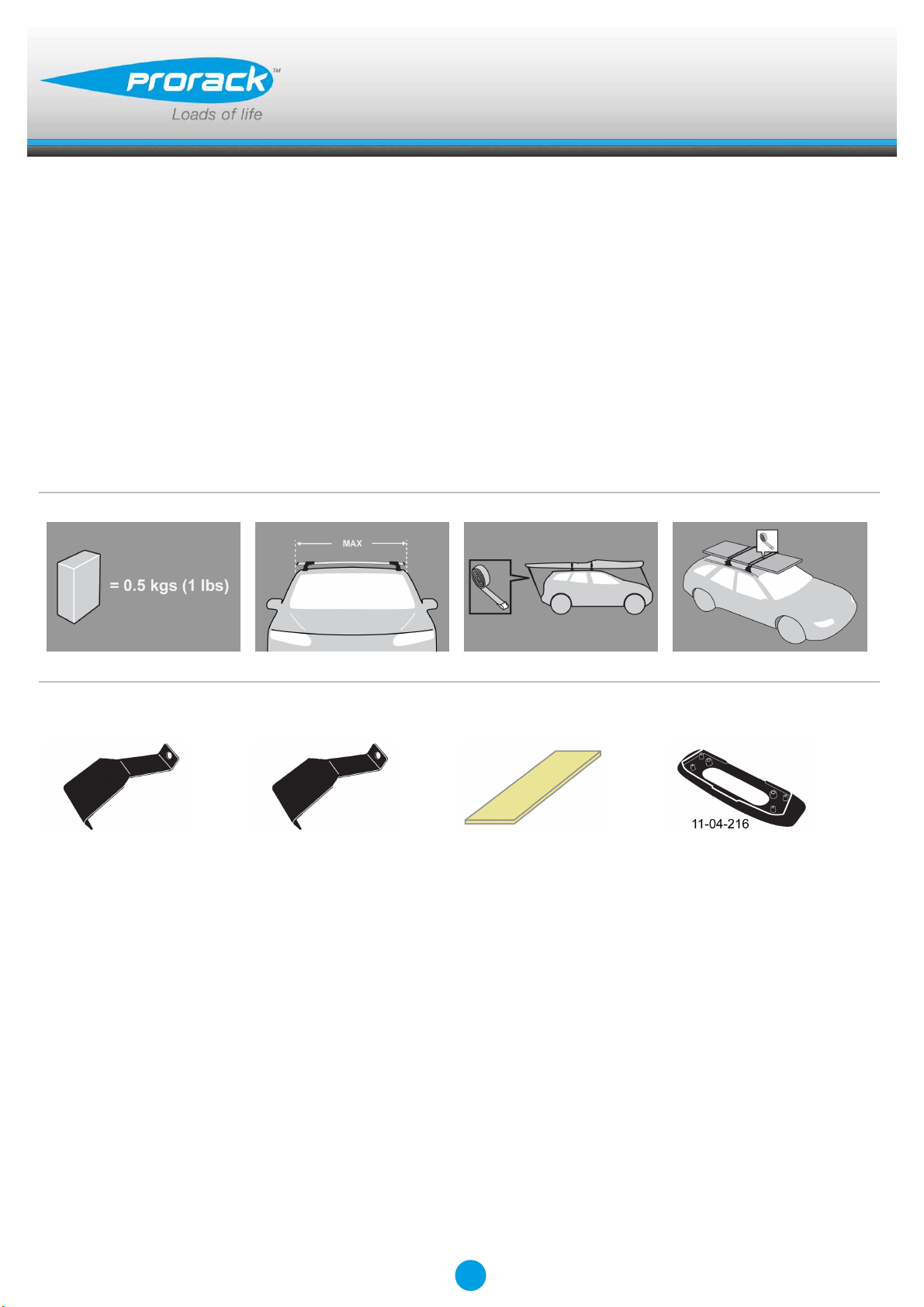

EN Fitting Instructions for Basic Carrier

x 2 x 2 x 4 x 4

Revision No: 4D 1

Fitting Kit K330

MAX kgs (lbs)

W/P WHD

Ford

Falcon FG X, 4dr Sedan Dec 14-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Falcon FG X, 4dr Sedan Dec 14-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Falcon FG, 4dr Sedan 08-14 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

Falcon FG, 4dr Sedan May 08-14 AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Falcon FG, 4dr Sedan May 08-14 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Fitting Kit K330

A B C 1 2 3

Falcon FG X, 4dr Sedan Dec 14-+ (NZ) -210mm 510mm - 950mm 964mm -

-8 -1/4ths" 20 1/16ths" - 37 3/8ths" 37 15/16ths" -

Falcon FG X, 4dr Sedan Dec 14-+ (AU) -210mm 510mm - 950mm 964mm -

-8 -1/4ths" 20 1/16ths" - 37 3/8ths" 37 15/16ths" -

Falcon FG, 4dr Sedan 08-14 (ZA) -210mm 510mm - 964mm 945mm -

-8 -1/4ths" 20 1/16ths" - 37 15/16ths" 37 3/16ths" -

Falcon FG, 4dr Sedan May 08-14 (AU) -210mm 510mm - 964mm 945mm -

-8 -1/4ths" 20 1/16ths" - 37 15/16ths" 37 3/16ths" -

Falcon FG, 4dr Sedan May 08-14 (NZ) -210mm 510mm - 964mm 945mm -

-8 -1/4ths" 20 1/16ths" - 37 15/16ths" 37 3/16ths" -

Fitting Kit EN

K330

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

Fitting Kit EN

K330

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

Fitting Kit EN

K330

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●It is important to put the clamps in the

correct position on the vehicle.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = 459B

B = 460A

Fitting Kit EN

K330

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●Fit rubber pads (supplied with fitting kit) to

foot.

Fitting Kit EN

K330

●Make sure the pad fits into the holes

underneath the foot.

Fitment

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Clamps directly to edge of roof under the

doors

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Adjust the legs on the crossbar so that they

are positioned equally from the ends of the

crossbar, and the clamps engage firmly on

the body work of the vehicle.

Fitting Kit EN

K330

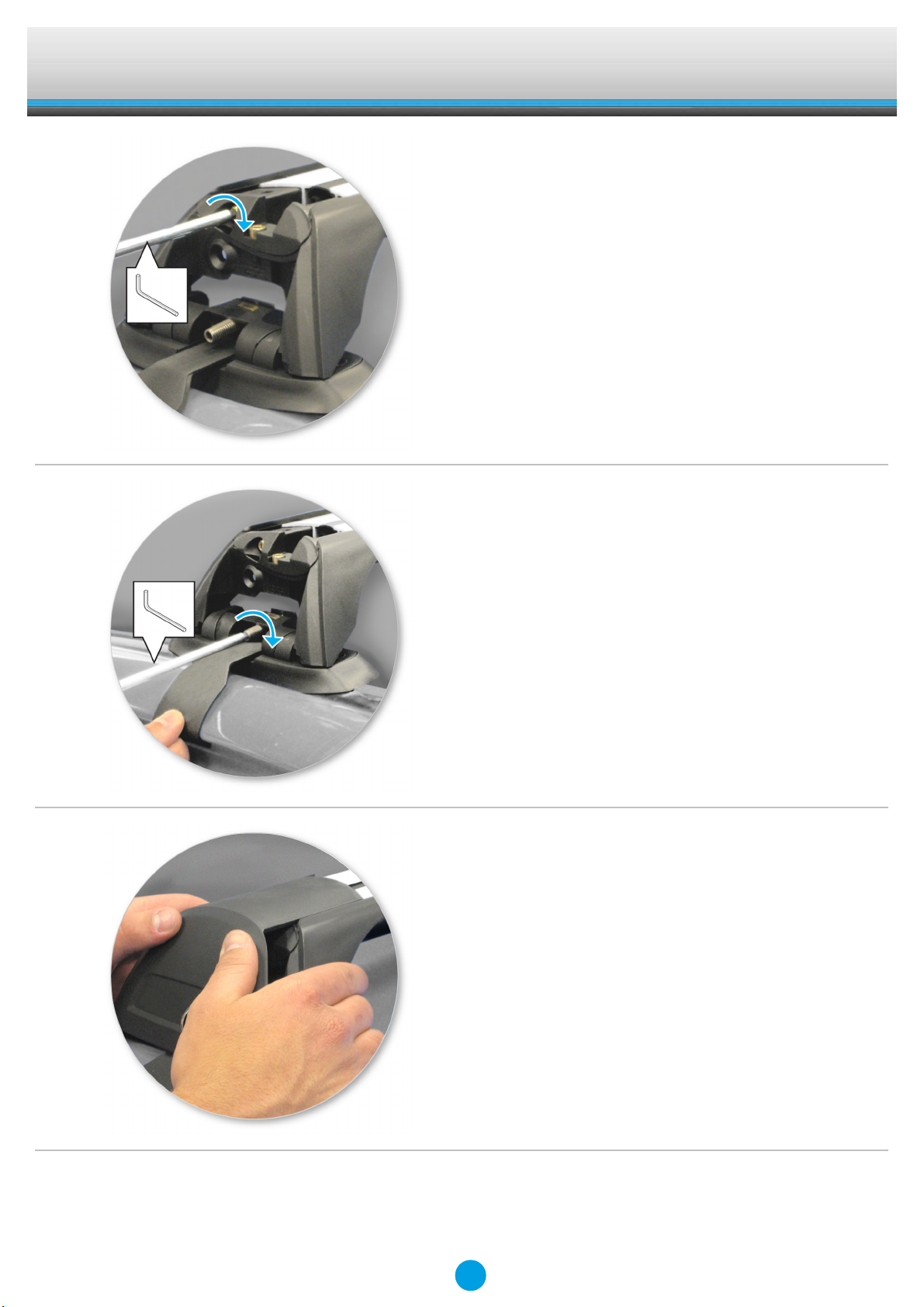

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

●Tighten locking screw on both legs evenly.

●Use keys to fit and lock covers

Fitting Kit EN

K330

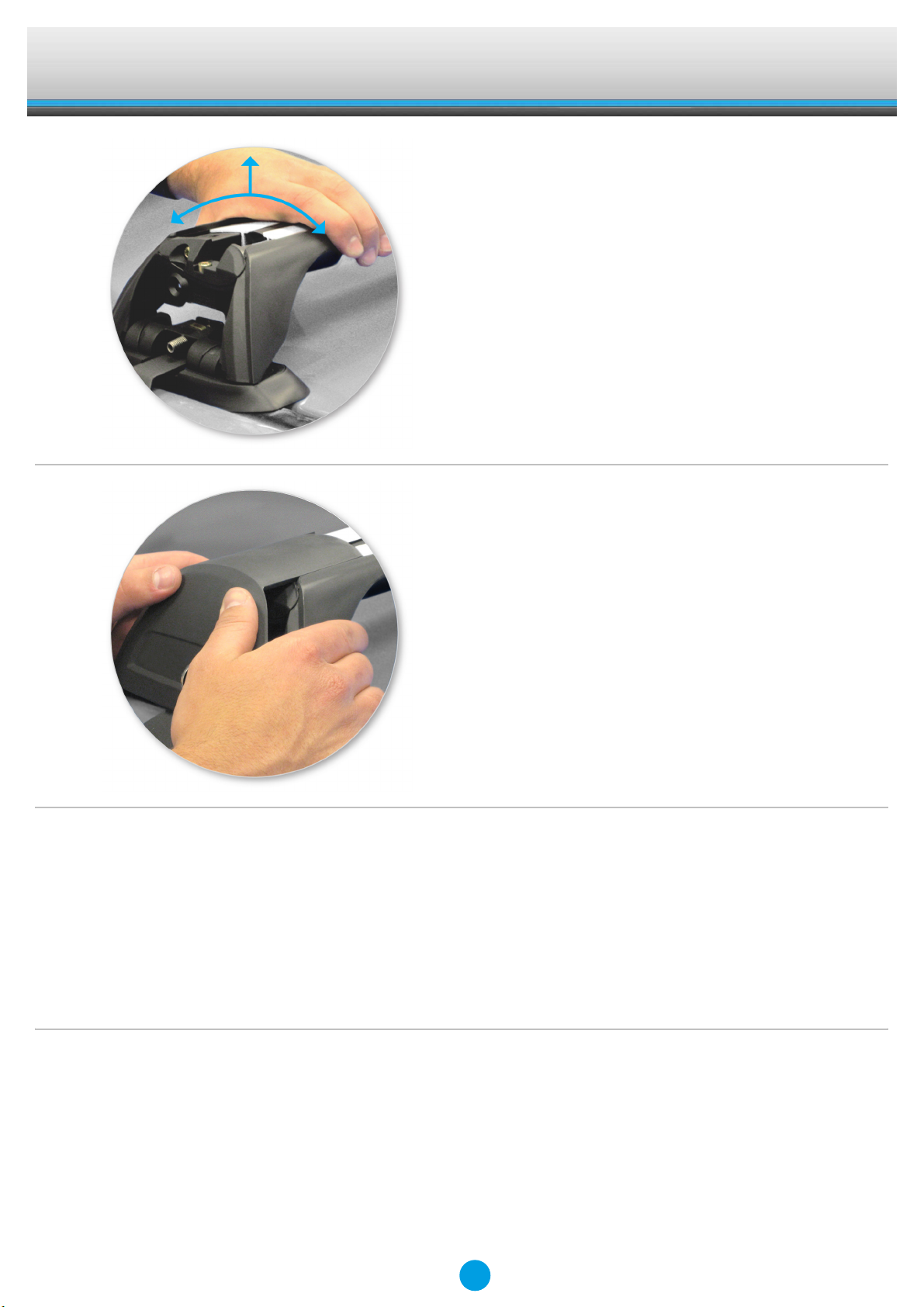

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
