Prorack K470 Manuale utente

K470

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 2 x 2 x 2 x 2

x 2 x 2

Revision No: 5C 1

Fitting Kit K470

MAX kgs (lbs)

W/P WHD

Volkswagen

Passat Mk5.5, 4dr Sedan 01-04 EU 75 kgs (165 lbs) 75 kgs (165 lbs)

Passat Mk5.5, 4dr Sedan 01-05 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

Passat Mk5.5, 4dr Sedan 02-05 US 75 kgs (165 lbs) 75 kgs (165 lbs)

Passat Mk5.5, 4dr Sedan Dec 02-Nov 05 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Passat Mk5.5, 4dr Sedan May 01-Feb 05 AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Fitting Kit EN

K470

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

Fitting Kit EN

K470

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment.

Fitting Kit EN

K470

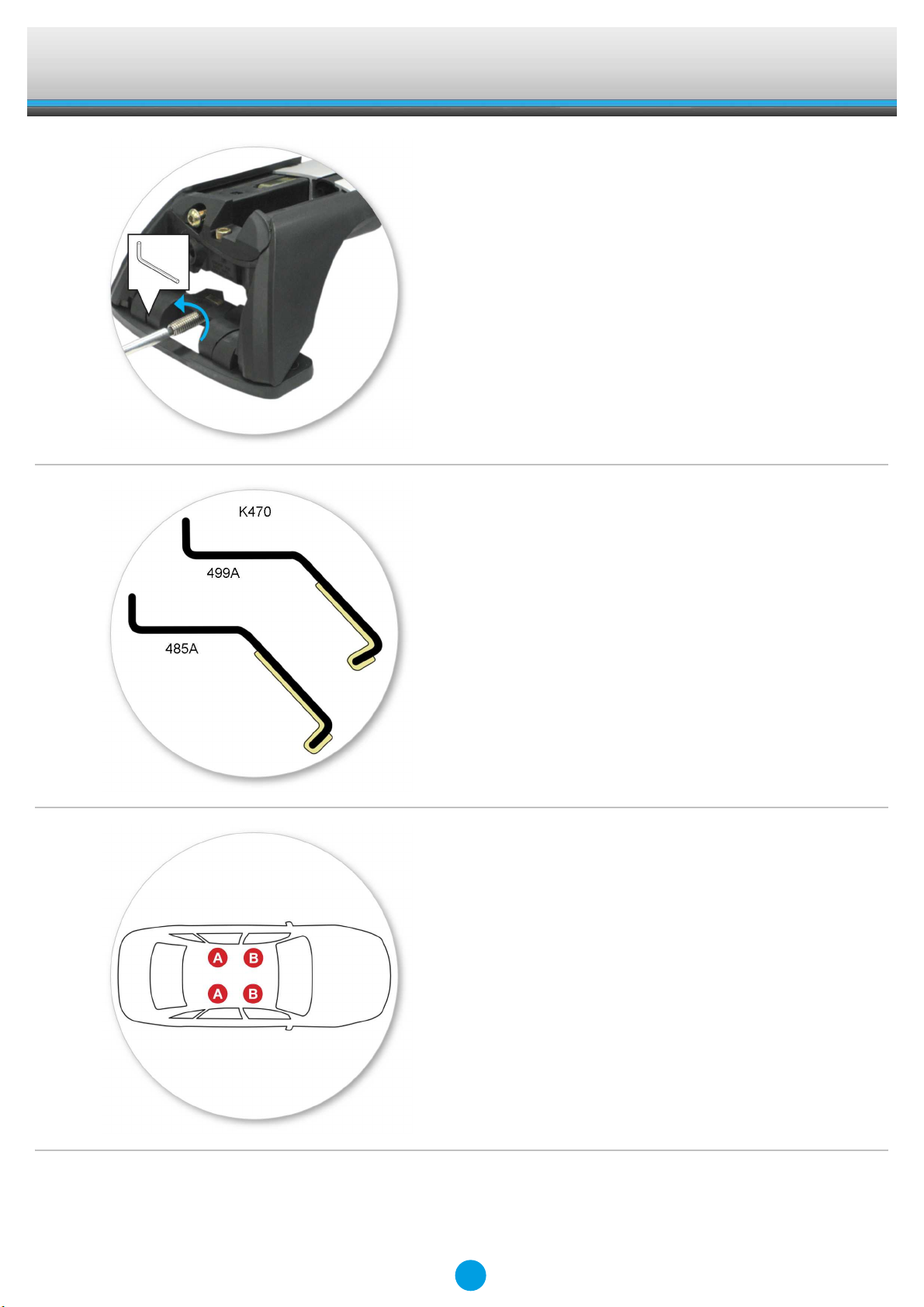

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = 485A

B = 499A

Fitting Kit EN

K470

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●Refer to the underside of the pad for the

part number.

Fitting Kit EN

K470

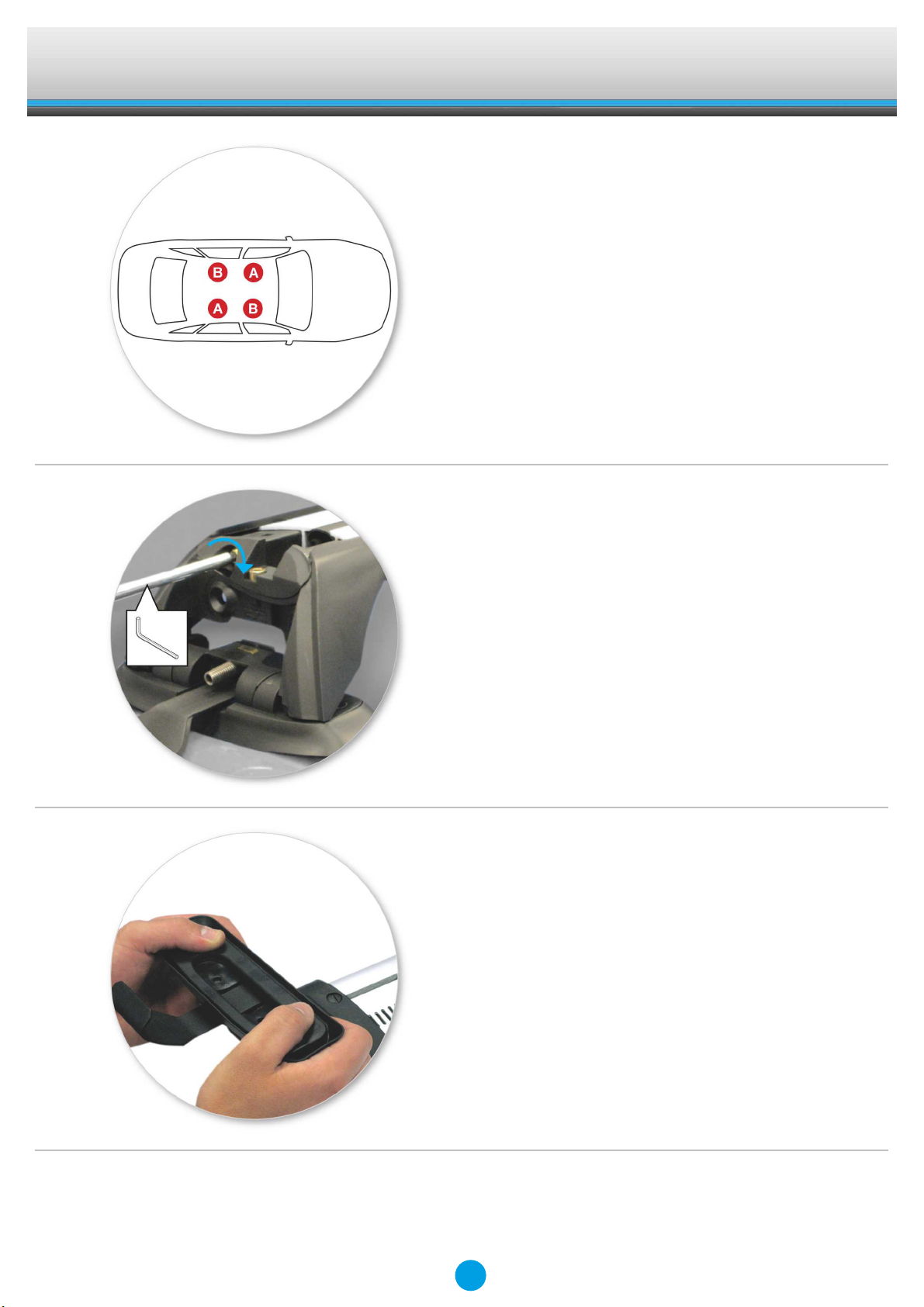

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 11-04-250

B = 11-04-251

●Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

●Make sure the pad fits into the holes

underneath the foot.

●Repeat for all legs.

Fitting Kit EN

K470

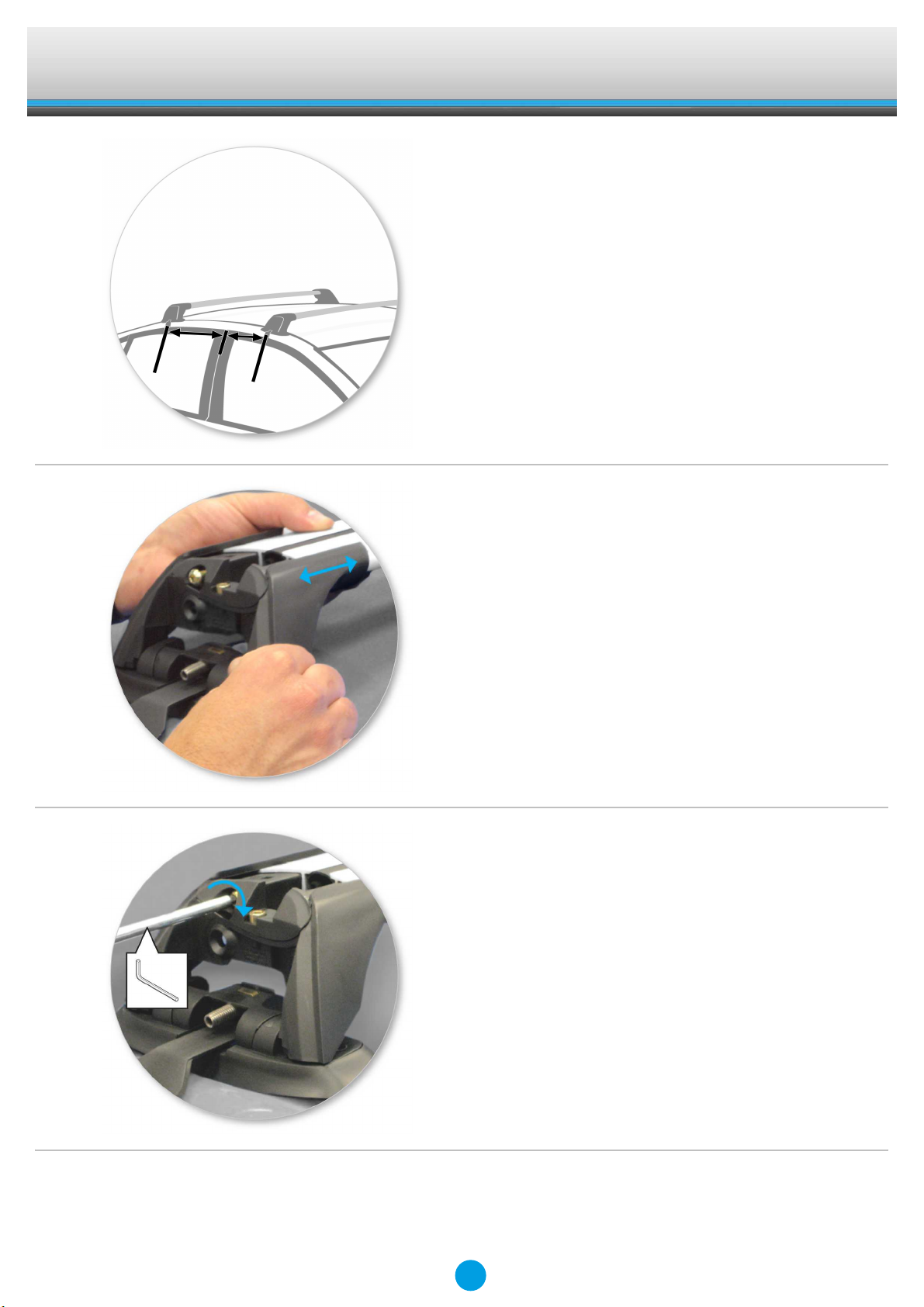

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Please check the rear of this manual for

information relating specifically to your

vehicle.

●Adjust the legs on the crossbar so that they

are positioned equally from the ends of the

crossbar, and the clamps engage firmly on

the body work of the vehicle.

●Tighten adjusting screw to 5 Nm (3.7 ft lb).

Fitting Kit EN

K470

●Tighten locking screw on both legs evenly.

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

Fitting Kit EN

K470

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
