Protech PA-3570 Series Manuale utente

USER’S

MANUAL

PA-3570 Series

POS System Powered by

Intel

Gen. Core

3570

Series

PA-3570 Series POS System

With LCD/Touchscreen

All trademarks and registered trademarks mentioned herein are the property of their

respective owners.

This manual is copyrighted June 2013 (Revised in October, 2014). You may not

reproduce or transmit in any form or by any means, electronic, or mechanical,

including photocopying and recording.

DISCLAIMER

This user’s manual is meant to assist you in installing and setting up the system. The

information contained in this document is subject to change without any notice.

CE NOTICE

This is a class A product. In a domestic environment this product may cause radio

interference in which case the user may be required to take adequate measures.

FCC NOTICE

This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference

in which case the user will be required to correct the interference at his own expense.

You are cautioned that any change or modifications to the equipment not expressly

approve by the party responsible for compliance could void your authority to operate

such equipment.

CAUTION! Danger of explosion if battery is incorrectly replaced. Replace only with the same

or equivalent type recommended by the manufacturer. Dispose of used batteries according

to the manufacturer’s instructions.

WARNING! Some internal parts of the system may have high electrical voltage. And

therefore we strongly recommend that qualified engineers can open and disassemble the

system. The LCD and touch screen are easily breakable, please handle them with extra

care.

Contents

TABLE OF CONTENTS

CHAPTER 1 INTRODUCTION

1-1 About This Manual…................................................................

1-2

1-2 POS System Illustration..............................................................

1-3

1-3 System Specifications.................................................................

1-5

1-4 Safety Precautions......................................................................

1-7

CHAPTER 2 SYSTEM CONFIGURATION

2-1 Jumper & Connector Quick Reference Table.............................

2-2

2-2 Component Locations................................................................

2-4

2-3 How to Set the Jumpers..............................................................

2-6

2-4 COM Port & VGA Connector…………………………............

2-8

2-5 COM Port RI and Voltage Selection…………………………..

2-11

2-6 I-Button Connector…………………………………………….

2-11

2-7 I-Button Function Selection……………………………............

2-12

2-8 LAN & USB Connector……………..……..…………………..

2-13

2-9 Mini-DIN & USB Connector…………………………………..

2-13

2-10 USB Connector……………………..……..…………………...

2-14

2-11 Cash Drawer Connector……………………………..................

2-15

2-12 Cash Drawer Power Selection………………………................

2-16

2-13 LED Connector………………………………………………...

2-17

2-14 Fan Connector………………………………………………….

2-18

2-15 Power Connector……………………………………................

2-19

2-16 Power Switch Connector…………………..………..................

2-19

2-17 Power for Thermal Printer Connector………………................

2-20

2-18 External Speaker Connector…………………………………...

2-20

2-19 Inverter Connector……………………………………………..

2-21

2-20 LVDS Voltage Selection……………………………................

2-22

2-21 LVDS Connector……………………………………................

2-23

2-22 MSR / Card Reader Connector……………………...................

2-23

2-23 SATA & SATA Power Connector……………………………..

2-24

2-24 Touch Panel Connector………………………………………...

2-25

2-25 Touch Panel Selection………………………………................

2-26

2-26 Clear CMOS Data Selection……………………..…………….

2-27

2-27 Compact Flash Connector……………………………………...

2-28

2-28 Printer Connector………………………………………............

2-29

2-29 LVDS Output Resolution Selection………………....................

2-31

2-30 Security Override Mode Setting……………….........................

2-32

Contents

CHAPTER 3 SOFTWARE UTILITIES

3-1 Introduction................................................................................

3-2

3-2 Intel®Chipset Software Installation Utility................................

3-3

3-3 VGA Driver Utility…………………………….………............

3-4

3-4 LAN Driver Utility.....................................................................

3-5

3-5 Sound Driver Utility...................................................................

3-6

3-6 Touch Screen Driver Utility……………..……………………..

3-7

3-7 Wireless Driver Utility (Optional)……………………………..

3-8

CHAPTER 4 AMI BIOS SETUP

4-1 Introduction................................................................................

4-2

4-2 Entering Setup............................................................................

4-4

4-3 Main….......................................................................................

4-6

4-4 Advanced…...............................................................................

4-7

4-5 Chipset……………………………............................................

4-28

4-6 Boot............................................................................................

4-31

4-7 Security……..............................................................................

4-34

4-8 Save & Exit................................................................................

4-35

APPENDIX A SYSTEM DIAGRAMS

Exploded Diagram for System Top Module…………………………..

A-2

Exploded Diagram for Printer….……………………………………...

A-4

Exploded Diagram for System Bottom Module…................................

A-10

Exploded Diagram for Main Board……………………………...........

A-14

Exploded Diagram for LCD Panel…………………………………….

A-16

Exploded Diagram for VFD.…………………………………………..

A-20

Exploded Diagram for HDD.…………….............................................

A-22

Exploded Diagram for MSR & i-Button................................................

A-23

APPENDIX B TECHNICAL SUMMARY

Block Diagram......................................................................................

B-2

Interrupt Map.........................................................................................

B-3

DMA Channels Map..............................................................................

B-7

I/O Map.................................................................................................

B-8

Watchdog Timer Configuration.............................................................

B-11

Flash BIOS Update……........................................................................

B-13

Page:1-1

INTRODUCTION

This chapter gives you the information for the PA-3570. It also outlines

the system specifications.

Sections included:

About This Manual

POS System Illustration

System Specifications

Safety Precautions

Experienced users can jump to chapter 2 on page 2-1

for a quick start.

CHAPTER

Chapter 1 Introduction

Page: 1-2 PA-3570 SERIES USER

′

S MANUAL

1-1. ABOUT THIS MANUAL

Thank you for purchasing our PA-3570 Series System. The PA-3570 is an updated

system designed to be comparable with the highest performance of IBM AT personal

computers. The PA-3570 provides faster processing speed, greater expandability and

can handle more tasks than before. This manual is designed to assist you how to install

and set up the whole system. It contains four chapters and three appendixes. Users can

configure the system according to their own needs.

Chapter 1 Introduction

This chapter introduces you to the background of this manual. It also includes

illustrations and specifications for the whole system. The final section of this chapter

indicates some safety reminders on how to take care of your system.

Chapter 2 System Configuration

This chapter outlines the location of motherboard components and their function. You

will learn how to set the jumper and configure the system to meet your own needs.

Chapter 3 Software Utilities

This chapter contains helpful information for proper installations of the Intel Utility,

VGA Utility, LAN Utility, Sound Utility, and Touch Screen Utility. It also describes

the Wireless Utility.

Chapter 4 AMI BIOS Setup

This chapter indicates you how to change the BIOS configurations.

Appendix A System Diagrams

This appendix gives you the exploded diagrams and part numbers of PA-3570 parts.

Appendix B Technical Summary

This appendix gives you the information about the allocation maps for the system

resources, Watchdog Timer Configuration, and Flash BIOS Update.

Chapter 1 Introduction

PA-3570 SERIES USER

′

S MANUAL Page: 1-3

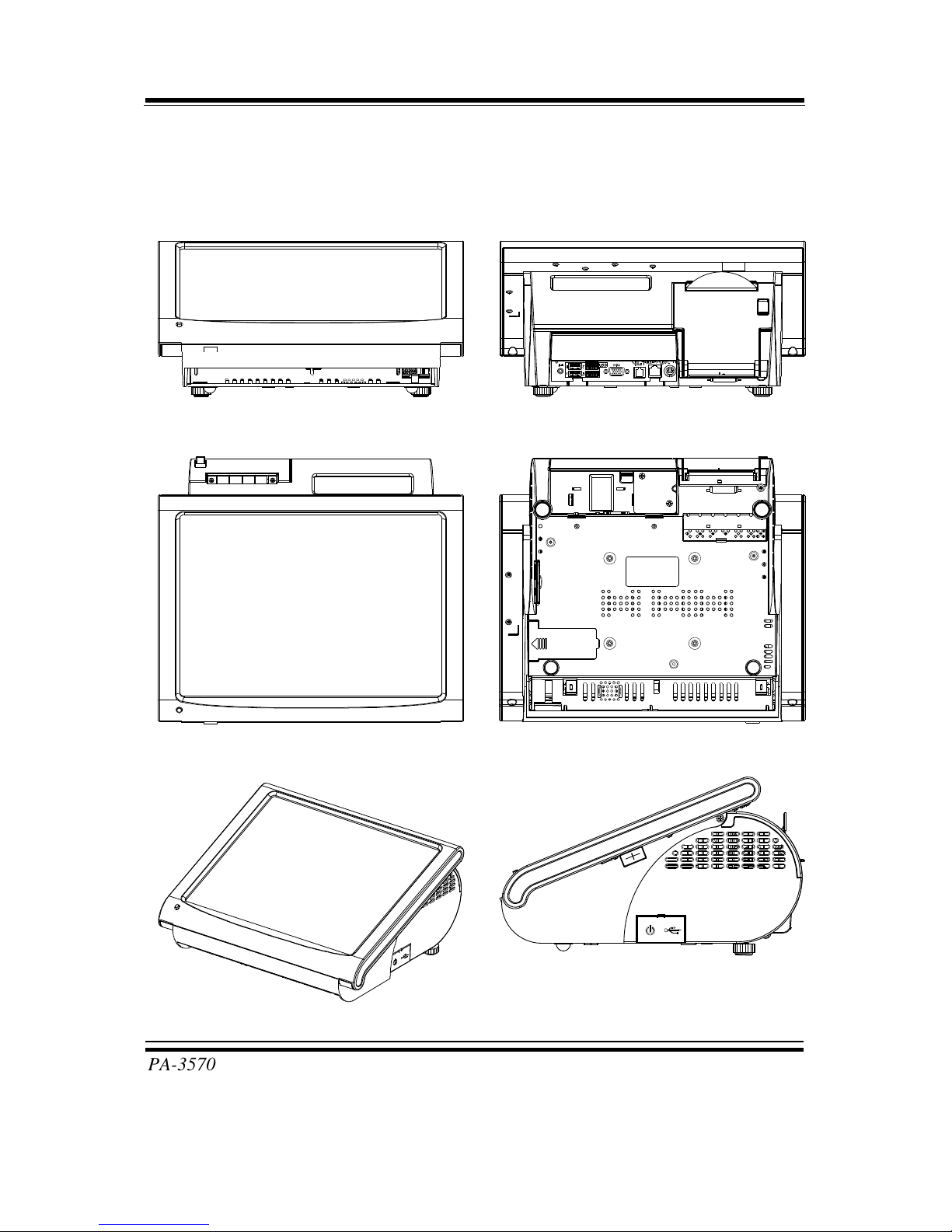

1-2. POS SYSTEM ILLUSTRATION

Front View Rear View

Top View Bottom View

Quarter View Side View

Chapter 1 Introduction

Page: 1-4 PA-3570 SERIES USER

′

S MANUAL

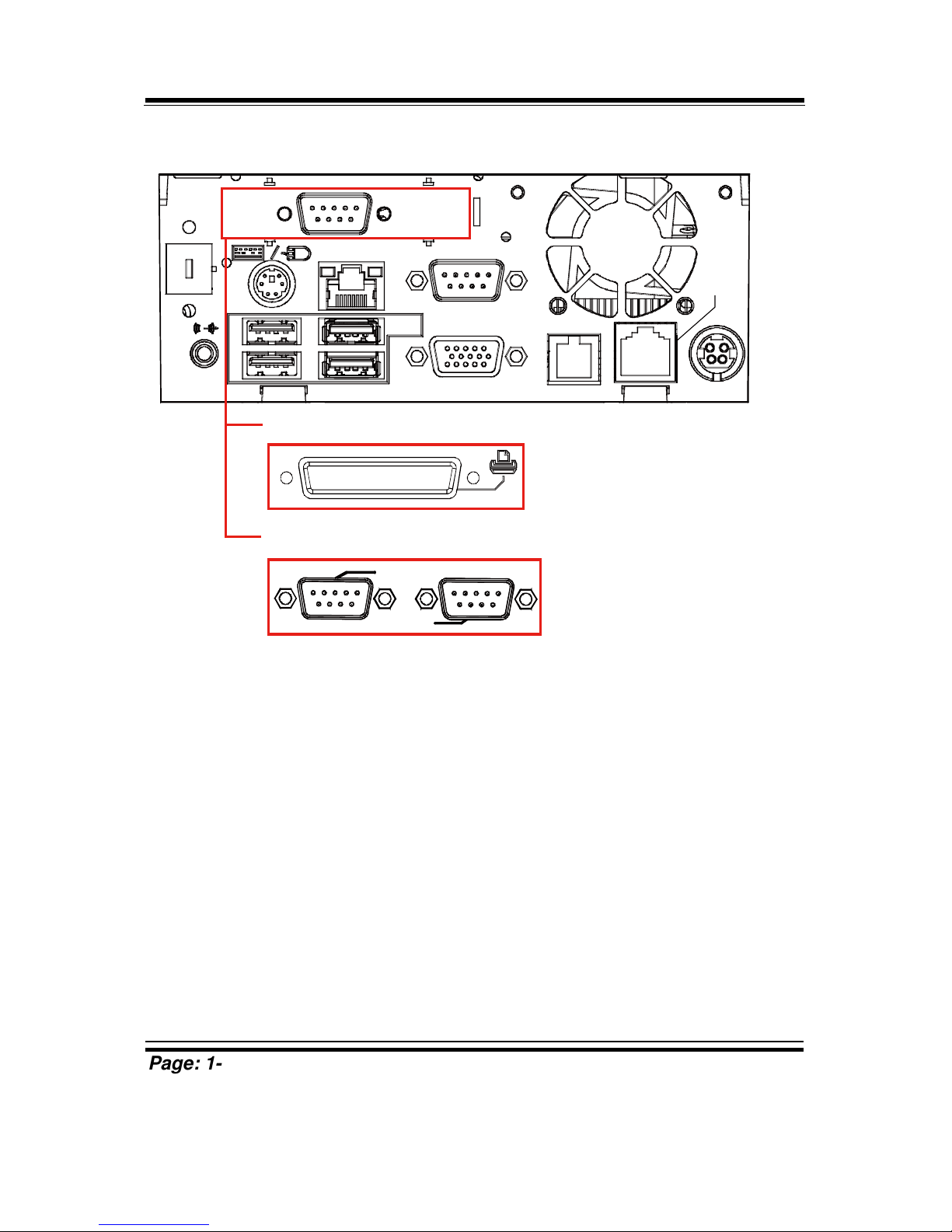

Rear I/O View

Option 1

Option 2

(LPT, D-sub 25-pin)

(2 x RS232, D-sub 9-pin)

DWR2

DWR1

COM 3

COM 2

VGA

LAN

USB

DC IN

COM1

COM4

COM3

Chapter 1 Introduction

PA-3570 SERIES USER

′

S MANUAL Page: 1-5

1-3. SYSTEM SPECIFICATIONS

MAINBOARD (PB-3251)

System

CPU Support Intel®2nd Gen. Core:

Core i3-2120 3.3 GHz, L2 Cache-3MB

Pentium G850 2.9 GHz, L2 Cache-3MB

Celeron G530 2.4 GHz, L2 Cache-2MB

Chipset Intel®H61

Memory 1X 204-pin DDRIII SO-DIMM socket on board,

up to 4GB

OS Support Windows XP/7, POSReady7/2009

BIOS AMI SPI BIOS, 8Mbits with VGA BIOS

Power Supply 120~150 Watt DC-in power adapter

System Weight 5.7 kg

Dimension (W x H x D) 356mm x 309mm x 167mm

Certificate FCC/CE

MSR/Fingerprint/i-Button

(Optional)

External vertical module:

MSR (Read only)

ISO Tracker 1+2+3 (PS/2 KB Interface)

+ Fingerprint (USB Interface)

+ i-Button (Read only)

Printer 2” or 3” easy loading thermal printer with auto

cutter

Storage

HDD 1 x 2.5” SATA HDD

SD/MMC 1 x SATA half-slim type SSD
