Pyle PLFMTR9BT Manuale utente
PLFMTR9BT Installation Guide
& User Manual
www.PyleAudio.com
Features and Functions:
* Bluetooth car kit, compatible with all Bluetooth phones.
* CVC technology to eliminate noise and restrain echo, enjoy clear speaking.
* Support line-in & audio-out, USB & MMC, can play music in the phone through Bluetooth.
（Priority：Bluetooth calling ->Bluetooth music ->Line-in ->SD/USB）
* Support last call re-dial functions and voice dialing supported
* Mute function to enjoy private talking.
* Automatically connection.
* Built-in Microphone.
* Clear LCD display, support full frequency transmitting (88.1-107.9MHz)
* Spring handle support all direction circumgyrated.
* EQ mode and circulation mode options.
* Steering wheel remote control, operating easily and conveniently.(optional)
Technical Specifications:
Excellent sound quality with full duplex communication
DSP (Digital Signal Processing) Technology for echo cancellation and background noise
reduction
Bluetooth interface: Version 2.0, Class 2,
Bluetooth frequency range: 2.402 ~ 2.480GHz
SupportedBTProfiles: HSHF, Headset, A2DP,
FM transmitting range: 88.1~107.9MHz
Operating voltage range: DC 12V~24V (car lighter socket)
Charger Output Rating: 5V DC, 1.5A
Microphone: Noise Cancelling
Support: SD/MMC, USB
Display: LCD display
Audio In/out: 3.5mm
Installation
1. Insert the PLFMTR9BT into the socket of car lighter.
2. Adjust the transmitting frequency of the PLFMTR9BT to correspond channel between
FM88.1~107.9MHz
3. Set the car fm channel the same with PLFMTR9BT channel, then the PLFMTR9BT could
play music of U-disk or SD/MMC, or other audio source through line-in.
Bluetooth function operations
Paring with a Bluetooth enabled cell phone
1. With the PLFMTR9BT ON, long press the PLAY key on the panel or on the remote
control, the screen will display “Pairing”, indicating that the unit is ready to be
paired.
2. The Bluetooth cell phone will search for the nearby Bluetooth devices, the cell phone
will display “PLFMTR9BTBT” in the list of Bluetooth devices, if you are using a
“dongle” type Bluetooth adaptor; follow the manufacturer’s instructions for that
device.
3. Select “PLFMTR9BTBT” to add this Bluetooth device into the list of paired devices.
4. Enter in the PIN Code “0000” and your mobile phone will show that pairing is
completed.
５.If pairing is successful, the screen of PLFMTR9BT will display “Pair OK”, and the
Bluetooth icon will be shown on the screen.

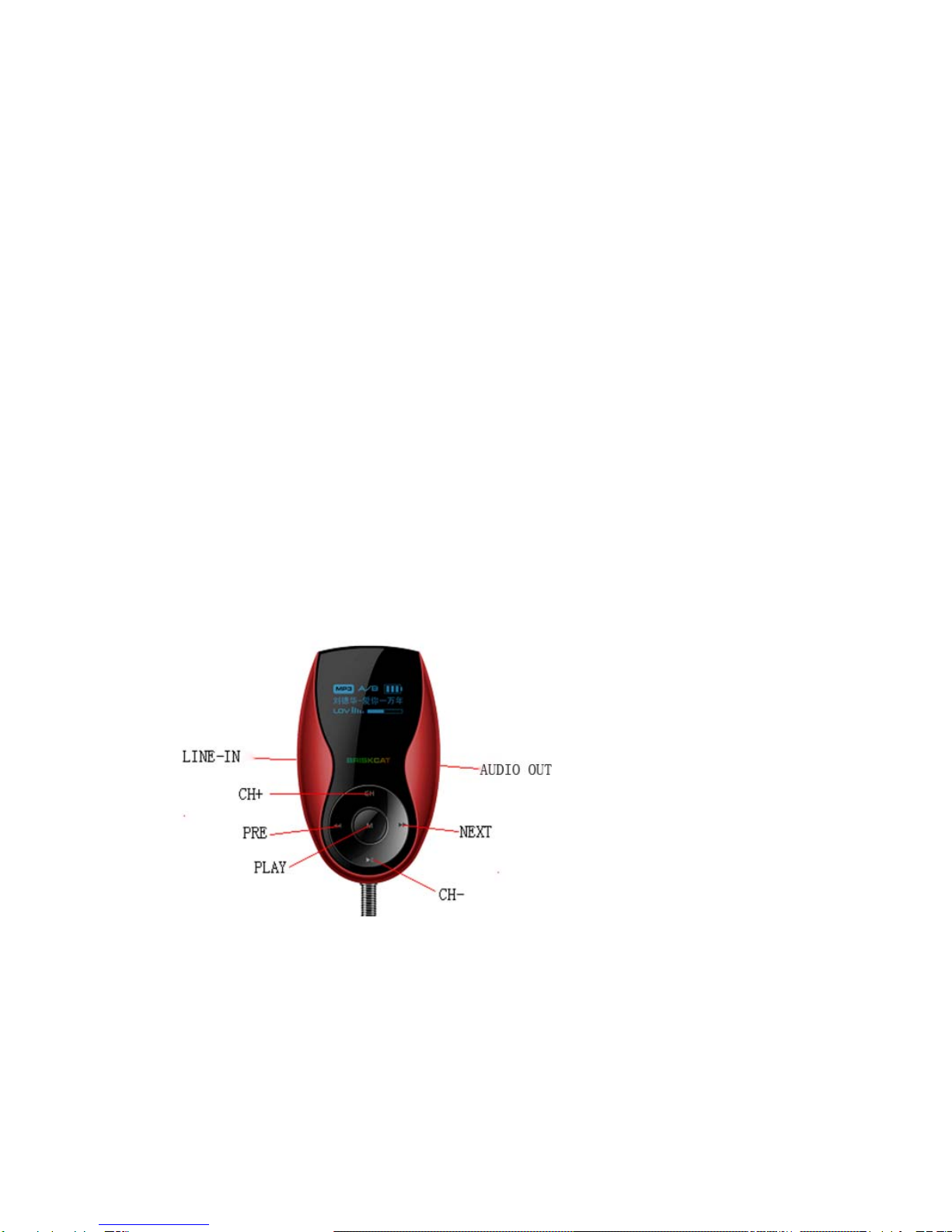

Operations on the Panel
PLAY BUTTON
Pairing – Press and hold for 3seconds, “Pairing” display on the screen.
Answer a Call – Press once to answer a call under speaking mode.
Playing – Play the music under the playing mode.
Stop – Stop playing the music under the playing mode.
CH+/CH- BUTTON
Adjusting the FM channel - Short press under the playing mode. (Useless when
speaking.)
Music Folder changing –Long press, change to last folder or next folder under the
playing mode. (Useless when speaking.)
PRVE/NEXT BUTTON
Change the song – Short press and change to last or next song under playing mode.
(Useless when speaking.)
Change the volume – Long press to change the volume under playing mode.
(Useless when speaking.)
Operations on the steering wheel remote control
PLAY BUTTON
Pairing – Press and hold for 3seconds, “Pairing” display on the screen.
Answer a Call – Press once to answer a call under speaking mode.
Playing – Play the music under the playing mode.
Stop – Stop playing the music under the playing mode
CH+/CH- BUTTON
Adjusting the FM channel - Short press under the playing mode. (Useless when
speaking.)
Music Folder changing –Long press, change to last folder or next folder under the
play mode. (Useless when speaking.)
PRVE/NEXT BUTTON
Change the song – Short press and change to last or next song under playing mode.
(Useless when speaking.)
Change the volume – Long press to change the volume under playing mode.
(Useless when speaking.)
RED BUTTON (Working when PLFMTR9BT connected to the Bluetooth enabled
phone.)
Re-dialing the last number –Under the playing mode, long press to re-dial the last
dial-out number.
End or reject a call – Under the speaking mode, long press the RED button to end or
reject a call.
Transfer a call from PLFMTR9BT to your cell phone – Under speaking mode;
press once to transfer the call between PLFMTR9BT and your cell phone.
Operations on the remote control
CH BUTTON
Enter into FM modulating status – Short press the CH key to entering into FM
channel adjusting status.
EQ BUTTON
Change EQ mode – Under the playing mode, short press EQ button to change the EQ
mode (Normal; Rock; Pop; Classical; Live).
Change the circulation mode – Under the playing mode, long press EQ button to
change the circulation mode (ALL; SINGLE; FOLDER; NORMAL; RANDOM).
MIC MUTE BUTTON
Mute – Under speaking mode, short press to mute or unmute.
CH+/CH- BUTTON
Adjusting the FM channel - Short press under the playing mode. (Useless when
speaking.)
Music Folder changing –Long press, change to last folder or next folder under the
play mode. (Useless when speaking.)
PLAY BUTTON
Pairing – Press and hold for 3seconds, “Pairing” display on the screen.
Answer a Call – Press once to answer a call under speaking mode.
Playing – Play the music under the playing mode.
Stop – Stop playing the music under the playing mode
PRVE/NEXT BUTTON
Change the song – Short press and change to last or next song under playing mode.
(Useless when speaking.)
Change the volume – Long press to change the volume under playing mode.
(Useless when speaking.)
RED BUTTON (Working when PLFMTR9BT connected to the Bluetooth enabled
phone.)
Re-dialing the last number –Under the playing mode, long press to re-dial the last
dial-out number.
End or reject a call – Under the speaking mode, long press the RED button to end or
reject a call.
VOICE SWITCH BUTTON
Transfer a call from PLFMTR9BT to your cell phone – Under speaking mode;
press once to transfer the call between PLFMTR9BT and your cell phone.
VOICE DIALING BUTTON
Voice activated dialing – Press once under speaking mode. (You cell phone should
have the function)
NUMBER BUTTON
FM modulating – Inputting the FM channels you wanted, only used under the playing
mode.
The Icons on the screen：
Interface displayed on the screen under different status:
When connected with the outer audio
source through Line-in, the screen
displaying.
When the PLFMTR9BT is power on, the
screen displaying.
When connected with Bluetooth enabled
phone, without other outer audio sources.
The screen displaying.
When PLFMTR9BT start pairing with your
Bluetooth enabled phone, the screen
displaying.
When paired successfully, the screen
displaying.
When connected with Line-in and Bluetooth
enabled phone, the screen displaying.
When playing the music from the USB drive,
the screen displaying.
When playing the music from the SD card, the
screen displaying.
When connected with the Bluetooth enabled
phone and playing the music from the USB drive,
the screen displaying.
When adjusting the volume, the screen displaying
the recent volume.
When adjusting the song number, the screen
displaying the recent song number.
When adjusting the FM channel, the screen
displaying the recent frequency.
When pausing the music, the screen displaying.
When adjusting the EQ mode, the screen displaying
the recent EQ mode.
When adjusting the Circulation mode, the screen
displaying the recent circulation mode.
When change to another folder, the screen displaying
the recent folder number.
When inputting the FM channel by number key on the
remote control, the screen displaying.
When choose the song by the number key on the
remote control, the screen displaying.
When conducting voice dialing, the screen displaying.
(You must have voice dialing function on your phone.)
When playing the music from your phone through
Bluetooth, the screen displaying.
