QMS 4060 Manuale

5HSDFNLQJWKH

3ULQWHU

,Q7KLV$SSHQGL[

“Repacking Consumables” on page C-2

“Inserting Shipping Restraints” on page C-17

“Repacking the Options” on page C-27

,QWURGXFWLRQ

4063ULQW6\VWHP2SHUDWLRQ&

,QWURGXFWLRQ

In some cases, because of mechanical problems or other circum-

stances you may have to repack your printer to ship it back to QMS.

Use this chapter as a guide to help you repack your printer.

▲Caution:

Only use the original packing materials to repack your

printer. Follow all guidelines in this chapter to prevent damage to your

printer. If you need replacement packaging, in the US call QMS

National Service at 1 (334)633-4300 X 2530. If you need to return the

printer for service, in the US call QMS Customer Service at 1(334)

633-1072 for an RMA (Return Merchandixe Authorization) number

before shipping the printer. In other countries, refer to appendix A,

“QMS Customer Support,” for information.

If your printer has optional units attached, you must remove them and

use their original packing materials to repack them. See “Repacking

the Options” on page C-27 for information. Turn the power off and

unplug the power cord and all interface cables before beginning.

5HSDFNLQJ&RQVXPDEOHV

You must remove all consumables from the printer before repacking

and shipping it.

▲Caution:

Failure to remove consumables before repacking and

shipping will result in damage to the printer.

The consumables that must be removed are

Paper Transfer Assembly

Developer Drum Unit

Toner Fuser

5HSDFNLQJ

&RQVXPDEOHV

&5HSDFNLQJWKH3ULQWHU

The toner in the printer should be as low as possible before repacking

and shipping the printer. If possible, run the printer with a waste toner

bottle in place and toner recycling disabled. Try to run it until you get

the TONER OUT message on the display.

Follow these procedures for removing and repacking consumables.

3UHSDULQJWKH3DSHU7UD\V

1 Open each tray and remove all paper.

2 Reinstall the shipping restraints for each tray.

5HSDFNLQJ

&RQVXPDEOHV

4063ULQW6\VWHP2SHUDWLRQ&

3 Close each tray.

4 Use nylon reinforced tape and apply some to each tray to

secure for shipping.

3UHSDULQJWKH'HYHORSHU

1 Turn on the printer.

2 Press the Online button to access the Administration/Con-

sumables/Developer menu.

The message window should display

3 Press the Select button to tell the printer you are ready to

empty the developer.

The message window displays

Offline Menu Select Previous Next

LETTER

LEGAL

CONSUMABLES

DEVELOPER

Offline Menu Select Previous Next

LETTER

LEGAL

WASTE BOTTLE IN?

SELECT WHEN DONE

5HSDFNLQJ

&RQVXPDEOHV

&5HSDFNLQJWKH3ULQWHU

4 Open the right cover and check that the developer waste bot-

tle is in place.

»Note:

Make sure the developer waste bottle is in place. The

printer will not perform the next step until the bottle is properly

set.

:DVWH%RWWOH

5HSDFNLQJ

&RQVXPDEOHV

4063ULQW6\VWHP2SHUDWLRQ&

5 Close the right door and press the Select button to confirm

that the developer waste bottle is in place.

After you check that the developer waste bottle is in place and

press the Select button the message window displays

You should hear the developer purging and after about 30 sec-

onds the message window displays

6 Open the right door of the printer.

Offline Menu Select Previous Next

LETTER

LEGAL

PURGING

DEVELOPER . . .

Offline Menu Select Previous Next

LETTER

LEGAL

OPEN UPPER RIGHT

DOOR

5HSDFNLQJ

&RQVXPDEOHV

&5HSDFNLQJWKH3ULQWHU

7 Remove the developer waste bottle and move the cap to the

sealed position.

8 Store the developer waste bottle for later use.

▲Caution:

Do not repack the developer waste bottle. It will spill

during shipment. Keep it until the printer is shipped back to you.

9 Turn off the printer.

5HPRYLQJ7RQHU

1 Before repacking the printer you should ensure the toner

hopper is as low as possible.

2 Remove the toner waste bottle and store for later use.

▲Caution:

Do not repack the waste toner bottle. It will spill during

shipment. Keep it until the printer is shipped back to you.

5HSDFNLQJ

&RQVXPDEOHV

4063ULQW6\VWHP2SHUDWLRQ&

3 Move the toner recycling shutter to the closed position

(towards the back of the printer).

4 Open the toner fill lid and use a toner vacuum to remove as

much toner as possible from the toner hopper.

▲Caution:

Use only a vacuum cleaner designed for toner. Normal

vacuum cleaners will only discharge toner into the air.

7RQHU:DVWH%RWWOH

5HSDFNLQJ

&RQVXPDEOHV

&5HSDFNLQJWKH3ULQWHU

5 Use the vacuum to clean up as much toner as possible

around the toner and developer areas.

6 Use nylon reinforced tape and apply some to the toner fill lid

and the developer fill lid to secure for shipping.

7 Open the front door of the printer.

8 Turn lever b1 to the right to unlock the internal components.

9DFXXP7KHVH$UHDV

5HSDFNLQJ

&RQVXPDEOHV

4063ULQW6\VWHP2SHUDWLRQ&

9 Reinstall the plastic protective cover you removed when you

unpacked the printer to the developer/toner hopper.

10 Turn lever b1 to the left to lock the plastic protective cover in

place.

11 Close the right door of the printer and secure with nylon

reinforced tape for shipping.

5HPRYLQJWKH7UDQVIHU$VVHPEO\

1 If necessary, open the front door of the printer.

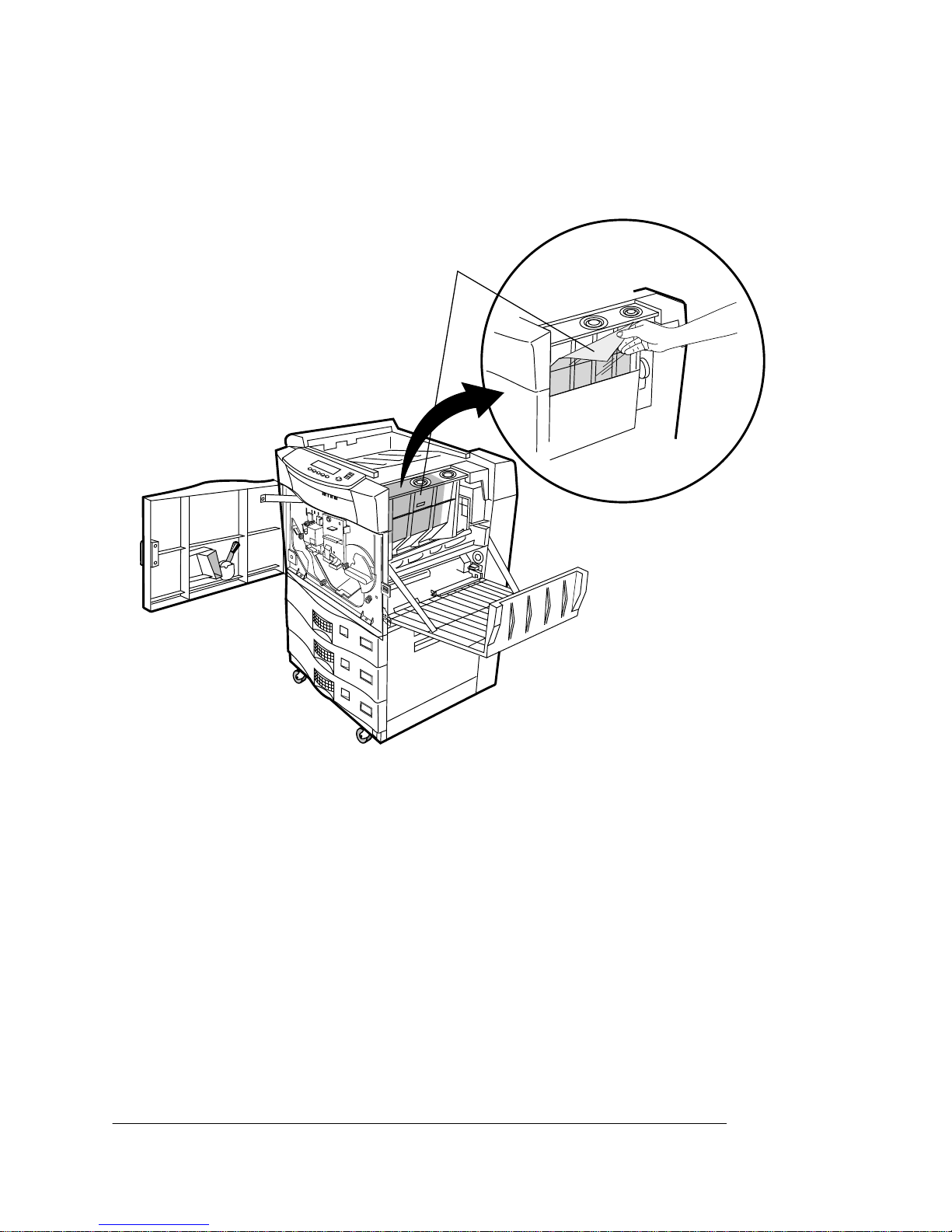

3ODVWLF3URWHFWLYH&RYHU
