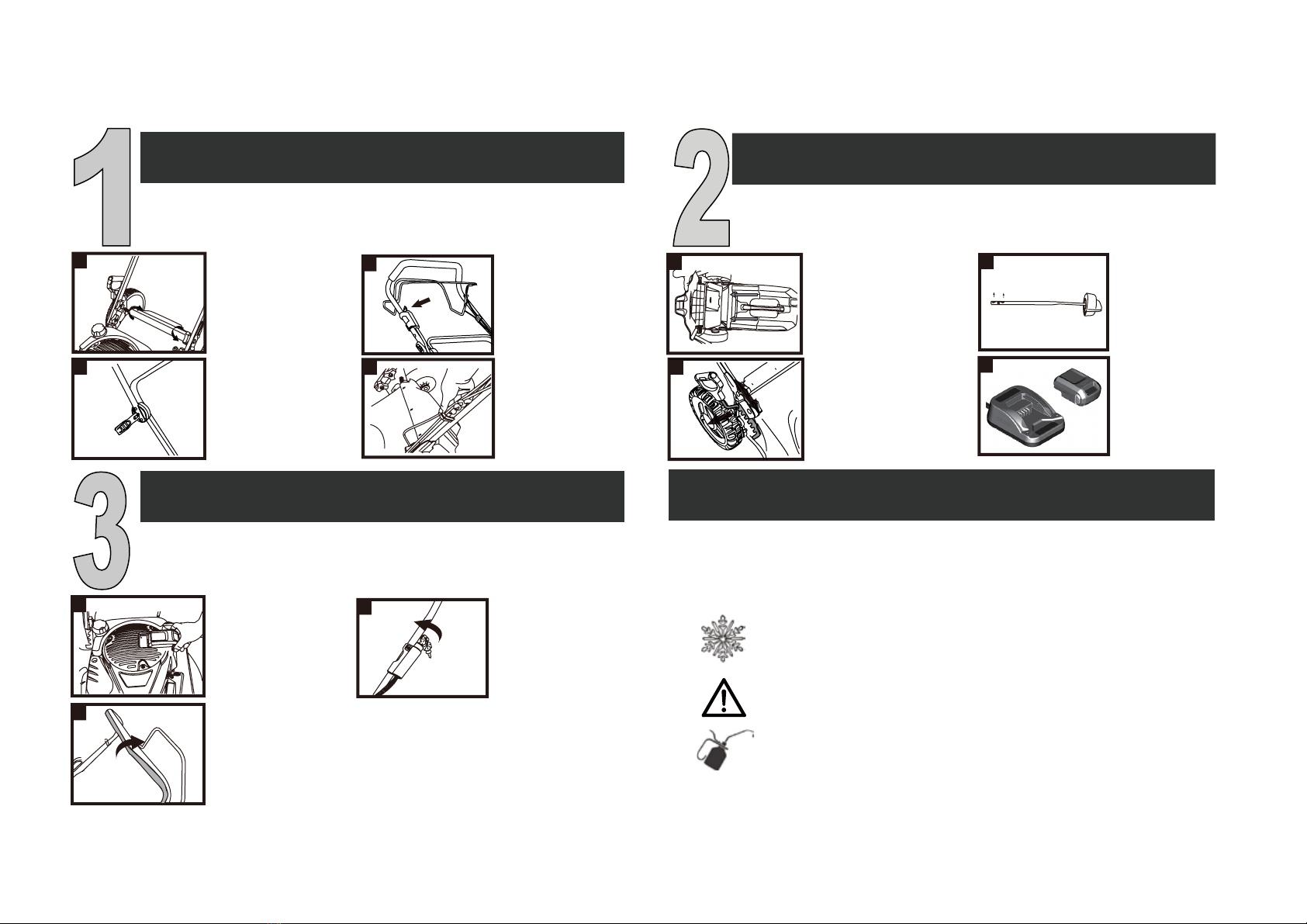

ASSEMBLY PREPARING TO MOW

Fill the petrol tank with 1.0l of normal 95 Octane petrol

(standard unleaded) using a funnel and measuring jug.

Turn the ignition key fully

to the right.

As soon as the motor starts

running, release the key (it

turns automatically).

CAUTION!

Every start, ignition time

should be less than 5s.

Long time ignition will

damage the electric motor.

If no starting first time,

please try 3~5 times.

In cold weather it may be necessary to repeat the cold engine starting

process.

IMPORTANT INFORMATION!

Always read the instruction manual thoroughly

before starting the lawnmower.

Never allow the starter cord to snap back.

Check the oil level before every use. Always use high quality detergent oil classified

SAE30 oil (or equivalent eg 5W 30, often termed as 4 Stroke lawn mower oil).

Unpack the lawn mower ensuring all parts are present

(see parts list overleaf) before discarding the packaging.

Align the lower handle with

the holes in the deck. Make sure

the holes in the lower handle are

aligned with those in the support.

Fix the lower handle onto

the deck firmly.

Make sure the key seat is

on right hand side

when you stand behind

the mower.

Assemble the grass collection bag and

attach the lift handle onto the grass bag

frame. When using the grass collection

bag, please ensure the mulching plug is

removed before hooking the bag onto

the mower. Ensure the side discharge

chute is not fitted when collecting the

grass in the bag.

Pull the lever towards

the wheel, then move it

forward or backward to

adjust the cutting height.

Return lever into securing

plate.

The battery pack is

programed to enter a

"sleep mode". A quick

charge of approximately

10 seconds is required to

wake up the battery.

Ensure that the cables clips

supplied are used to fix the

cable to the lower handle.

Lift the upper handle, and lock in

place using the quick release lever

and tensioning bolts that are

attached to the handle.

Ensure the lower and upper

handles are firmly connected.

Follow these steps to ensure quick and easy set up

every time.

5The engine does not

come with oil. Add a

minimum of 0.5 litres of

oil.

CHECK THE OIL

BEFORE EVERY USE.

Fit the battery pack into

the engine; a click

confirms it is fitted

correctly.

If you have any difficulties please contact the

helpline on 01904 727500

email [email protected]

or visit www.gardenservicecentre.co.uk

MOWING THE LAWN

Hold the stop/start bar

firmly to the upper

handle.To stop the mower

release the stop/start bar.

Add Full

ALWAYS READ THE

INSTRUCTION MANUAL AND

SAFETY WARNINGS THOROUGHLY

BEFORE USE.

For technical advice, spare parts and service

support 7 days a week please call:

Mon-Fri: 9am-5pm

Sat-Sun: 11am-4pm

Email: [email protected]

Website: www.gardenservicecentre.co.uk

01904 727500

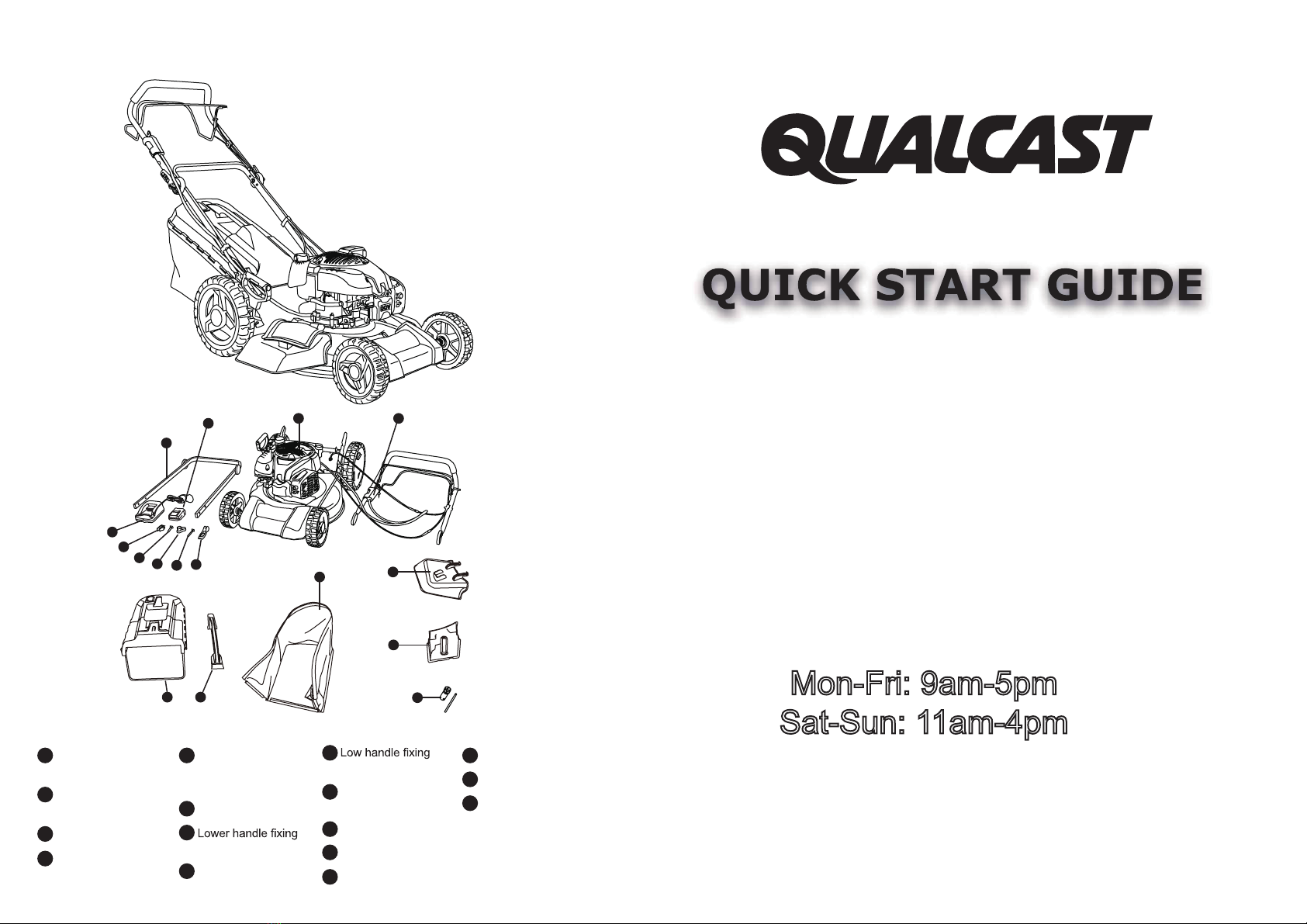

53cm Key Start Self Propelled Petrol Lawnmower

GJH

AMain mower deck

(with upper handle)

BGrass collecting

bag frame

CGrass bag lift handle

DSide discharge

chute 1pc

EPlastic mulching

plug 1pc (inside the

mower)

FLower handle

knob 4pcs

HQuick release 2pcs

bolt M8x40 4pcs

Quick release bolt

M8x55 2pcs

Cable clip 2pcs

Battery pack

Charger

NCollection bag

OKey seat with 2 keys

1Socket spanner for

spark plug 1pc
