Quam SYSTEM 17 Series Manuale utente

GENERAL DESCRIPTION

The SYSTEM17 Series consists of versions of a complete

loudspeaker with a 8” O.D. wide frequency response speaker,

multiple transformer options, perforated steel baffle, and

integral molded fiber enclosure.

Finish: Baked epoxy hybrid.

MODELS

SYSTEM17 10W*, 70.7V, pigtail select

SYSTEM17/25RS 4W**, 25V rotary select

SYSTEM17/70RS 4W**, 70.7V rotary select

SYSTEM17/8 20W, 8-Ohm



*10W,5W,2.5W,1.25W,0.63W

  **4W,2W,1W,0.5W,0.25W

INTENDED USE

All versions: Indoor environment, mounted parallel to floor plane in

a 24” wide suspended ceiling tile grid.

Program Material: Signal tones, voice and music.

SYSTEM COMPONENTS

Loudspeaker 8C10FEPAX

FINISH OPTIONS

White Order as SYSTEM17, SYSTEM17/25RS,

SYSTEM17/70RS, SYSTEM17/8

Black Order as SYSTEM17/B, SYSTEM17/25RS/B,

SYSTEM17/70RS/B, SYSTEM17/8/B

Quam-Nichols Company

234 East Marquette Road, Chicago, IL 60637

Phone: (800) NEED NOW Fax: (888) NEED NOW

(800) 633 - 3669 (888) 633 - 3669

E-Mail: [email protected] www.quamspeakers.com

AUDIO SPECIFICATIONS:

Average Sensitivity 95 dB-SPL, 1W/1M

Loudspeaker Power 20W RMS, EIA 426A Standard

Rating

Calculated Maximum 105 dB-SPL, 10W/1M

System Output

Magnet Type, Weight BeFe Ceramic, 10oz. Nominal

Frequency Response 50Hz - 18 kHz (SYSTEM17, SYSTEM17/8)

65Hz - 18 kHz (SYSTEM17/- RS versions

EIA 426A Standard

Nominal 100°Included angle, -6dB

Coverage Angle 2 kHz, half space

Audio Connection 7” long, labeled tinned wires,

pre-cut

LOUDSPEAKER ASSEMBLIES 01

0104.5 - TILE REPLACEMENT LOUDSPEAKER

SYSTEM17

Extended Frequency Response, 70.7V Pig-Tail Lead

SYSTEM17/8

Extended Frequency Response, 8-Ohm Pig-Tail Lead

SYSTEM17/25RS

Extended Frequency Response, 25V Rotary Select

SYSTEM17/70RS

Extended Frequency Response, 70.7V Rotary Select

Since 1930

IBEW

1031

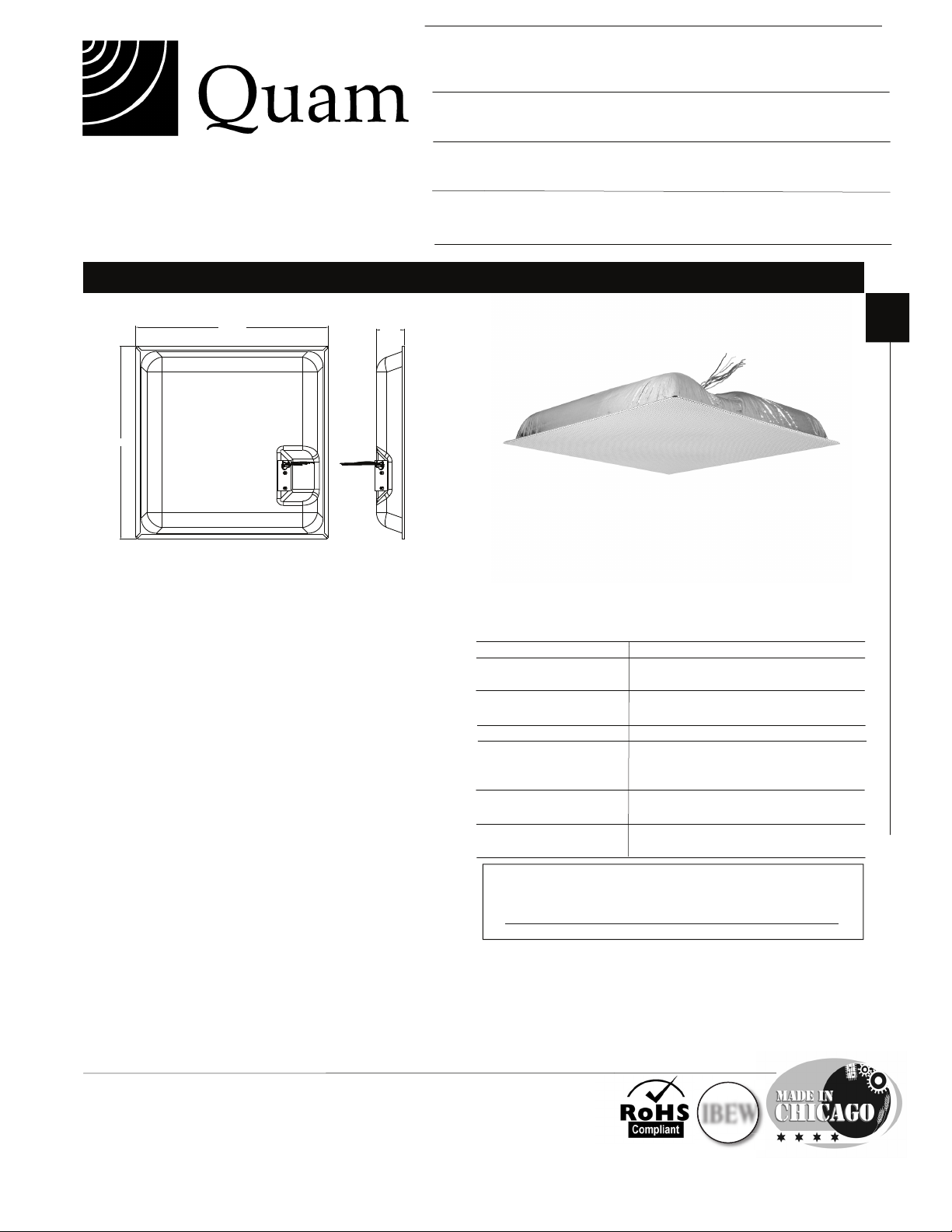

SYSTEM17 Shown

23-13/16

3-7/16

Recommended construction sequences, installation instructions,

and A&E Guide Specifications are available on the web at:

www.QuamSpeakers.com/ Resources /A&E Resources

234 East Marquette Road, Chicago, IL 60637

Phone: (800) NEED NOW Fax: (888) NEED NOW

(800) 633 - 3669 (888) 633 - 3669

E-Mail: [email protected] www.quamspeakers.com

(1’ x 2’) SYSTEM 5/VC, SYSTEM 14, SYSTEM 16 – includes 8-Ohm, /25RS and /70RS versions

(2’ x 2’) SYSTEM 12/VC, SYSTEM 15, SYSTEM 17 – includes 8-Ohm, /25RS and /70RS versions

INSTALLATION INSTRUCTIONS

12– 2.20 8088

4. Feed supply cable through whip to connector.

Make connections per wiring diagrams below;

Insulate all unused taps from each other, the enclosure

and electrical ground.

When cover plate is secured, all connections / splices and

unused leads must be inside of the enclosure.

5. Place assembly onto ceiling grid, install 24” T-bar

trim piece where required (furnished only with specific

1’x2’ formats).

NOTE! AHJ/ local codes may require tie-off to structure.

Bend up tie-off tabs as shown in illustration and install as

directed.

NOTE! AHJ/ local codes may require tie-down to grid.

Recommended fasteners;

not supplied

: Erico/Caddy part

ATA4i and 1/4”-20 x 2” bolt, or equivalent. Install as

directed.

6. Place remaining ceiling tile into opening as required.

BLACK ( Common )

8Ω

QUAM /25RS and /70RS Rotary Select

0.25W

0.5W

OFF

RED

INTENDED USE:

All versions: Indoor environment, mounted parallel to floor

plane in a 24” wide, suspended ceiling tile grid; mount height

18’ or less above floor plane.

Program material: Signal tones, voice and music.

1. Cut ceiling tile as required:

1’ x 2’ FORMAT LOUDSPEAKER

2’ x 2’ tile – Cut tile in half along one axis.

2’ x 4’ tile – Cut 12” from edge along 2’ axis and

discardsmallerpiece.

2’ x 2’ FORMAT LOUDSPEAKER

2’ x 2’ tile – No cutting required.

2’ x 4’ tile – Cut tile in half along 2’ axis.

!Steps 2-3 – Required only if using conduit clamp

fitting

other than what is provided

with product.

2. Loosen, but do not remove screws on cover plate;

push up and remove plate from assembly.

3. Remove cable /conduit clamp fitting from plate;

Install UL Listed metallic enclosure entry fitting for

plenum cable or flex whip.

Tie-off

tab 2x

Tie-off

tab 4x

Brown 5W @ 25V only

Red 2.5W @ 25V only

Violet only 0.32W @ 70.7V

Gray only 0.63W @ 70.7V

Blue only 1.25W @ 70.7V

White 0.32W @ 25V or 2.5W @ 70.7V

Green 0.63W @ 25V or 5W @ 70.7V

Orange 1.25W @ 25V only

BLACK ( Common )

8Ω

QUAM Model TBLU

BLACK ( Common )

8Ω

QUAM 8-Ohm Operation

RED

Blue 10W

White 5W

Yellow 0.63W

Red 1.25W

Green 2.5W

BLACK ( Common )

8Ω

QUAM Model TCH70
