Quantum Fireball ST Manuale di istruzioni

Fireball ST

Mounting Guidelines

3.5 inch Form Factor Drive Mounting

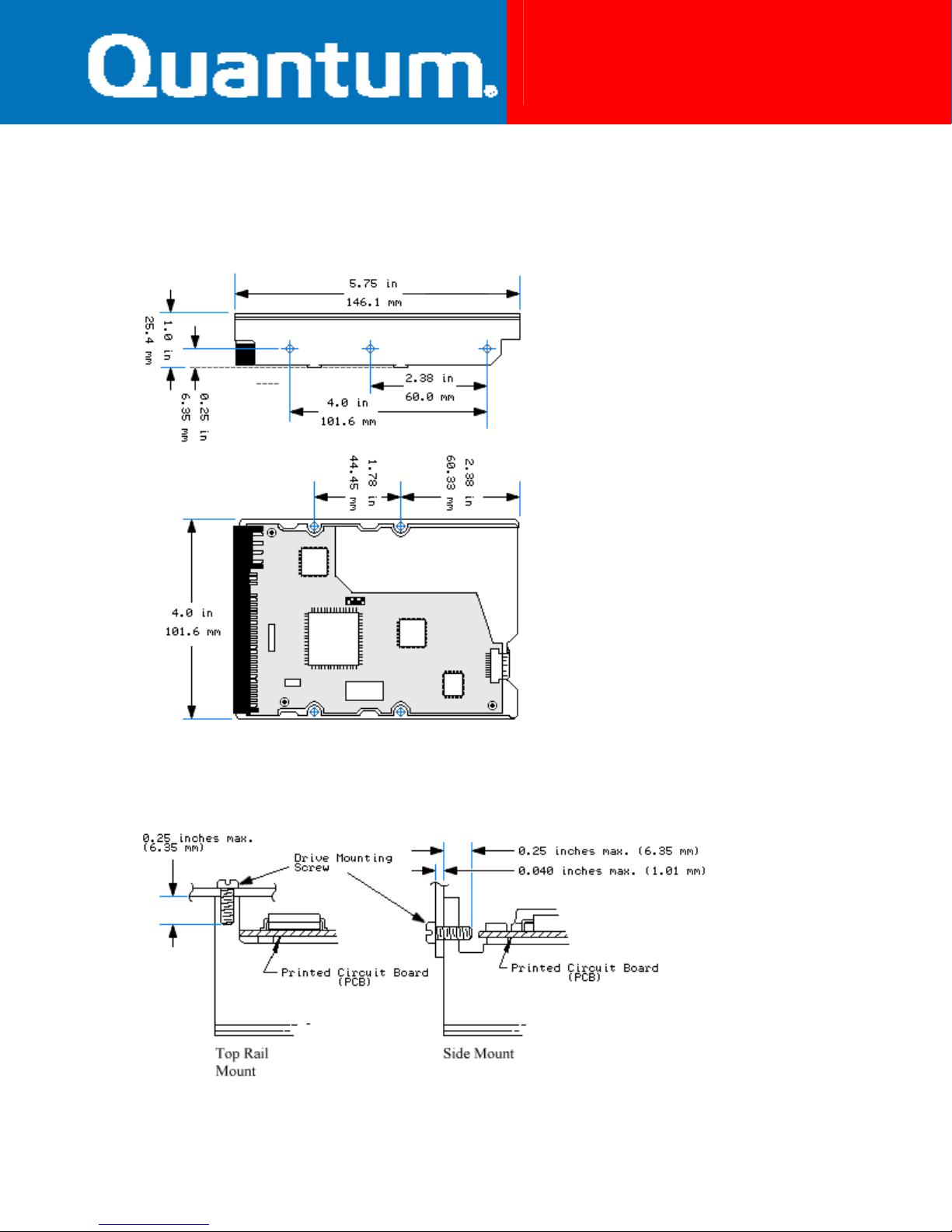

Mounting Screw Tap Locations

The mounting holes on Quantum 3.5-inch form factor hard disk drives allow the drive to be mounted in any

orientation. The figure provided identifies the location of the three mounting holes found on each side of the drive

and the four mounting holes found on the PCB side of the drive. Dimensions given are in inches and millimeters.

Mounting Screw Clearance

Please note that the printed-circuit board assembly (PCBA) is very close to the mounting holes. For mounting #6-

32 UNC screws are recommended. Mounting screws should be no longer than 0.25 inches (6.35 mm) and

maximum torque applied to the screws must not exceed 8 inch-pounds. Clearance from the drive to any other

surface (except mounting surfaces) must be a minimum of 0.05 inches (1.25 mm).

1 of 1

Fireball ST

fireball_st_mounting.pdf

2 of 2

Ventilation

Quantum 3.5-inch hard disk drives operate without the need of an additional system cooling fan, provided the

ambient air temperature does not exceed 131°F (55°C). Clearance from the drive to any other surface above and

below must be a minimum of 1/16 inch (1.25 mm) to allow airflow.
