Quantum PX720 Manuale utente

Document 6444602-04 A01, March 2005 1

Quantum PX720 Unpacking

and Installation Instructions

Introduction 3

Selecting an Installation Location 4

Floor Space..................................................................................................................4

Floor Clearance ..........................................................................................................5

Floor Strength and Inclination.................................................................................5

Power and Grounding ..............................................................................................5

Environmental Conditions.......................................................................................6

Preparing for the Installation 6

Providing Necessary Tools and Equipment..........................................................6

Taking ESD Precautions ...........................................................................................6

Unpacking the Library 7

Receiving the Library................................................................................................7

Unboxing the Library................................................................................................8

Positioning the Library ...........................................................................................11

Unpacking the Library............................................................................................13

Storing the Shipping Materials..............................................................................22

Leveling the Library................................................................................................22

Installing the Quantum PX720 Library 23

Cabling the Quantum PX720 .................................................................................23

Loading the Tape Cartridges .................................................................................34

Initial Configuration................................................................................................34

Quantum PX720 Unpacking and Installation Instructions

Document 6444602-04 A01

March 2005

2 6207947-05fN 19 c

Quantum PX720 Unpacking and Installation Instructions

Document 6444602-04 A01

March 2005

Introduction 3

Introduction 0

The Quantum PX720 is an automated storage and retrieval library consisting

of up to 20 tape drives and up to 642 SDLT or 726 LTO tape cartridges bins

(figure 1).

This document explains how to unpack the Quantum PX720. Once the library

is unpacked and moved to the desired installation location, set up the library

using the instructions in the Quantum PX720 Series User’s Guide.

Figure 1 Quantum PX720

Library

Caution: Do NOT unpack the Quantum PX720 unless you are a

qualified Quantum field service engineer.

Quantum PX720 Unpacking and Installation Instructions

Document 6444602-04 A01

March 2005

4 Selecting an Installation Location

Selecting an Installation Location 0

When choosing an installation site for the PX720, consider the following

requirements:

• Floor space

• Floor clearance

• Floor strength and inclination

• Power and grounding

• Environmental conditions

These requirements are also described in the Quantum PX720 Series User’s

Guide.

Floor Space 0Figure 2 shows the minimum floor space required by the Quantum PX720.

Figure 2 Floor Space

Requirements

28 in. (71 cm)

23 in. (58 cm)

30 in. (76 cm)

50 in. (127 cm)

Quantum PX720 Unpacking and Installation Instructions

Document 6444602-04 A01

March 2005

Selecting an Installation Location 5

Floor Clearance 0The library has a floor clearance of 0.75 inch (19 mm). Place the library on a

level, uncarpeted floor free of defects.

Floor Strength and

Inclination 0The floor at the installation site must be rated at 250 lb/ft2

(1221 kg/m2). This is sufficient to support a fully loaded PX720 library.

The floor must be level to within 0.25 inch (6.4 mm) over a 6-foot-by-6-foot

(1.83-meter-by-1.83-meter) area.

PowerandGrounding0For the United States and Canada, two UL/CSA certified power cords are

furnished. Each uses a 14/3 SJT cord, a L6-20P plug, and an IEC-C320 C19

female connector (see figure 3).

Figure 3 Power Supply

Cord

The library is rated 200-240V~, 50-60Hz.

The library power requirements may require modification of the facilities

existing power capabilities by a qualified electrician. The required wall outlet

for the United States and Canada is rated at 250V 20A (see figure 4).

Figure 4 Wall Outlet

Two dedicated wall outlets and a 20 amp circuit breaker are required to

provide power to the PX720 library. Outside North America, replace the

supplied power cord with a harmonized 3 x 1.5 mm2power cord that is

approved by the country where used, and install the appropriate wall outlet.

More information on the electrical requirements is provided in the Quantum

PX720 Pre-Installation Site Survey Instructions.

Caution: The PX720 library must be connected to a grounded electrical

outlet.

Connects to

wall outlet

Plug NEMA

L6-20P Connects to library power supply

Connector IEC-C320 C19

Line y

Line x Wall outlet:

NEMA L6-20R

rated 250V 20A

Ground

Quantum PX720 Unpacking and Installation Instructions

Document 6444602-04 A01

March 2005

6 Preparing for the Installation

Environmental

Conditions 0The installation site must have the following environmental conditions:

• Humidity: 20%-80% non-condensing

• Temperature: 15°C-32°C (59°F-90°F)

• Altitude: sea level to 3048 meters (10,000 feet)

These environmental conditions apply when the library is in operation.

Preparing for the Installation 0

Before you begin the installation procedure in this section, make the following

preparations as described in these sections:

• Providing necessary tools and equipment for installation

• Taking ESD precautions

Providing Necessary

Tools and Equipment0Provide the following tools for unpacking the library:

• #2 PHILLIPS® screwdriver

• Snips for metal bands

• Safety goggles

• 3/8 open-ended wrench or socket

• 3/4 inch open-end wrench (included in accessory kit)

• 3/16 in. Allen® wrench

• 7/16 inch wrench or socket

Provide the following tools for leveling the library:

• Carpenter’s level

Taking ESD

Precautions 0Some components within the PX720 library contain static-sensitive parts. To

avoid damaging these parts while performing installation procedures, always

observe the following precautions:

• Keep the library turned off during all installation procedures.

• Keep the library power cord plugged into a grounded power outlet

except when working with AC electrical components.

Note: For additional library specifications (including environmental

requirements during shipping and storage), see appendix A in the

Quantum PX720 Series User’s Guide.

Quantum PX720 Unpacking and Installation Instructions

Document 6444602-04 A01

March 2005

Unpacking the Library 7

• Avoid contact with power supplies, EMI filters, and AC electrical

components while the library is connected to a power outlet.

• Use an antistatic wrist strap.

• Keep static-sensitive parts in their original shipping containers until

ready for installation.

• Do not place static-sensitive parts on a metal surface. Place them inside

their protective shipping bag or on an antistatic mat.

• Avoid touching connectors and other components.

Unpacking the Library 0

This section explains how to unpack the library and move it to its final

installation location. The PX720 is shipped in packing materials designed to

protect it from damage during transit. By following these instructions, you

help ensure that the library will continue to be safeguarded after it arrives at

the installation site.

The following are the major steps in this procedure:

•Receiving the Library

•Unboxing the Library

•Positioning the Library

•Unpacking the Library

•Leveling the Library

Receiving the Library0Unpack the library as close to the installation site as possible. Inspect the

shipping pallet and carton for damage that may have occurred during

shipment. Report any damage to the shipper.

Note: Dry climates and cold-weather heating environments have lower

relative humidity and are more likely to produce static electricity.

Warning: The Quantum PX720 with 20 tape drives weighs 1350 pounds

(612 kg). Two people are required to move and install the

library.

Quantum PX720 Unpacking and Installation Instructions

Document 6444602-04 A01

March 2005

8 Unpacking the Library

Unboxing the Library 0To unbox the library:

1Check the packing list and verify that all components have been received.

2Choose the unloading side. The PX720 may be unloaded from only the

right side of the pallet.

3Verify the minimum floor space requirements (see figure 5).

Figure 5 Minimum Floor

Space Requirements—

Uncrating Site

4Cut the two steel bands that secure the library and packing material to the

pallet (see figure 6).

Note: If any part is missing or damaged (look for scuffs on the

antistatic bag), contact your authorized reseller.

Note: Uncrating the library requires a minimum of 3 feet (91 cm) on

all sides. For the side being used for the ramp, uncrating the

library requires an additional 7 feet (2.13 m) for a total of 10

feet (3.05 m) on that side. Figure 5 shows the minimum floor

space required by the PX720 at its uncrating site. The

minimum height required for unpacking the PX720 is 85

inches (2.16 meters). The crate occupies a footprint of 48 x 56

in. (122 x 142 cm).

Warning: The steel bands are under tension and will snap away when

cut. Wear safety goggles when cutting the steel bands.

3 ft. (91 cm)

3 ft.

(91 cm) 7 ft. (2.13 m)

Ramp side

Cabinet

front

Quantum PX720 Unpacking and Installation Instructions

Document 6444602-04 A01

March 2005

Unpacking the Library 9

Figure 6 Removing the

Steel Bands

5Lift the cardboard box top cover straight up and off of the pallet (see

figure 7).

Figure 7 Removing the

Box Top Cover

6Remove the eight cardboard box retaining clips to their open position and

unwrap the two pieces of the cardboard box from the library (see

figure 8).

Steel bands

Quantum PX720 Unpacking and Installation Instructions

Document 6444602-04 A01

March 2005

10 Unpacking the Library

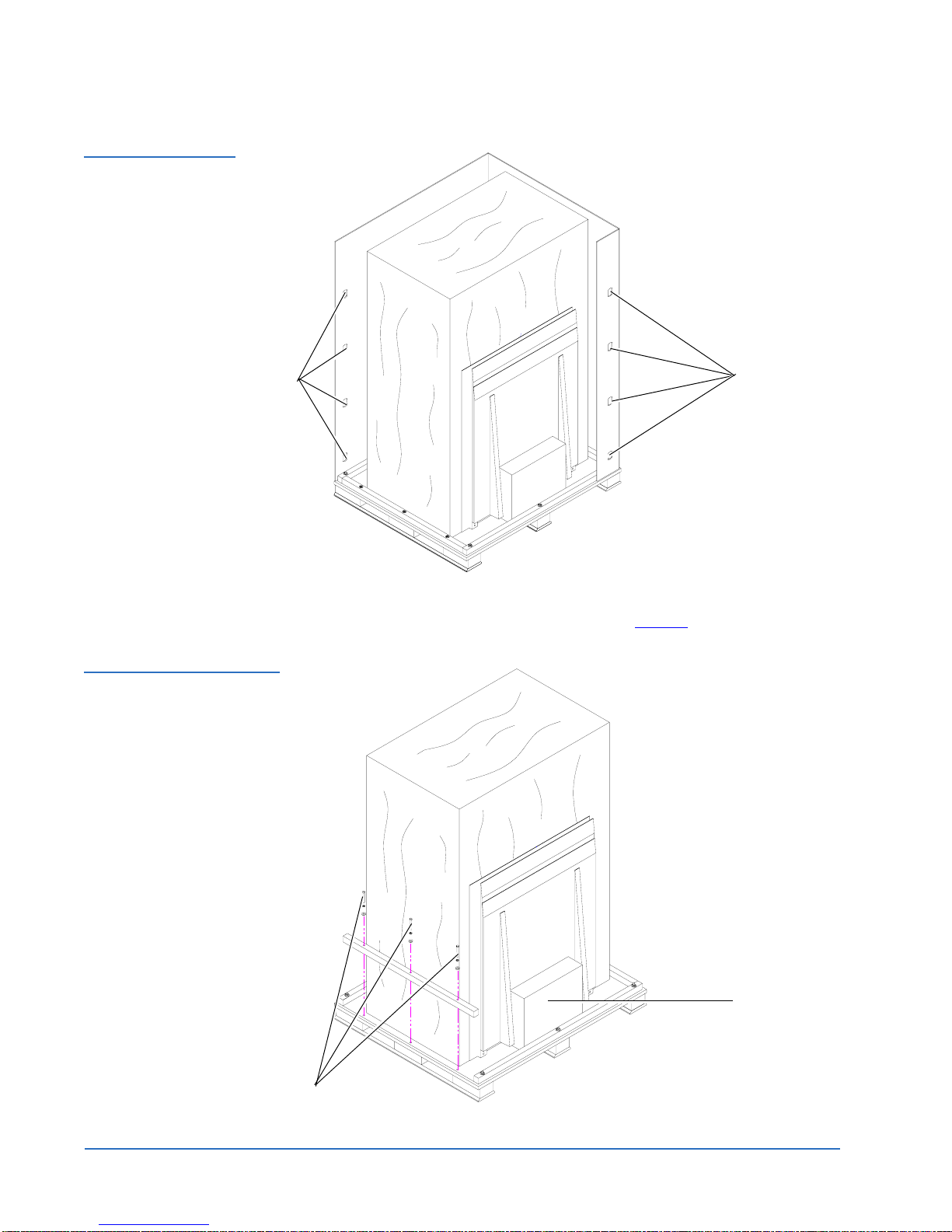

Figure 8 Removing the

Cardboard Box

7Remove the 3-3/8 in. hex head bolts, lock washers, and flat washers from

the front rail of the pallet and set aside (see figure 9).

Figure 9 Removing the

Front Pallet Rail

Retaining clips

Retaining

clips

Bolts

Accessory kit
