Quatech SS-BLT-100 Manuale utente
Bluetooth to RS-232 Converter
Bluetooth Adaptor
Operation Manual
First Edition, Nov 2007
1
Table of Contents
1. Introduction
……………………………………………………………….. 2
2. Package checklist
………………………………………………………….. 3
3. Product Specification
…………………………………………………...4
4. Product Panel Views Description
……………………………………. 5
E-BT232 Product Views ……………………………………………………… 5
DC-In Power Outlet …………………………………………………………... 5
Antenna Connecter …………………………………………………………… 6
Serial I/O Port of RS-232 …………………………………………………….. 6
Synchronous Button …………………………………………………………...6
LED Indicators ………………………………………………………………... 7
5. Hardware Installation
…………………………………………………… 8
6. BT232 Config Tool Installation & Setup
…………………………. 9
Tool Installation ………………………………………………………………. 9
BT232 Config Tool Parameters Configuration ……………………………….. 10
Apply “Connect” ……………………………………………………………… 12
Apply “Write” ………………………………………………………………… 13
Apply “Read” …………………………………………………………………. 13
Appendix A - Pin Outs and Cable Wiring
………………………. 14
DC Power Outlet ……………………………………………………………… 14
RS-232 Pin Assignment ………………………………………………………..14
RS-232 Wiring Diagram ……………………………………………………… 14
2
1
1
Introduction
Thank you for your purchase the Bluetooth To Serial Adapter. Featuring Bluetooth
wireless technology, It is for replacement of standard RS232 cable perfectly, with
standard RS232 interface, so it can be easily adopted for industrial machines with
RS232 interface. The adapter is compatible with all Bluetooth V.2.0-certified and
is backward compatible with v1.1/1.2 devices. You can connect between your
computers (Master) and RS232 devices (Slave) 100 meters away without cables
in your working environments.
Security of Bluetooth wireless communication is very strong because it use the
frequency hopping and 128bit encryption in 2.4Ghz frequency range. Hardware
setting is very easy and simple. The maintenance is very convenience too. One
pair of the adapter will try to connect automatically whenever powered on after
finishing the device’s parameters configured. It does not require extra software for
operation. No installation of driver and application software.
System OS requirements as Win 98/Me/2000/XP/XP x64.
3
2
2
Package checklist
This product is shipped with the following items:
1 unit of Bluetooth to RS232 converter with Antenna
1 unit of Power Adaptor (5V DC, 200mA)
Quick Installation Guide
Software CD
NOTE: Notify your sales representative if any of the above items is missing or
damaged
4
3
3
Product Specification
Serial Port
No. of Port : RS-232 * 1 Port
●Port Type : DB9 female
●Speed : 1200 bps～115.2K bps
●Parity : None , Odd , Even
●Data Bit : 8
●Stop Bit : 1 , 2
●Flow Control : DTR / DSR
●Socket Status/Control : DTR/DSR
●RS-232 Signals : Rx , Tx , GND , RTS , CTS , DTR , DSR
Bluetooth I/O Port
No. of Port :Bluetooth * 1 Port
●Compliant with Bluetooth v2.0+EDR
●Support Bluetooth Serial port profile(SPP)
●Operate in 2.4GHz – 2.483GHz ISM Band
●Support Bluetooth Radio with Class 1 & 2 RF
●Operating Distance up to 100 Meters
Power : 5V DC / 200mA, Consumption 80mA
Led Lamp :
SYS (red), Pairing (green)
Environment : Operating Temperature: 0℃～60℃
Storage Temperature : -25℃～70℃
Dimensions : 65 * 30 * 12 mm ( W * D * H not include antenna )
Weight : 35 gm ( not include power )
5
4
4

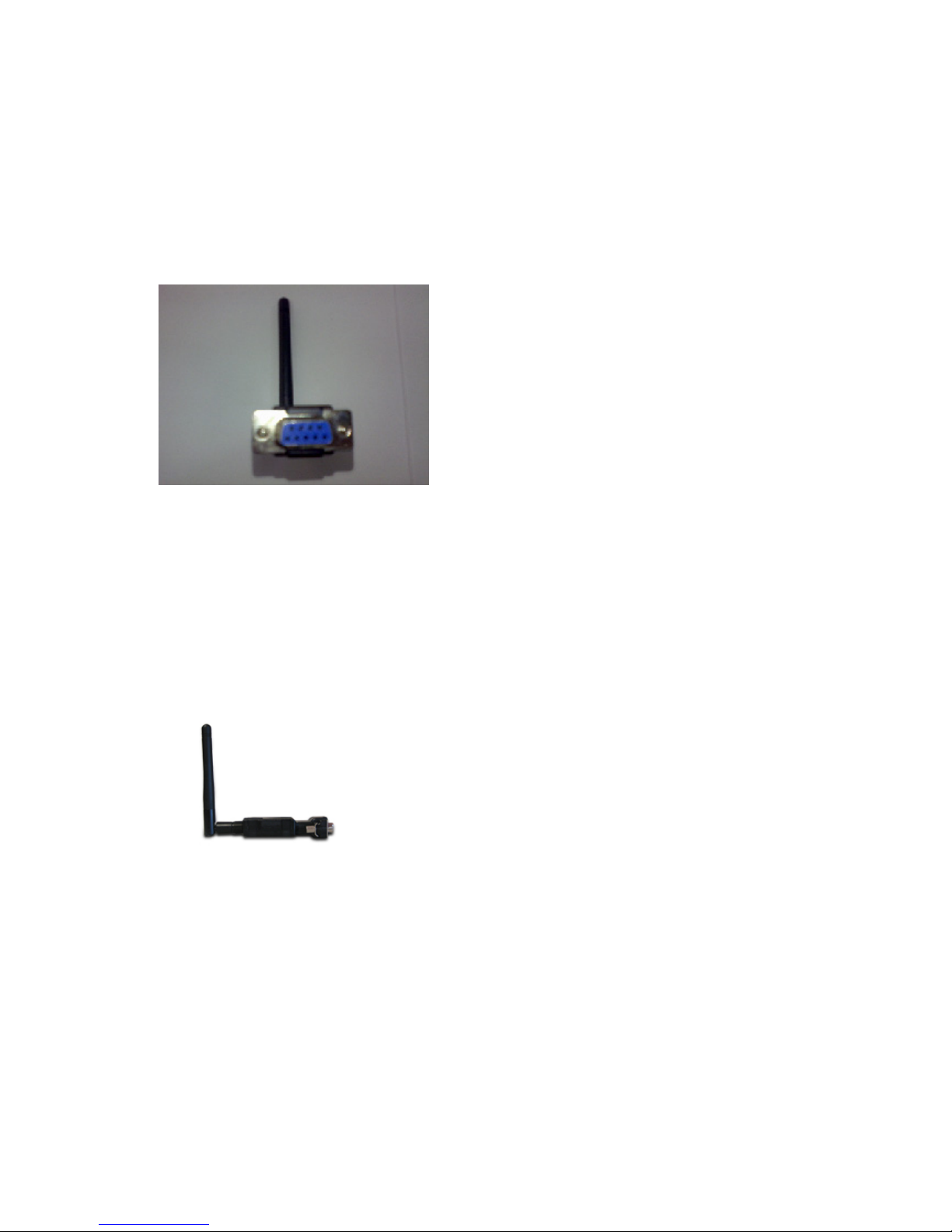

Product Panel Views Description
Product Views
DC-In Power Outlet
The Bluetooth to RS232 is powered by a single 5V DC (Inner positive / outer
negative) power supply and 200mA of current. A suitable power supply
adapter is part of the packaging. Connect the power line to the power outlet
beside of antenna connector and put the adapter into the socket. If the
power is properly supplied, the red color LED will be on.
DC-In
Power Outlet
Serial I/O Port
RS-232
Sync Button
LED Indicators
Antenna
6
Antenna Connector
The connector for antenna is a standard Reverse SMA jack. Simply connect
it to a 2.0dBi dipole antenna and it is 50 Ohms impedance and can support
2.4GHz frequency. (The Antenna is changeable for high gain Antenna)
Serial I/O Port of RS-232
Connect the serial I/O RS-232 port into the device as like computers and
serial devices. ( RS-232 RX/TX has been CROSS OVER )
Set-up Button
The purpose is for synchronizing between this device and “BT RS232
Config Tool” software. After finishing the parameter setup of “BT RS232
Config Tool” software, when you click the icon of “Connect” in “BT RS232
Config Tool” software and then use any point tip to push this button
immediately on the left side of the device. You will see the icon of “Connect”
turn into “Disconnect” and this is meaning successful to active the device.
7
LED Indicators
Red Color LED：
Power indicator (When the power is on, the red color LED will be on all the
time
Green Color LED：
Before connecting to synchronize between the device and the “BT RS232
Config Tool” software, the green LED will be blinking
After connecting to synchronize between the device and the “BT RS232
Config Tool” software, the green & red LED will be blinked alternately
8
5
5
Hardware Installation
1. Connect the Bluetooth adapter to COM Port of PC and then to connect DC
power adapter and jack into power outlet and DC-in outlet. You will see the
red LED is going to be on and the green LCD will be blinked.
2. After running the BT RS232 Config Tool and finish configuration. Click the
icon of “Connect” in tool software and press the SET-UP button of the
Bluetooth adapter immediately.
3. The green LED will be turn on. The E-BT232 Bluetooth adapter is active.
There are two types of RS232 devices in field. One is DTE - Data Terminal
Equipment (such as a PC) and the other one is DCE - Data Communication
Equipment (such as a Modem). You can setup your E-BT232 device as what type
of the RS232 device you are going to connect in DTE or DCE mode to work with
it.
At DCE device side meaning is to connect a DTE E-BT232 to the remote DCE
RS232 device (such as a Modem). On the contrary, DTE device side to connect a
DCE E-BT232 to any DTE device, such as a computer device. For example, you
can connect a remote modem with a DTE E-BT232 and meanwhile at PC side,
you can either connect a DCE E-BT232 to it.
9
6
6
BT RS232 Config Tool Installation & Setup
When setting up this adapter for the first time, you have to install and run
“BT1.exe” as “BT RS232 config tool” first in your computer device. The utility CD
is enclosed in the device box. Before you use this adapter, you have to pair it
with another Bluetooth enabled device.
All the Bluetooth to RS-232 Adapters must be configured first before you use it.
The purpose of configuration is to pair two units of this adapter for an exclusive
connection between them, and pairing is done by utilizing Bluetooth address and
PIN code
Tool Installation
When setting up this adapter for the first time, you have to install the utility
software of “BT RS232 config tool” in your computer first which is an
executable program in Windows 32 bit environments. The config tool is
used to detect and setup the installation.
