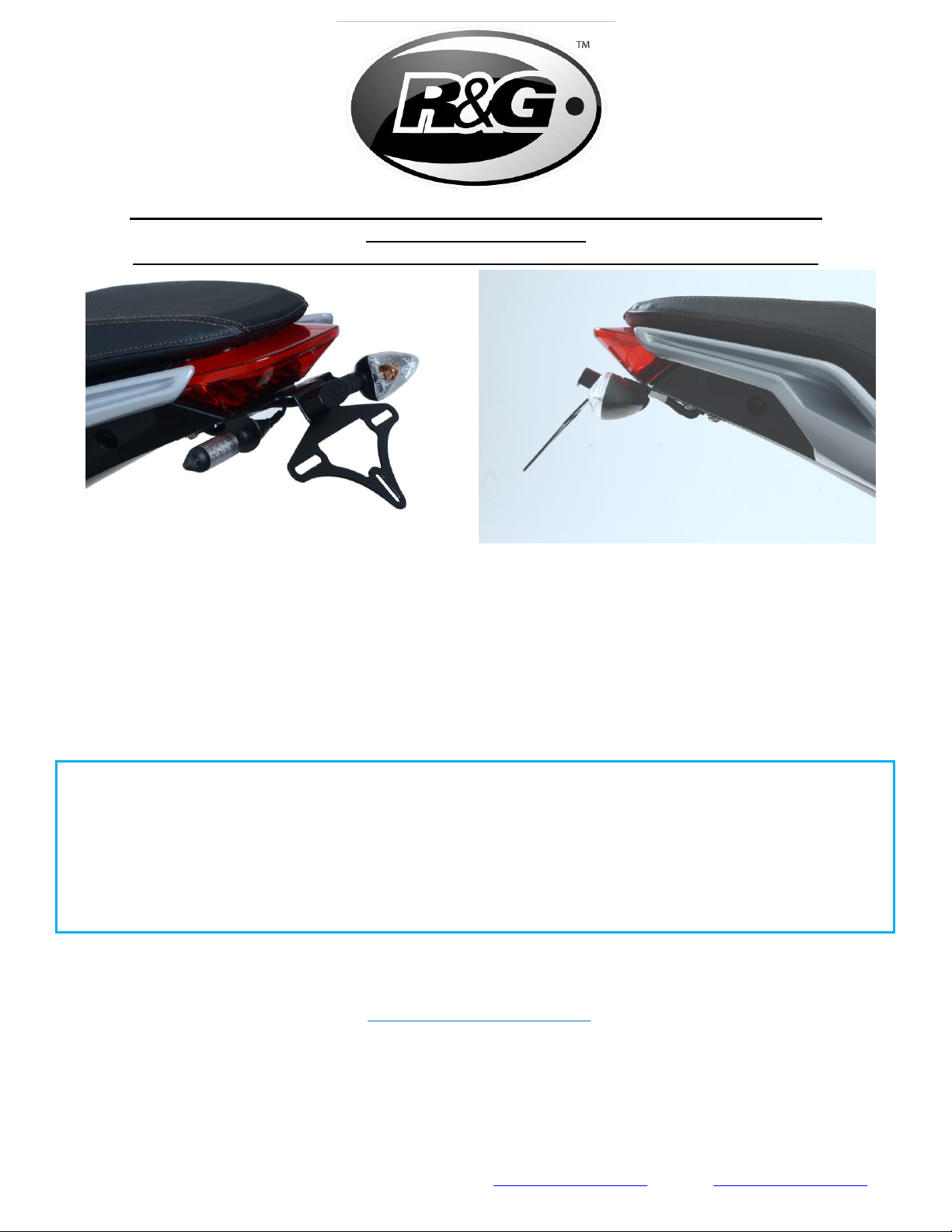

Page 1of 26 LP0286

R&G

Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ

Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com

FITTING INSTRUCTIONS FOR LP0286BK LICENCE PLATE BRACKET

FOR ZERO SRF 2019-

(FOR USE WITH STANDARD AND R&G MINI INDICATORS (8mm))

THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED OVER PAGE.

SOME PARTS MAY BE SHOWN FOR CLARITY OF INSTRUCTIONS ONLY.

DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.

PLEASE READ ALL INSTRUCTIONS BEFORE PROCEEDING.

IF IN ANY DOUBT WHEN FITTING OUR PRODUCTS, CONSULT ONE OF OUR DEALERS OR

HAVE FITTED BY A QUALIFIED TECHNICIAN.

PLEASE NOTE THAT THE WAY THE KIT IS PACKED DOES NOT NECESSARILY REPRESENT THE WAY OF

MOUNTING TO THE BIKE.

IN THE EVENT OF RUBBER WASHERS BEING USED TO HOLD COMPONENTS ONTO BOLTS,

THESE RUBBER WASHERS CAN BE THROWN AWAY.

DIGITAL COPIES OF THESE INSTRUCTIONS ARE AVAILABLE FROM:

WWW.RG-RACING.COM

Page 2of 26 LP0286

R&G

Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ

Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com

LEGEND

TOOLS REQUIRED

•Set of metric Allen keys to include 3 & 4mm A/F sizes.

•T25 and T30 Torx bits or keys.

•10mm spanner or socket and wrench.

•Phillips type driver.

•Cable cutters/ Electrical wire crimps.

•Small amount of adhesive.

GENERAL TORQUE SETTINGS

M4 BOLT = 8Nm

M5 BOLT = 12Nm

M6 BOLT = 15Nm

M8 BOLT = 20Nm

M10 BOLT = 40Nm

M12 BOLT = 40Nm

ITEM NO.

DESCRIPTION

QTY

ITEM 1

LICENCE PLATE BRACKET (TB0286 PART 1)

1

ITEM 2

M6 x 20mm LONG BUTTON HEAD BOLTS

2

ITEM 3

M6 WASHERS

4

ITEM 4

M6 NYLOC NUT

2

ITEM 5

THREADED SPACERS (S1267-6.5mm WIDE)

2

ITEM 6

PLAIN SPACER (S1083-6.5mm WIDE)

1

ITEM 7

M5 x 20mm LONG BUTTON HEAD BOLT

1

ITEM 8

M5 WASHER

1

ITEM 9

LICENCE PLATE ILLUMINATOR ASSEMBLY WITH SHROUD (LA0002)

1

ITEM 10

INDICATOR WIRING COVERS (IWC0002)

2

ITEM 11

180mm LENGTH OF HEATSHRINK

3

ITEM 12

RUBBER WIRING GROMMETS (RB0008)

2

ITEM 13

LICENCE PLATE ILLUMINATOR CONNECTOR (CON0014)

1

ITEM 14

2.5mm CABLE TIES

5

ITEM 15

MINI INDICATOR BULLET CONNECTORS (CON0004)

2

ITEM 16

SELF-ADHESIVE CABLE CLIPS

2

ITEM 17

RUBBER BLANKING GROMMETS (RB0008)

2

ITEM 18

REFLECTOR (REFL3)

1

ITEM 19

LICENCE PLATE MOUNTING BRACKET (TB0286 PART 2)

1

Page 3of 26 LP0286

R&G

Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ

Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com

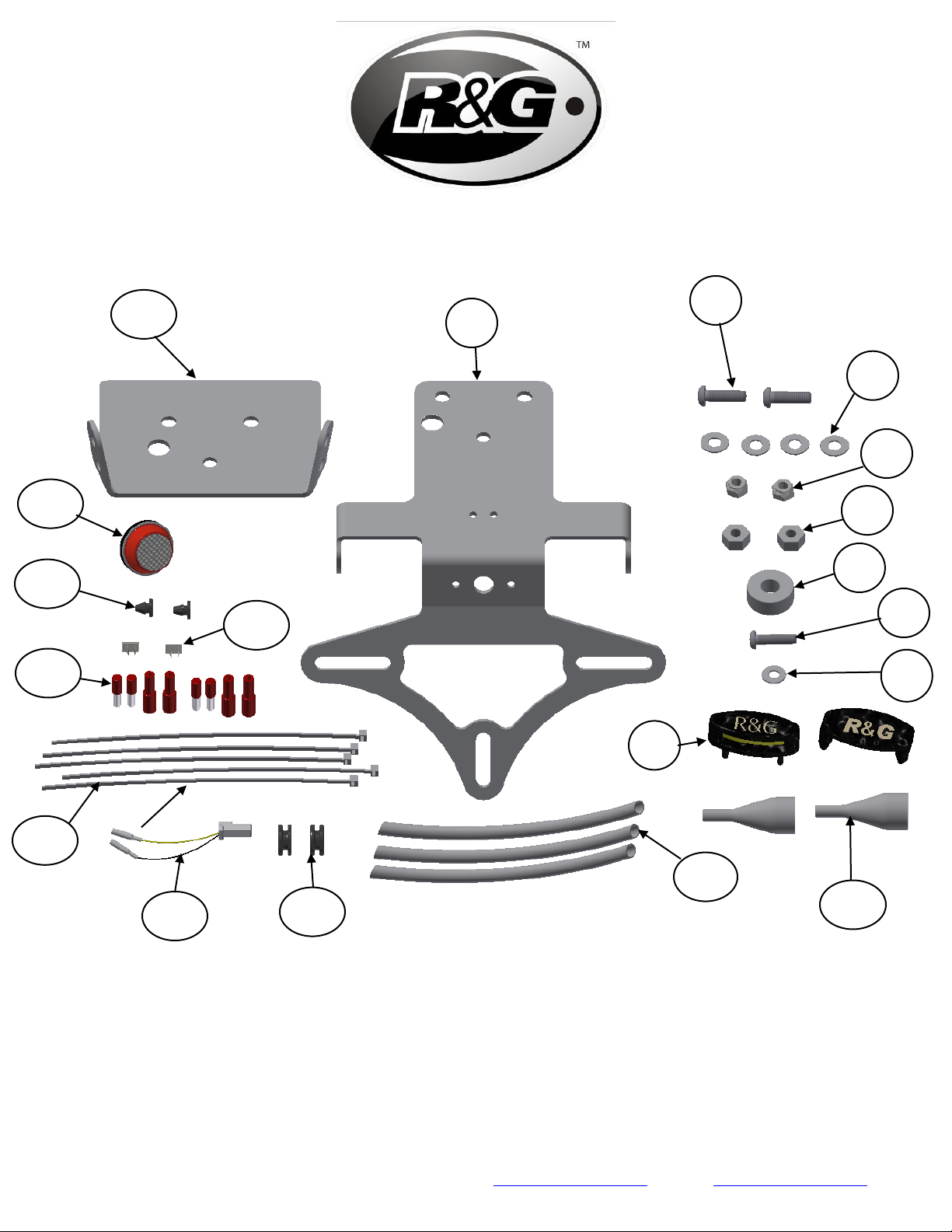

8

6

7

11

10

9

5

4

3

1

2

15

14

13

12

17

16

18

19

Page 4of 26 LP0286

R&G

Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ

Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com

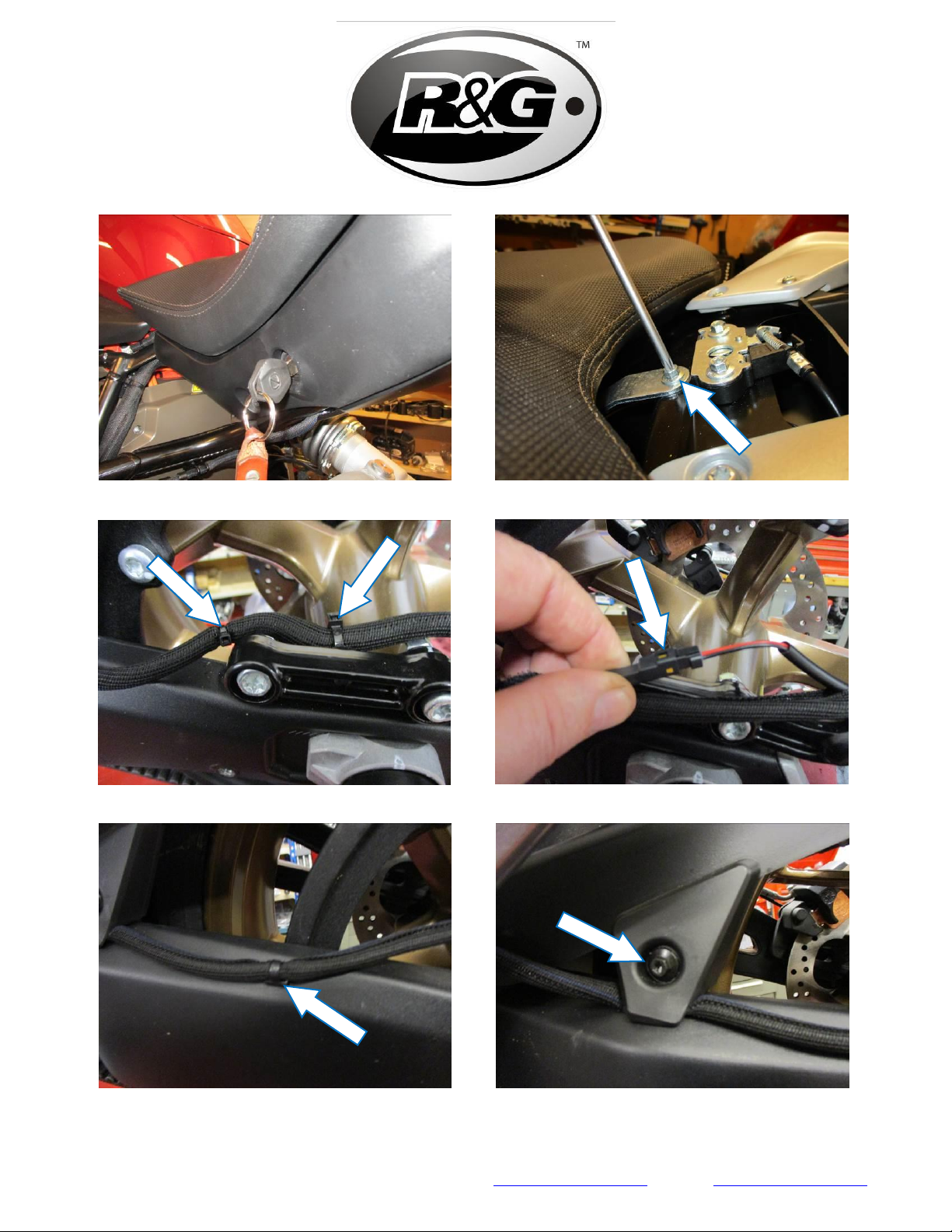

PICTURE 1 PICTURE 2

PICTURE 3 PICTURE 4

PICTURE 5 PICTURE 6

Page 5of 26 LP0286

R&G

Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ

Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com

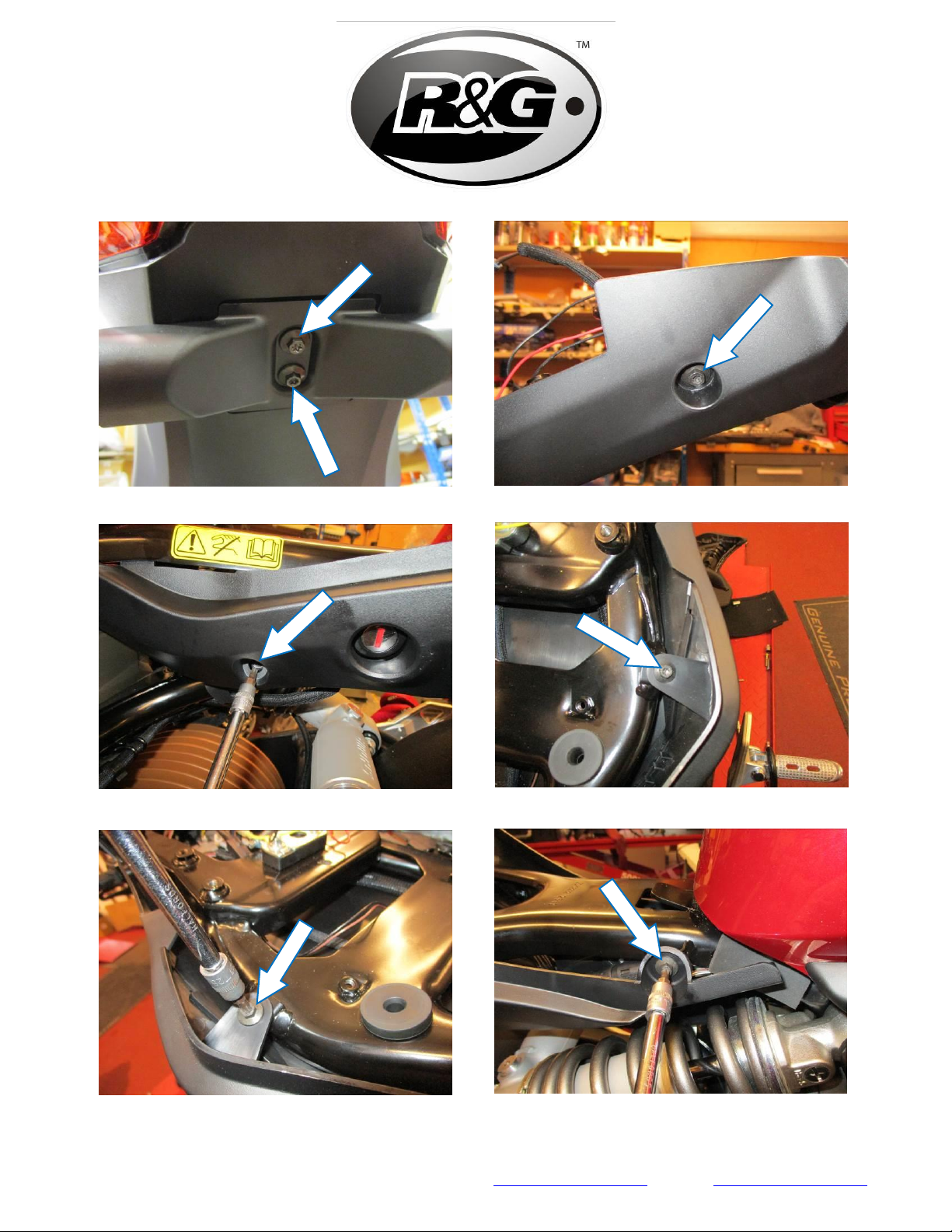

PICTURE 7 PICTURE 8

PICTURE 9 PICTURE 10

PICTURE 11 PICTURE 12

Page 6of 26 LP0286

R&G

Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ

Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com

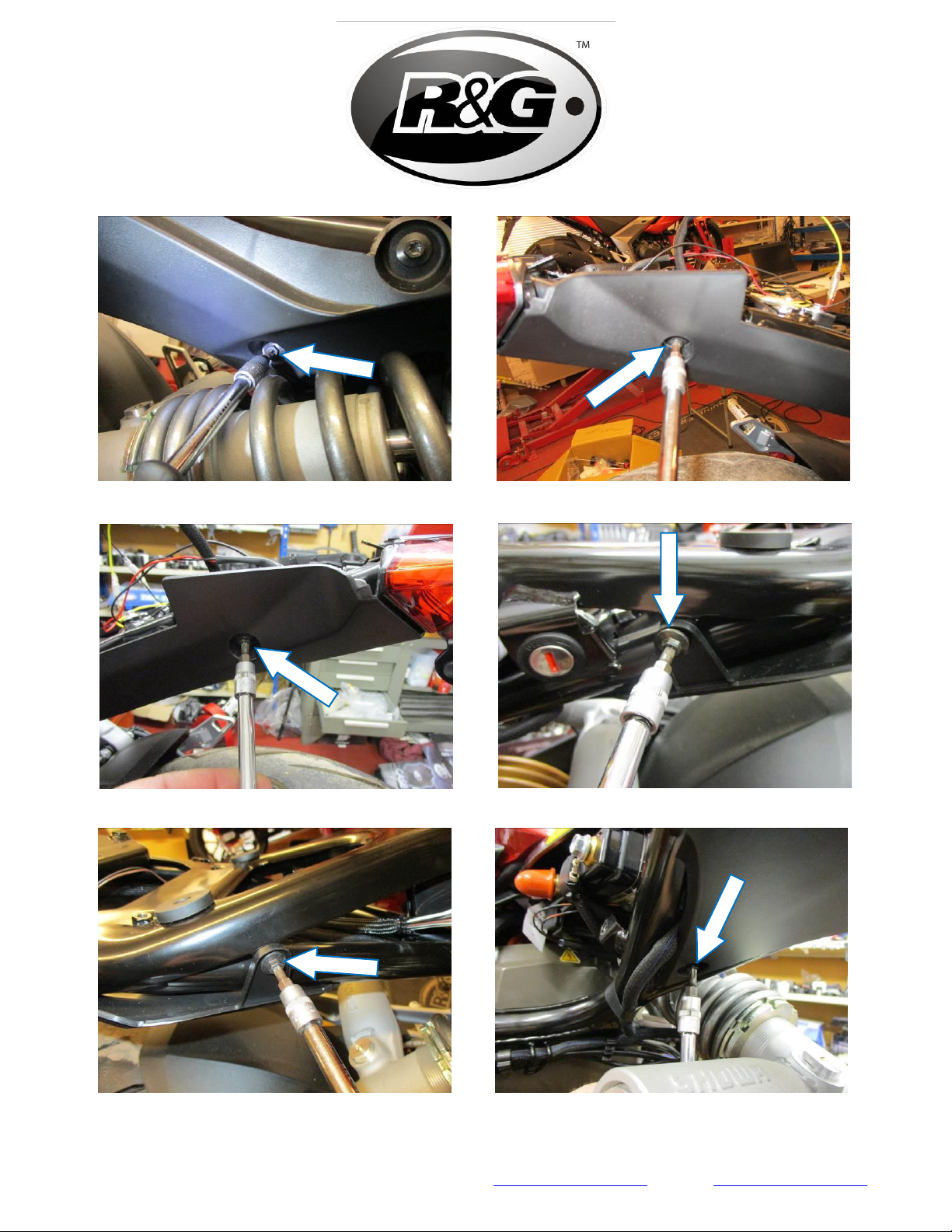

PICTURE 13 PICTURE 14

PICTURE 15 PICTURE 16

PICTURE 17 PICTURE 18

Page 7of 26 LP0286

R&G

Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ

Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com

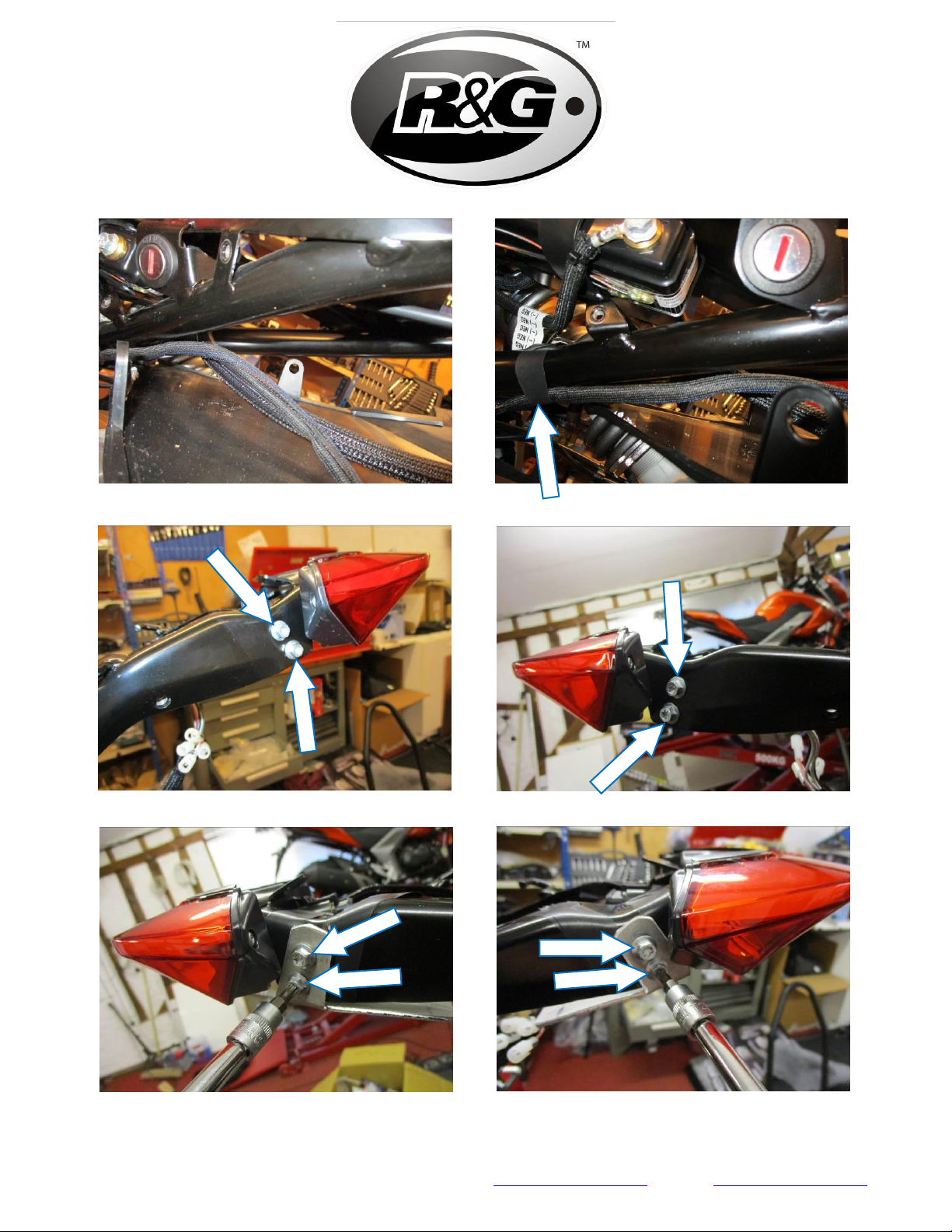

PICTURE 19 PICTURE 20

PICTURE 21 PICTURE 22

PICTURE 23 PICTURE 24

Page 8of 26 LP0286

R&G

Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ

Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com

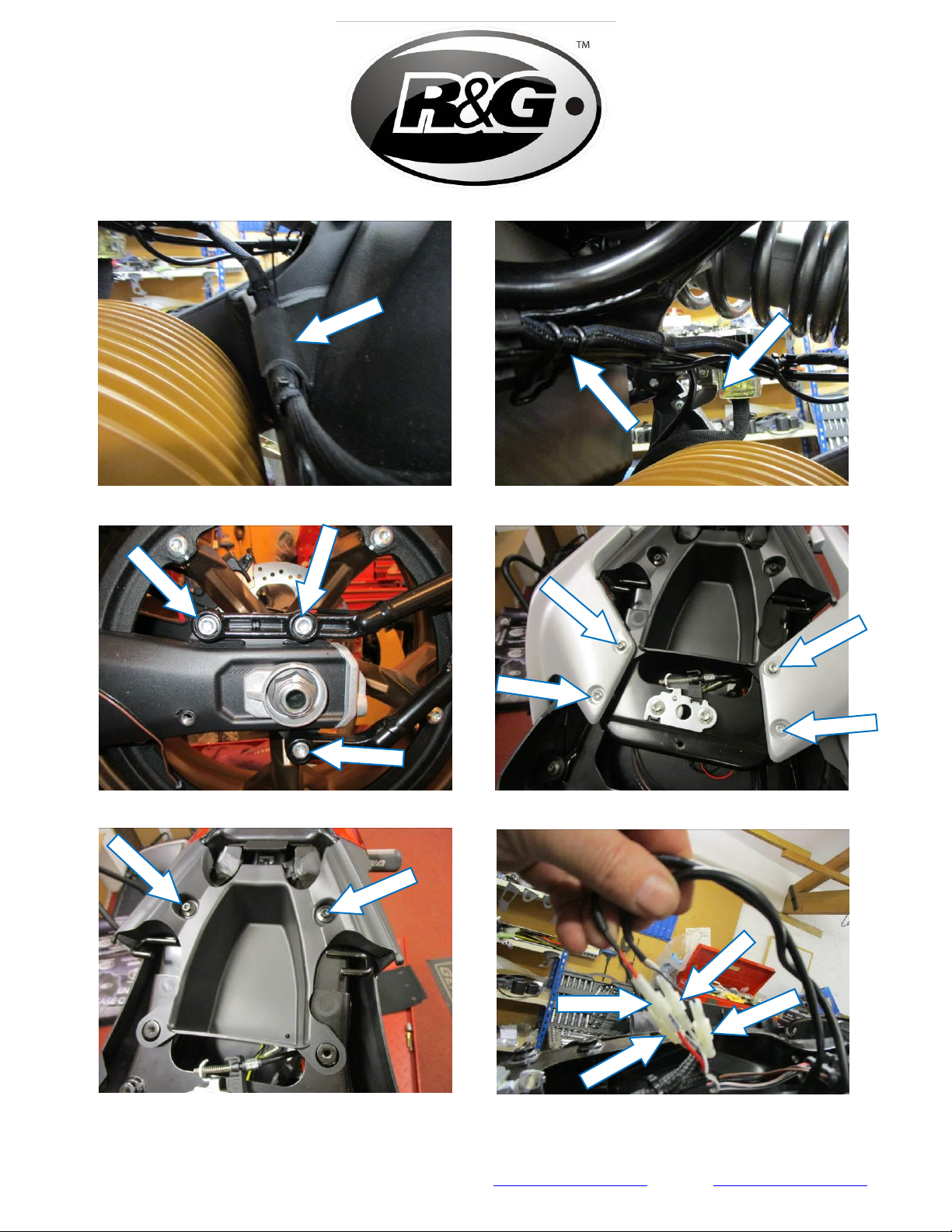

PICTURE 25 PICTURE 26

PICTURE 27 PICTURE 28

PICTURE 29 PICTURE 30

Page 9of 26 LP0286

R&G

Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ

Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com

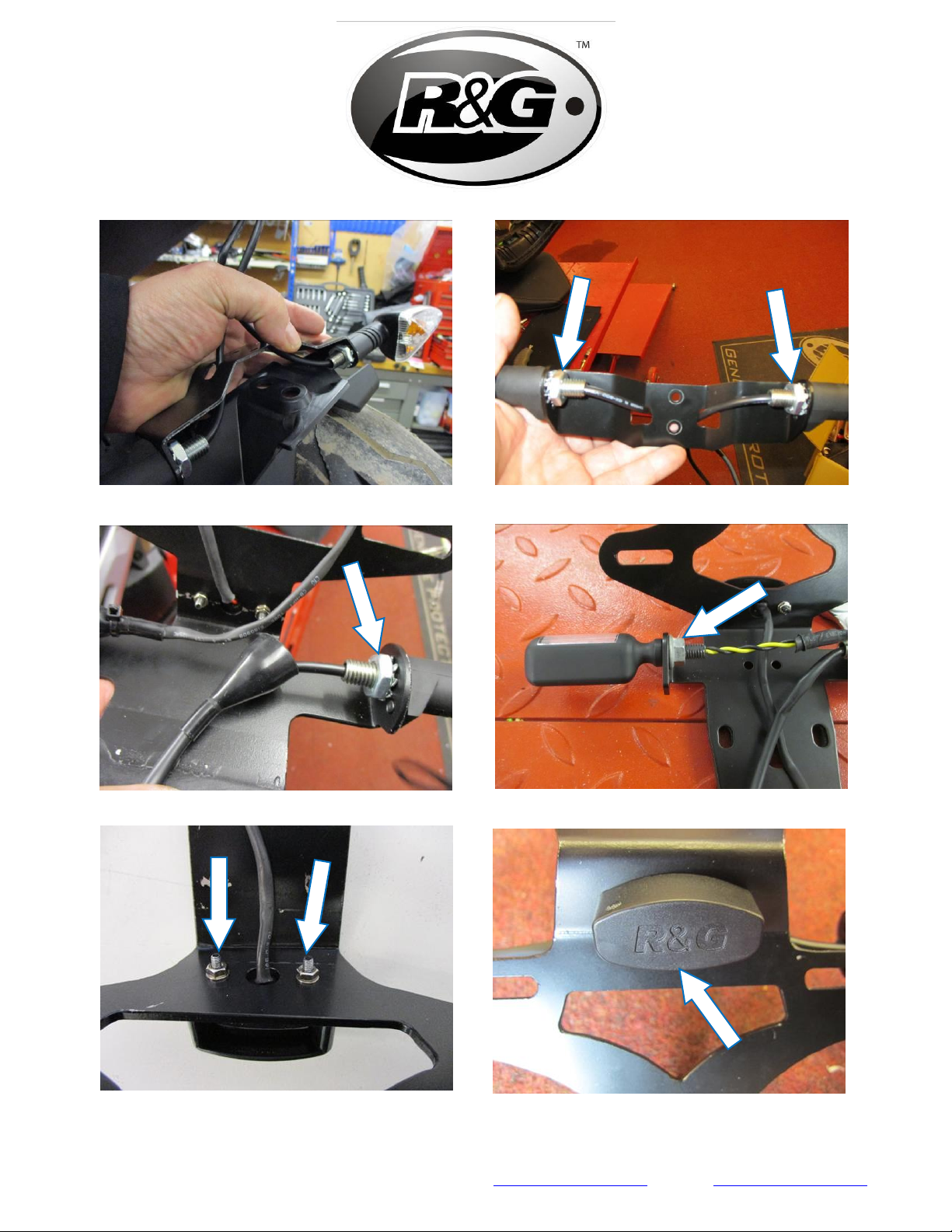

PICTURE 31 PICTURE 32

PICTURE 33 PICTURE 34

PICTURE 35 PICTURE 36

Page 10 of 26 LP0286

R&G

Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ

Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com

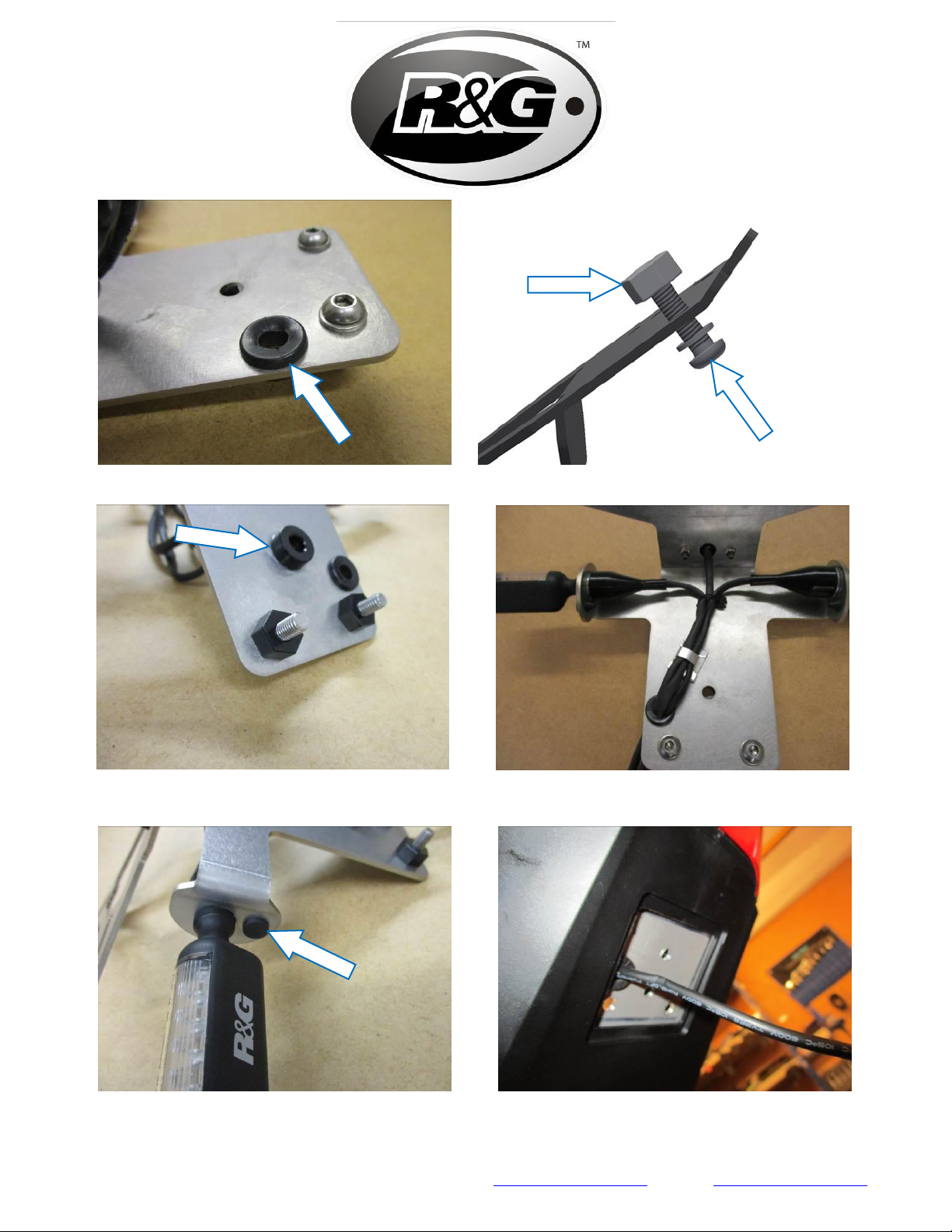

PICTURE 37 PICTURE 38

PICTURE 39 PICTURE 40

PICTURE 41 PICTURE 42
