Raypak 402 Manuale utente

Condensing High-efficiency System

for Pool, DHW and Heating

• 98% thermal efficiency at full fire

• Top or rear CHX mounting options: low

profile or small footprint, your choice!

• 399,000 - 1,999,000 BTUH in single-

heater configurations; up to 4,000,000

BTUH using racked heater / CHX systems

• Improved load-tracking with up to

eight firing stages

• Self-contained secondary heat exchanger

can be inspected and maintained without

disturbing the vent or plumbing

connections

• Exceeds all NOx emission standards

• Straight tube heat exchanger outlasts

other designs and facilitates scale-free

operation – ideal for DHW applications

• Fully-engineered rack systems simplify

jobsite installation and set-up

• Indoor / Outdoor installation

• Fully certified vent systems available

• Full range of control options offering

Building Management System compati-

bility and single-source accountability

• Front-access heater controls, burner and

heat exchanger

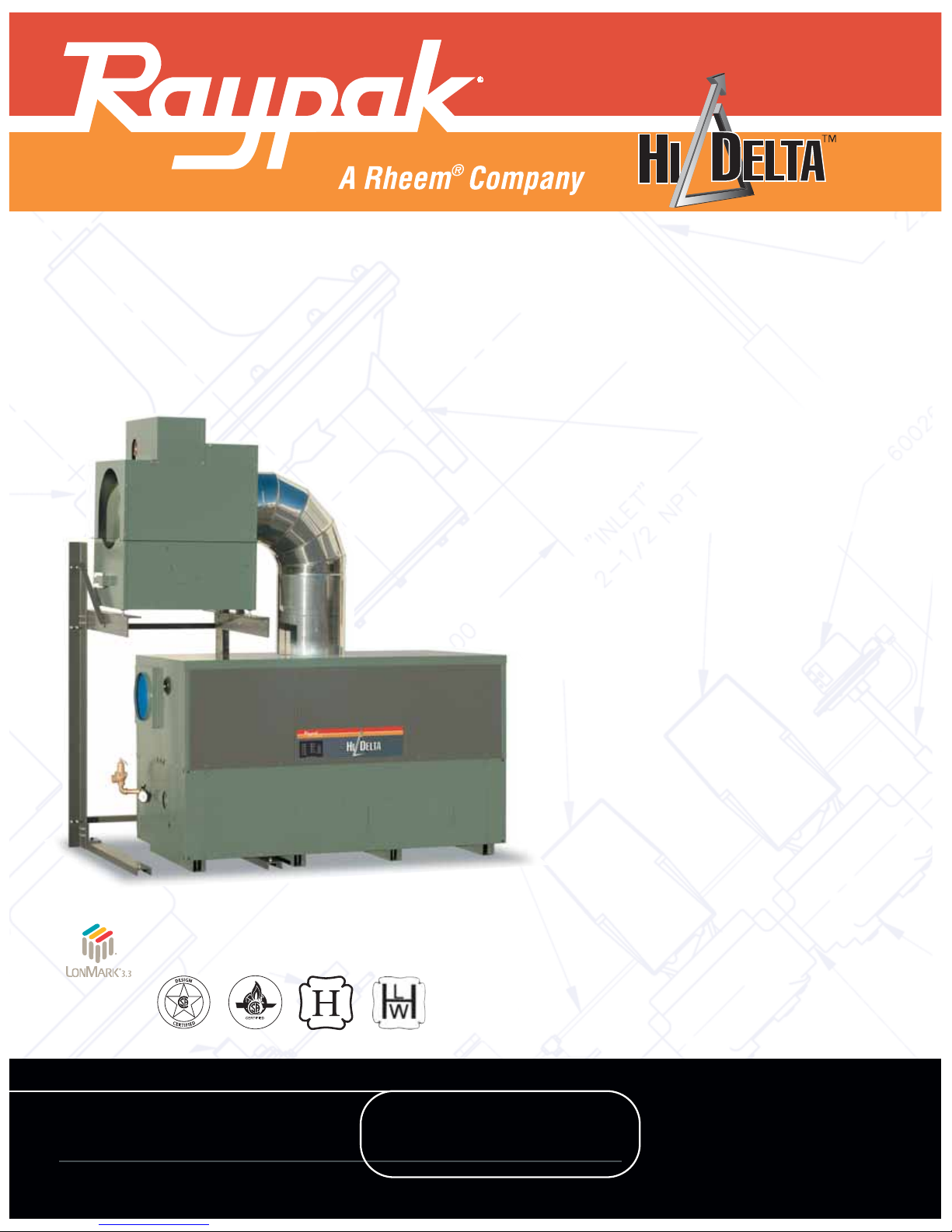

Top-mounted CHX shown

The Raypak Hi Delta with CHX achieves an unequaled 98% thermal efficiency at full fire. It combines

the reliability of the Hi Delta heater with an optional CHX heat exchanger which prevents condensation

in the heater’s primary combustion chamber. The result – an ultra high efficiency heater that lasts.

WITH CHX

LonWorks®

compatible with

Raypak Y-200

heater control

FROM THE HOT WATER MANAGEMENT EXPERTSSM

402through2002

Models

HI DELTA™ with CHX

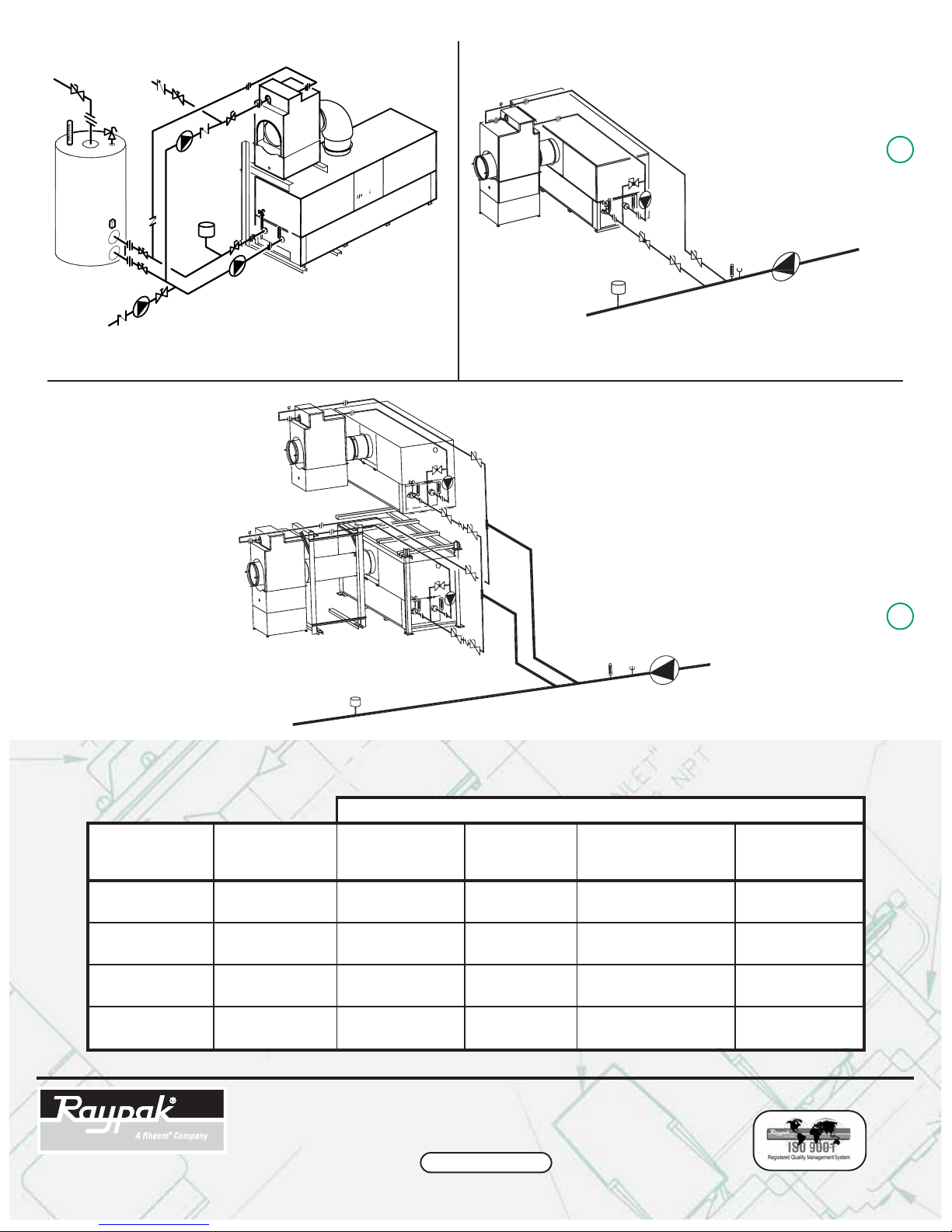

Top-mounted CHX

DHW (dual pump) piping shown

Rear-mounted CHX

Pool Heating or Low-temperature System

(primary/secondary) piping shown

Stacked Boilers and CHXs

Space Heating (primary/secondary)

piping shown

RAYPAK, INC.

2151 Eastman Avenue • Oxnard, CA 93030

805-278-5300 • Fax 800-872-9725

THE HOT WATER MANAGEMENT EXPERTSSM www.raypak.com

rotcartxE/naFtneV

lacipyT snoitacilppA

mumixaM retaWtelnI erutarepmeT

deepSdexiF detnuom-fooR repmaD.raB

deepS

dexiF enilnI repmaD.raB

deepSdexiF .dtm-gnilieCro-llaW repmaD.raB

deepSelbairaV llawediS/fooR repmaD.raBoN

,pm

uPtaeH looP F°001otpU ItaC tneV"B"roCVP VItaC CVP ItaC tneV"B"roCVP VItaC CVP

,tleMwonS,WHD roolFtnaidaR F°021otpU ItaC tneV"B"roCVPC VItaC CVPC ItaC tneV"B"roCVPC VItaC CVPC

,WHD roolFtnaidaR F°041otF°021 VItaC CVPC toN dednemmoc

eR toN dednemmoceR VItaC CVPC

,cinordyH retaWssecorP F°041evobA etatSydaetS ItaC tneV"B" VItaC C4-92LA ItaC tneV"B" VItaC C4-92LA

VentSystem Flexibility
