Reebok Rl 10.0 Elliptical Manuale utente

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manu-

al for future reference.

Model No. RBEL66807.1

Serial No.

Write the serial number in the

space above for reference.

USER’S MANUAL

Visit our website at

www.reebokhomefitness.com

new products, prizes,

fitness tips, and much more!

Serial Number Decal

(on underside of frame)

QUESTIONS?

As a manufacturer, we are commit-

ted to providing complete customer

satisfaction. If you have questions,

or if parts are damaged or missing,

PLEASE DO NOT CONTACT THE

STORE; please contact Customer

Care.

IMPORTANT: You must note the

product model number and serial

number (see the drawing above)

before contacting us.

CALL TOLL-FREE:

1-877-994-4999

Mon.–Fri. 6 a.m.–6 p.m. MST

Sat. 8 a.m.–4 p.m. MST

ON THE WEB:

www.reebokservice.com

TABLE OF CONTENTS

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

HOW TO USE THE ELLIPTICAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

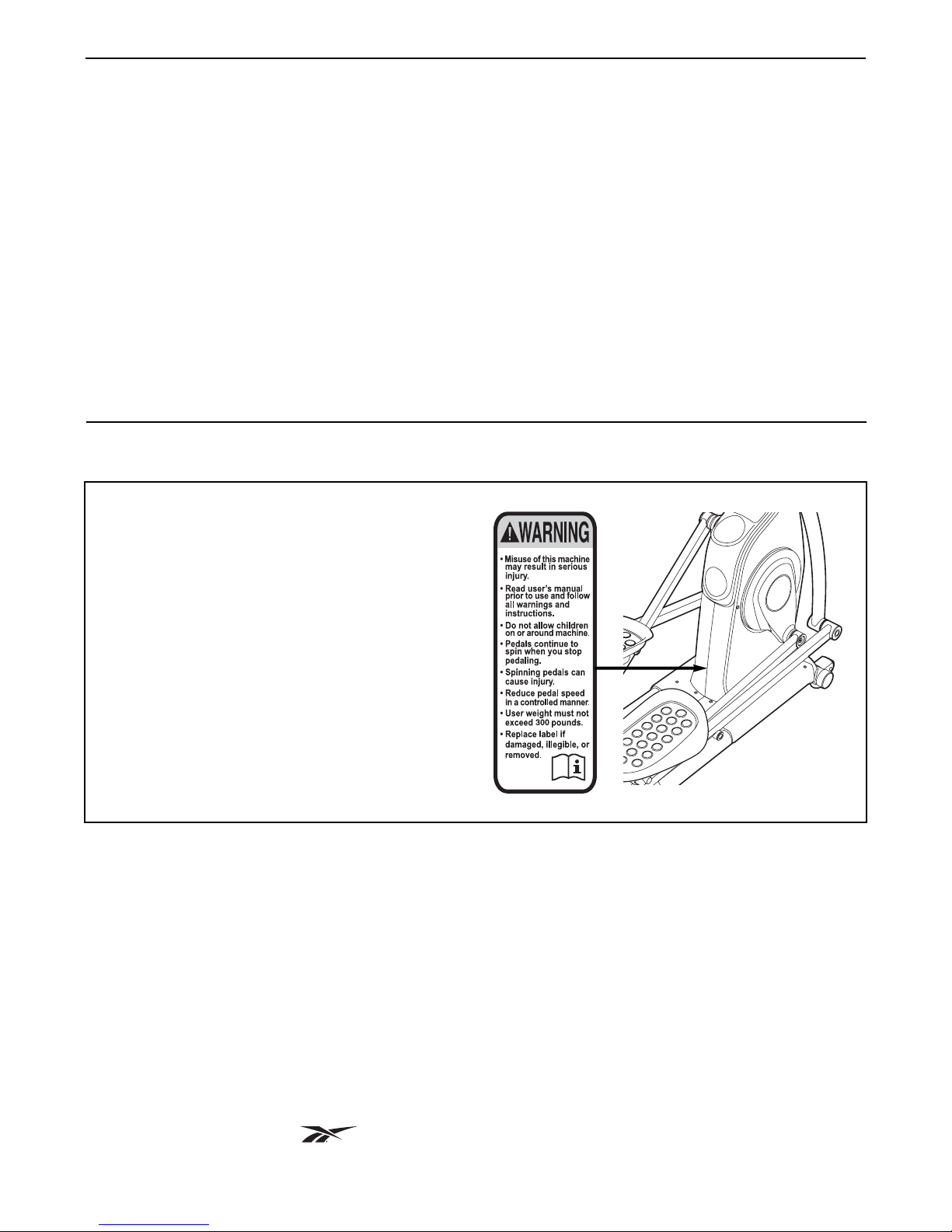

WARNING DECAL PLACEMENT

The warning decal shown here has been

applied in the location shown. If the decal is

missing or illegible, call the telephone

number on the front cover of this manual

and request a free replacement decal.

Apply the decal in the location shown.

Note: The decal may not be shown at actual

size.

REEBOK and the Vector Logo are registered trademarks and service marks of Reebok. This product is

manufactured and distributed under license from Reebok International.

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your elliptical exerciser before using your elliptical

exerciser. ICON assumes no responsibility for personal injury or property damage sustained by or

through the use of this product.

1. Before beginning any exercise program,

consult your physician. This is especially

important for persons over the age of 35 or

persons with pre-existing health problems.

2. Use the elliptical exercise only as described

in this manual.

3. It is the responsibility of the owner to ensure

that all users of the elliptical exerciser are

adequately informed of all precautions.

4. The elliptical exerciser is intended for

home use only. Do not use the elliptical exer-

ciser in a commercial, rental, or institutional

setting.

5. Keep the elliptical exerciser indoors, away

from moisture and dust. Place the elliptical

exerciser on a level surface, with a mat

beneath it to protect the floor or carpet.

Make sure that there is enough clearance

around the elliptical exerciser to mount, dis-

mount, and use it.

6. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

7. Keep children under age 12 and pets away

from the elliptical exerciser at all times.

8. The elliptical exerciser should not be used by

persons weighing more than 300 lbs.

(136 kg).

9. Wear appropriate exercise clothes while

using the elliptical exerciser. Always wear

athletic shoes for foot protection while exer-

cising.

10. Hold the handgrip pulse sensor or the handle-

bars when mounting, dismounting, or using

the elliptical exerciser.

11. The pulse sensor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The pulse sensor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

12. Keep your back straight while using the ellip-

tical exerciser; do not arch your back.

13. If you feel pain or dizziness while exercising,

stop immediately and cool down.

14. When you stop exercising, allow the pedals

to slowly come to a stop.

IMPORTANT PRECAUTIONS

BEFORE YOU BEGIN

Thank you for selecting the revolutionary REEBOK®

RL 10.0 elliptical exerciser. The RL 10.0 elliptical exer-

ciser provides a wide array of features designed to

make your workouts at home more effective and

enjoyable.

For your benefit, read this manual carefully before

you use the elliptical exerciser. If you have ques-

tions after reading this manual, please see the front

cover of this manual. To help us assist you, note the

product model number and serial number before con-

tacting us. The model number and the location of the

serial number decal are shown on the front cover of

this manual.

To avoid a registration fee for any service needed

under warranty, you must register the elliptical

exerciser at www.reebokservice.com/registration.

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Handgrip Pulse Sensor

Game Controller

Wheel

Pedal

Console

Water Bottle Holder*

Accessory Tray

Leveling Foot

Fan

*No water bottle is included

Handlebar

ASSEMBLY

To hire an authorized service technician to assemble the elliptical exerciser, call 1-800-445-2480.

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the

packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the

included hex keys, assembly requires a Phillips screwdriver , an adjustable

wrench , and a rubber mallet .

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses

below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number

following the parentheses is the quantity needed for assembly. Note: Some small parts may have been pre-

assembled. If a part is not in the parts bag, check to see if it has been preassembled.

M8 x 75mm Patch

Screw (107)–4

M4 x 16mm

Self-tapping

Screw (79)–16

M8 x 42mm Bolt

(71)–4

M10 x 20mm x

1mm Washer

(81)–2

M4 x 16mm

Screw (86)–8

M6 x 35mm Phillips

Screw (87)–8

M6 Split

Washer (88)–8

M10 x 23mm Shoulder

Screw (80)–2

M10 x 78mm Patch Screw (90)–2

M4 x 13mm

Washer (93)–2

M10 x 25mm

Washer (94)–10

M8 Nylon

Locknut (96)–4

M10 Nylon

Locknut (97)–2

Wave Washer

(98)–8

Star Washer

(100)–3

M8 x 15mm x 4.5mm

Washer (99)–4

M8 Split

Washer (72)–4

M10 x 20mm Patch

Screw (91)–10

M10 x 62mm Patch Bolt (89)–2

M8 x 16mm

Patch Screw

(82)–3

Orient the Front Stabilizer (35) as shown. Attach

the two Wheels (25) to the Front Stabilizer with

two M10 x 62mm Patch Bolts (89) and two M10

Nylon Locknuts (97).

Attach two Leveling Feet (26) to the underside of

the Front Stabilizer (35).

2. Have a second person tip the Frame (2) back-

ward. Attach the Front Stabilizer (35) to the

Frame with two M10 x 78mm Patch Screws (90).

3. Position the Base (1) near the Frame (2) as

shown. See the inset drawing. Attach two

Leveling Feet (26) to the underside of the Base.

Have a second person tip the Frame (2) forward.

Insert the Base (1) into the Frame. Attach the

Base with four M8 x 75mm Patch Screws (107),

four M8 Split Washers (72), and four

M8 x 15mm x 4.5mm Washers (99).

107 107

To make assembly easier, read the infor-

mation on page 5 before you begin assem-

bling the elliptical exerciser.

5. Have a second person hold the Upright (6) near

the Frame (2) as shown.

Pull the Wire Harness (48) out of the Frame (2)

and insert it upward through the Upright (6). Do

not let the Wire Harness or the Controller Wires

(110, 111) fall into the Upright; use a piece of

tape or an elastic band to hold the wires in place

until step 15.

Insert the Left and Right Controller Wires (110,

111) downward into the Frame (2). Pull the Right

Controller Wire, which has a tag attached, out of

the right side of the Frame. Then, pull the Left

Controller Wire out of the left side of the Frame.

Insert the Upright (6) into the Frame (2). Attach

the Upright with three M8 x 16mm Patch

Screws (82) and three Star Washers (100).

Avoid pinching the Wires (48, 110, 111)

between the Upright and the Frame.

4. Hook the front ends of the Frame Covers (105,

106) together. Attach each Frame Cover to the

Frame (2) with three M4 x 16mm Self-tapping

Screws (79).

105

106

110

111 82

100

Avoid pinching

the wires during

this step

7. Identify the Left Handlebar (8), which is marked

with a “Left” sticker. Insert the Left Handlebar into

one of the Handlebar Legs (11) as shown.

Attach the Left Handlebar (8) with two

M8 x 42mm Bolts (71) and two M8 Nylon

Locknuts (96). Make sure that the Nylon

Locknuts are inside the hexagonal holes.

Assemble the Right Handlebar and the other

Handlebar Leg (not shown) in the same way.

Hexagonal

Holes

6. Orient the Left Roller Leg (12), which is marked

with a “Left” sticker, near the left Crank Arm (36)

as shown.

Apply a small amount of the included grease to

both sides of a Wave Washer (98). Slide the

Wave Washer onto the end of the left Crank

Arm (36). Next, slide the Left Roller Leg (12)

onto the Crank Arm and set the Roller (22) on

the Base (1). Attach the Left Roller Leg with an

M10 x 20mm Patch Screw (91), a Crank Axle

Cap (30), and an M10 x 25mm Washer (94).

Repeat this step to attach the Right Roller

Leg (21) to the right Crank Arm (not shown).

Grease

8. Position an Inner Handlebar Cover (18) and an

Outer Handlebar Cover (19) around the Left

Handlebar (8) as shown. Then, pull the Left

Handlebar Wire (108) out of the Left Handlebar

and insert it through the Inner Handlebar Cover.

Attach the Inner and Outer Handlebar Covers

(18, 19) with three M4 x 16mm Self-tapping

Screws (79) and an M4 x 13mm Washer (93).

Start all three Self-tapping Screws before

tightening any of them. Avoid pinching the

Left Handlebar Wire (108) during this step.

Repeat this step for the Right Handlebar and

the Right Handlebar Wire (not shown).

108

9. Apply a generous amount of grease to the Pivot

Axle (65) and insert it into the Frame (2).

Pull the Left Controller Wire (110) through the left

Frame Cover (17), and then pull the Right

Controller Wire (111) through the right Frame

Cover.

Attach each Frame Cover (17) to the Frame (2)

with two M4 x 16mm Screws (86). Avoid pinch-

ing the Controller Wires (110, 111) during this

step.

Grease

Avoid pinching

the Handlebar

Wires (108, 109)

during this step

Avoid pinching

the Controller

Wires (110, 111)

during this step

110

111

10. Connect the Left Handlebar Wire (108) to the

Left Controller Wire (110). Insert the excess wire

into the Left Handlebar (8).

Apply a small amount of grease to both sides of

a Wave Washer (98). Slide the Wave Washer

onto the left side of the Pivot Axle (65). Next,

slide the Left Handlebar (8) onto the Pivot Axle

as shown. Attach the Left Handlebar with an

M10 x 23mm Shoulder Screw (80) and an

M10 x 20mm x 1mm Washer (81). Avoid pinch-

ing the wires during this step.

Repeat this step for the Right Handlebar (9).

Grease

108

110

Avoid pinching

the wires during

this step

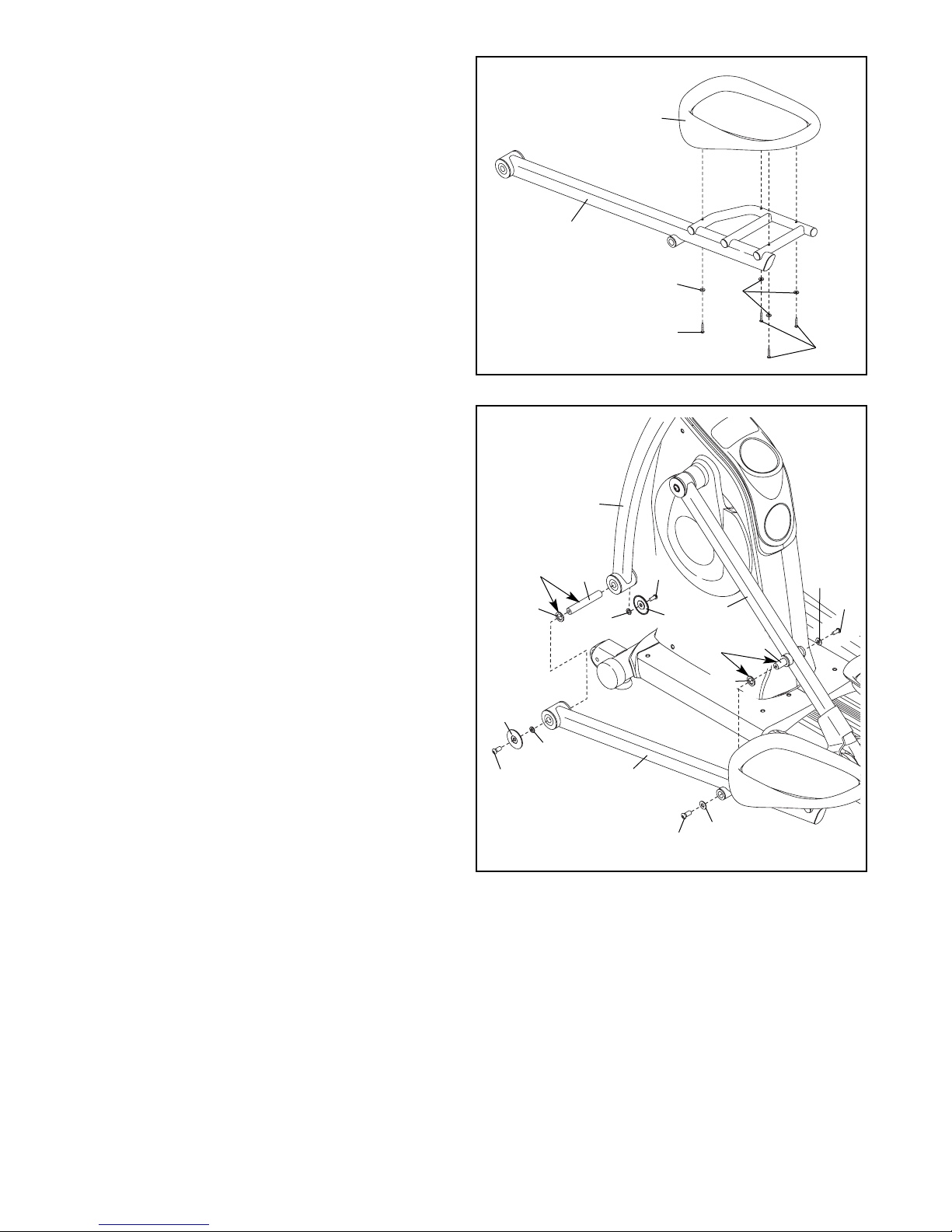

11. Identify the Left Pedal (13) and the Left Pedal

Leg (14), which are marked with “Left” stickers,

and orient them as shown.

Attach the Left Pedal (13) to the Left Pedal

Leg (14) with four M6 x 35mm Phillips

Screws (87) and four M6 Split Washers (88).

Start all four Phillips Screws before tighten-

ing any of them.

Repeat this step to attach the Right Pedal to

the Right Pedal Leg (not shown).

12. Apply a generous amount of grease to two Pedal

Leg Axles (32). Insert one Pedal Leg Axle into

the bottom of the Left Handlebar Leg (11). Insert

the other Pedal Leg Axle into the Left Roller

Leg (12).

Apply a small amount of grease to both sides of

two Wave Washers (98). Place a Wave Washer

on each Pedal Leg Axle (32).

Orient the Left Pedal Leg (14) as shown, and

slide it onto the Pedal Leg Axles (32). Attach the

Left Pedal Leg to the left Handlebar Leg (11) with

two M10 x 20mm Patch Screws (91), two Axle

Caps (31), and two M10 x 25mm Washers (94).

Attach the Left Pedal Leg (14) to the Left Roller

Leg (12) with two M10 x 20mm Patch Screws

(91) and two M10 x 25mm Washers (94); do not

overtighten the Patch Screws. The Legs (11,

14, 12) must pivot freely.

Repeat this step for the Right Pedal Leg (not

shown).

98 94 31

91 94

Grease

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Reebok Ellittica

Reebok

Reebok ASTRORIDE A6.0FD Manuale utente

Reebok

Reebok RL 525 RBCCEL79021 Manuale utente

Reebok

Reebok Stride Select Rl 7.0 Elliptical Manuale utente

Reebok

Reebok Rel 8 Manuale utente

Reebok

Reebok Z9 Manuale utente

Reebok

Reebok One Series Manuale utente

Reebok

Reebok Elliptical Exerciser/rel2i Manuale utente

Reebok

Reebok ZR10 Manuale utente

Reebok

Reebok ASTRORIDE A4.0 BIKE Manuale utente

Reebok

Reebok SL8.0 Manuale utente

Reebok

Reebok R 5.10 Elliptical Manuale utente

Reebok

Reebok RBE0995.1 Manuale utente

Reebok

Reebok R 5.10 Elliptical Manuale utente

Reebok

Reebok C5.1e Manuale utente

Reebok

Reebok RBEL68082 Manuale utente

Reebok

Reebok ZJET 430 Manuale utente

Reebok

Reebok JET 300 Manuale utente

Reebok

Reebok Rl525 Elliptical Manuale utente

Reebok

Reebok RBEL68080 Manuale utente

Reebok

Reebok R 6.90 Treadmill Manuale utente

Reebok

Reebok C5.1e Manuale utente

Reebok

Reebok RL 725 Manuale utente

Reebok

Reebok 1410 Elliptical Manuale utente

Reebok

Reebok RL 900 Manuale utente

Manuali Ellittica popolari di altre marche

Weslo

Weslo Momentum 4.0 Elliptical Manuale operativo e di manutenzione

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manuale utente

Torque Fitness

Torque Fitness XPLLP Manuale utente

Octane Fitness

Octane Fitness PRO3700C Manuale utente

Xterra

Xterra FS5.8e Manuale utente

Bodyguard

Bodyguard E-40 Manuale utente

Bonn Germany

Bonn Germany Concept 2.2 Manuale utente

Precor

Precor Resolute RSL 620 Manuale utente

NordicTrack

NordicTrack E 9.2 Elliptical Manuale utente

Vision Fitness

Vision Fitness X6600iNetTV Manuale utente

Matrix

Matrix MX-A5x Manuale utente

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manuale utente

Sears

Sears FREE SPIRIT C249 30737 0 Manuale utente

True

True FS-64 Manuale utente

Sport-thieme

Sport-thieme ST 310 Manuale utente

VIRTUFIT

VIRTUFIT CTR 1.1 Manuale utente

Kettler

Kettler GIRO C 1 Manuale utente

CIRCLE FITNESS

CIRCLE FITNESS E7 Manuale utente
