DA7210/11 USER MANUAL

January 2022

User manual for the set-up and operation of the DA7210/11

evaluation board and control software

DA7210/11 User Manual Rev 2.9 - January 2022 1

DA7210/11 USER MANUAL

Contents

Contents 1

1Introduction 2

2Hardware 2

2.1 Power Supplies 5

2.2 Jumpers and Link Positions 6

3Evaluation Board Features 13

3.1 USB Interface 13

4Control Software 13

4.1 Installation 13

4.2 Set-up Files 16

4.2.1 Text File 16

4.2.2 Spreadsheet File 17

4.3 Control Panels 19

4.3.1 Front Panel 19

4.3.2 Register Map Page 0 20

4.3.3 Register Map Page 1 21

4.3.4 GP Filters Register Map 22

4.3.5 Volume Control Panel 23

5RT Filters GUI 24

5.1 Software Installation 24

5.2 Control Panels 26

5.2.1 Running the Interface and USB Initialisation 26

5.3 Filter Setup Panel 28

5.4 Coefficients Tab 29

5.5 Five-band Equaliser and Voice Filter Panel 31

DA7210/11 User Manual Rev 2.9 - January 2022 2

DA7210/11 USER MANUAL

1 Introduction

The DA7210/11 evaluation board has been produced to allow measurement, evaluation and

programming of the DA7210/11 ultra-low power audio codec evaluation board and control software.

The evaluation PCB is supplied together with a DVD ROM containing documentation and driver files.

The driver software uses a simple graphical user interface (GUI), allowing the DA7210/11 device to

be controlled via a USB port of a PC. An additional GUI is available to control the highly configurable

filter paths within the DA7210/11; including general purpose, five-band equaliser and high pass filters

The board has a number of jumper links to allow configuration of the board and to provide

measurement test points.

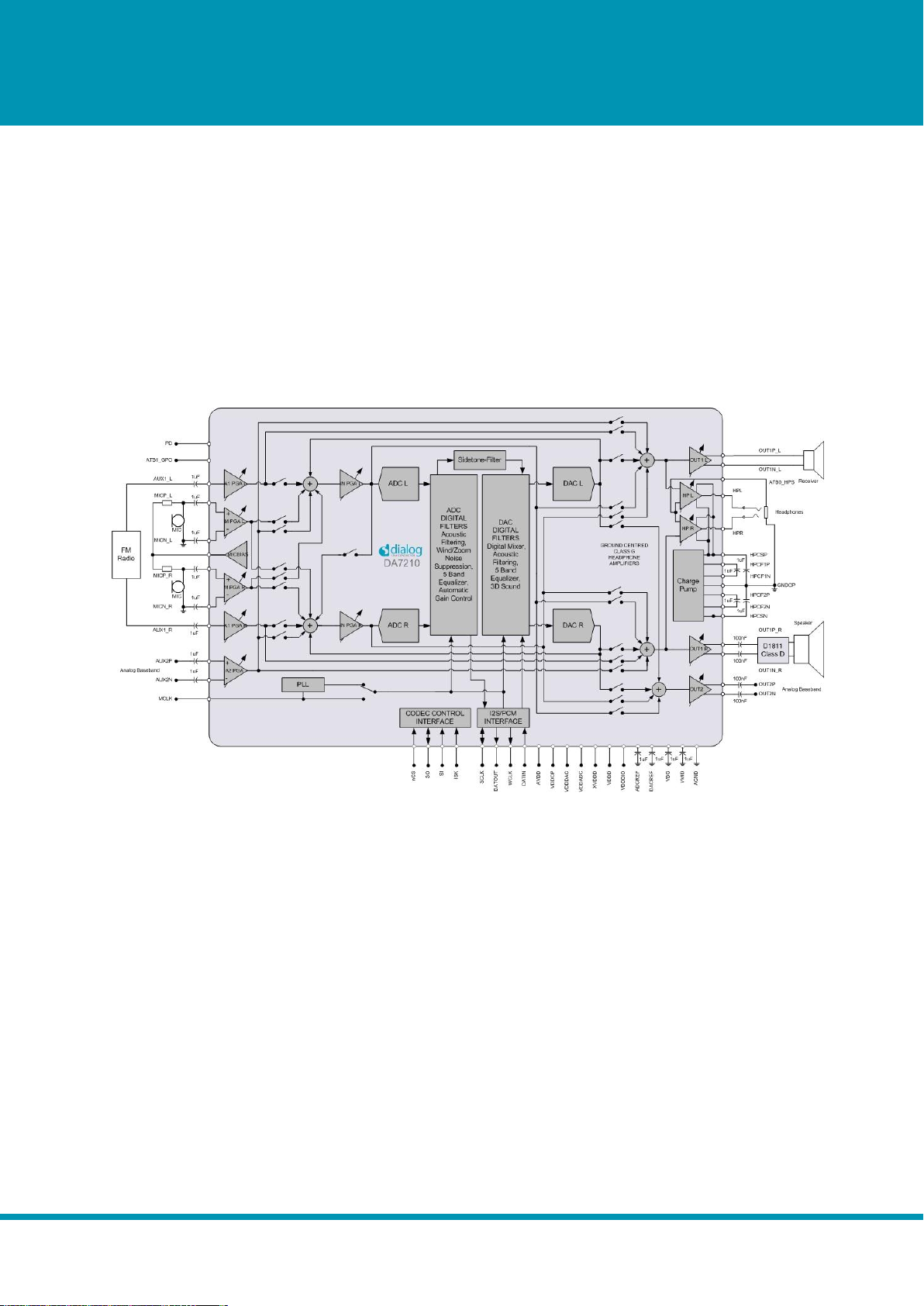

Figure 1 DA7210/11 Block Diagram

The accompanying software requires a PC operating Windows 2000/XP with a USB1.1 or USB2

interface. The software will run under Vista if the default installation location is changed to ‘C:\Dialog

Semiconductor\’

The DA7210/11 device plus the USB Interface consume approximately 5mA in the standby state. The

evaluation board and software are not guaranteed to operate in a USB hub. See the section on Power

Supplies below.

The control software permits configuration of the device using either pre-prepared templates or

individual write and read operations to all control registers

2 Hardware

There are three options available when using the DA7210/11 evaluation mainboard, Figure 2:

1. A miniboard containing the DA7210 in a CSP 49-pin package connected to evaluation board

44-179-93-02-C via jumpers J28, J30, J36 and J38, Figure 3. This board can also be used

standalone or in conjunction with a customer development system.

DA7210/11 User Manual Rev 2.9 - January 2022 3

DA7210/11 USER MANUAL

2. A miniboard containing the DA7211-00 in a 36-pin CSP package connected to evaluation

board 44-179-93-02-B via jumpers J28, J30, J36 and J38, Figure 4. This board can also be

used standalone or in conjunction with a customer development system.

3. A miniboard containing the DA7211-01 in a 36-pin CSP package connected to evaluation

board 44-179-93-02-E via jumpers J28, J30, J36 and J38,. This board can also be used

standalone or in conjunction with a customer development system.

A USB-I2C bridge is used for communication with the device, and there are number of external active

components to reduce the requirement for external equipment.

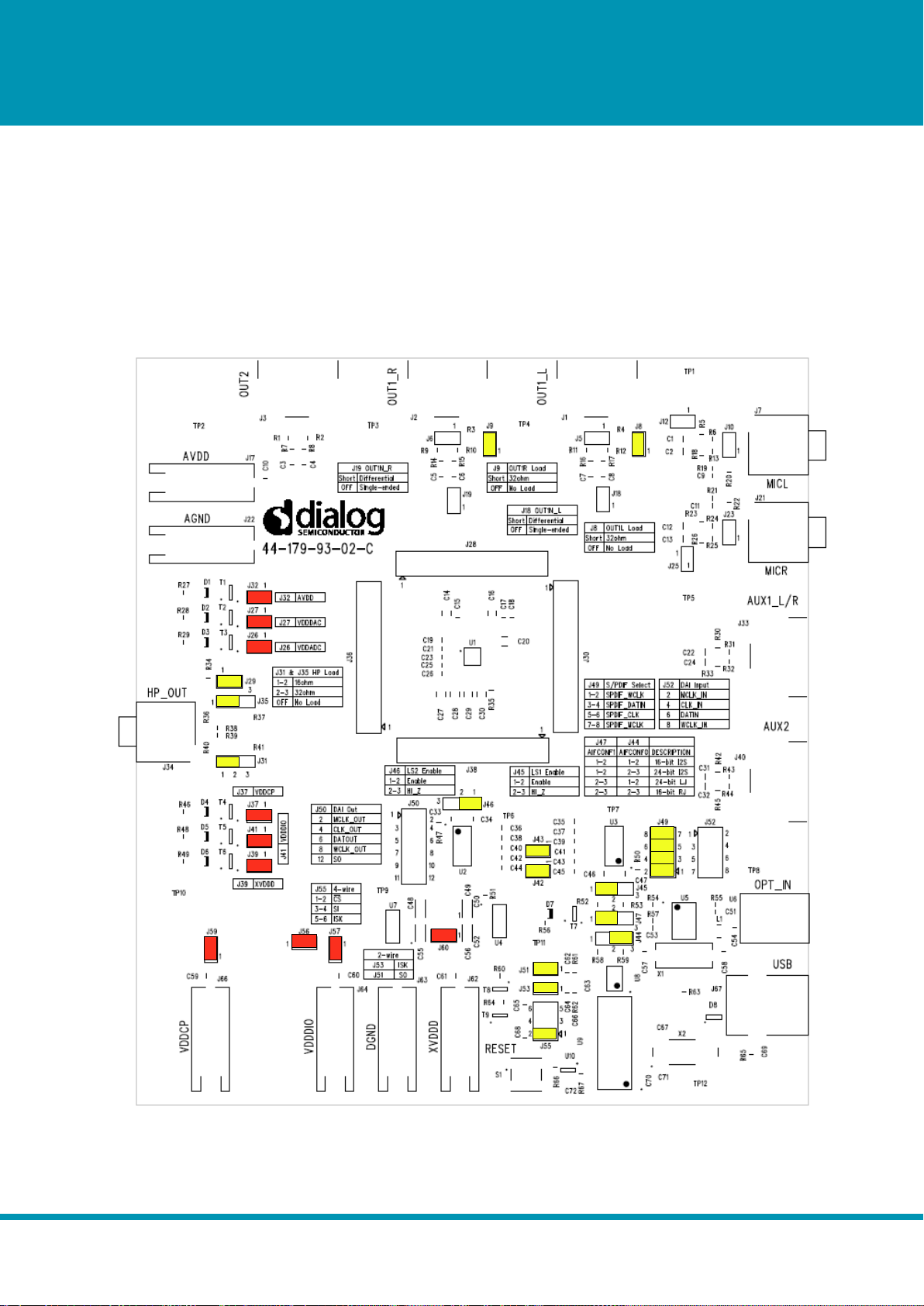

Figure 2 Evaluation Board 44-179-93-02-C Mainboard

DA7210/11 User Manual Rev 2.9 - January 2022 4

DA7210/11 USER MANUAL

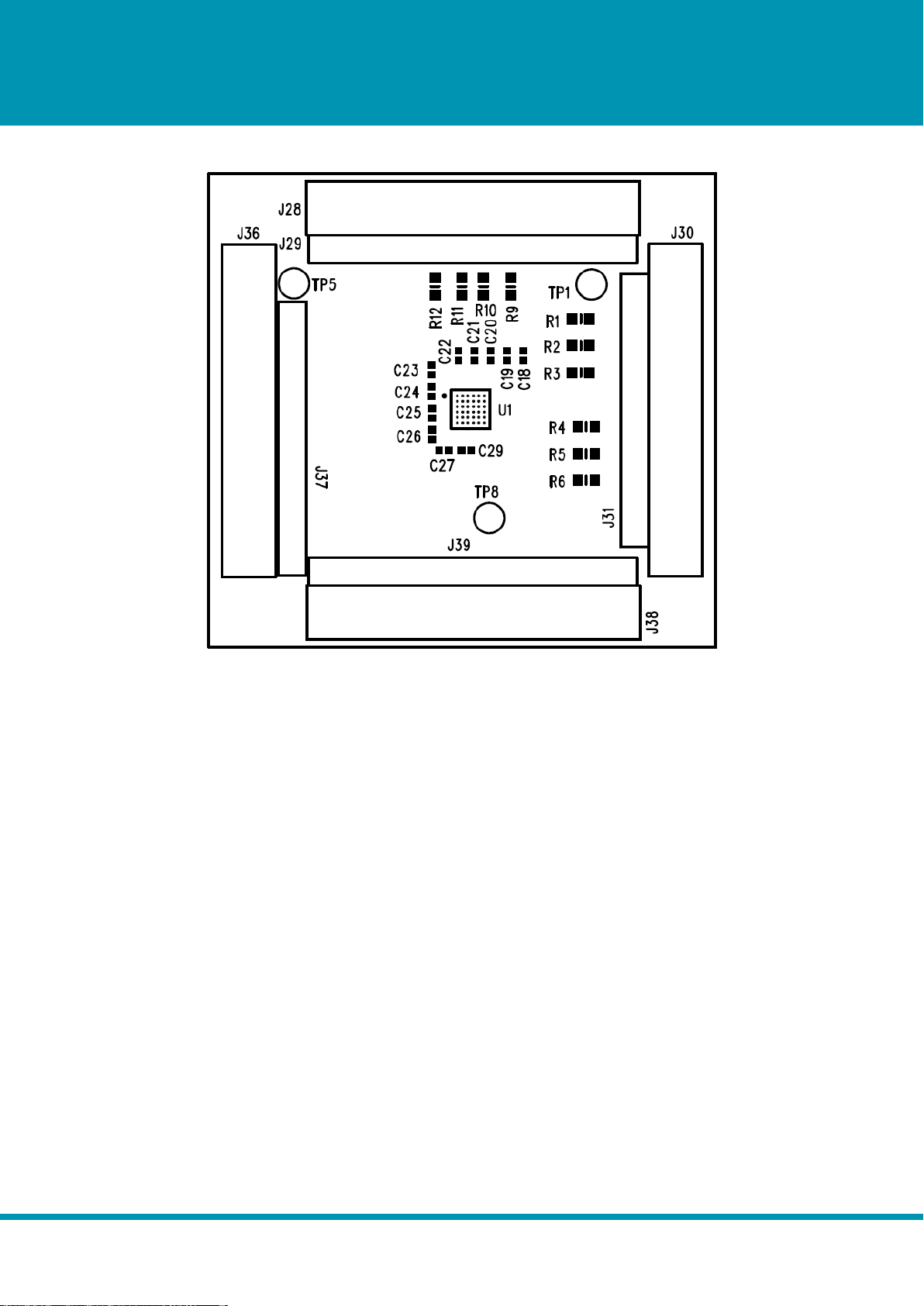

Figure 3 DA7210 44-179-93-04-C Miniboard

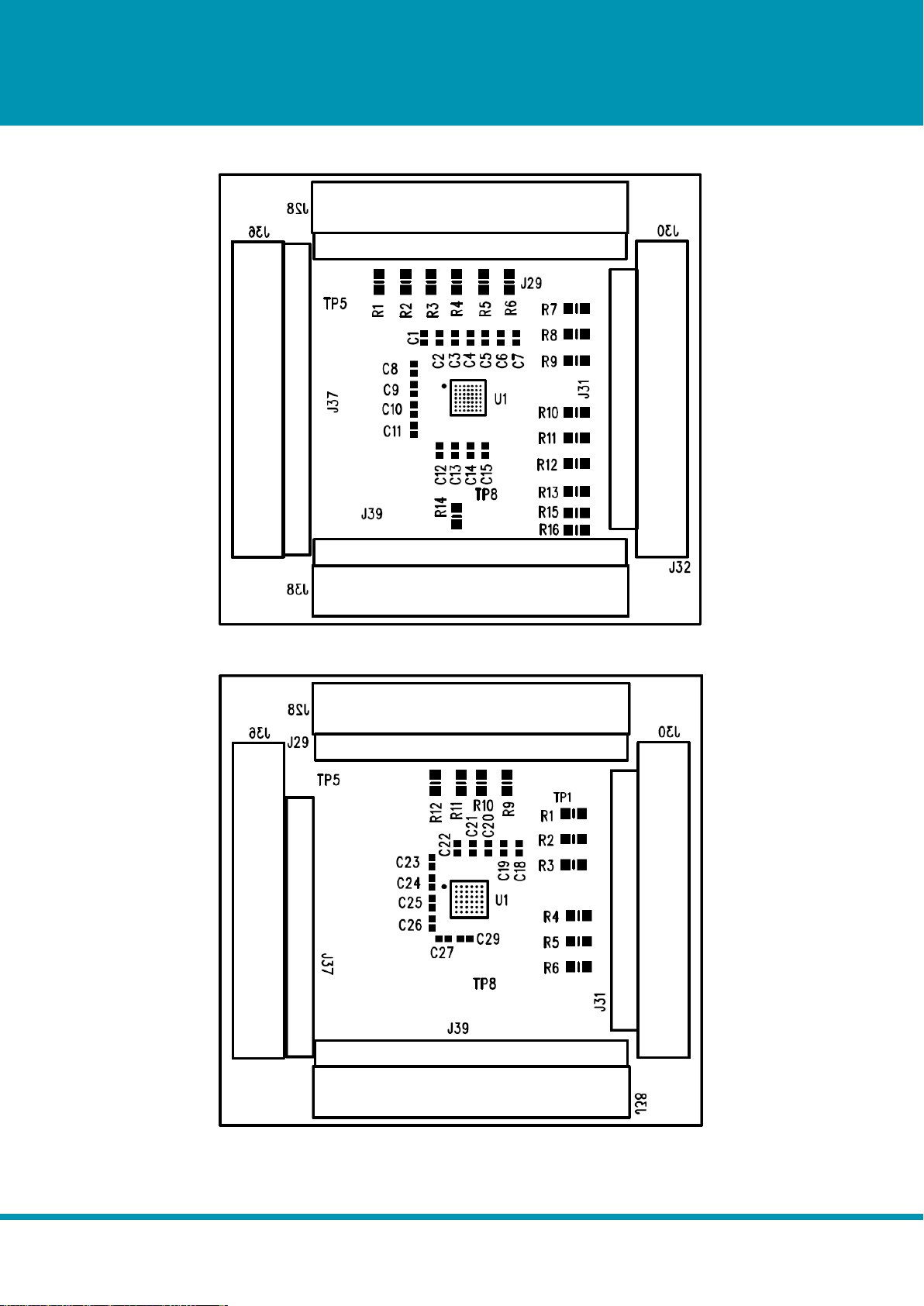

Figure 4 DA7211-00 44-179-93-04-B Miniboard

DA7210/11 User Manual Rev 2.9 - January 2022 5

DA7210/11 USER MANUAL

Figure 5 DA7211-01 44-179-93-04-E Miniboard

The passive components needed for noise decoupling or charge pump operation have been placed

as close as possible to the DUT pins to ensure optimum operational performance.

Gerber data for the board is available on request.

2.1 Power Supplies

The board is intended to be supplied by power supplies in the range +1.8Vdc to +2.5Vdc (nominal). The

power supplies are connected via 4mm sockets: AVDD, VDDCP, VDDDAC, VDDADC, VDDDIO,

DGND and AGND. LEDs D1 to D6 will illuminate when the power supplies are correctly connected.

Some devices on the board will be powered from the +5Vdc or +3.3Vdc supply produced by the USB

interface module.

For demonstration purposes the +5Vdc USB supply can be connected to regulator, U9, to produce

+1.8Vdc capable of supplying all of the DUT the power supply pins. This configuration allows complete

DUT operation using just USB and TOSLINK connections only, but maximum headphone power

output will be limited when using +1.8V VDDDCP power supply.

DA7210/11 User Manual Rev 2.9 - January 2022 6

DA7210/11 USER MANUAL

2.2 Jumpers and Link Positions

Header

Link

Position

Function

Notes

OUT1_L speaker connection

External connection

OUT1_R speaker connection

External connection

OUT1_L 32Ω load selected

Off

OUT1_L no load

OUT1_R 32Ω load selected

Off

OUT1_R no load

J10

MIC_L differential connection

External connection

J12

MICN_L single-ended input

Off

MICN_L differential input

J18

OUT1N_L differential output

Off

OUT1N_L single-ended output

J19

OUT1N_R differential output

Off

OUT1N_R single-ended output

J23

MIC_R differential connection

External connection

J25

MIC_R single-ended input

Off

MIC_R differential input

J26

Short link

Short VDDADC current measurement point

N/A for DA7211

DMM link

VDDADC current measurement point

J27

Short link

Short VDDDAC current measurement point

N/A for DA7211

DMM link

VDDDAC current measurement point

J29

Headphone sense ground connected

Should be disconnected

for DA7211

Off

Headphone sense ground disconnected

J31

1-2

HPL 16Ω load selected

2-3

HPL 32Ω load selected

J32

Short link

Short AVDD current measurement point

DA7210/11 User Manual Rev 2.9 - January 2022 7

DA7210/11 USER MANUAL

DMM link

AVDD current measurement point

J35

1-2

HPR 16Ω load selected

2-3

HPR 32Ω load selected

J37

Short link

Short VDDCP current measurement point

DMM link

VDDCP current measurement point

J39

Short link

Short XVDDD current measurement point

N/A for DA7211

DMM link

XVDDD current measurement point

J41

Short link

Short VDDDIO current measurement point

N/A for DA7211

DMM

VDDDIO current measurement point

J42

WCLK slave mode

Off

WCLK master mode

J43

CLK slave mode

Off

CLK master mode

J44 /

J47

1-2 / 1-2

16-bit I2S mode

J44 and J47 must both

be set for correct

S/PDIF receiver DAI

format and word length

1-2 / 2-3

24-bit I2S mode

2-3 / 1-2

24-bit left justified mode

2-3 / 2-3

16-bit right justified mode

J45

1-2

DAI input level shift enable

2-3

DAI input level shift high impedance

J46

1-2

DAI output level shift enable

2-3

DAI output level shift high impedance

J48

S/PDIF receiver +5V supply enabled

Off

S/PDIF receiver +5V supply disabled

J49

1-2

SPDIF word clock

Short links only if no

sources are connected

to J52

3-4

SPDIF bit clock

5-6

SPDIF data

7-8

SPDIF master clock

DA7210/11 User Manual Rev 2.9 - January 2022 8

DA7210/11 USER MANUAL

J50

1-2

MCLK output

External connections

3-4

CLK output

5-6

DATOUT output

7-8

WCLK output

11-12

SO output

J51

Control interface 2-wire ISK selected

Short only if J55 links

are removed

Off

Control interface 2-wire ISK de-selected

J52

1-2

DAI MCLK input

Short only if J49 links

are removed

3-4

DAI CLK input

5-6

DAI DATIN input

7-8

DAI WCLK input

J53

Control interface 2-wire SO selected

Short only if J55 links

removed

Off

Control interface 2-wire SO de-selected

J55

1-2

Control interface 4-wire nCS selected

Short only if J51 and

J53 links removed

3-4

Control interface 4-wire SI de-selected

5-6

Control interface 4-wire ISK selected

J56

XVDDD connected to VDDCP

Off

XVDDD disconnected from VDDCP

J57

XVDDD connected to VDDDIO

Off

XVDDD disconnected from VDDDIO

J59

VDDCP connected to AVDD

Off

VDDCP disconnected from AVDD

J60

REG_+1.8V supply connected

Off

REG_+1.8V disconnected

Table 1 Jumpers and Link Positions

DA7210/11 User Manual Rev 2.9 - January 2022 9

DA7210/11 USER MANUAL

The evaluation board can be set up to run solely from the +5V USB supply as the source for all board

supplies. It is necessary to remove all external power supplies and to add jumpers J56, J57, J59 and

J60 for this operation, which is the default configuration for the board.

The digital audio interface jumpers are set to receive a TOSLINK input and should be removed to

accept other external clocks at J52. Figure 9 shows the extra links required to enable the onboard

supplies.

Figure 6 DA7210 Default Link locations
