REVEL PERFORMA C30

Owner’s Manual

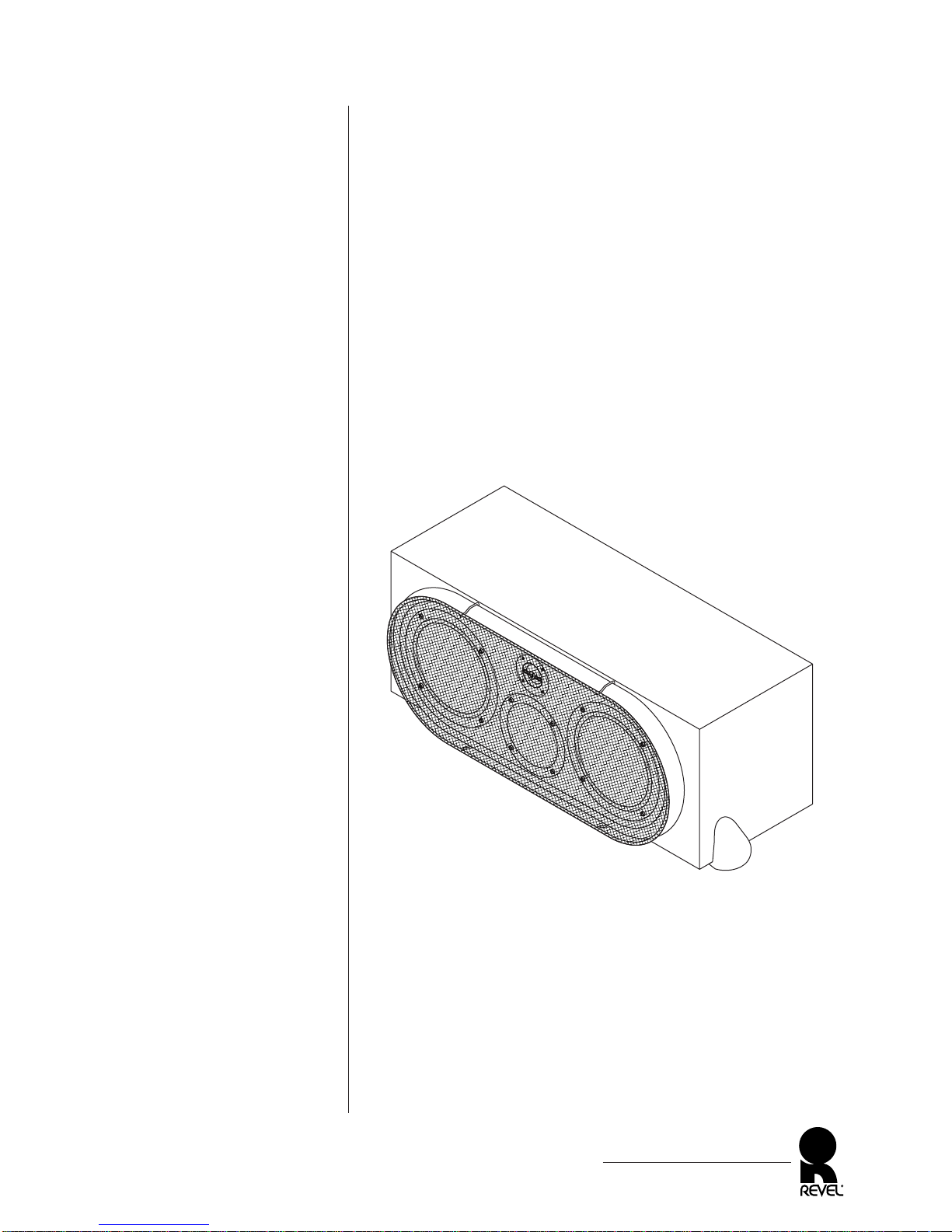

Figure 1. The REVEL

PERFORMA C30

center-channel loudspeaker.

INTRODUCTION

The REVEL®PERFORMA™ C30 center-channel loudspeaker

draws upon the same research, resources, and unique perspective

made famous by Revel’s ULTIMA™ Series, resulting in standard-

setting low coloration and freedom from distortion over an extra-

ordinarily wide dynamic range.

The REVEL PERFORMA C30 loudspeaker provides this excep-

tional performance uniformly over a wide listening area through

the use of placement compensation circuits tested in a wide range

of real-world applications. Individually hand-tuned crossovers

assure that this loudspeaker will produce the same extraordinary

sound quality as the original reference standard, and an ideal tim-

bre match to Revel left and right front loudspeakers. Its superior

performance, validated by our objective listening tests, will greatly

enhance the enjoyment of music or film sound in your home.

ABOUT THE MANUAL AND WARRANTY

To begin enjoying your new loudspeaker, first read and then perform

the instructions in this owner’s manual. Maximum performance

depends on following all instructions described here, as well as those

found in the owner’s manuals of associated components in your

audio system. Save these instructions for future reference.

The REVEL PERFORMA C30 center-channel loudspeaker is cov-

ered by a limited 5-year warranty, so save the bill of sale to protect

your purchase and aid in any service-related questions.

REVEL PERFORMA C30

Owner’s Manual 3

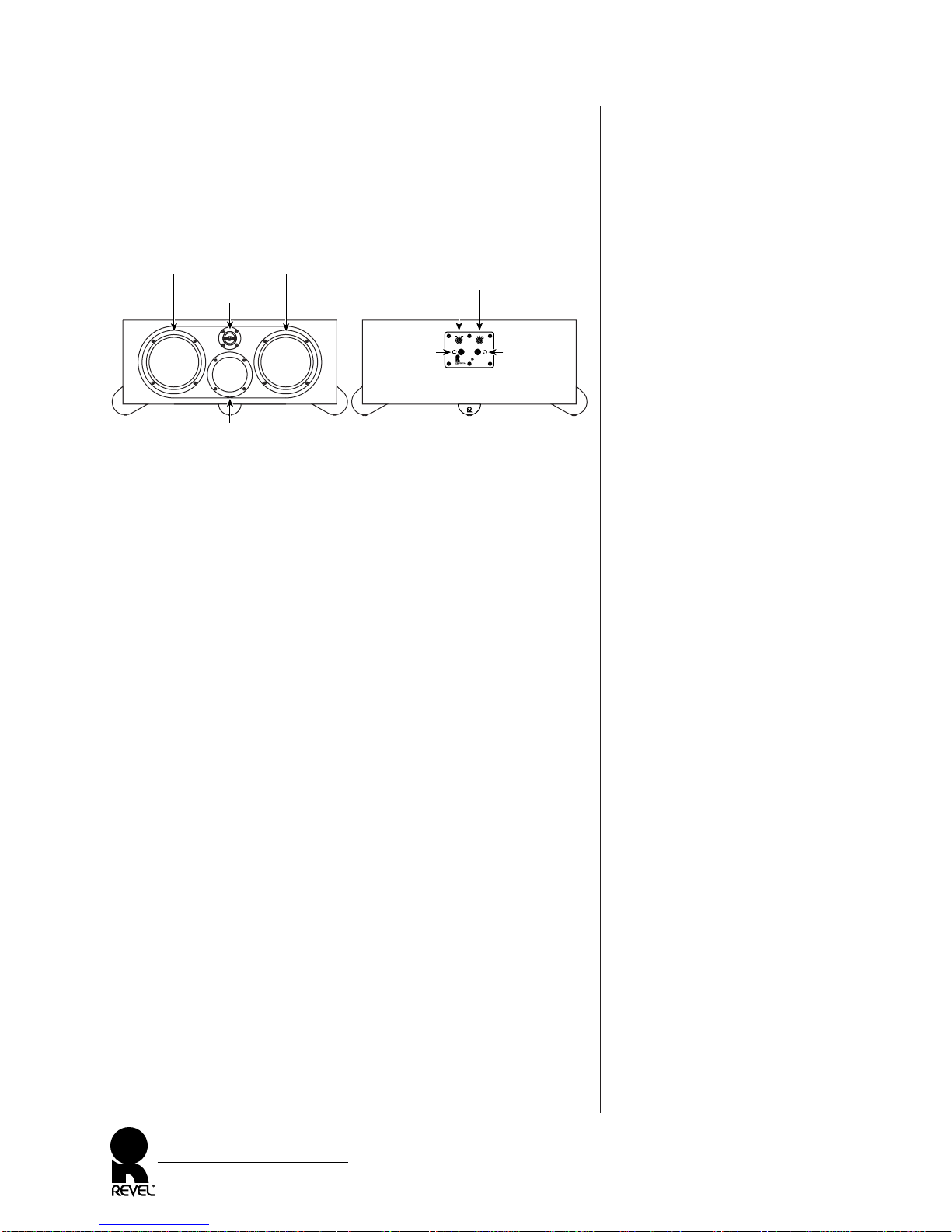

Figure 2.The REVEL PER-

FORMA C30 transducer and

connection locations.

DESCRIPTION

The REVEL PERFORMA C30 loudspeaker uses two 6.5-inch

(165 mm) inverted magnesium/aluminum-alloy dome woofers, a

4-inch (102 mm) inverted magnesium/aluminum-alloy dome

midrange, and an aluminum-alloy dome 1-inch (25 mm) tweeter.

Combined with an individually-optimized crossover network, this

transducer arrangement provides a uniform “listening window” or

area in which the sound varies little.The dual high power-handling

woofers and high-order crossover networks assure an extraordinary

dynamic range capability with very low dynamic compression. Full

magnetic shielding allows use near a video monitor.

WOOFERS

The two 6 .5-inch (165 mm) woofers feature:

• 1.5-inch (38 mm) diameter voice coils wound on Kapton

bobbins for unsurpassed dynamic capability and freedom

from compression.

• Fully-pistonic operation throughout their entire operating

range, with inverted magnesium/aluminum alloy diaphragms

for low coloration and distortion.

• Large 26-ounce (0.737 kg) magnet system with optimized cir-

cuits for vanishing low distortion.

• Die-cast basket to eliminate coloration from resonances.

MIDRANGE

The 4-inch (102 mm) midrange features:

• 1.5-inch (38 mm) diameter voice coil on a Kapton®former for

extraordinary power handling and freedom from distortion.

REVEL PERFORMA C30

Owner’s Manual

OnTopof

Monitor

Flush

Mounted Stand

Mounted

0+.5

-.5

-1

Placement

Compensation

(SeeOwner's Manual)

HighFrequency

Level(dB)

Revel

Northridge,California

Madein U.S.A.

SerialNo.

REVEL PERFORMA

C30 Front (without grille) REVEL PERFORMA

C30 Rear

Woofer

Tweeter

Woofer High-Frequency

Level Control

Placement

Compensation

Control

Midrange

Connector Connector

• Fully-pistonic operation throughout its entire operating range,

with an inverted magnesium/aluminum-alloy dome for

extremely low coloration and distortion.

• Neodymium motor derived from the REVEL ULTIMA

SALON®midrange transducer.

• Die-cast basket to eliminate coloration from resonances.

TWEETER

The 1-inch (25 mm) tweeter features:

• An aluminum-alloy dome for fully-pistonic operation.

• Ferrofluid magnetic cooling for high power handling and low

dynamic compression.

• Large co-polymer surround for linear operation over a wide

dynamic range.

CROSSOVER NETWORK

The REVEL PERFORMA C30 crossover is expertly designed to

seamlessly integrate the transducers over a wide listening area, and

to compensate for a wide range of listening environments. The

crossover features:

• A 3-way, high-order crossover at 280 Hz and 2.5 kHz for high

power handling, optimized dispersion, and freedom from dis-

tortion and dynamic compression.

• Individual calibration to match each REVEL PERFORMA

C30 to the original reference standard.

• 3-position placement compensation switch for low coloration

under a wide range of conditions.

• Calibrated high-frequency level control for accurate,

repeatable settings.

• Separate woofer, midrange, and tweeter crossover boards to

eliminate any distortion-causing interaction.

CABINET

The cabinet is constructed of 0.75-inch (19 mm) thick MDF

walls with extensive internal bracing for unshakable performance.

Three cast aluminum feet adorn the cabinet for superior coupling

to any surface.

REVEL PERFORMA C30

Owner’s Manual 5

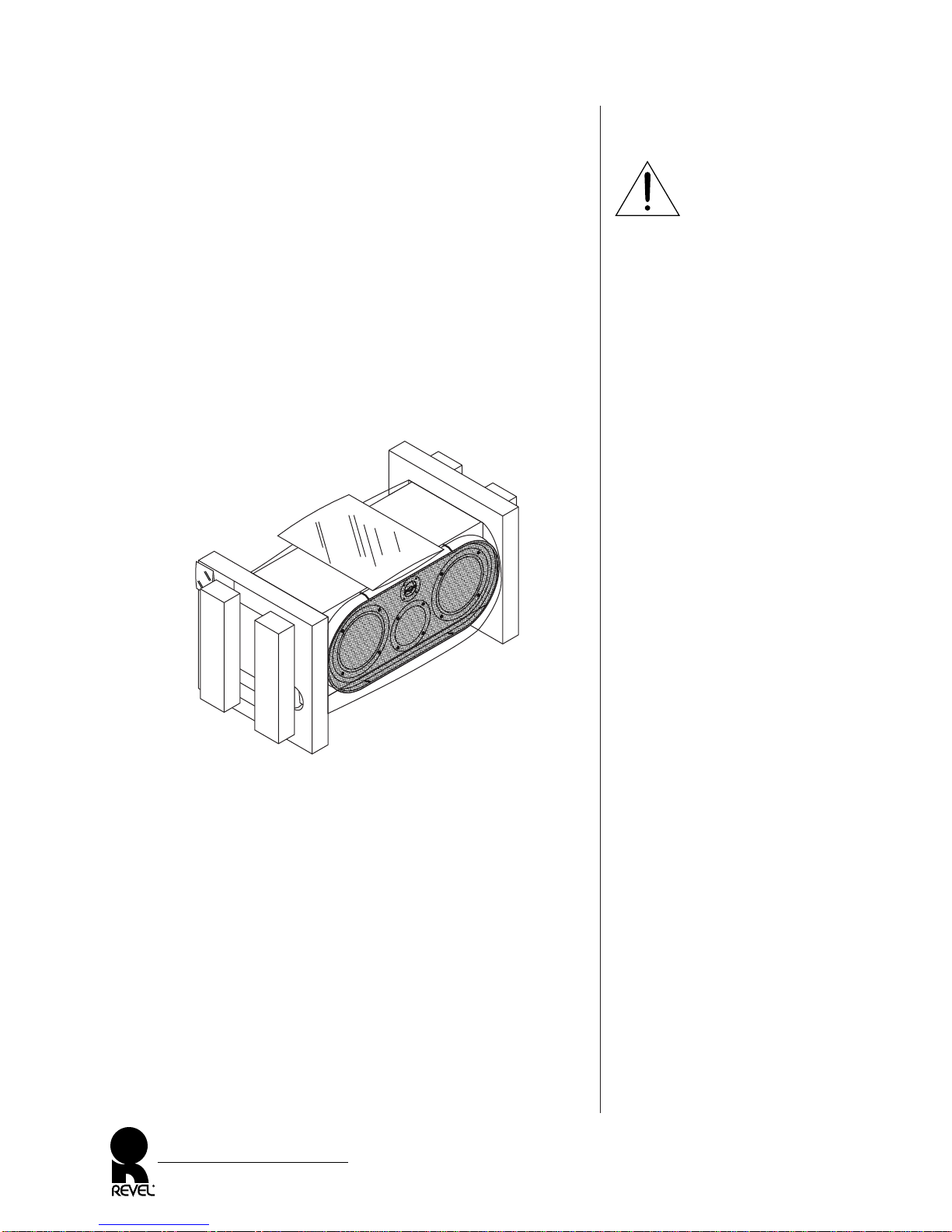

Figure 3. A REVEL

PERFORMA C30 loudspeaker

with its inner packing materials.

UNPACKING

To avoid injury, please use care during unpacking. Always

stand as straight as possible and use your leg muscles to lift the

REVEL PERFORMA C30 loudspeaker. Do not lift it while

bending from the waist.

To unpack the REVEL PERFORMA C30 loudspeaker, perform

the following steps:

1. Place the REVEL PERFORMA C30 loudspeaker onto its side.

2. Open the bottom flaps. Stand the carton in the up position.

3. Lift the carton off the loudspeaker and set it aside, being careful

not to damage the contents (see Figure 3).

4. Remove the spike foot kit and set it aside.

5. Remove the left and right pads and the protective bag. Use cau-

tion to avoid scraping the finish or pulling off the grille.

After unpacking the unit, carefully inspect it for possible damage

due to shipping. If you discover any damage, immediately contact

your Revel dealer for further assistance. When moving a REVEL

PERFORMA C30 loudspeaker (e.g., when experimenting with

placement), avoid touching the transducers.

Keep all packing materials for future shipping. In the unlikely

event a product will need repair, Revel will only accept a unit in its

original shipping carton. Using any other packing materials may

result in damage to the product and is not covered by the warranty.

See Obtaining Service on page 18 for additional details.

REVEL PERFORMA C30

Owner’s Manual

Warranty Card and

Owner’s Manual

Spike Foot

Kit

Left Pad

Right Pad

Protective

Bag

WARNING

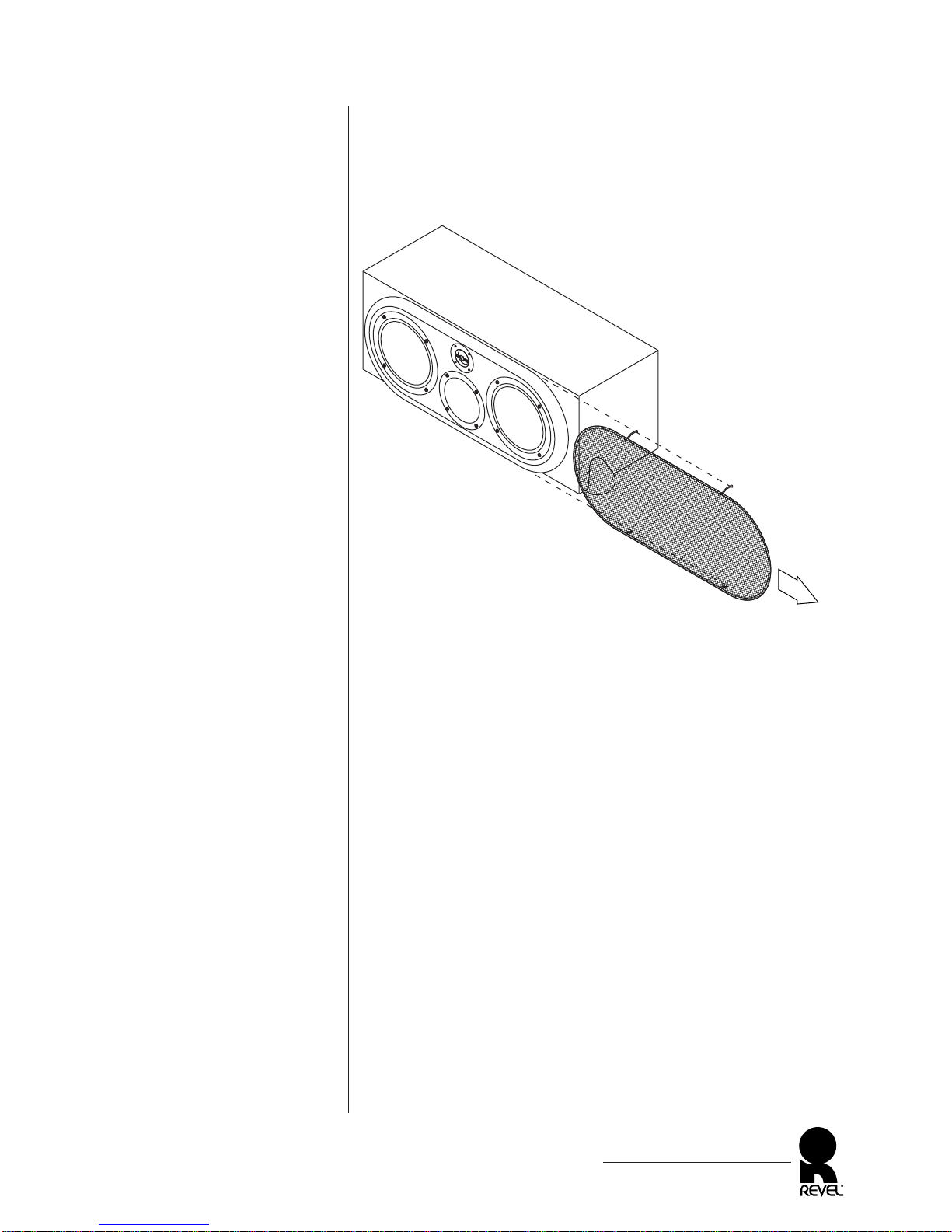

Figure 4. Removing

the grille.

REMOVING THE GRILLE (OPTIONAL)

For custom installations, in which acoustically-transparent grille

cloth is already in place, you can remove the grille from the REVEL

PERFORMA C30 loudspeaker, as shown in Figure 4 below.

REVEL PERFORMA C30

Owner’s Manual 7

Grille

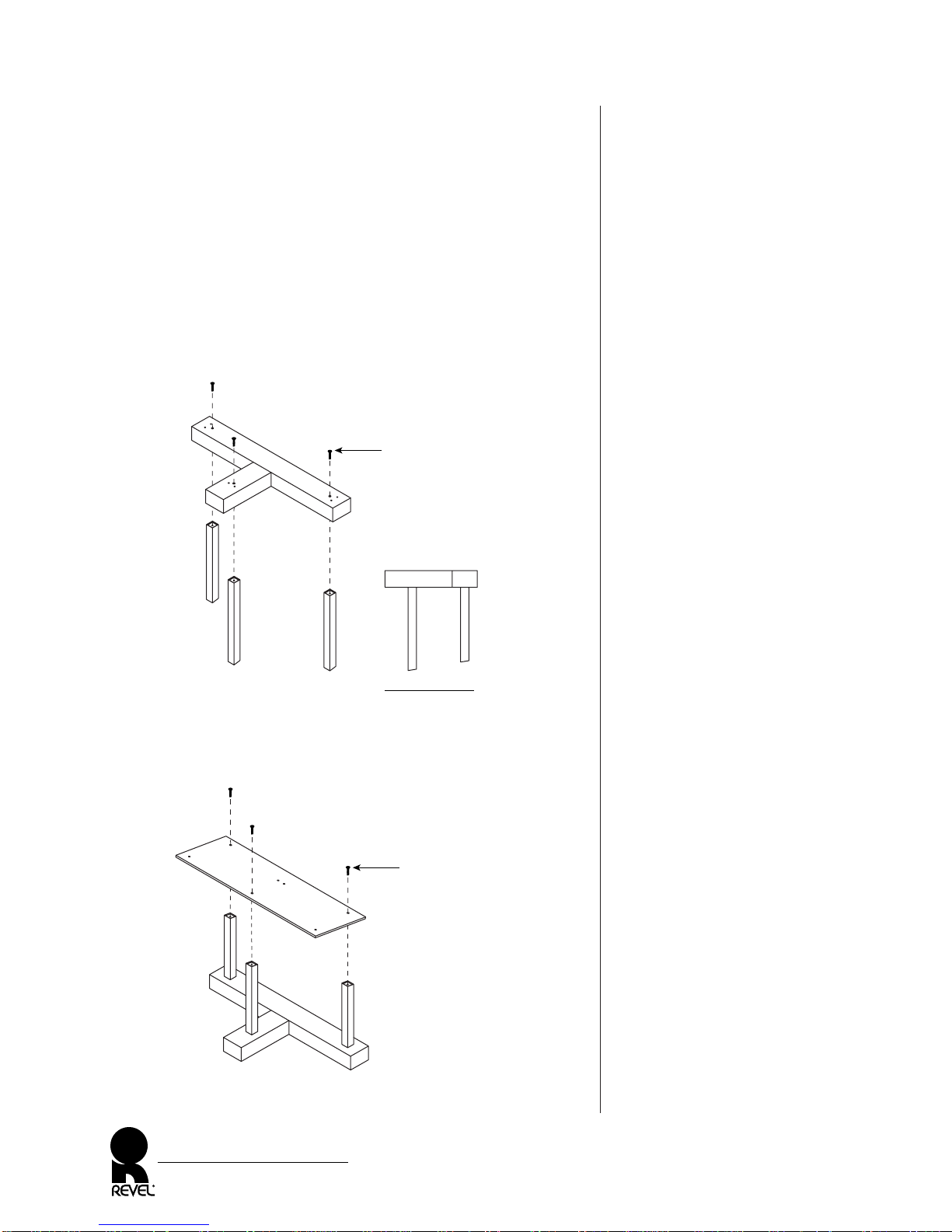

Figure 5. Installing bars onto

the ‘T’ base for the REVEL

PERFORMA PEDESTAL 2.

Figure 6. Installing the top plate.

INSTALLING STANDS (OPTIONAL)

1. Using a Phillips screwdriver, remove the Revel Performa C30

loudspeaker feet and screws (for later attachment to the stand

base). Locate the parts bag (packed with the loudspeaker) that

contains the spikes, lock nuts, covers, screws, and a wrench. Set

all parts aside.

2. Start the stand assembly by fastening three upright bars to the

bottom ‘T’ base with three enclosed 1⁄4 -20 x 1" flat head

screws. Note the position of the angled ends on the short and

long upright bars, as shown in Figure 5 (right side view).

3. Place the stand in its upright position. Install the top plate with

three enclosed 1⁄4 -20 x 1" flat head screws, as shown in Figure 6.

REVEL PERFORMA C30

Owner’s Manual

‘T’Base

RIGHT SIDE VIEW

Short

Bar

Long

Bar

Short

Bar

(3) 1⁄4-20 x 1"

Flat Head Screws

(Start All Screws

Before Tightening)

Top Plate

(3) 1⁄4-20 x 1"

Flat Head Screws

(Start All Screws

Before Tightening)

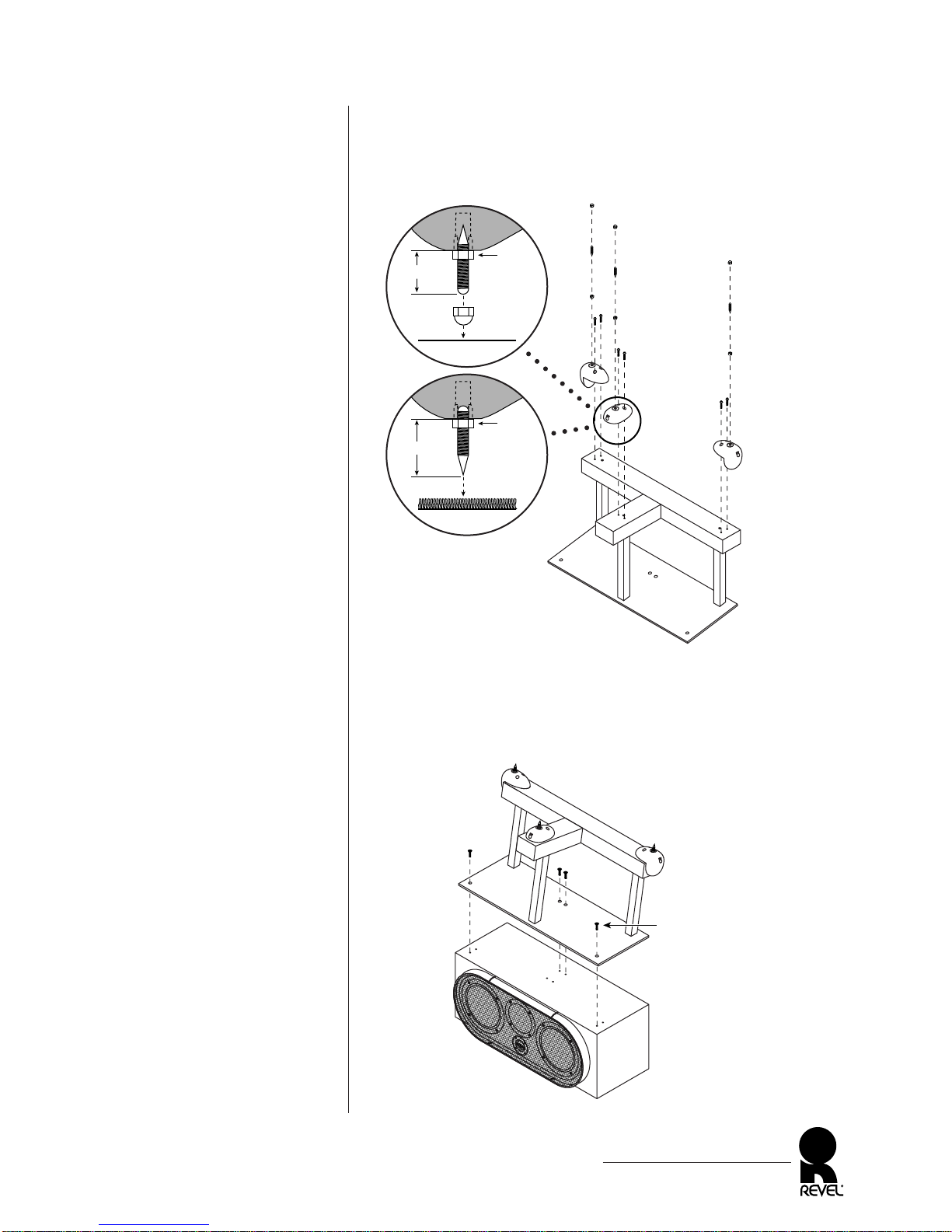

Figure 7. Installing feet

and spikes.

Figure 8. Installing the

assembled REVEL

PERFORMA PEDESTAL 2

onto the REVEL PERFORMA

C30 loudspeaker.

4. Place the stand (as shown below) and install the feet (from

Step 1) onto the bottom of the ‘T’ base. Thread spikes about

halfway into each foot and use the wrench to tighten each one

with a locking nut, as shown in Figure 7.

5. Place your Revel Performa C30 loudspeaker as shown onto a

carpeted surface or soft towel. Attach the assembled stand with

four 8-32 x 3⁄4" flat head screws, as shown in Figure 8. Turn the

unit upright. Make final placement and spike adjustments.

REVEL PERFORMA C30

Owner’s Manual 9

7⁄8" max. Lock Nut

HARD FLOORS

round end

Cover

(optional)

Foot

Spike

Lock Nut

CARPETED FLOORS

spike end

Foot

1 1⁄8" max. Spike

(3)Feet

(6)Screws

(for Feet)

(3) Spikes

(3)Covers

(optional)

(3)Nuts

Revel

Performa

C30

Revel Performa

Pedestal 2

(Assembled)

(4) 8-32 x 3⁄4"

Flat Head Screws

(Start All Screws

Before Tightening)

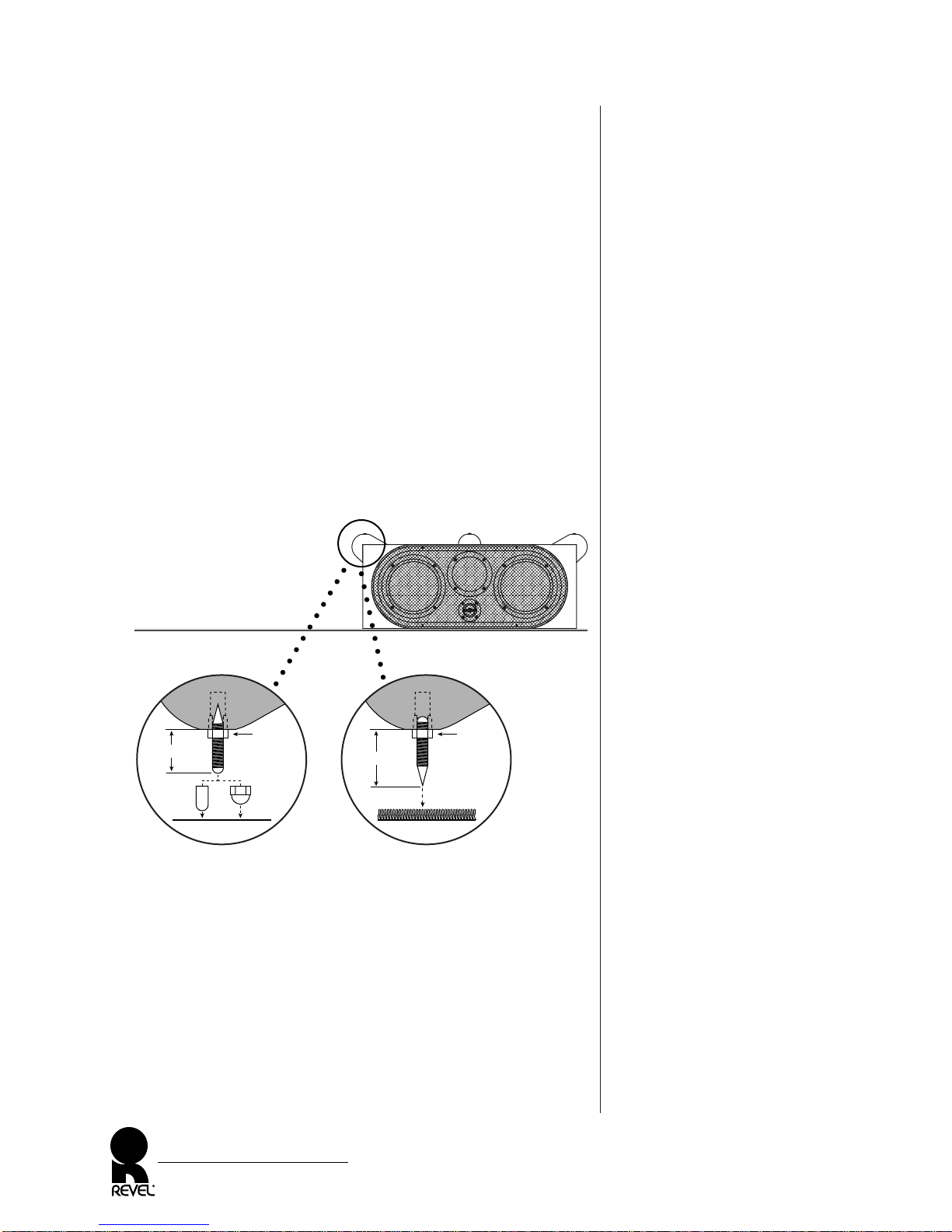

Figure 9. Installing a

set of spikes on a

REVEL PERFORMA C30

loudspeaker.

INSTALLING SPIKES

If desired, you can add spikes to the REVEL PERFORMA C30

loudspeaker as follows:

1. Remove the spike feet, lock nuts, and wrench from the plastic bag.

2. Lay the REVEL PERFORMA C30 loudspeaker on its top on a

carpeted area or soft towel. Use caution to avoid touching the

transducers and grille. Remove the black screws that serve as

glides on the three feet and store them for future use. Start a set

of spikes, as shown in Figure 9. Be sure to thread each spike the

same amount to achieve a level placement.

NOTE: If you want to place the loudspeaker on a hardwood or tile

floor, or on a large-screen television set, use the round ends with

optional supplied covers. Further adjustment of each spike may be

necessary due to uneven floors.

3. (Optional) To tilt the REVEL PERFORMA C30 loudspeaker

down (or up) so that it is on-axis with the listener(s), perform

the following:

• For a downward tilt, adjust the two front spikes for decreased

extension and the rear center spike for increased extension to

achieve the amount of tilt you desire.

• For a upward tilt, adjust the two front spikes for increased

extension and the rear center spike for decreased extension to

achieve the amount of tilt you desire.

4. Using the supplied wrench, tighten a lock nut onto each spike.

REVEL PERFORMA C30

Owner’s Manual

7⁄8" max. Lock Nut

HARD FLOOR OR TV

round end

or Dome

Cover

Slip

Cover

Foot

Spike Lock Nut

CARPETED FLOOR

spike end

Foot

1 1⁄8" max. Spike

Carpeted Area or Soft Towel

REVEL PERFORMA C30

(on its top)

Indice

Altri manuali REVELL Altoparlanti

REVELL

REVELL Performa C52 Manuale utente

REVELL

REVELL Ultima2 Salon2 Manuale utente

REVELL

REVELL Ultima Gem Manuale utente

REVELL

REVELL C763L Manuale utente

REVELL

REVELL Concerta S12 Manuale utente

REVELL

REVELL C263 Manuale utente

REVELL

REVELL Ultima Salon Manuale utente

REVELL

REVELL Concerta IC65 Manuale utente

REVELL

REVELL C780 Manuale utente

REVELL

REVELL Ultima Studio Manuale utente

REVELL

REVELL Concerta M12 Manuale utente

REVELL

REVELL Performa 3 M106 Manuale utente

REVELL

REVELL Performa3 M106 Manuale utente

REVELL

REVELL Concerta M8 Manuale utente

REVELL

REVELL PERFORMA Be4 Manuale utente

REVELL

REVELL Performa C32 Manuale utente

REVELL

REVELL Ultima Gem Manuale utente

REVELL

REVELL CONCERTa M8 SP2 Manuale utente

REVELL

REVELL Performa F32 Manuale utente

REVELL

REVELL Concerta C12 Manuale utente

REVELL

REVELL I20 Manuale utente

REVELL

REVELL Ultima Embrace Manuale utente

REVELL

REVELL C540 Manuale utente

REVELL

REVELL Performa M22 Manuale utente

Manuali Altoparlanti popolari di altre marche

argon audio

argon audio IE20 Manuale utente

Denon

Denon SC-N7 Manuale utente

Gemline

Gemline Ace 3952 Manuale utente

Focal

Focal ON WALL 300 Manuale di istruzioni

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuale utente

SoundLogic

SoundLogic BCCS-6/6395 Manuale utente

Peavey

Peavey DTH 218 Manuale utente

Avantree

Avantree Pluto Air Manuale utente

Morel

Morel Integra Series INTEGRA OVATION 4 Manuale utente

Oppo

Oppo SONICA Manuale utente

Bose

Bose SoundLink Wireless Music System Manuale utente

Rocksteady

Rocksteady Stadium Manuale utente

Bowers & Wilkins

Bowers & Wilkins 4 Manuale utente

Sonance

Sonance SONOS OUTDOOR Series Manuale utente

Electro-Voice

Electro-Voice EVID FM4.2 Manuale utente

Pioneer

Pioneer XW-HTD630 Manuale utente

Onn

Onn BWA16AA002 Manuale utente

HP GL313AA - USB Speakers PC Multimedia Manuale utente
