Salon™Loudspeaker

TABLE OF CONTENTS

INTRODUCTION...............................................3

ABOUT THE MANUAL AND WARRANTY.................................3

DESCRIPTION .................................................4

WOOFERS ........................................................................4

MIDBASS ..........................................................................4

MIDRANGE .......................................................................5

TWEETERS........................................................................5

CROSSOVER NETWORK .....................................................5

CABINET...........................................................................5

UNPACKING....................................................6

PLACEMENT ...................................................8

INSTALLING SPIKES.......................................10

SPEAKER CONNECTIONS ...............................11

SINGLE-WIRED SYSTEM CONNECTIONS ............................12

BI-WIRED SYSTEM CONNECTIONS ....................................13

BI-AMPLIFIED SYSTEM CONNECTIONS...............................14

SYSTEM OPTIMIZATION..................................16

CABINET CARE..............................................18

SPEAKERS AND POWER ................................18

PANEL REPLACEMENT...................................19

SPECIFICATIONS............................................21

SERVICE INFORMATION..................................23

SALON

Owner’s Manual

Figure 1. The SALON™ speaker.

INTRODUCTION

The Revel SALON™ sets an entirely new performance and value

reference in floorstanding loudspeakers. It champions our hallmark

of remarkable musical precision and imaginative industrial design.

While SALON’s artistic sculpt is unique, its visual performance

can only begin to tell the story of the achievement yielded by our

unique development process.

Our advanced psychoacoustic research into the interaction of loud-

speaker and various placement options has resulted in “real-world”

performance unmatched by any loudspeaker. For example, to

insure compression-free operation during the most demanding pas-

sages, the SALON includes large voice coils in each transducer,

judiciously selected crossover points, and true 24 dB per octave

networks. While the true test of any loudspeaker is the sound it

reproduces, we think you’ll agree that this “clean slate” approach

has yielded a truly exceptional outcome.

ABOUT THE MANUAL AND WARRANTY

To begin enjoying your SALON speakers, first read and then per-

form the instructions in this owner’s manual. Maximum perfor-

mance depends on following all instructions described here, as well

as those found in the owner’s manuals of associated components in

your audio system. Save these instructions for future reference.

Revel SALON speakers are covered by a limited 5-year warranty, so

save the bill of sale to protect your purchase and aid in any service-

related questions.

SALON

Owner’s Manual

,,,,,,

,,,,,,,

,,,,,,

,,,,,,,

,,,,,,

,,,,,,,

,,,,,,

,,,,,,,

,,,,,,

,,,,

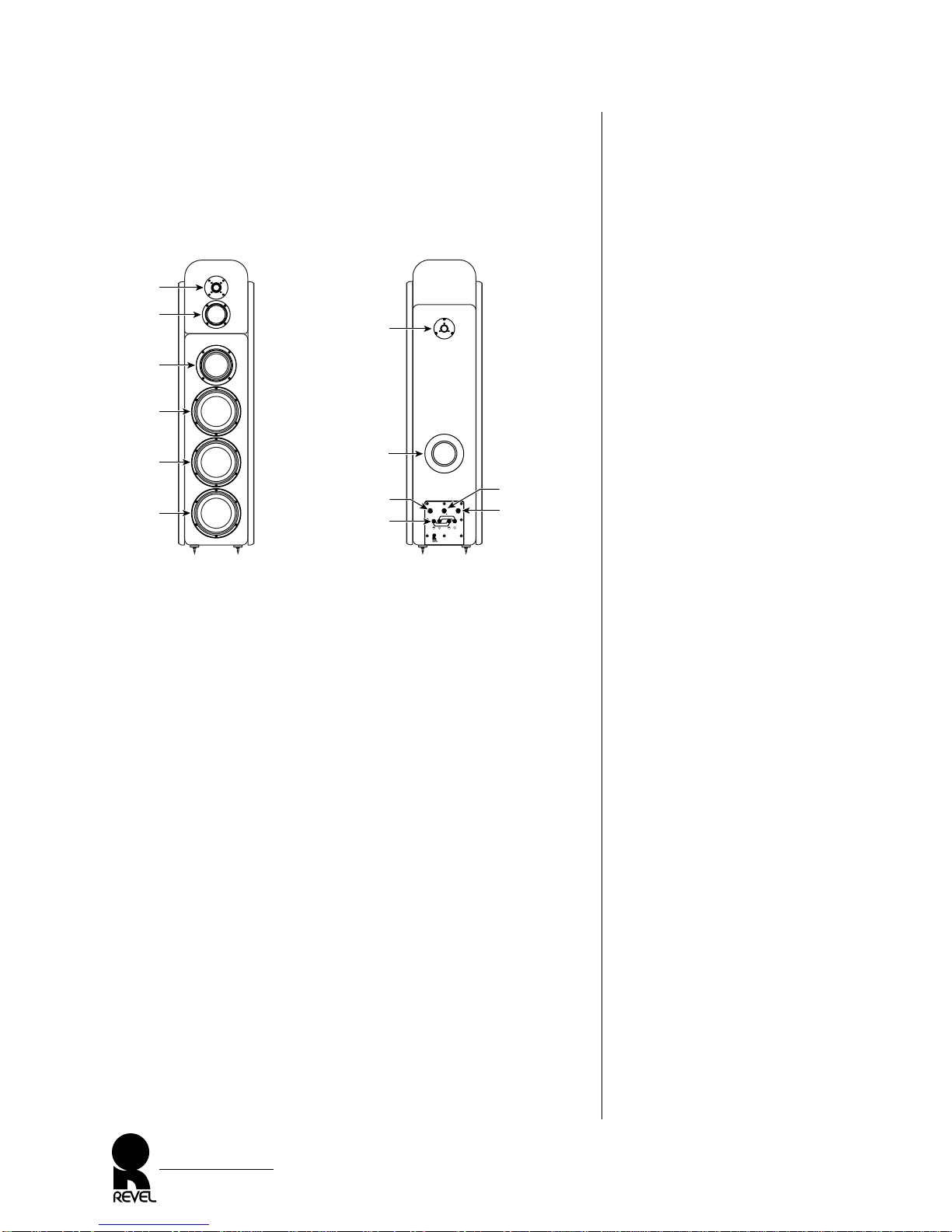

Figure 2. The SALON transducer

and connection locations.

DESCRIPTION

SALON features a transducer complement (see Figure 2) of three

8-inch woofers, a 6.5-inch midbass driver, a 4-inch midrange, and

1.1-inch tweeter. A second 0.75-inch tweeter (on the rear) provides

added high-frequency energy to enhance overall “room response.”

Combined with an individually-optimized crossover network, this

transducer arrangement results in an extraordinary off-axis

response that provides a large “listening window” and an uncolored

in-room response, even in the presence of strong wall reflections.

WOOFERS

For uncompressed dynamic range, each SALON uses three 8-inch

mica/carbon-filled co-polymer dome woofers with these features:

• The woofer’s radiating surface is made of an injection-molded

polymer material with incredible stiffness and internal damping.

• Optimized magnetic circuits to minimize harmonic distortion.

• Oversized 1.5-inch diameter voice coil with flat aluminum wire

offer higher power handling and long excursion capability.

MIDBASS

For ideal midbass reproduction, each SALON uses a 6.5-inch

mica/carbon-filled co-polymer dome midbass with these features:

• A long voice-coil excursion within an advanced suspension.

• A copper shorting ring for less inductance and flux modulation.

SALON

Owner’s Manual

Installstraps for

single-wiredoperation

Removestraps

forbi-wire

orbi-amp

Installstraps for

single-wiredoperation

LowFrequency Input HighFrequency Input

RevelCorporation

Chatsworth,California

Madein U.S.A.

SerialNumber

0-3

Off

+1-1

0+.5

-.5

FrontTweeterLevel RearTweeterLevel

LFCompensation

xxxx

SALON Front

(without grilles) SALON Rear

Tweeter

Woofer Port

Rear Tweeter

Level Control

LF Compensation

Control

Front Tweeter

Level Control

Midrange

Midbass

Woofer

Woofer Connectors (with

shorting straps)

Tweeter

MIDRANGE

Each SALON uses a 4-inch titanium dome midrange driver with:

• A radiating surface made of titanium for true pistonic behavior

throughout its operating range.

• A motor system that utilizes neodymium magnets and a large

voice coil for exceptional performance.

TWEETERS

Each SALON also includes a pair of high-performance aluminum

alloy dome tweeters with these features:

• True pistonic behavior throughout its entire operating range for

a new level of freedom from coloration.

• The front tweeter has a large voice-coil with an oversized surround

roll for higher power handling and longer excursion capability

with extraordinarily low-harmonic distortion.

• The rear tweeter flattens the “in-room” response, resulting in

superior “air” and detail.

CROSSOVER NETWORK

SALON has an individually-optimized crossover network with:

• A 4-way, 24 dB per octave crossover at 125 Hz, 450 Hz, and

2.2 kHz to optimize the on- and off-axis response of the system.

• Hand-wired filter networks with air-core inductors and film

capacitors to match each SALON to the reference standard.

• Provision for bi-amplified and bi-wired applications via remov-

able external shorting straps on the gold-plated binding posts.

• External level controls for both the front and rear tweeters via

calibrated switched precision resistors for ideal imaging.

• External LF tilt control for speaker placement optimization.

CABINET

The cabinet offers exquisite appearance and aids in overall system

performance. The main enclosure and internal bracing are

designed to act as an acoustically-inert platform for sound-wave

generation. Interchangeable side panels are available in a full array

of optional finishes when updating home decor (see Panel

Replacement on page 19).

SALON

Owner’s Manual

WARNING

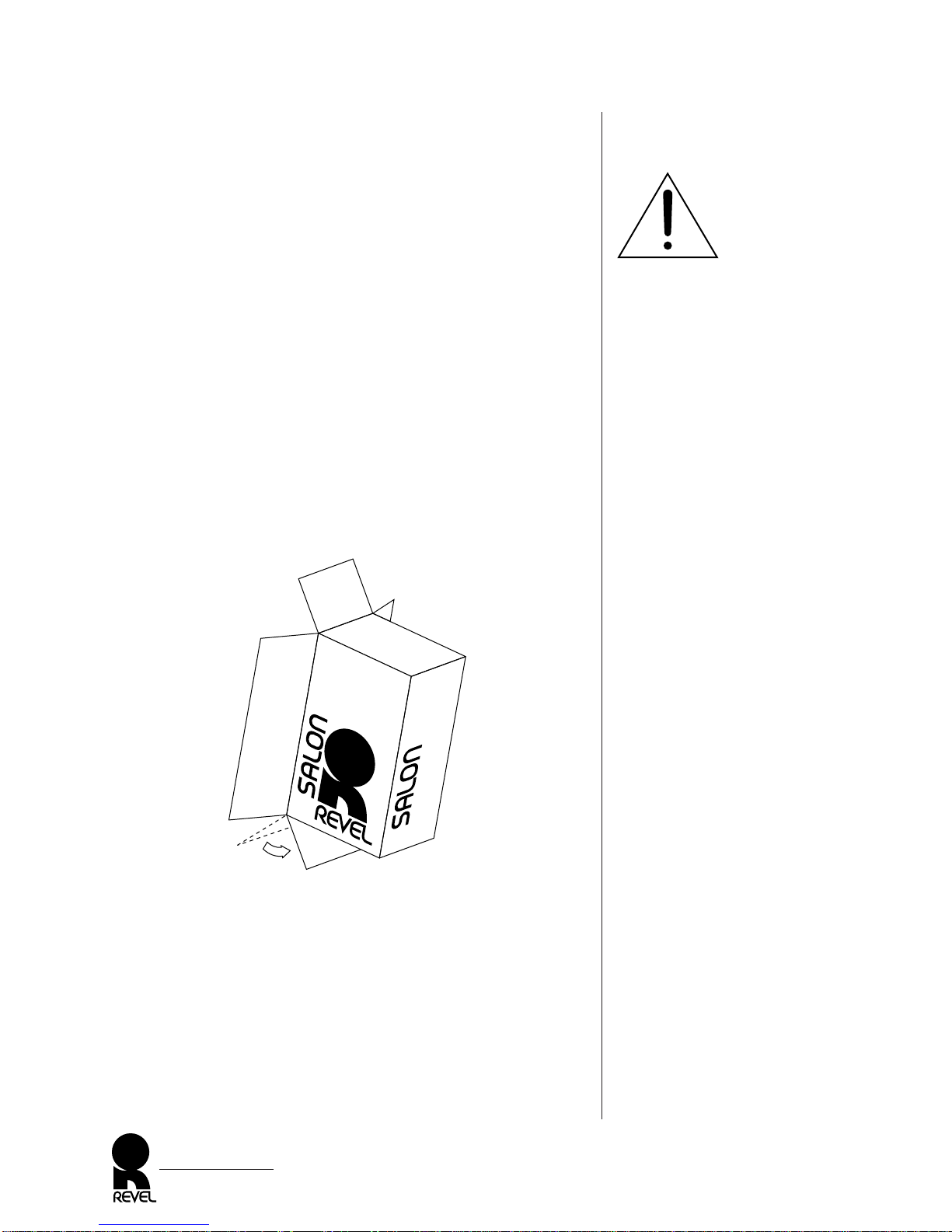

Figure 3. Unpacking a

SALON carton.

UNPACKING

IMPORTANT! Do not attempt to lift a SALON from its pack-

ing carton alone – at least two strong people will be needed to

unpack the product properly. To avoid injury, use extreme care

during unpacking. Always stand as straight as possible and use

your leg muscles to lift a SALON. Do not lift a SALON while

bending from the waist.

Each SALON is packed in its own carton with a shipping weight

of 240 pounds (108.9 kg). To avoid personal injury and possible

product damage, we strongly urge you to enlist additional help

before unpacking either carton.

To unpack a SALON, perform the following steps:

1. Stand a SALON in an upright position.

2. Carefully remove all staples from rear flaps. Open the flaps and

tilt the unit forward so that the bottom flap can be positioned

under the carton, as shown in Figure 3.

3. Lay unit on its back with all flaps open. Lift carton off the unit

and set it aside.

4. Place the SALON in an upright position and then remove the

four (4) foam packing strips from the sides, as shown in

Figure 4 (on the next page).

5. Tilt the cabinet forward and remove bottom rear end pad, using

caution to avoid touching the front tweeter or midrange.

6. Tilt the cabinet backward and remove bottom front end pad,

using caution to avoid touching the front tweeter or midrange.

SALON

Owner’s Manual

Tilt carton forward and

tuck bottom flap under

Thisendup

Front

Thisendup

Rear

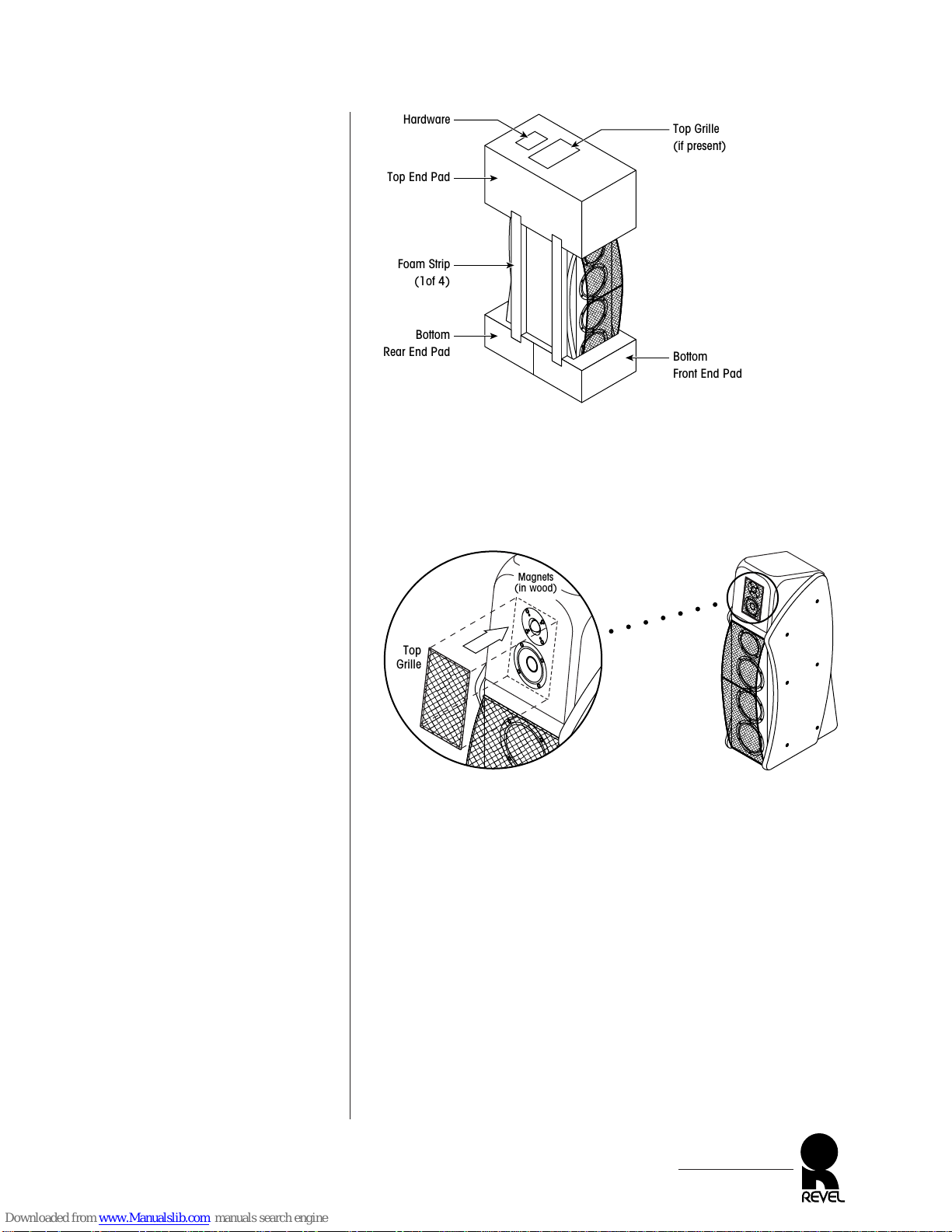

Figure 4. A SALON with its

inner packing materials.

Figure 5. Installing the

optional top grille.

7. Remove top end pad, fabric sock, and plastic bag from the grille,

using caution to avoid touching the front tweeter or midrange.

8. Remove enclosed hardware and optional top grille (if present)

from recessed pockets in the top end pad. Install the top grille,

as shown in Figure 5.

9. Repeat steps 1 through 8 for the other SALON.

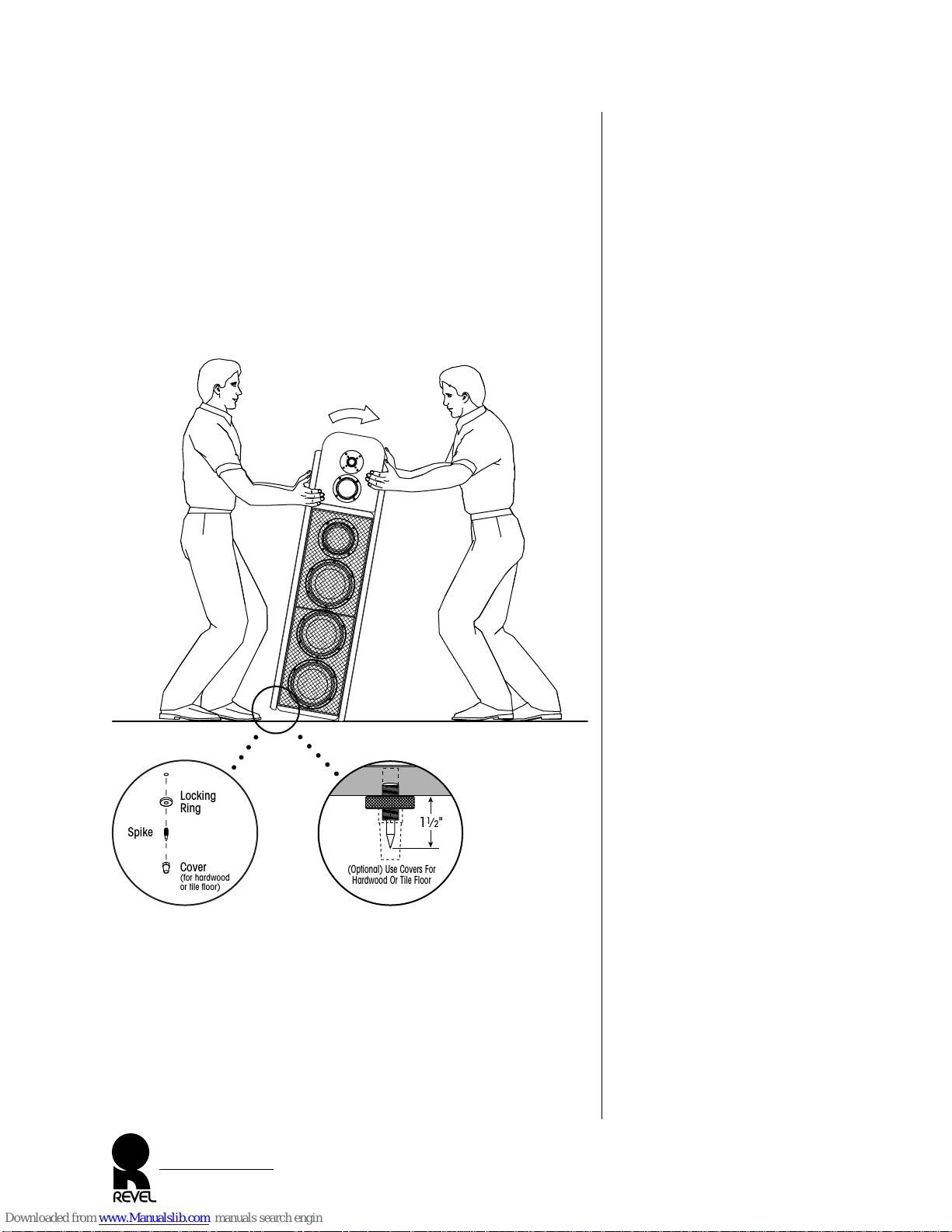

NOTE: We recommend installing spikes after determining final

speaker placement (see discussion starting on next page).

After unpacking both units, carefully inspect each one for possible

damage due to shipping. If you discover any damage, immediately

contact your Revel dealer for further assistance. To move an

unpacked SALON (e.g., when experimenting with placement),

rock it side-to-side into place, using caution to avoid touching the

front tweeter and midrange.

Keep all packing materials for future shipping. In the unlikely

event a product will need repair, Revel will only accept a unit in its

original shipping carton. Using any other packing materials may

result in damage to the product and is not covered by the warranty.

See Service Information on page 23 for additional details.

SALON

Owner’s Manual

,,,,,,,

,,,,,,

,,,,,,,

,,,,,,

,,,,,,,

,,,,,,

,,,,,,,

,,,,,,

,,,,

,,,

,,,,

,,,

,,,,,

,,,,,,

,,,,

,,,

,,,,

,,,

Top

Grille

Magnets

(in wood)

,,,

,,,,,,

,,,,,,,

,,,,,,

,,,,,,,

,,,,,,

,,,,,,,

,,,,,,

,,,,,,,

,,,,,,

,,,

Top End Pad

Hardware Top Grille

(if present)

Foam Strip

(1of 4)

Bottom

Rear End Pad Bottom

Front End Pad

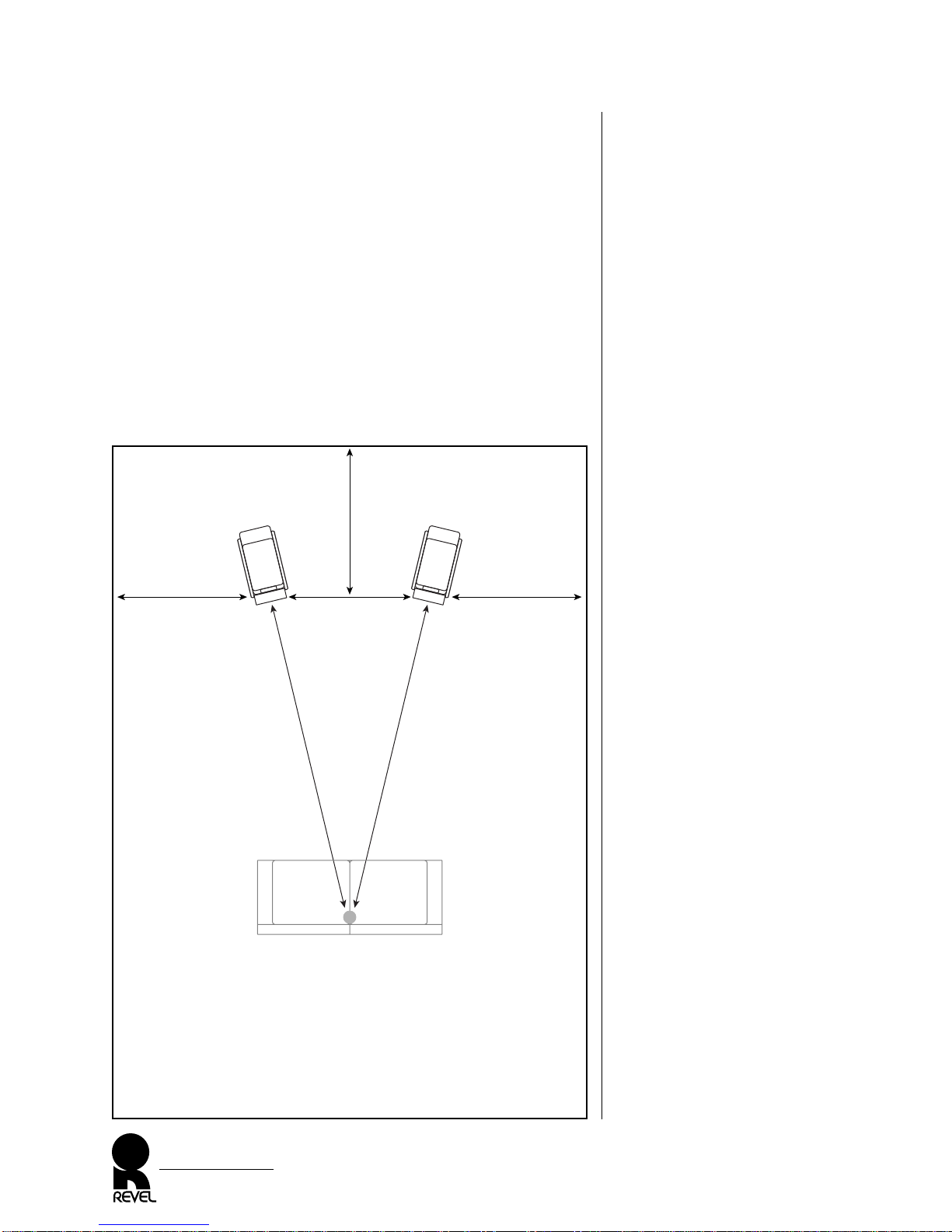

Figure 6. Typical placement of

SALON speakers for stereo.

PLACEMENT

Sound quality is heavily dependent on the accuracy of your speak-

ers, their placement in the listening room, and the acoustics of the

room itself. Since the SALON speakers are extremely accurate,

experimenting with their placement is the most significant way to

optimize their performance in a given environment. Start with the

following guidelines in determining optimum placement:

NOTE: Set all Salon controls to “zero” position during placement

experimentation. If needed, refer to Figure 13 on page 16.

• For best stereo imaging, place the SALON speakers at equal dis-

tances from the main listening position and in symmetry with

the room, as shown in Figure 6.

SALON

Owner’s Manual

Listening Position

(e.g., on couch)

L SALON

R SALON

• Distance “A” must be greater than distance “B”

• Distance “C” should be different than distance “D”

• Optimum timbre and imaging precision is obtained with the

speakers pointing almost directly toward the prime listening

position. Some listeners prefer a wider “soundstage,” which is

achieved by reducing the toe-in angle, perhaps to the point of

aiming the speakers straight ahead.

• Imaging and a sense of spaciousness will improve as the

speakers are moved away from the wall behind the speakers

and the side walls.

NOTE: You may then need to move the listening position back to

maintain the best stereo image.

• For more bass reinforcement, try moving the speakers closer to

the wall behind the speakers or corners.

NOTE: You may then need to move the listening position forward

to maintain an acceptable stereo image.

• For best results, make sure there are no objects between the

SALON speakers and the intended listening area (e.g., a coffee

table in front of the listener will degrade timbre and imaging).

If possible, avoid placing the speakers near large objects, which

can cause unwanted reflections.

• Ideally, the listening room should be acoustically neutral, nei-

ther producing any distinct echoes nor sounding completely

“dead” and lifeless. If needed, consult your Revel dealer for spe-

cific recommendations on room acoustics.

• After choosing a final placement, add the spikes (and covers, if

desired) as described in Installing Spikes on the next page.

SALON

Owner’s Manual

Figure 7. Tilting a SALON

and installing a pair of spikes.

INSTALLING SPIKES

After choosing a final placement, add the spikes (and covers, if

desired) by performing the following steps:

1. Remove spike feet and locking rings from the plastic bags.

2. Enlist the aid of friend to tilt a SALON to one side and start a

pair of spikes, as shown in Figure 7. Use caution to avoid

touching the front tweeter and midrange. The tip of the spike

should extend about 11⁄2" from the bottom of the cabinet.

3. Assemble and tighten locking rings onto the front spikes.

4. Tilt the SALON in the other direction and install the other pair

of spikes in the same manner.

NOTE: If the speaker is to be used on a hardwood or tile floor, use

supplied spike covers. Further adjustment of spike may be necessary

due to uneven floors.

5. Repeat steps 1 through 4 for the other SALON.

SALON

Owner’s Manual

,,,

,,,,,,,,,

,,,,,,,,

,,,,,,,,,

,,,,,,,

Locking

Ring

Spike

Cover

(for hardwood

or tile floor)

(Optional) Use Covers For

Hardwood Or Tile Floor

11⁄2"

Altri manuali per Ultima Salon

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali REVELL Altoparlanti

REVELL

REVELL Concerta IC65 Manuale utente

REVELL

REVELL Performa F50 Manuale utente

REVELL

REVELL Ultima Gem Manuale utente

REVELL

REVELL Performa F32 Manuale utente

REVELL

REVELL PERFORMA Be4 Manuale utente

REVELL

REVELL Performa F30 Manuale utente

REVELL

REVELL Performa C32 Manuale utente

REVELL

REVELL C263 Manuale utente

REVELL

REVELL Ultima Gem Manuale utente

REVELL

REVELL CONCERTa M8 SP2 Manuale utente

REVELL

REVELL Concerta C12 Manuale utente

REVELL

REVELL Concerta S12 Manuale utente

REVELL

REVELL F208 Manuale utente

REVELL

REVELL C208 Manuale utente

REVELL

REVELL W970 Manuale utente

REVELL

REVELL Concerta IC6T2 Manuale utente

REVELL

REVELL Ultima Embrace Manuale utente

REVELL

REVELL Ultima Gem Manuale utente

REVELL

REVELL C363 Manuale utente

REVELL

REVELL Ultima Studio Manuale utente

REVELL

REVELL C540 Manuale utente

REVELL

REVELL L41XC Manuale utente

REVELL

REVELL Performa C32 Manuale utente

REVELL

REVELL Performa 3 M106 Manuale utente

Manuali Altoparlanti popolari di altre marche

argon audio

argon audio IE20 Manuale utente

Denon

Denon SC-N7 Manuale utente

Gemline

Gemline Ace 3952 Manuale utente

Focal

Focal ON WALL 300 Manuale di istruzioni

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuale utente

SoundLogic

SoundLogic BCCS-6/6395 Manuale utente

Peavey

Peavey DTH 218 Manuale utente

Avantree

Avantree Pluto Air Manuale utente

Morel

Morel Integra Series INTEGRA OVATION 4 Manuale utente

Oppo

Oppo SONICA Manuale utente

Bose

Bose SoundLink Wireless Music System Manuale utente

Rocksteady

Rocksteady Stadium Manuale utente

Bowers & Wilkins

Bowers & Wilkins 4 Manuale utente

Sonance

Sonance SONOS OUTDOOR Series Manuale utente

Electro-Voice

Electro-Voice EVID FM4.2 Manuale utente

Pioneer

Pioneer XW-HTD630 Manuale utente

Onn

Onn BWA16AA002 Manuale utente

HP GL313AA - USB Speakers PC Multimedia Manuale utente
