RF SOLUTIONS HORNETPRO Series Manuale utente
HORNET PRO
Remote Control System
DS HORNETPRO-2
Applications
• General Purpose Remote Switching
• Electric Gates
• Roller Shutter Doors
• Garden Lighting, Sports Grounds
Features
• Up to 200m Range
• 868MHz FM Technology
• 1 –4 Channels each 1000W
• Waterproof Receiver (IP68)
• High Security RF Protocol
• 2 / 4 Changeover Relays Contacts
Rated 5A @ 230Vac
• 12-30Vac/dc, 110V or 230Vac
versions Available
• Outputs Momentary or Latching
• Any Switch Map to Any Relay
• Systems supplied ’ready to Go’
Description
A versatile general purpose Remote Control System for many different applications.
Housed in a rugged IP68 weatherproof enclosure, The new HORNETPRO system is ide-
ally suited to any remote switch requirement. With upto 4 changeover Relay switch
outputs each output can be controlled from any switch on any transmitter. Additional
transmitters may be added to the system using the same ‘easy-learn’ process with-
out opening the enclosure.
Installation is by screw terminals to the power supply and the output relay contacts.
The output relays are activated by the button press on the transmitter encoder.
HORNET PRO
DS-HORNETPRO-2
Systems Part Numbers
Additional Transmitters
Part Number Description Power Supply
HORNETPRO-8S1 1 channel System
12-30Vac/dc
HORNETPRO-8S2 2 channel System
HORNETPRO-8S3 3 channel System
HORNETPRO-8S4 4 channel System
Custom Systems
Fobber keyfobs can be customised with logo, col-
our or complete custom plastic housing for unique
Branding
Please contact Sales for further info.
Part Number Description Range*
FOBBER-8T1 1 Sw 200m
FOBBER-8T2 2 Sw 200m
FOBBER-8T3 3Sw 200m
FOBBER-8T4 4 Sw 200m
FOBBER-8T6 4 ch 6 Sw 200m
FOBBER-8T8 8 Sw 200m
FOBBER-8TL1 2 button 1ch ON/OFF 200m
FOBBER-8TL2 4 button 2ch ON/OFF 200m
Part Number Description Power Supply
HORNETPRO-8R4 4 ch Receiver 12-30Vac/dc
HORNETPRO-8R2M 2 ch Receiver 230Vac
Additional Receivers
Part Number Description Power Supply
HORNETPRO-8S1M 1 channel System 230Vac
HORNETPRO-8S2M 2 channel System
HORNET PRO
DS-HORNETPRO-2
Relay Outputs
The receiver provides 4 changeover relay switches each capable of switching up to 1.2KW (5A @
230V). Each relay is independent and separately controlled, and can therefore be used to switch most
voltages either ac or dc.
Each output relay provides an isolated switch. Connections are Common (COM), Normally Open (NO)
and Normally Closed (NC).
Installation
Below is a simple example showing one possible way to wire a single set of relay Changeover contacts in
order to provide switched power to an external load:
When the relay is energised the ‘COM’ connects to ’NO’ and power is applied to the Load.
1. Open the enclosure by removing fixing screws from the enclosure
2. Remove the antenna and slide out the circuit board.
3. Connect the power supply screw terminals.
4. Wire your desired connections to the relay contact outputs
5. As supplied, the handheld will operate the outputs; switch1 to output1, switch2 to output2 etc.
6. Set the output functions to latching, / Momentary Operation.
COM
NO
NC
Relay Connections when
Transmitter NOT Operating
COM
NO
NC
Relay Connections when
Transmitter OPERATING
Relay
Relay
Relay
0V
LOAD
12V
12V
0V
COM
NO
NC
Supply
Terminals
TRAP-RX
Relay
COM
NC
NO
Live in
Switched
live out
1 2
FUSE 4A 230Vac
L N E
AC 230V MAINS IN
Relay2 Relay1
NO COM NC
Antenna
Reed Sw
(Magnet operated Switch)
Jumper Links
12-30V Version 230Vac Version
HORNET PRO
DS-HORNETPRO-2
Link Pins
LK1
LK2
Link Positions Relay Outputs
LK1 LK2 RLY 1 RLY 2
Open Open Mom Mom
Closed Open Mom Latch
Open Closed Flipflop Flipflop
Closed Closed Latch Latch
230Vac Receiver
Place Link Cap Vertically
Link Pins
LK1
LK2
Link Positions Relay Outputs
LK1 LK2 RLY 1 RLY 2 RLY 3 RLY 4
Open Open
1/2sec
Mom
1/2sec
Mom
1/2sec
Mom
1/2sec
Mom
Closed Open Mom Mom Latch Latch
Open Closed Mom Mom Mom Mom
Closed Closed Latch Latch Latch Latch
12-30V Receiver
Place Link Cap horizontally
Advanced Operation
Configuring receivers
The link pins LK1 and LK2 set the action of the relays
1/2sec Mom = Relay will operate for 1/2sec
Mom = Relay will operate for as long as transmitter switch operated
Latch = Relay will toggle ON/OFF on each transmitter button press
FlipFlop = Relays 1 & 2 and 3 & 4 operate in pairs.
When button 1 is pressed relay 1 switches on, Relay 2 Switches off
When button 2 is pressed relay 2 switches on, Relay 1 Switches off
Relay 3 & 4 operate in the same manor to Transmitter buttons 3 & 4.
HORNET PRO
DS-HORNETPRO-2

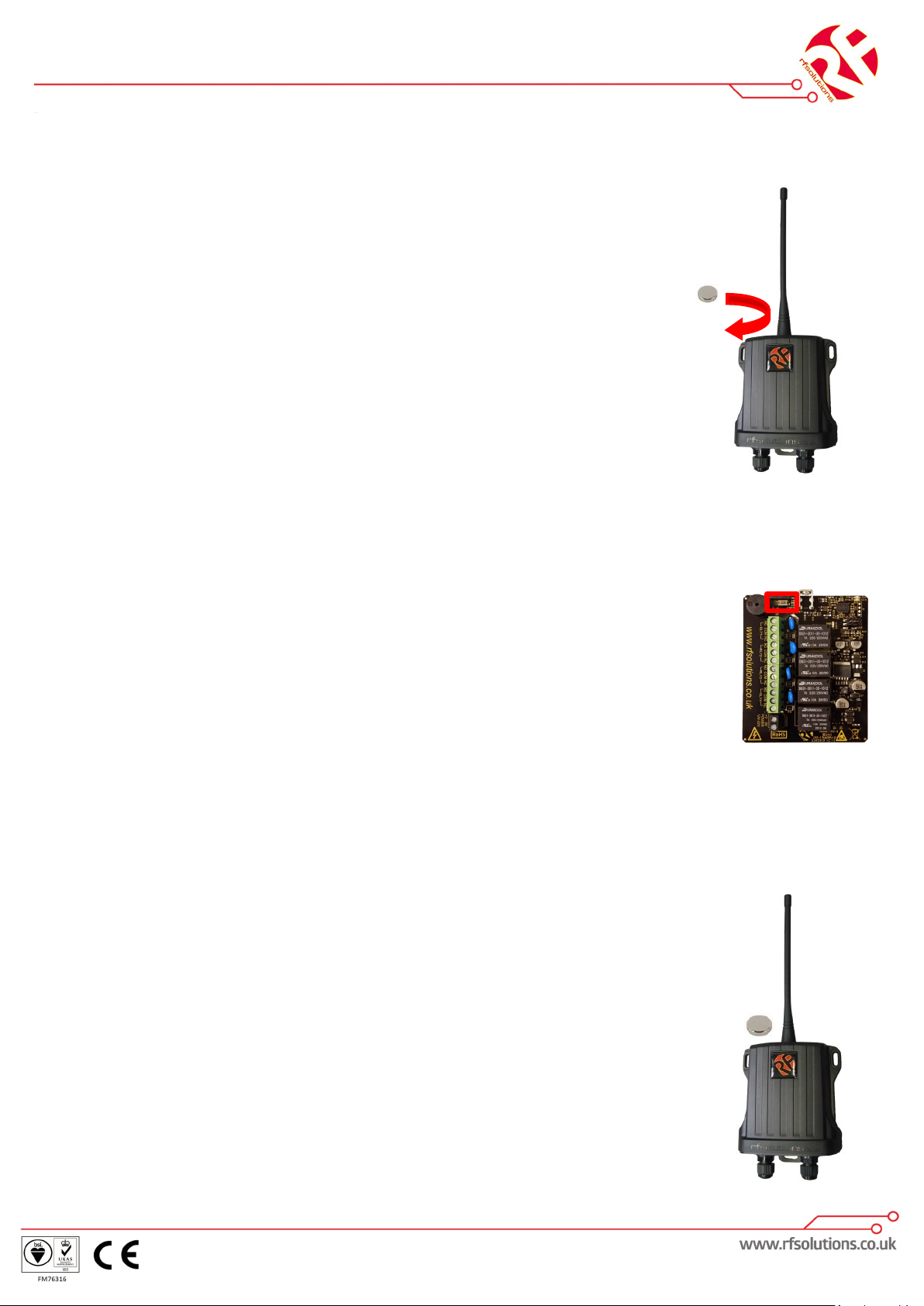

Pairing a transmitter button using the LEARN switch
(12-30Vac-dc Receiver only)
To pair a new transmitter switch follow this procedure:
Unscrew the antenna, Open the enclosure, and extract the Circuit-board as-
sembly
1. Briefly press the receiver LEARN switch once
2. The Learn LED will flash once to indicate relay output 1 is selected
3. Repeat press the LEARN switch so that LEARN LED flashes indicates the
chosen relay output
4. Press the button on the transmitter you want to learn to the chosen relay.
5. The Learn LED will flash to indicate Pairing is complete.
Maximum Number of Transmitters to a Receiver
Each receiver has a maximum memory for up to 30 pairings, these can be
from the same or any number of transmitters.
Erasing Receivers Memory
1. Press and hold the receiver Learn Switch for ~5 seconds.
2. The receiver will sound a long Beep to confirm erased.
NOTE: You cannot erase individual Tx encoders
LEARN Switch
Advanced operation - Pairing a transmitter button with a magnet
With this system, you can pair together any individual transmitter switch
with any receiver relay switch. Without opening either enclosure:
1. Briefly (less than 1 second) place a magnet next to the receiver in
the position shown and then remove it.
2. The receiver will buzz once (One buzz means the receiver unit is
ready to allocate a transmitter button to relay output 1)To select
relay output 2, 3 o 4, briefly place the magnet again so that the
Buzzer Buzzes to indicate the Relay output 2,3, or 4.
3. Press the switch on the transmitter which you wish to pair
4. The receiver will buzz twice to confirm pairing
5. Repeat for any additional transmitter switches
HORNET PRO
DS-HORNETPRO-2
Technical specifications
Transmitters: FOBBER Transmitter
Enclosure Rating: Standard IP68
Battery Type: CR2032 (supplied)
Battery Life: 2 years @ approx. 50 1/2second presses p/day
Dimensions: 90 x 54 x 27 mm
Changing the Battery: Remove the 2 enclosure screws. replace battery, taking care of contacts and the
battery polarity
Receiver Unit
Enclosure Rating: IP68
Dimensions: 130 x 112 x 42 mm (not including antenna)
Operating Temperature: -10 to +50o Celsius.
*The relay contacts in this unit are for functional use only and must not be used for isolation purposes
HORNET Pro
RF Solutions Ltd. Recycling Notice
Meets the following EC Directives:
DO NOT
Discard with normal waste, please recy- cle.
ROHS Directive 2002/95/EC
Specifies certain limits for hazardous substances.
WEEE Directive 2002/96/EC
Waste electrical & electronic equipment. This product must be disposed of through a licensed WEEE collection point. RF Solutions
Ltd., fulfills its WEEE obligations by membership of an approved compliance scheme.
Waste Batteries and Accumulators
Directive 2006/66/EC
Where batteries are fitted, before recycling the
product, the batteries must be removed and
disposed of at a licensed collection point.
Environment Agency producer registration num-
ber: WEE/JB0104WV.
50.00
59.00 46.00
82.00
10.00
All Dimensions in mm
Mechanical Dimensions
RED Directive
This product meets the requirements of directive 2014/53/EU.
Full declaration is available at:-
https://www.rfsolutions.co.uk/certification-i59
