RF SOLUTIONS QUANTAFOB Series Manuale utente
QUANTAFOB
Remote Control System
DS QUANTAFOB-2
Applications
• General Purpose Remote Switching
• Electric Gates
• Roller Shutter Doors
• Garden Lighting.
Features
• Up to 100m Range
• 433MHz FM Technology
• 1 –4 Channels each 1000W
• Waterproof Receiver (IP68)
• High Security RF Protocol
• 4 Changeover Relays 5A @ 230Vac
• Outputs Momentary or Latching
• Any Switch Map to Any Relay
• Systems supplied ’ready to Go’
• FCC Certified and CE Compliant
Description
A versatile general purpose Remote Control System for many different applications.
Housed in a rugged IP68 weatherproof enclosure, The new QUANTAFOB system is ideally
suited to any remote switch requirement. Each receiver has 4 relays, using the ‘easy-
learn’ process each relay can be controlled from any switch on any transmitter. Addi-
tional transmitters may be added to the system using the same ‘easy-learn’ process.
Installation is by screw terminals to the power supply and the output relay contacts. The
output relays are activated by the button press on the transmitter encoder.
QUANTAFOB
Systems Part Numbers
Part Number Description Power Supply Frequency
QUANTAFOB-4S1 1 ch System 12-30Vac/dc 433
QUANTAFOB-4S2 2 ch System 12-30Vac/dc 433
QUANTAFOB-4S3 3 ch System 12-30Vac/dc 433
QUANTAFOB-4S4 4 ch System 12-30Vac/dc 433
Custom Systems
Fobbers can be customised with logo, colour or
complete custom plastic housing for unique Brand-
ing
Part Number Description Range* Frequency
FOBBER-4T1 1 Sw 100m 433
FOBBER-4T2 2 Sw 100m 433
FOBBER-4T3 3 Sw 100m 433
FOBBER-4T4 4 Sw 100m 433
FOBBER-4T6 6 Sw 100m 433
FOBBER-4T8 8 Sw 100m 433
QUANTAFOB
Relay Outputs
The receiver provides 4 changeover relay switches each capable of switching up to 1.2KW (5A @
230V). Each relay is independent and separately controlled, and can therefore be used to switch most
voltages either ac or dc.
Each output relay provides an isolated switch. Connections are Common (COM), Normally Open (NO)
and Normally Closed (NC).
Installation
Below is a simple example showing one possible way to wire a relay in order to provide switched power to
an external load:
When the relay is energised the ‘COM’ connects to ’NO’ and power is applied to the Load.
1. Open the enclosure by removing fixing screws from the enclosure
2. Remove the antenna and slide out the circuit board.
3. Connect the power supply screw terminals 12-32V ac or dc to the supply terminals.
4. Wire your desired connections to the relay switches
5. Once wiring is complete, use the handheld QUANTA transmitter to switch the outputs on and off.
6. As supplied, the transmitter will operate the outputs - Sw 1 to output 1, Sw 2 to output 2 etc.
7. Change the output functions to latching, / Momentary Operation.
COM
NO
NC
Relay Connections when
Transmitter NOT Operating
COM
NO
NC
Relay Connections when
Transmitter OPERATING
Relay
Relay
Relay
0V
LOAD
12V
12V
0V
COM
NO
NC
Supply
Terminals
Receiver
QUANTAFOB

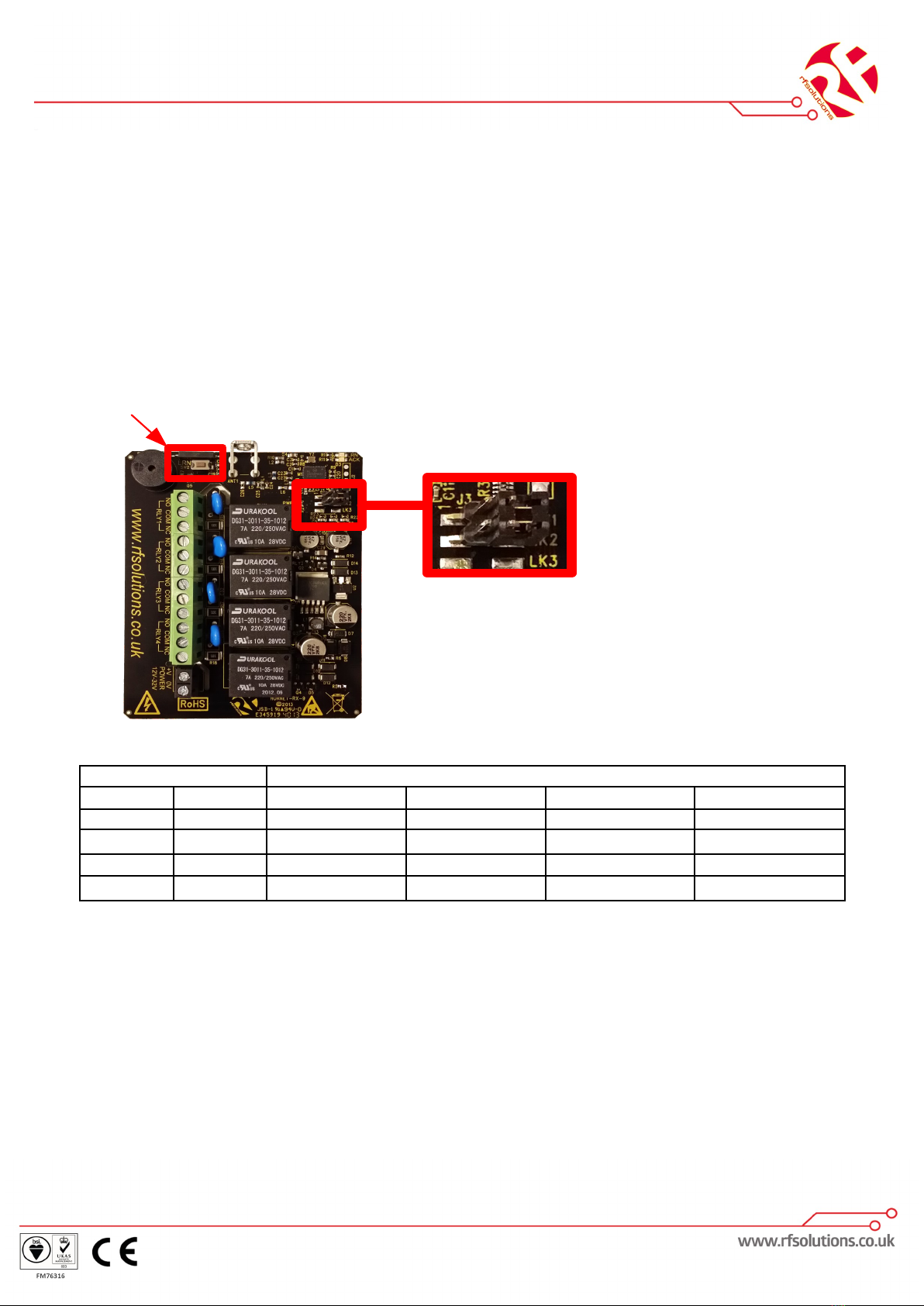

Link Pins
LK1
LK2
Learn Switch
Link Positions Relays
LK1 LK2 RLY 1 RLY 2 RLY 3 RLY 4
Fitted Fitted 1/2 sec Mom 1/2 sec Mom 1/2 sec Mom 1/2 sec Mom
Fitted Open Mom Mom Latch Latch
Open Fitted Mom Mom Mom Mom
Open Open Latch Latch Latch Latch
Configuring Receiver Relay Outputs
Receivers can be used for many applications. The link pins LK1 and LK2 set the action of the
relays
1/2 sec Mom = Relay will operate for half a second no matter how long a transmitter switch
is operated
Mom = Relay will operate for as long as transmitter switch operated
Latch = Relay will toggle ON/OFF on each transmitter button press
QUANTAFOB
With this system, you can pair together any individual transmitter
button with any receiver relay output. Without opening either enclo-
sure.
All you need is a magnet.
1. Briefly (less than 1 second) place the transmitter next to the
receiver in the position shown and then remove it.
2. The receiver will buzz once (One beep means the receiver
unit is ready to allocate a transmitter to relay switch 1)
3. Press the button on the transmitter which you wish to
pair
4. The receiver will beep twice to confirm pairing
5. Repeat for any additional transmitter switches
NOTE: Each receiver has a maximum memory for up to 28 pairings,
these can be from any buttons on any transmitters!
NOTE: The switch that is operated by the magnet is on the left of
the antenna.
Advanced Note: It is possible to select relay outputs 2-4, by re-
peating step 3 and counting the number of beeps. 2 beeps for relay
2, 3 for 3 and 4 f or 4.
Advanced operation - Pairing a transmitter button with a
1. Hold the magnet in the position shown for ~5 seconds.
2. The receiver will sound a long ’Beep’ to confirm erased
Advanced operation - Erasing receiver memory with a
QUANTAFOB
Advanced Operation - Pairing a transmitter button using the internal learn
switch
To pair a new transmitter switch follow this procedure
Open the receiver enclosure and extract the Circuitboard assembly
Note!: Any transmitter button can be configured to operate any of the receiver relays.
1. Select the receiver output relay to learn to:
2. Briefly press the receiver Pairing switch (S2) once
3. The Learn LED will flash once to indicate relay 1 is selected
4. After the LED stops flashing, press the Learn switch again to select the next re-
lay channel
5. Repeat step 4 until the required relay is selected.
6. Press the button on the transmitter you want to learn to the chosen relay.
7. The Learn LED will flash to indicate Pairing is complete.
Pairing a Transmitter to a Receiver
The only limitation is that each receiver has a maximum memory for up to 30 pairings,
these can be from the same or any number of transmitters.
Erasing Receivers Memory
1. Press and hold the receiver Learn Switch for approx 10 seconds.
2. When the Learn LED turns ON all memory is erased
NOTE: You cannot erase individual Tx encoders
QUANTAFOB
Technical specifications
Transmitters: FOBBER Transmitter
Enclosure Rating: Standard IP68
Battery Type: CR2032 (supplied)
Battery Life: 2 years @ approx. 50 1/2second presses p/day
Dimensions: 90 x 54 x 27 mm
Changing the Battery: Remove the 2 enclosure screws. replace battery, taking care of contacts and the bat-
tery polarity
Receiver Unit
Enclosure Rating: IP68
Dimensions: 130 x 112 x 42 mm (not including antenna)
Operating Temperature:-10 to +50o Celsius.
*The relay contacts in this unit are for functional use only and must not be used for isolation purposes
QUANTAFOB
Disclaimer:
Whilst the information in this document is believed to be correct at the time of issue, RF Solutions Ltd does not accept any liability whatsoever for its accuracy, adequacy or
completeness. No express or implied warranty or representation is given relating to the information contained in this document. RF Solutions Ltd reserves the right to make
changes and improvements to the product(s) described herein without notice. Buyers and other users should determine for themselves the suitability of any such information or
products for their own particular requirements or specification(s). RF Solutions Ltd shall not be liable for any loss or damage caused as a result of user’s own determination of
how to deploy or use R F Solutions Ltd’s products. Use of RF Solutions Ltd products or components in life support and/or safety applications is not authorised except with ex-
press written approval. No licences are created, implicitly or otherwise, under any of RF Solutions Ltd’s intellectual property rights. Liability for loss or damage resulting or
caused by reliance on the information contained herein or from the use of the product (including liability resulting from
negligence or where RF Solutions Ltd was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict RF Solutions Ltd’s liability
for death or
personal injury resulting from its negligence.
RF Solutions Ltd. Recycling Notice
Meets the following EC Directives:
DO NOT
Discard with normal waste, please recy- cle.
ROHS Directive 2002/95/EC
Specifies certain limits for hazardous substances.
WEEE Directive 2002/96/EC
Waste electrical & electronic equipment. This product must be disposed of through a licensed WEEE collection point. RF Solutions
Ltd., fulfills its WEEE obligations by membership of an approved compliance scheme.
Waste Batteries and Accumulators
Directive 2006/66/EC
Where batteries are fitted, before recycling the
product, the batteries must be removed and
disposed of at a licensed collection point.
Environment Agency producer registration num-
ber: WEE/JB0104WV.
50.00
59.00 46.00
82.00
10.00
All Dimensions in mm
Mechanical Dimensions
RED Directive
This product meets the requirements of directive 2014/53/EU.
Full declaration is available at:-
https://www.rfsolutions.co.uk/certification-i59
