SCANNER ACCESSIBILITY OPTION
(Machine Code: G570)
INSTALLATION PROCEDURE
For Machine code:
B178/B180/B202 Copiers
NOTE: THE SCANNER ACCESSIBILITY OPTION MUST BE INSTALLED BY
A CUSTOMER SERVICE REPRESENTATIVE WHO HAS
COMPLETED THE TRAINING COURSES ON THE BASE COPIER
AND THE SCANNER ACCESSIBILITY OPTION.
G5708560
G5708560
1
INSTALLATION REQUIREMENTS
Machine Level
Front to back: Within 5 mm (0.2")/ 5°
Right to left: Within 5 mm (0.2")/ 5°
Location Requirement

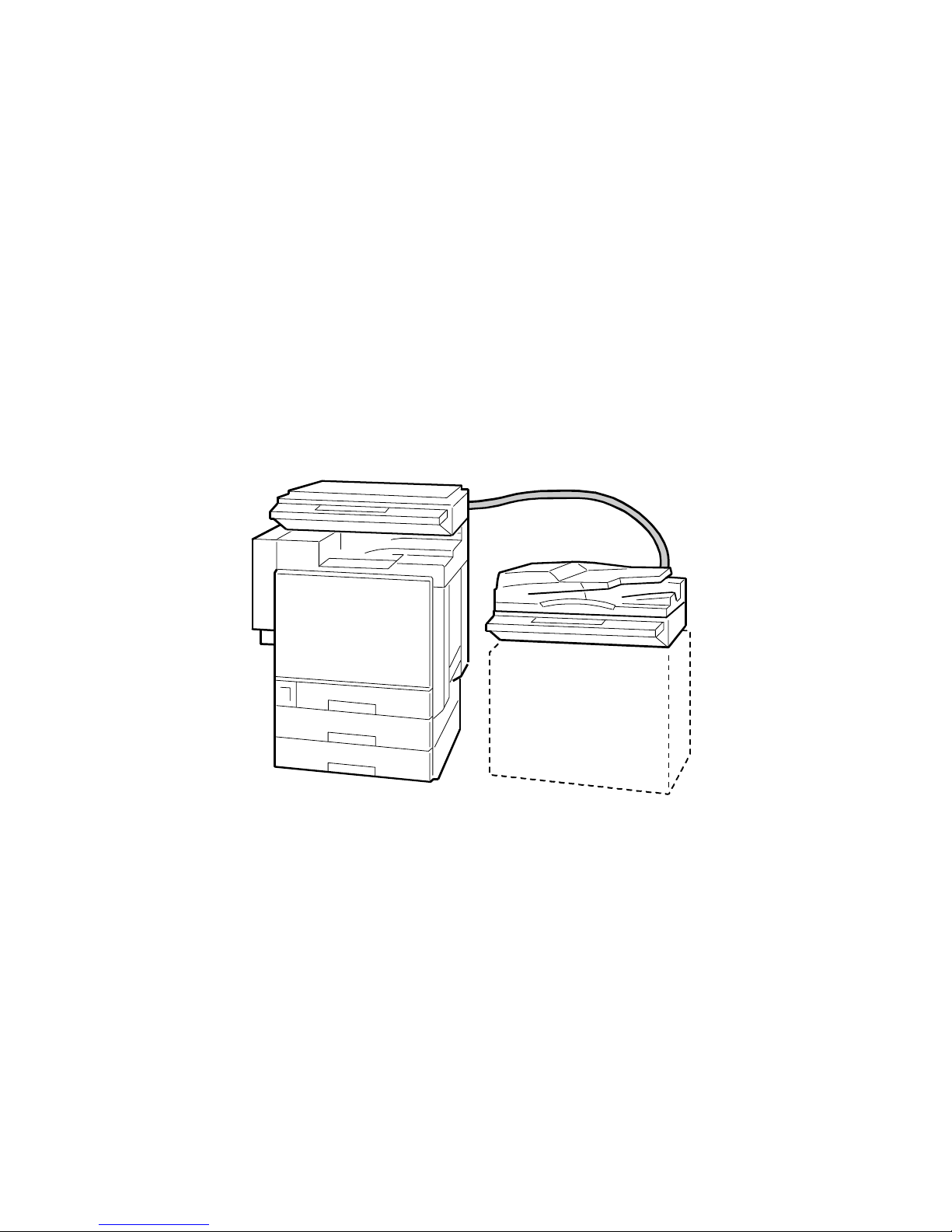

Put the scanner on the right side of the mainframe as shown.
NOTE: 1) Make sure that the scanner is placed 660~724 mm above the floor.
2) Make sure that the scanner cable does not touch the floor.
3) Make sure to tell the user not to let the scanner cable get caught in
things such as a wheelchair. .
Requirement Condition
Attach the platen cover option to the mainframe to cover the exposure glass.
Install the scanner on a solid base. Do not install the scanner in areas where the
unit can fall down when the ADF cover is opened.
Make sure you install the unit in areas that let the user get easy access to operate
the unit. Ask the customer what their requirements are before you install the unit.
G570I311.WMF
2
ACCESSARY CHECK

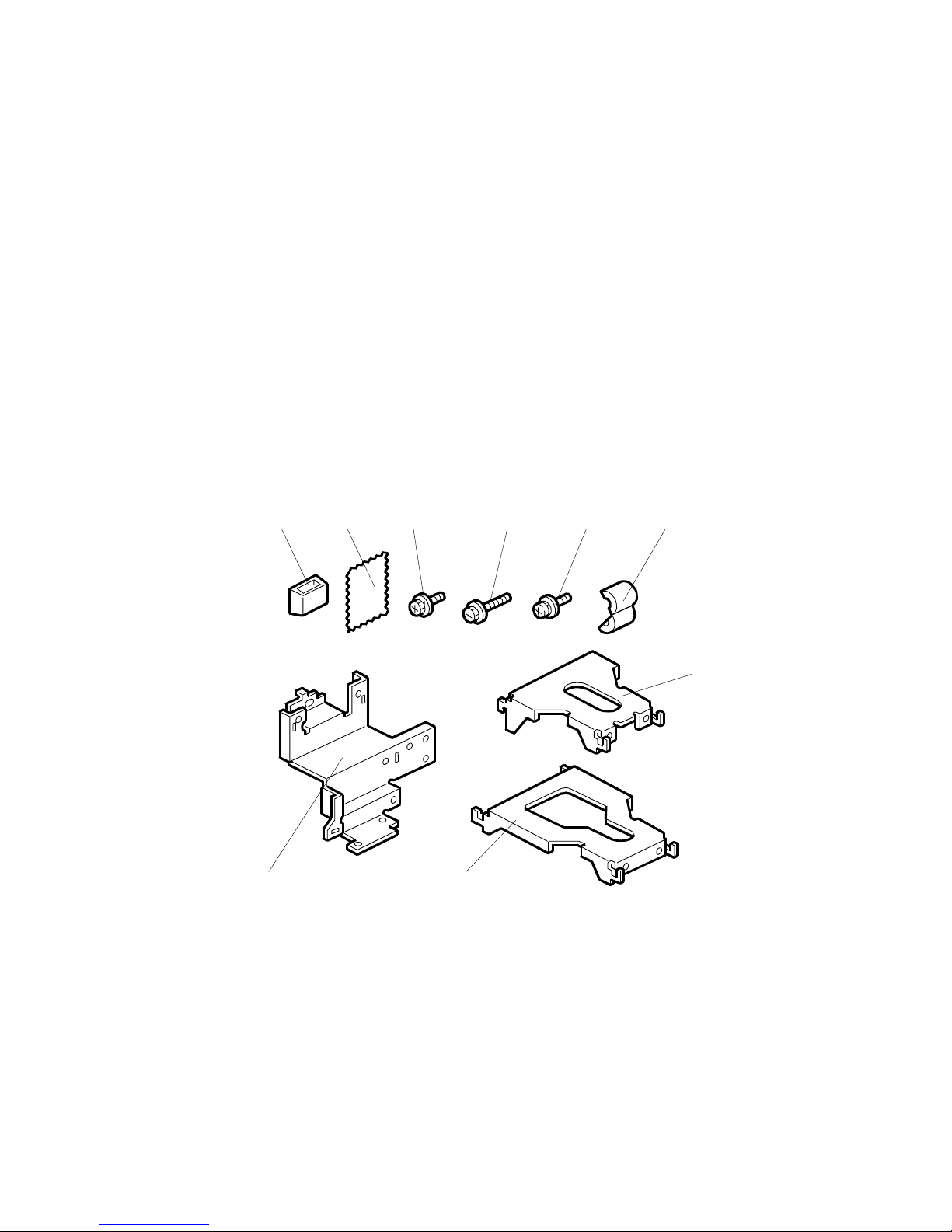

Check the accessories and their quantities against the following list.
Description Q’ty
1. Exposure Glass Cleaner Holder ............................................ 1
2. Exposure Glass Cleaner........................................................ 1
3. M3 x 6 screw.......................................................................... 12
4. M3 x 8 screw.......................................................................... 1
5. Ground screw ........................................................................ 1
6. Core....................................................................................... 2
7. Left support............................................................................ 1
8. Right stay............................................................................... 1
9. Bracket................................................................................... 1
G570I300.WMF
1 2 3 456
7
89
3
INSTALLATION PROCEDURE
NOTE: This installation procedure uses the following symbols.
!: Screws ": Connectors #: Clamps
!CAUTION
Unplug the copier power cord before you do the following procedure.
1. Remove the all tapes.

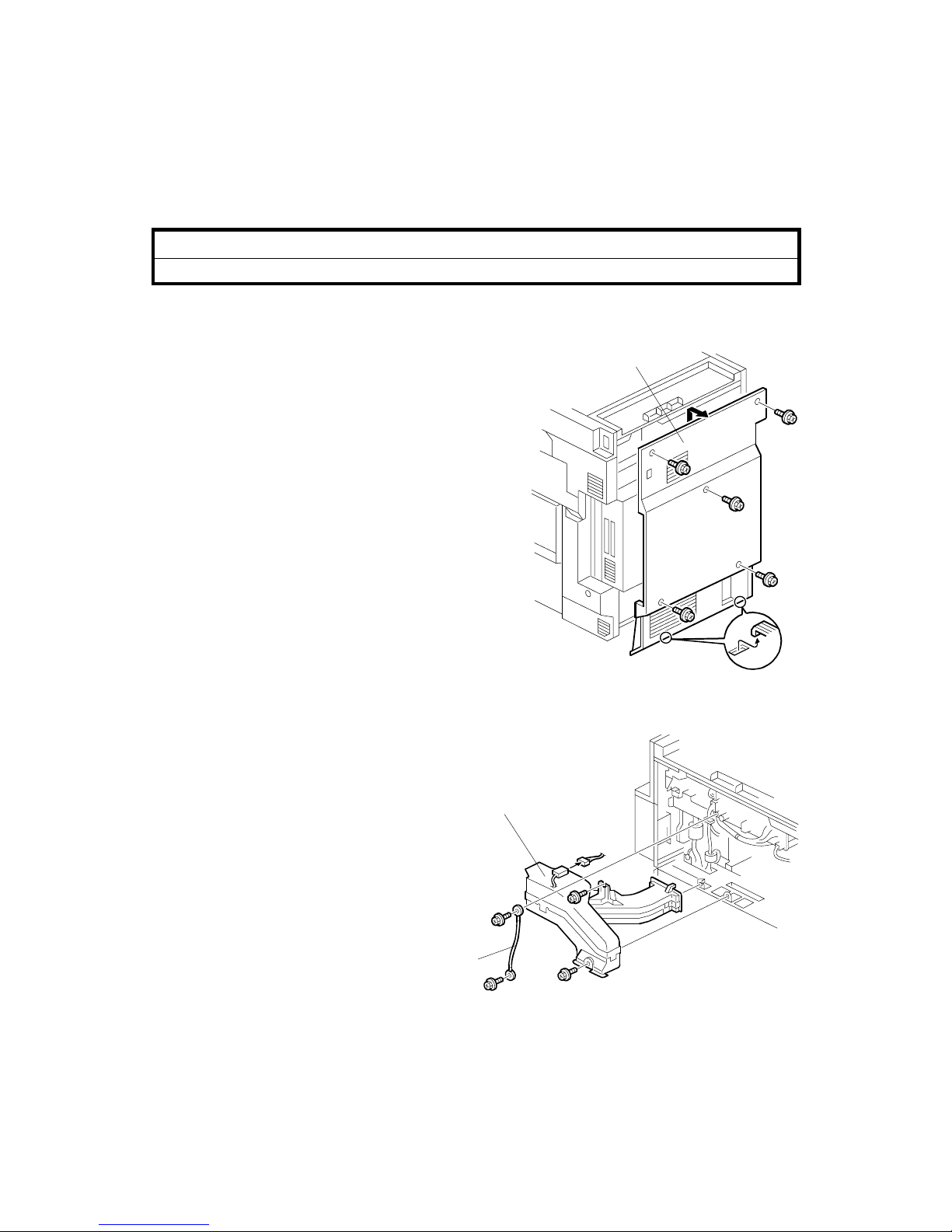

2. Remove rear cover [A] (!x 5).
3. Remove the ground cable [B]
(!x 2).
4. Remove the duct [C]
(!x 2, "x 1).
G570I301.WMF
G570I302.WMF
[A]
[B]
[C]
4

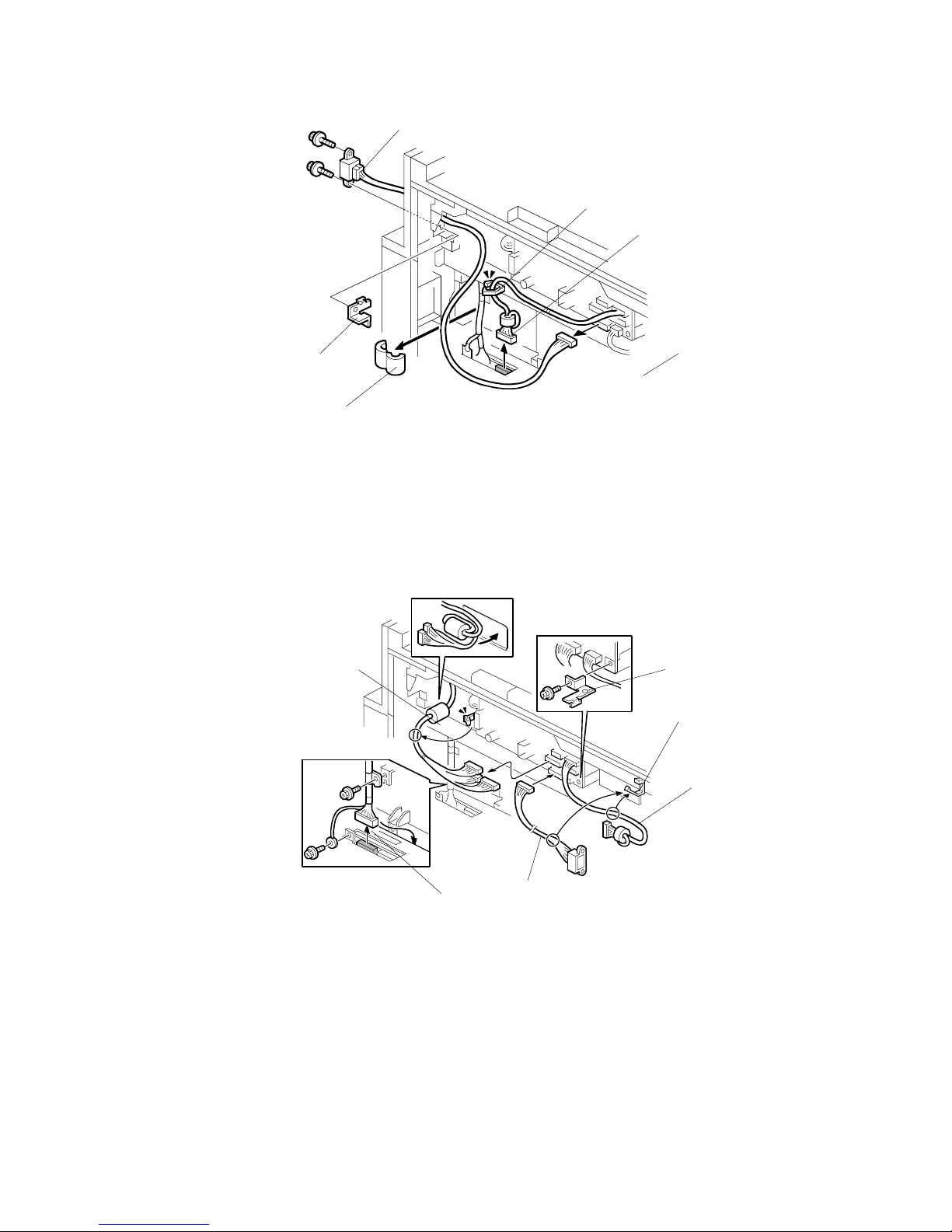

5. Remove the DF connector cable [A] (!x 2, "x1).
NOTE: Keep these screws. You will use these screws later.
6. Remove the connector bracket [B].
7. Disconnect the connector [C] of the IPU harness and release the clamp [D].
8. Remove the core [E] from the I/F cable.
NOTE: Keep this core. You will use this core later.
9. Disconnect the I/F cable [F] from the IPU (!x 2). Then put it inside the
machine.
10. Disconnect the harness [G] from the scanner unit to the SIO ("x 3, #x 1).
Then put this harness inside the scanner frame.
11. Connect the connector of the DF connector cable [H] to the SIO board.
12. Bind the IPU harness [I] and DF connector cable [H] with the clamp [J]. Keep
these in the machine.
13. Attach the connector bracket [K] to the SIO board to keep this bracket.
G570I303.WMF
G570I304.WMF
[A]
[B]
[C]
[D]
[E]
[F]
[F]
[G]
[H]
[I]
[J]
[K]
5

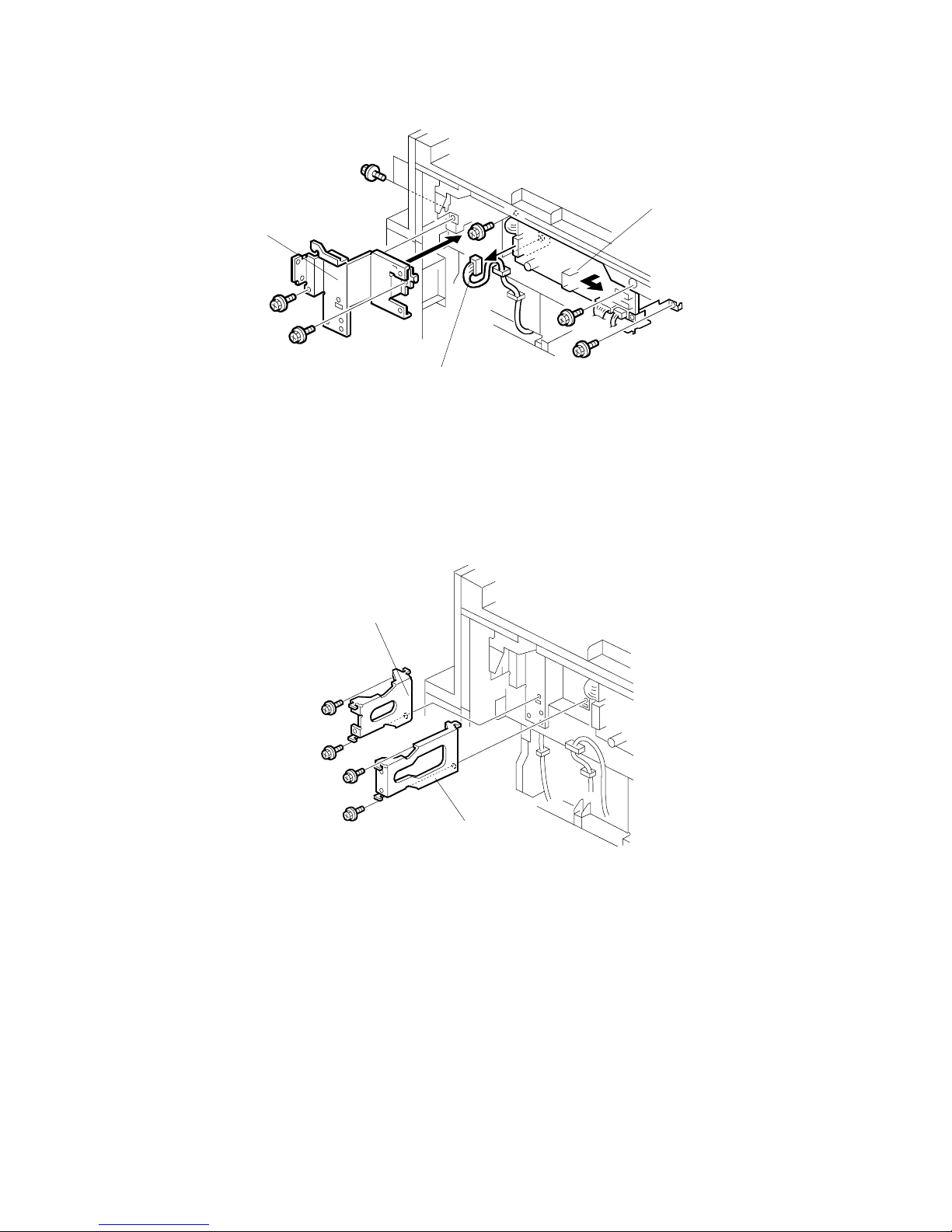

14. Disconnect the PSU cable connector [A].
15. Detach the SIO board with bracket [B] (!x 4). Then slide it to the right slightly.
16. Attach the bracket [C] (!x 5).
17. Attach the SIO board with the bracket again (!x 4).
18. Attach the right support [D] (!x 2).
19. Attach the left support [E] (!x 2).
G570I305.WMF
G570I306.WMF
[A]
[B]
[C]
[D]
[E]
6

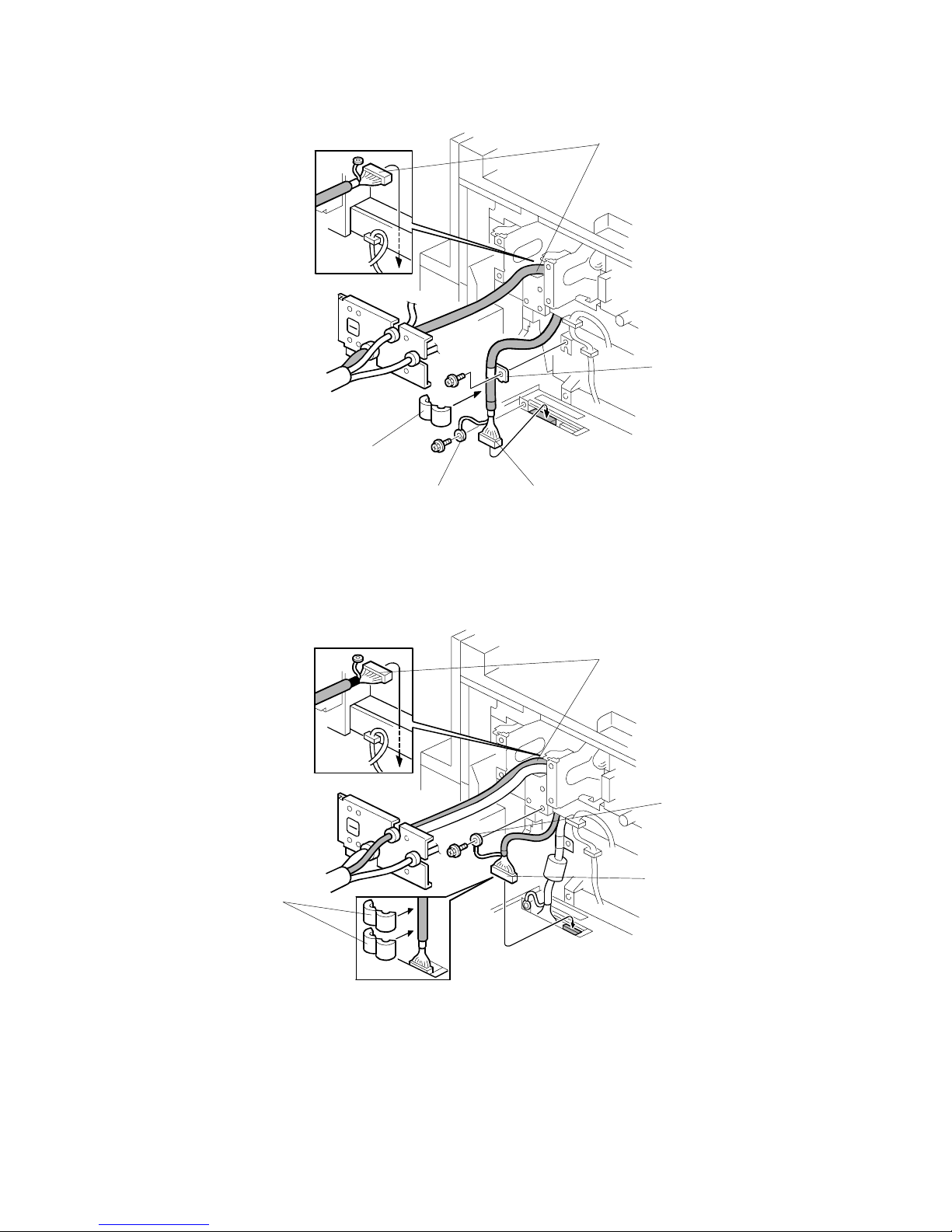

20. Put the I/F cable [A] through the opening on the frame. Then attach the core [B]
to the I/F cable.
21. Connect the I/F cable connector [C]. Then attach the cable holder [D] (!x 1)
and the ground [E] (!x 1) to the frame.
22. Put the IPU cable [F] through the opening on the frame. Then attach the two
cores [G] to the IPU cable.
23. Connect the IPU cable connector [H] and attach the ground [I] (!x 1).
G570I307.WMF
G570I308.WMF
[A]
[B]
[C][E]
[D]
[F]
[G]
[H]
[I]
7

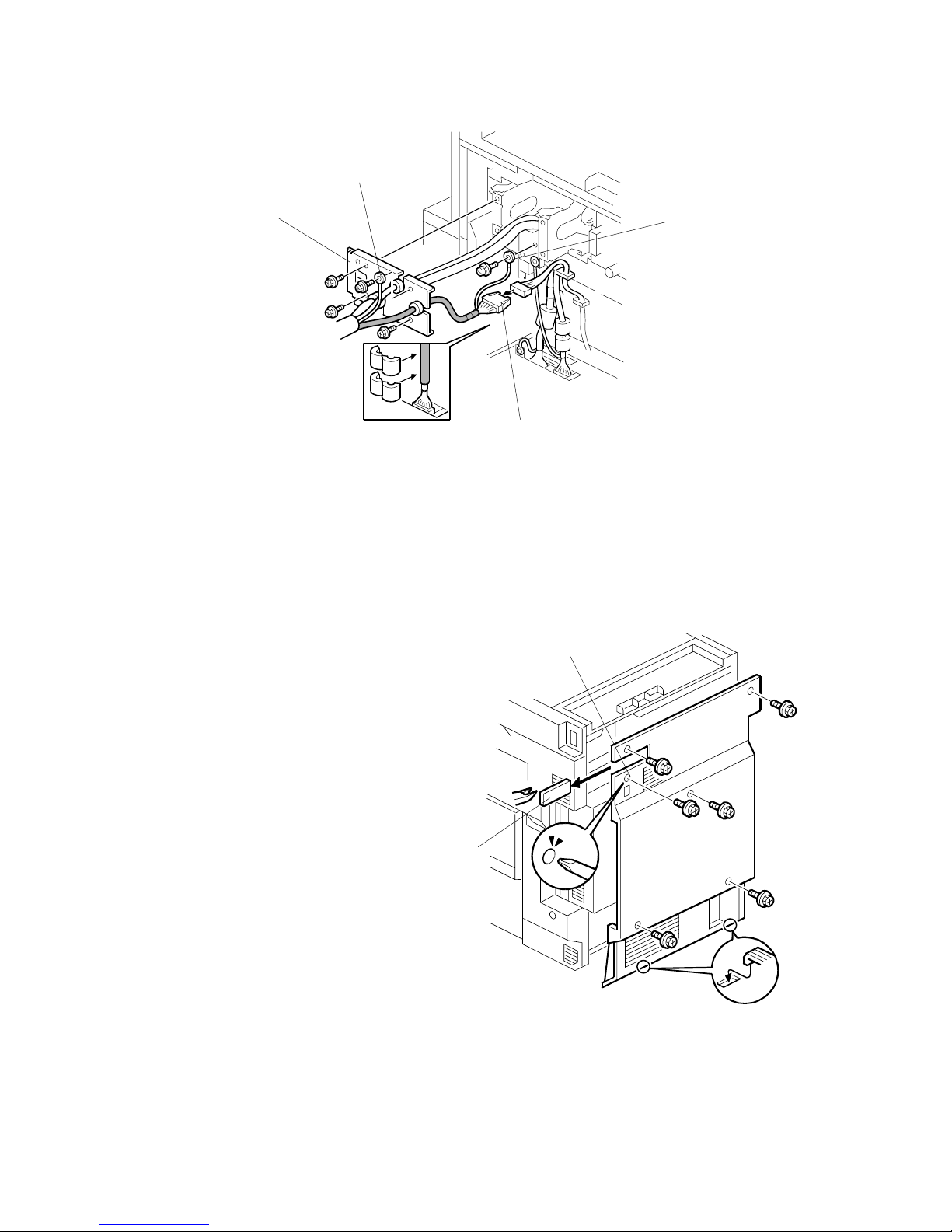

24. Connect the PSU cable connector [A] and attach the ground [B]
(ground screw x 1).
25. Attach the scanner bracket [C] to the supports (!x 3) and the ground [D] (!x
1).
26. Install the duct (!x 2, "x 1) and ground cable (!x 2).
27. Cut the panel [E] surrounded with
the cutout line.
NOTE: File the edge of the cutout
line.
28. Make the hole [F] for a screw on the
rear cover with a screwdriver.
29. Attach the rear cover
(M3x8 screw x 6).
G570I309.WMF
G570I310.WMF
[A]
[B]
[C]
[D]
[E]
[F]
