Ricoh Aficio SG 3110DN Manuale utente
DO NOT INSTALL THE RICOH (OEM) INKS THAT WERE PROVIDED WITH THE PRINTER.
DO NOT POWER ON THE PRINTER BEFORE INSTALLING SAWGRASS SUBLIJET-R INK CARTRIDGES.
DURING DOWNTIME, IT IS HIGHLY RECOMMENDED TO LEAVE THE PRINTER POWERED ON TO ALLOW
THE RICOH AUTOMATIC MAINTENANCE UTILITIES TO KEEP THE PRINT HEAD NOZZLES CLEAR.
CAUTION
Ricoh SG 3110DN
INSTALLATION GUIDE
PowerDriver-R
WIN OS
v20120503
SECTIONS:
Microsoft Windows Operating System Verication (1 page)
Ricoh (OEM) Driver Download & Installation (12 pages)
PowerDriver-R Installation & Registration (11 pages)
Note: If you experience any communication errors, a powered USB Hub may be required.
During downtime, it is HIGHLY RECOMMENDED to leave the printer powered ON to allow the Ricoh Automatic
Maintenance Utilities to keep the print head nozzles clear. The Ricoh GELJET has been engineered to perform
automatic maintenance at various times in an effort to keep the print head nozzles in top condition. If this mainte-
nance cannot be automatically performed, it is possible that the nozzles may suffer permanent effects. As a result,
head cleanings may be unable to restore the print head to optimal operation.
CAUTION
Ricoh SG 3110DN – Installation Guide
Microsoft Windows OS Verication
PAGE 1 of 1 >>
Before you begin, you will need to verify your Windows Edition and System Type. This is important
when deciding which driver to download.You should only download drivers which are compatible with
your version of Windows OS.
1.) To check your version, click the Start icon in the bottom left corner of your Desktop. Then, right-click
Computer and click Properties (see FIGURE 1).
FIGURE 1
2
3
1
2.) The following screen containing the Windows Edition and System Type should appear (see FIGURE 2).
The below example is running Windows 7 on a 64-bit OS. Note your version and remember to only down-
load drivers which are compatible with your system.
FIGURE 2
1
2
Ricoh SG 3110DN – Installation Guide
Ricoh (OEM) Driver Download & Installation
PAGE 1 of 12 >>
The following instructions will demonstrate how to install the Ricoh (OEM) printer driver on computers
running Windows OS.
1.) Before installing the PowerDriver-R SG 3110DN, you will need to install the Ricoh (OEM) printer driver.
First, access the Ricoh website by entering www.ricoh.com in the address eld of your web browser.
Once there, click the Downloads tab (see FIGURE 1).
2.) Select your local website (see FIGURE 2).
2
1
FIGURE 1
FIGURE 2
1
PAGE 2 of 12 >>
SubliJet-R: Ricoh SG 3110DN – Installation Guide
Ricoh (OEM) Driver Download & Installation
3.) Enter the model number of your printer in the search eld and click Search. Then, click the link for your
printer model under Driver in the results eld (see FIGURE 3).
FIGURE 3
4.) To proceed, read the Ricoh Software License Agreement. If you agree with the terms of the agreement,
click I Agree (see FIGURE 4).
FIGURE 4
2
1
3
SG 3110DN
SG 3110DN
Acio SG 3110DN
Acio SG 3110DN
Acio SG 3110DN
PAGE 3 of 12 >>
SubliJet-R: Ricoh SG 3110DN – Installation Guide
Ricoh (OEM) Driver Download & Installation

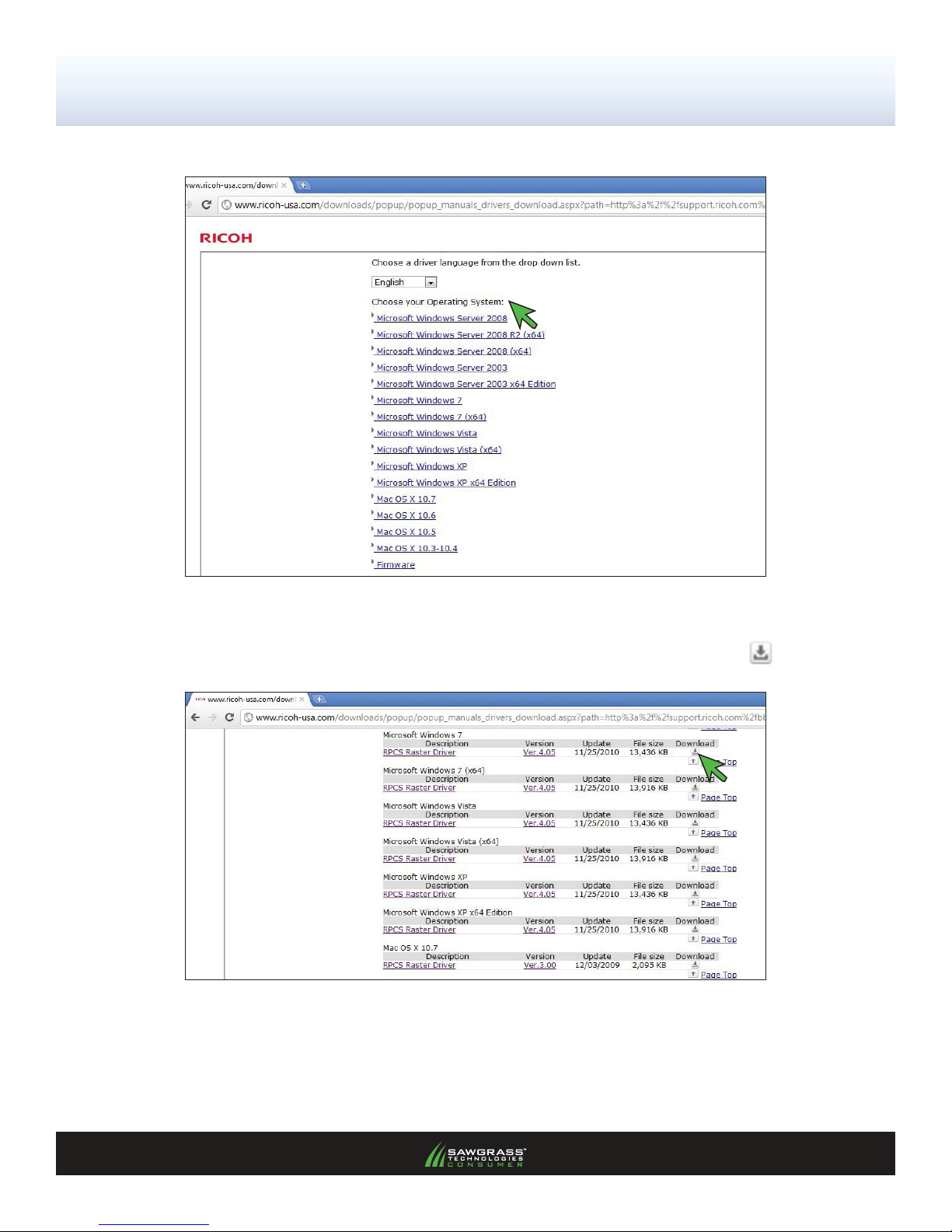

5.) Locate and click the link for your Operating System (see FIGURE 5).
FIGURE 5
6.) Locate the RPCS Raster Driver for your Operating System and click the Download Icon
(see FIGURE 6).
FIGURE 6
PAGE 4 of 12 >>
SubliJet-R: Ricoh SG 3110DN – Installation Guide
Ricoh (OEM) Driver Download & Installation

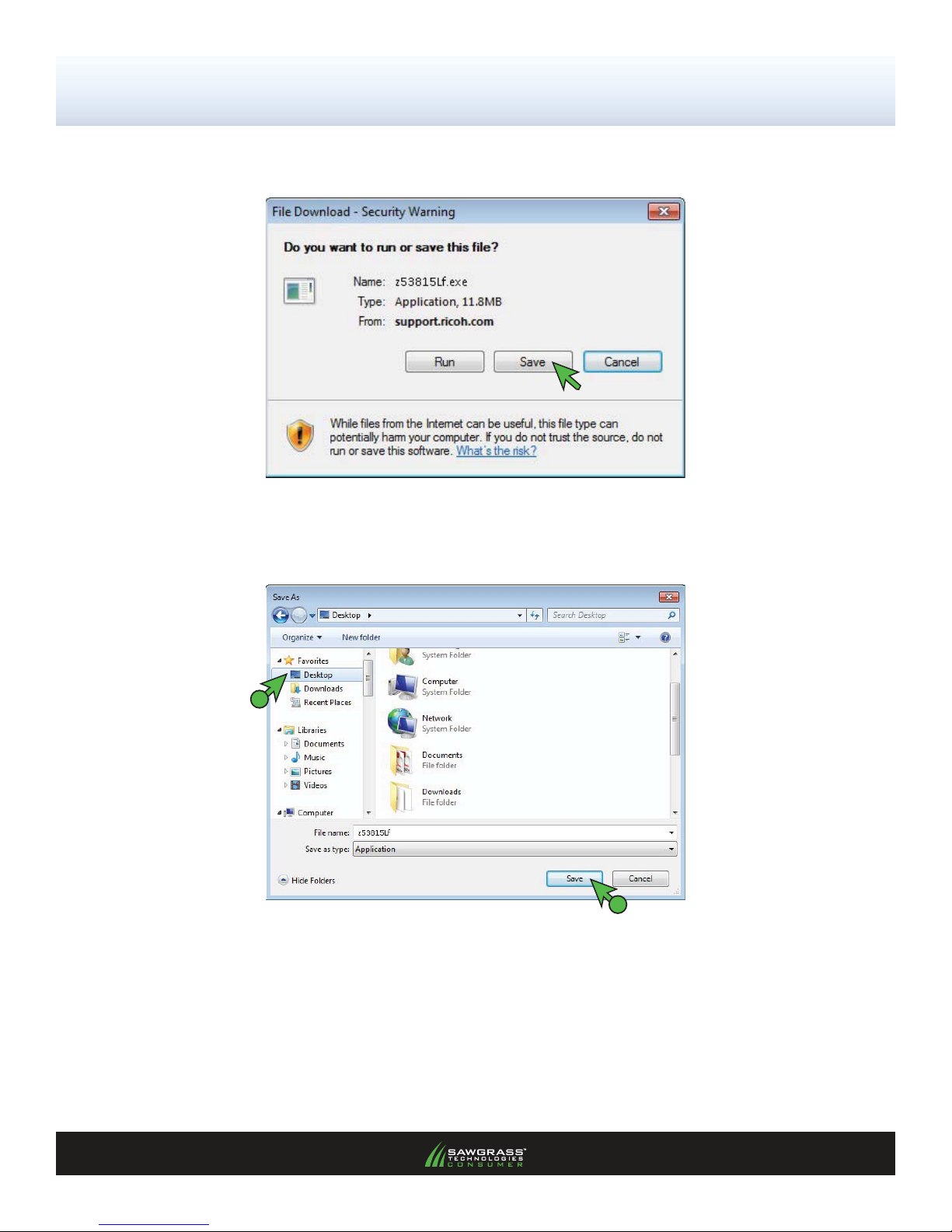

7.) The following screen will appear asking to Run the installation or Save the le to your computer. For this
example we will Save the le to our Desktop. Click Save to continue (see FIGURE 7).
FIGURE 7
8.) Select Desktop as your download destination and click Save (see FIGURE 8).
FIGURE 8
2
1
PAGE 5 of 12 >>
SubliJet-R: Ricoh SG 3110DN – Installation Guide
Ricoh (OEM) Driver Download & Installation

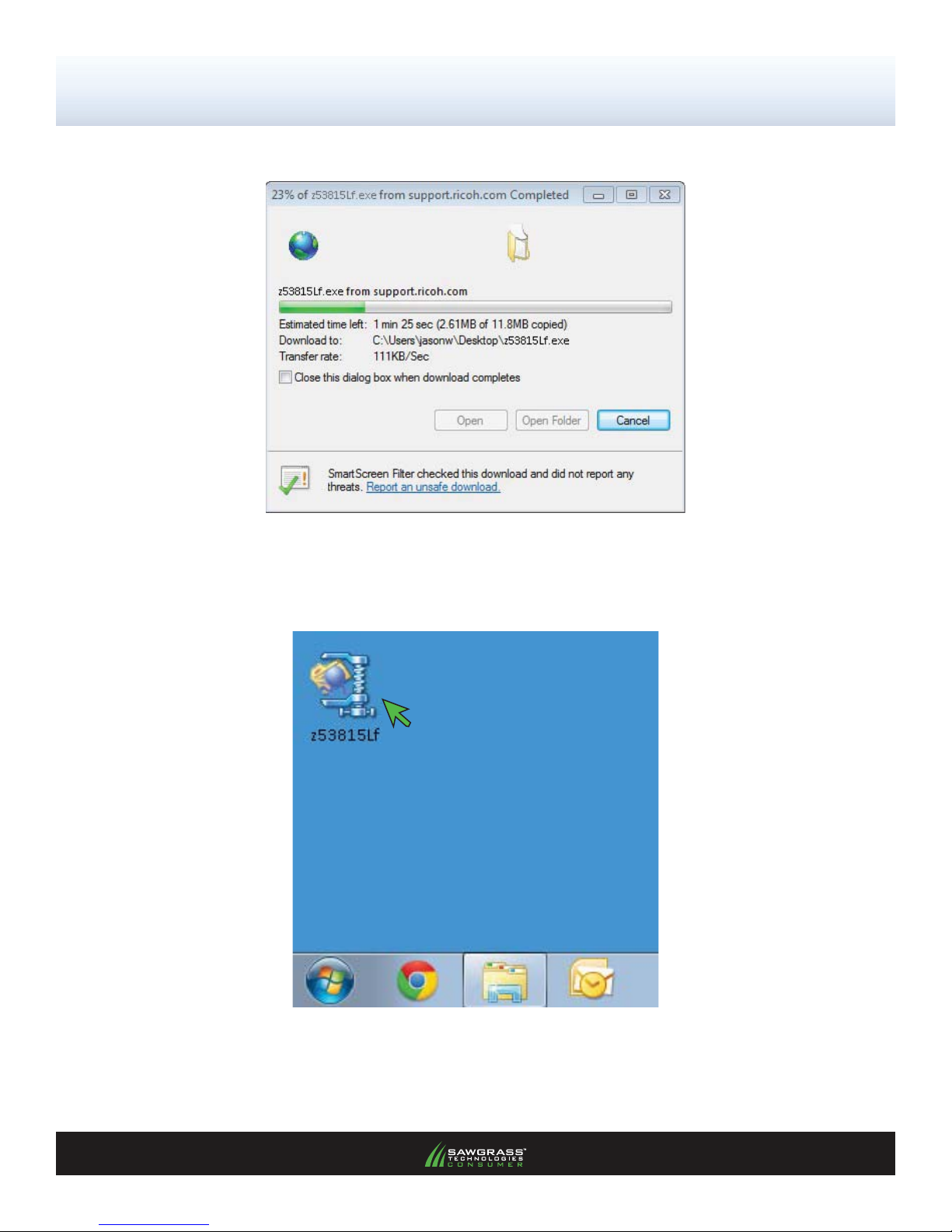

9.) The following screen displaying the download status should now appear (see FIGURE 9).
FIGURE 9
10.) Once the download has completed, double-click the Executable Icon to begin the installation process
(see FIGURE 10).
FIGURE 10
PAGE 6 of 12 >>
SubliJet-R: Ricoh SG 3110DN – Installation Guide
Ricoh (OEM) Driver Download & Installation

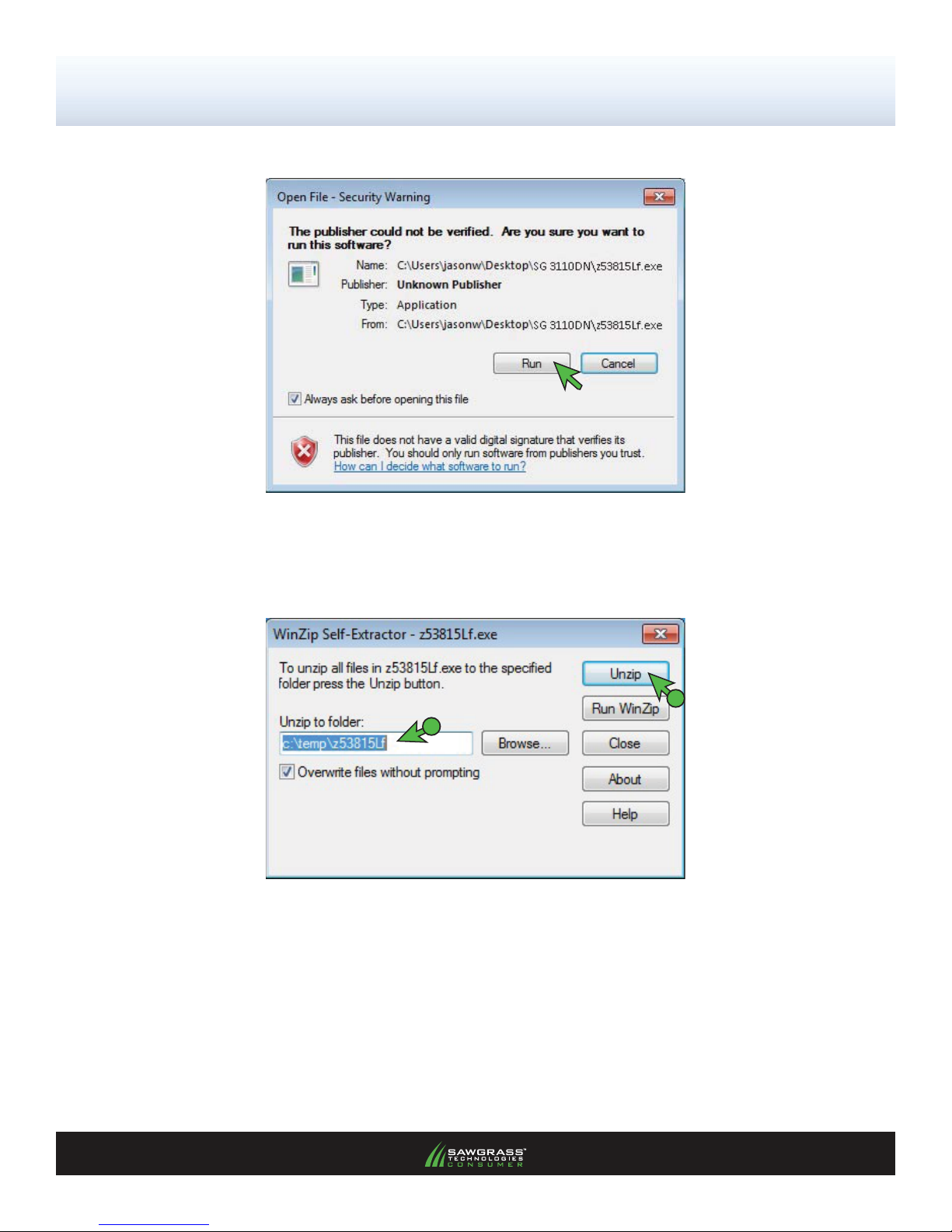

11.) Click Run to continue with the installation (see FIGURE 11).
12.) The software executable will need to be extracted before continuing. Note the folder location where the
les will be stored and click Unzip (see FIGURE 12).
FIGURE 12
1
2
FIGURE 11
PAGE 7 of 12 >>
SubliJet-R: Ricoh SG 3110DN – Installation Guide
Ricoh (OEM) Driver Download & Installation

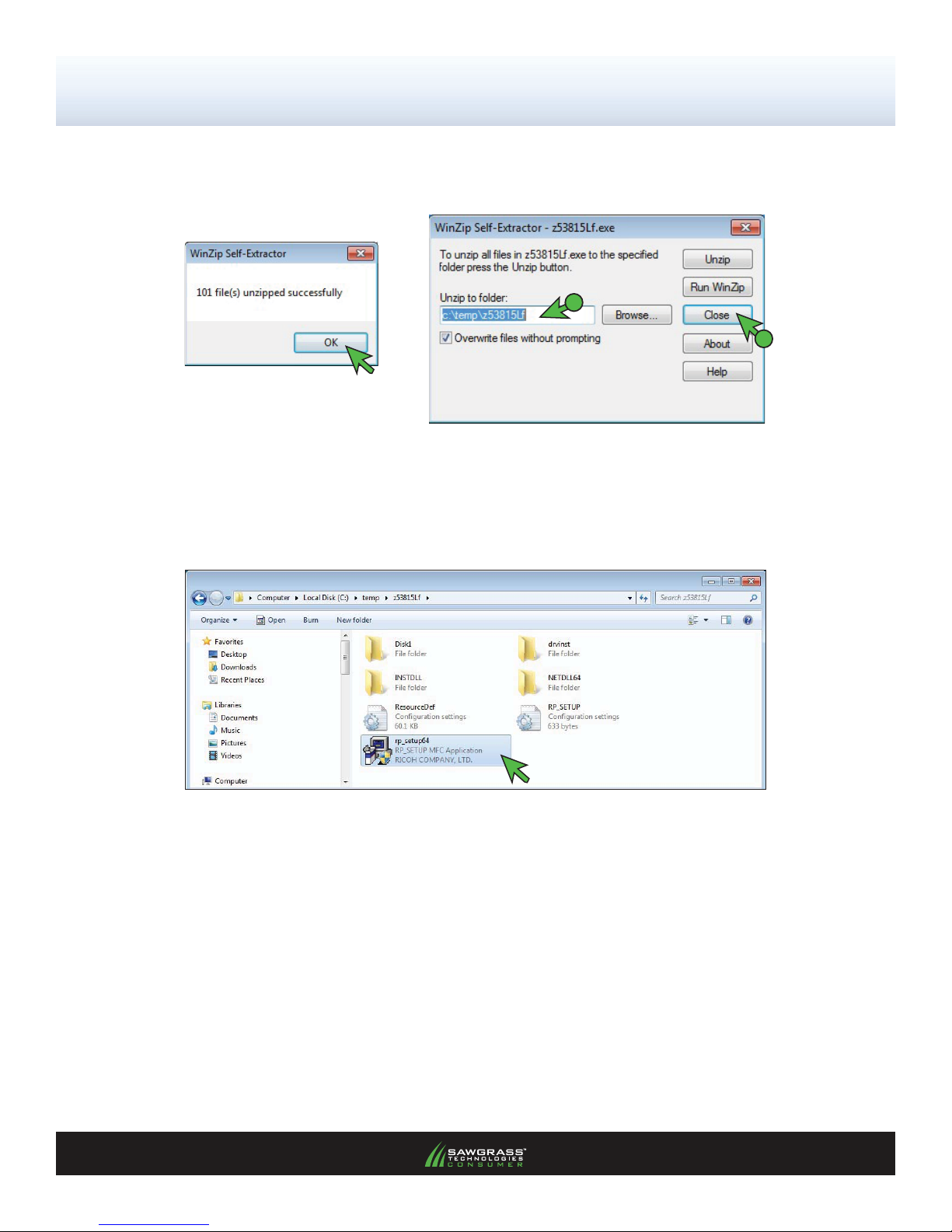

14.) Navigate to the folder location containing the unzipped les. In this example the folder location is
Computer > C: > temp > z53815Lf. However, your folder location may differ. Once you have located
the folder, double-click rp_setup64.exe (see FIGURE 15).
FIGURE 15
13.) Once the les have been unzipped, the following screen will appear (see FIGURE 13). Click OK to
continue. This will return you to the WinZip Self-Extractor (see FIGURE 14). Again, note the folder
location of the unzipped les and click Close.
FIGURE 13
FIGURE 14
2
1
