Ricoh PRO C7200 Guida all'installazione

5th Station

Replacement

CIP Training

Pro C7200 series

CIP Training Pro C7200 series

5th Colour replacement

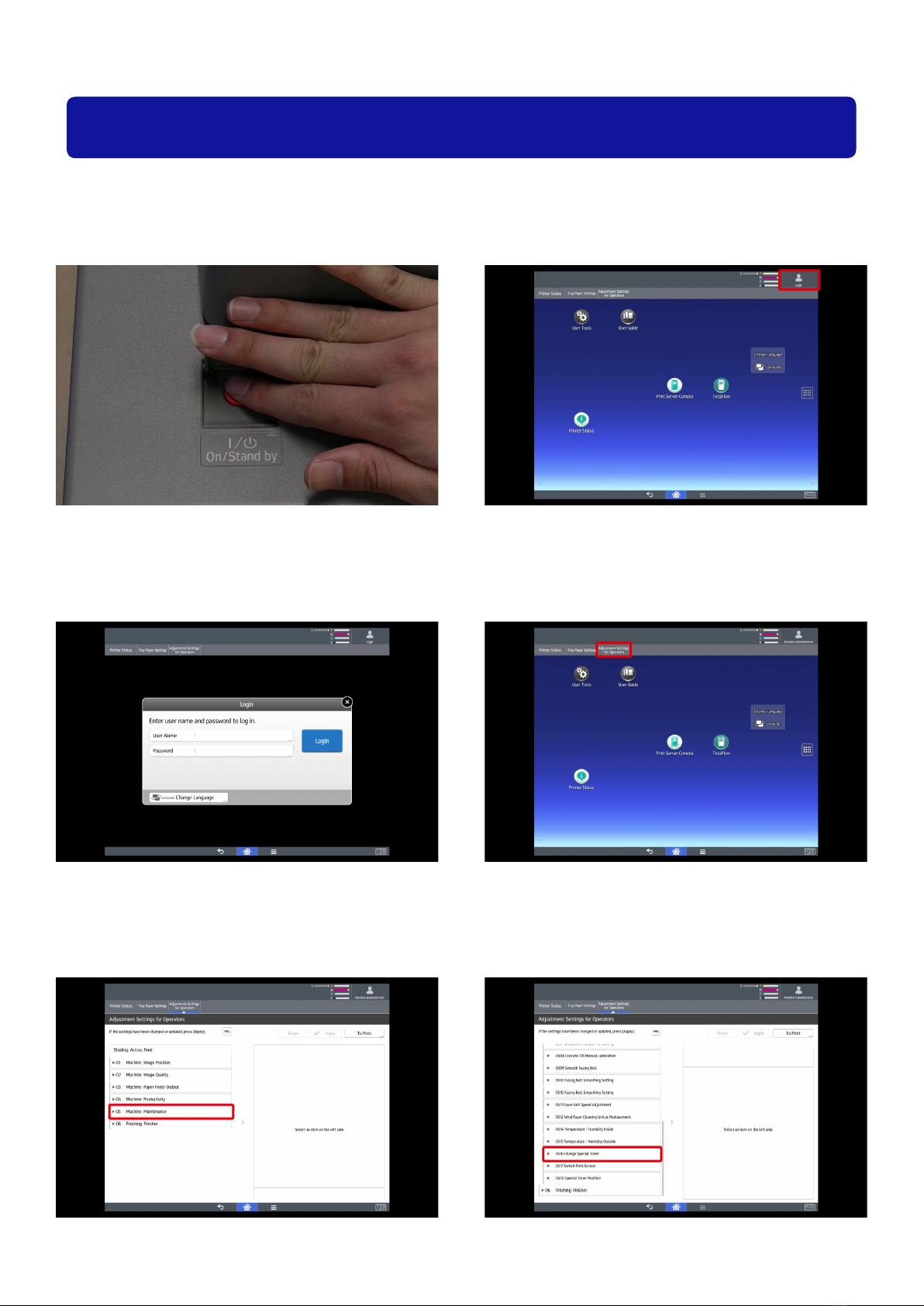

1. Power on machine and wait until warm-up

process has completed.

2. Select “Login”.

3. Login as admin. 4. Select “Adjustment Settings for Operators”.

5. Select “05 Machine Maintenance”. 6. Select “0516 Change Special Toner”.

Please note: Steps 26 - 39 are not needed if you have complete

5th station replacement kits for all your Special toners.

CIP Training Pro C7200 series

5th Colour replacement

7. Follow on-screen instructions. 8. Open front upper right cover. Here we will be

replacing White toner with Clear.

9. Push lever to left to release toner bottle. 10. Replace with “Dummy” toner bottle.

11. Select “Set”. 12. Wait for machine to perform adjustment.

CIP Training Pro C7200 series

5th Colour replacement

13. Select “Check”.

16. Insert “Catchment” Toner bottle supplied with

Toner pump.

17. Place “new colour” assembly in tray provided.

(Pictured: incomplete assembly.)

18. Open machine front covers .

15. Remove “Dummy” toner bottle.

14. Power off machine.

CIP Training Pro C7200 series

5th Colour replacement

19. Place sheet of paper under 5th (far left) unit as

pictured.

20. Using supplied purple “Hex Tool”, remove bolt

as pictured.

21. Squeeze central lever. 22. Pull assembly outwards.

23. Once fully extended, lift assembly from rails. 24. Place “Current” assembly in the 2nd tray.

CIP Training Pro C7200 series

5th Colour replacement

25. Gently push rails back in. 26. On “Current” unit, lift circled lever.

Please note: Steps 26 - 39 are not needed if you have

complete, assembled 5th station replacement kits

for all your Special toners.

27. Push lever back to pictured position. 28. Remove the charge roller as pictured.

29. Push the drum handle back. 30. Turn front lever to “unlock” position

CIP Training Pro C7200 series

5th Colour replacement

31. Grip the cleaning unit as pictured. 32. Place on paper next to the charge roller.

33. Grip Drum unit as pictured. 34. Place on paper next to the cleaning unit.

35. Insert Drum unit into “New” assembly. 36. Grip the cleaning unit as pictured.

CIP Training Pro C7200 series

5th Colour replacement

37. Insert in to “New” assembly as pictured. 38. Turn lever on front of “New” unit to lock.

39. Insert the charge roller and lock in to place

within assembly.

40. Put “current” assembly unit away in box

provided.

41. Prepare “hopper” tray. 42. Remove bolts holding upper cover.

CIP Training Pro C7200 series

5th Colour replacement

43. Remove upper cover. 44. Remove screws holding 5th station hopper.

45. Remove 5th station hopper. 46. Carefully remove spring tubing with hopper unit.

For ease of handling, you may wish to remove

tubing assembly prior to removal.

47. Remove “spring end” from housing. 48. Pinch clamp holding tubing in place and slide to

the right.
