RIOTEC DC9257AN Manuale utente

1

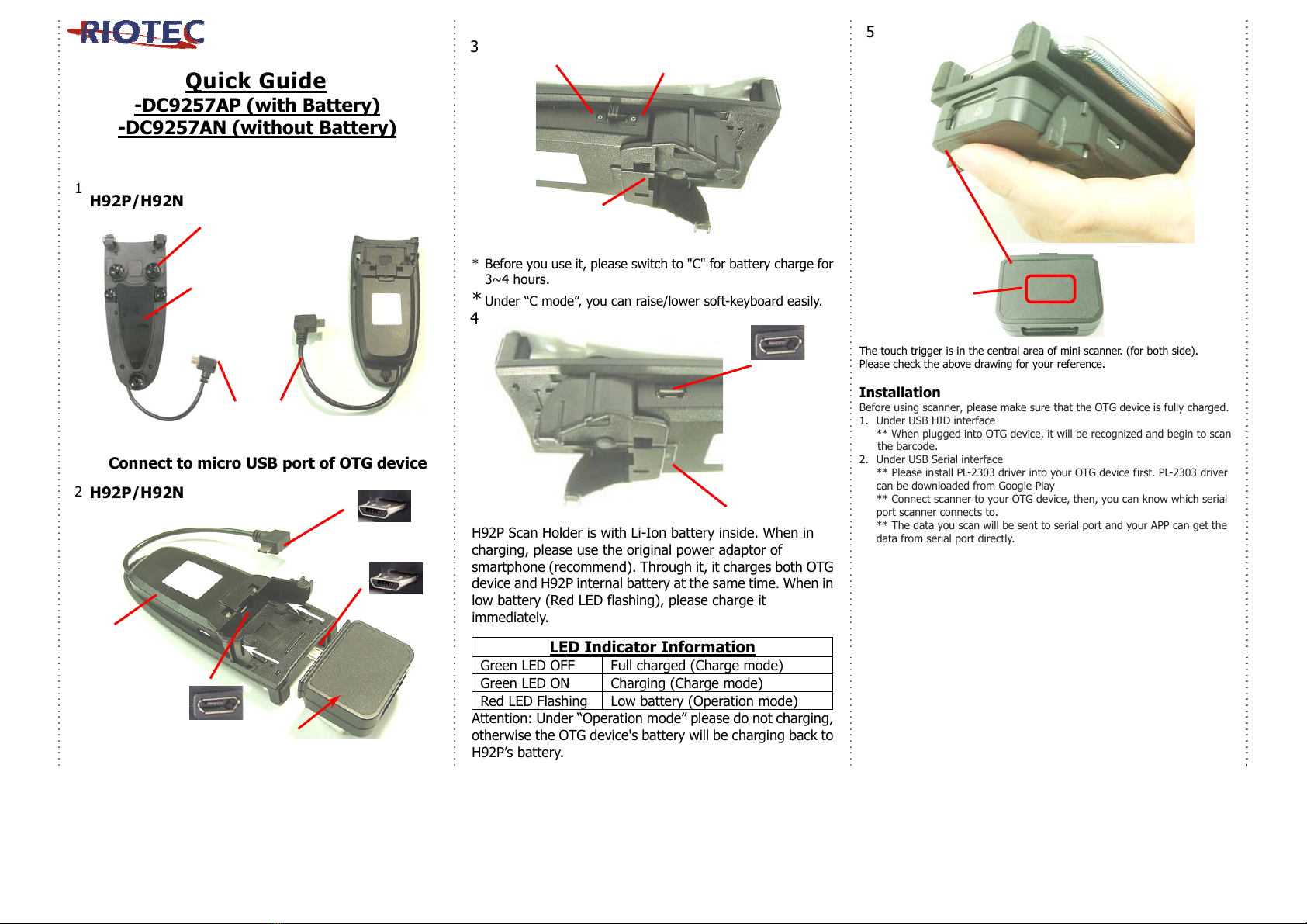

Quick Guide

-DC9257AP (with Battery)

-DC9257AN (without Battery)

1 H92P/H92N

Connect to micro USB port of OTG device

2 H92P/H92N

3



* Before you use it, please switch to "C" for battery charge for

3~4 hours.

*Under “C mode”, you can raise/lower soft-keyboard easily.



H92P Scan Holder is with Li-Ion battery inside. When in

charging, please use the original power adaptor of

smartphone (recommend). Through it, it charges both OTG

device and H92P internal battery at the same time. When in

low battery (Red LED flashing), please charge it

immediately.

LED Indicator Information

Green LED OFF Full charged (Charge mode)

Green LED ON Charging (Charge mode)

Red LED Flashing Low battery (Operation mode)

Attention: Under “Operation mode” please do not charging,

otherwise the OTG device's battery will be charging back to

H92P’s battery.



The touch trigger is in the central area of mini scanner. (for both side).

Please check the above drawing for your reference.

Installation

Before using scanner, please make sure that the OTG device is fully charged.

1. Under USB HID interface

** When plugged into OTG device, it will be recognized and begin to scan

the barcode.

2. Under USB Serial interface

** Please install PL-2303 driver into your OTG device first. PL-2303 driver

can be downloaded from Google Play

** Connect scanner to your OTG device, then, you can know which serial

port scanner connects to.

** The data you scan will be sent to serial port and your APP can get the

data from serial port directly.

Trigger

Area

Suction Cup

PU Glue

(Can be used

repeatedly)

Micro USB

cable (OTG)

Mini

scanner

Micro USB

H92P with

Li- Ion Battery/

H92N without

Battery

Micro USB

LED Indicator

H92P only

O = Operation mode C = Char

e mode

LED Indicator

H92P only

2

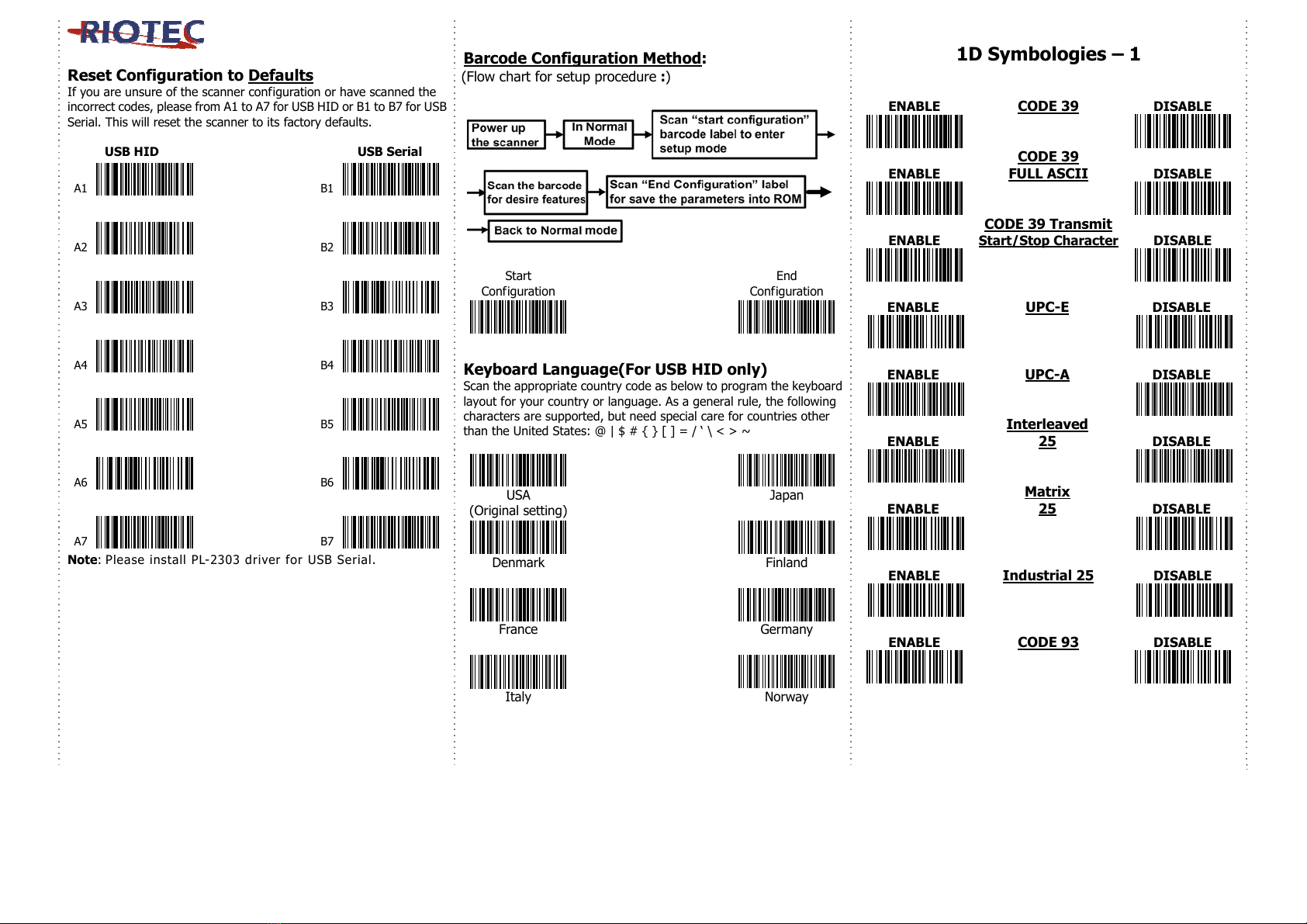

Reset Configuration to Defaults

If you are unsure of the scanner configuration or have scanned the

incorrect codes, please from A1 to A7 for USB HID or B1 to B7 for USB

Serial. This will reset the scanner to its factory defaults.

USB HID USB Serial

A1 B1

A2 B2

A3 B3

A4 B4

A5 B5

A6 B6

A7 B7

Note: Please install PL-2303 driver for USB Serial.

Barcode Configuration Method:

(Flow chart for setup procedure :)

Start

Configuration

End

Configuration

Keyboard Language(For USB HID only)

Scan the appropriate country code as below to program the keyboard

layout for your country or language. As a general rule, the following

characters are supported, but need special care for countries other

than the United States: @ | $ # { } [ ] = / ‘ \ < > ~

USA

(Original setting)

Japan

Denmark

Finland

France

Germany

Italy

Norway

1D Symbologies – 1

ENABLE

CODE 39 DISABLE

ENABLE

CODE 39

FULL ASCII

DISABLE

ENABLE

CODE 39 Transmit

Start/Stop Character DISABLE

ENABLE

UPC-E DISABLE

ENABLE

UPC-A DISABLE

ENABLE

Interleaved

25 DISABLE

ENABLE

Matrix

25 DISABLE

ENABLE

Industrial 25 DISABLE

ENABLE

CODE 93 DISABLE

3

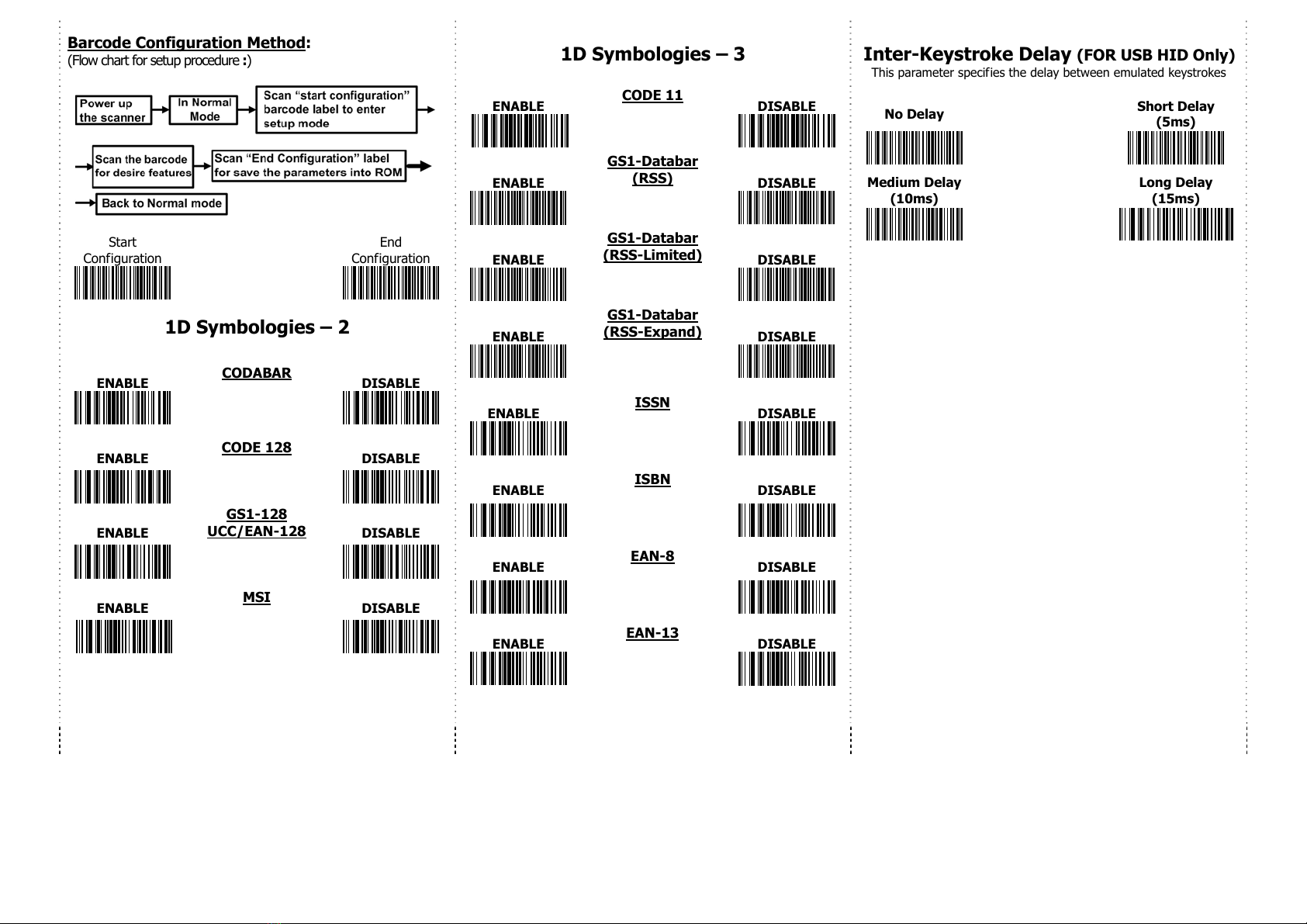

Barcode Configuration Method:

(Flow chart for setup procedure :)

Start

Configuration

End

Configuration

1D Symbologies – 2

ENABLE CODABAR DISABLE

ENABLE CODE 128

DISABLE

ENABLE

GS1-128

UCC/EAN-128

DISABLE

ENABLE MSI DISABLE

1D Symbologies – 3

ENABLE CODE 11 DISABLE

ENABLE

GS1-Databar

(RSS) DISABLE

ENABLE

GS1-Databar

(RSS-Limited) DISABLE

ENABLE

GS1-Databar

(RSS-Expand) DISABLE

ENABLE ISSN DISABLE

ENABLE ISBN DISABLE

ENABLE EAN-8

DISABLE

ENABLE EAN-13

DISABLE

Inter-Keystroke Delay (FOR USB HID Only)

This parameter specifies the delay between emulated keystrokes

No Delay Short Delay

(5ms)

Medium Delay

(10ms)

Long Delay

(15ms)

 Information in this document is subject to change without notice.

Q_200325_01
