RIOTEC LS6000B series Manuale utente

Laser Barcode Scanner

Model no.

LS6000B,LS6000Z

QUICK GUIDE

INTRODUCTION

LS6000B / LS6000Z laser barcode scanners series have incorporated the latest

wireless blue-tooth / Zig-bee technology. The technology provides customer with

the freedom of mobility, with long communication range from the charging

cradle.

The bar code scanner requires establishing communications with its charging

cradle (built-in dongle). After communications have been established between

the scanner and charging cradle, futures bar code scans will be transmitted from

the scanner to the cradle and from the cradle to the host.

For power supply, the charging cradle of LS6000B / LS6000Z also works as a

battery charger for the scanner. Users can plug in 5V DC power adaptor for

power charge of the scanner.

Package of LS6000B / LS6000Z series should contain:

1. LS6000B or LS6000Z Laser Barcode Scanner

(Rechargeable Li-Ion battery pack inside)

2. Charging Cradle with USB cable & DC plug

3. Power Adaptor (5V/1A)

4. User’s Manual

RED BLUE ORANGE

ON Not read Good read

Continual ON

Sleeping mold (If scanner

not in use, will automatic

switch to sleeping mode

after 30 min.)

Low power

Blinking Wireless connection not

linked Charging

Charging Cradle

Buzzer

Exit Window

Trigger

Handle

Charging

3 indicators (LED)

USB dongle

USB Zig-bee dongle

INSTALLATION

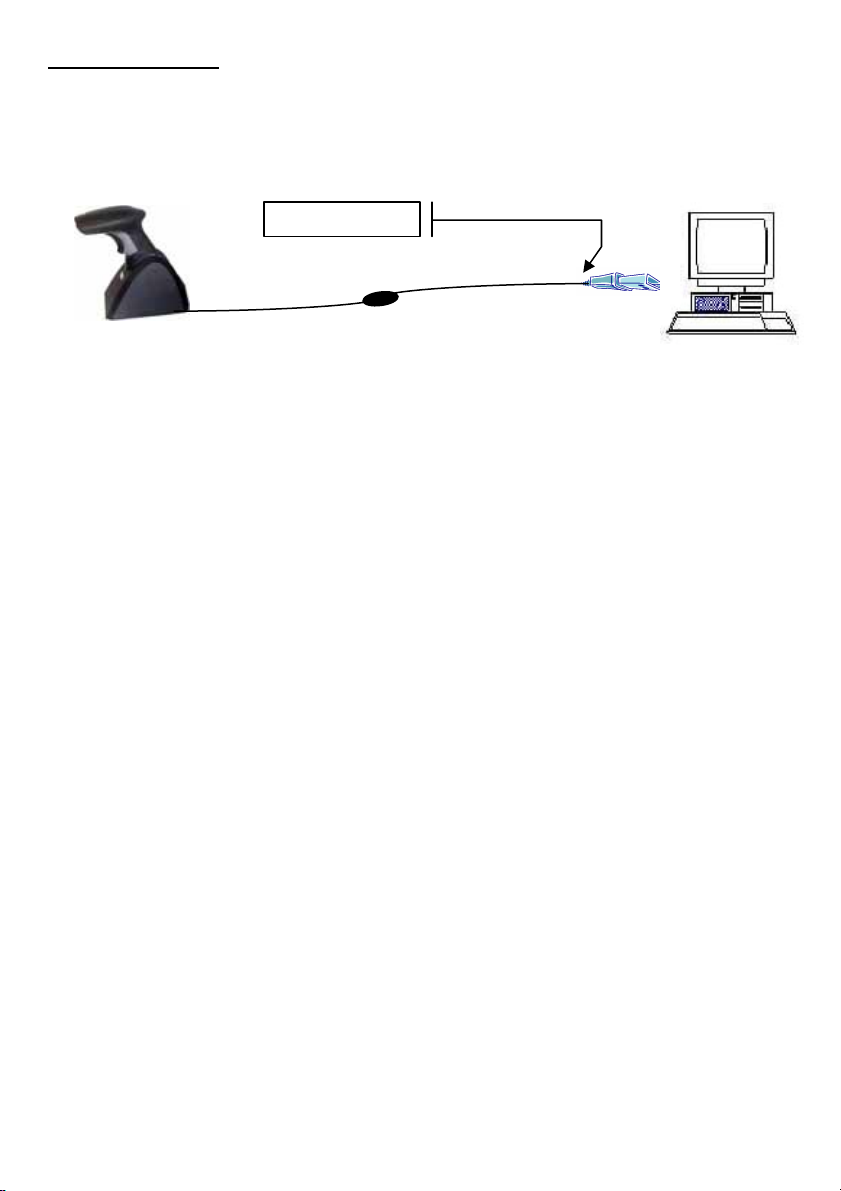

Insert the plug on the free end of the Communications Cable into the

appropriate connector on the host as below described:

USB Connection (RS232 data format)

1. Install the software “PL-2303 Driver Installer.exe” to the host system

for LS6000B / LS6000Z series.

2. Connect scanner cradle to the USB port on the host system.

3. Go to My Computer ÆOne click right button of mouse ÆAdministrate

ÆDevice Administrator ÆConnect Port (COM and LPT).

4. Choose Prolific USB-to-Serial Com Port, and see identify COM number,

ex. COM 5.

5. Go to START ÆPrograms ÆAccessories ÆCommunications Æ

Hyper Terminal.

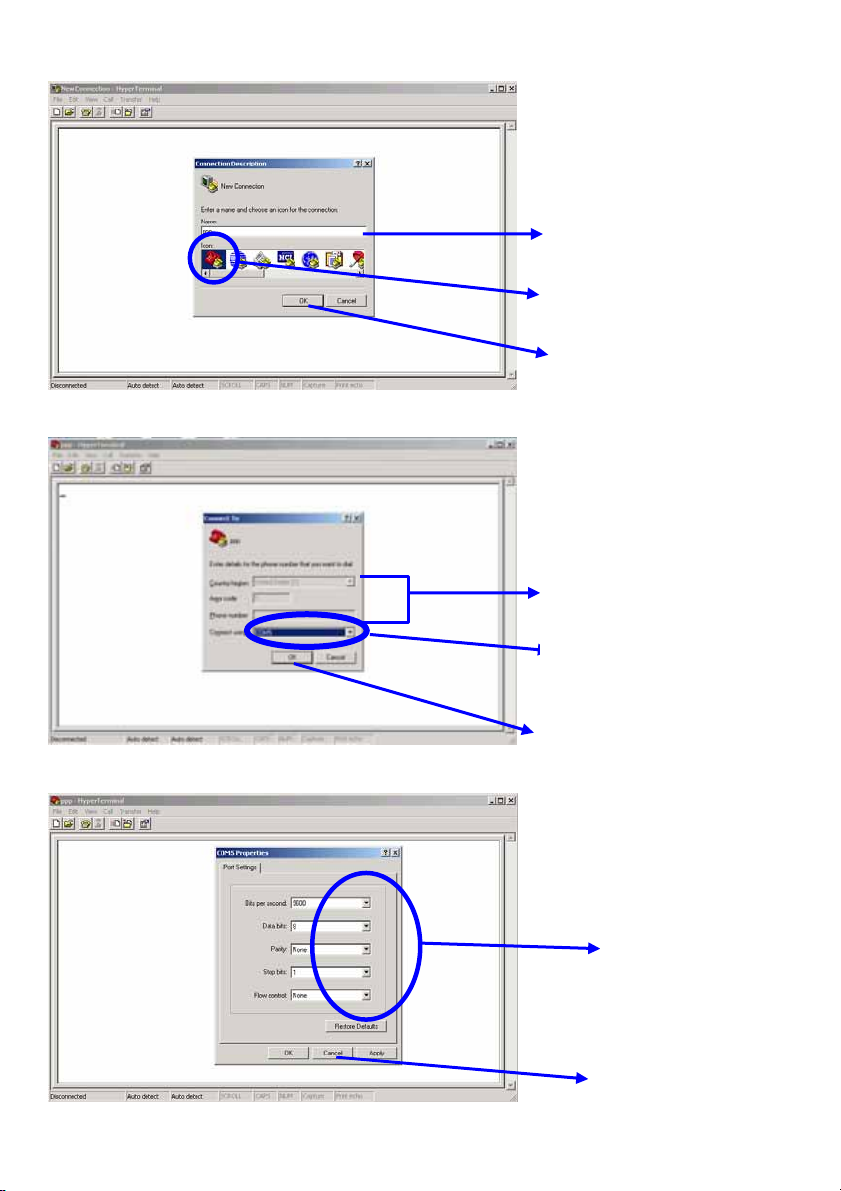

Detail set up on the Hyper Terminal, please see at the Figure 1 to Figure 3.

Connec

with hos

Figure 1

Figure 2

Figure 3

o need to ke

-in

Step 1: key-in the identify

COM number

Step 1: key-in a file name

Step 2: select the first

Step 3: press OK

Step 2: press OK

Row 1: key-in “9600”

Row 2: key-in “8”

Row 3: key-in “none”

Row 4: key-in “1”

Row 5: key-in “none”

Press OK

Step 1: key-in the identify

COM number, ex.

COM 5

Step 2: press OK

6. Start to aim the scanner at a bar code, you may see data shown on the hyper

terminal.

Reset Configuration to Defaults

If you are unsure of the scanner configuration or have scanned the incorrect codes,

please scan the “Reset Configuration to Defaults” barcode. This will reset the

scanner to its factory settings.

LS 6000B or LS6000Z

Tip

Do not hold the scanner directly over a barcode at 90˚. Scanning light bounces

directly back into the scanner from the barcode label is known as specular reflection

which will create a "dead zone" where decoding is difficult. Practice a few times to

find what range of angles works best.

Maintenance

Cleaning the scan window is the only maintenance required. A dirty window may

affect scanning accuracy.

Wipe the scanner window gently with a lens tissue or other material suitable for

cleaning optical material.

Do not spray water or other cleaning liquids directly onto the window.

Federal Communications Commission (FCC) Statement

15.21

You are cautioned that changes or modifications not expressly approved

by the part responsible for compliance could void the user’s authority to

operate the equipment.

15.105(b)

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC rules. These limits

are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following

measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

Operation is subject to the following two conditions:

1) this device may not cause interference interference and

2) this device must accept any interference, including interference that

may cause undesired operation of the device.

FCC RF Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for

an uncontrolled environment. End users must follow the specific

operating instructions for satisfying RF exposure compliance. This

transmitter must not be co-located or operating in conjunction with any

other antenna or transmitter.
