CO2Transmitter

Operator’s Manual

Part Number: 71-0631

Revision: P1

Released: 4/7/23

2• 65-2397-XX-04 CO2Transmitter Operator’s Manual

WARNING

Read and understand this instruction manual before operating

transmitter. Improper use of the transmitter could result in bodily

harm or death.

Periodic calibration and maintenance of the transmitter is essential for

proper operation and correct readings. Please calibrate and maintain

this transmitter regularly! Frequency of calibration depends upon the

type of use you have and the sensor types. Typical calibration

frequencies for most applications are between 6 and 12 months, but

can be required more often or less often based on your usage.

65-2397-XX-04 CO2Transmitter Operator’s Manual • 3

Product Warranty

RKI Instruments, Inc. warrants gas alarm equipment sold by us to be free from defects in

materials, workmanship, and performance for a period of one year from date of shipment from

RKI Instruments, Inc. Any parts found defective within that period will be repaired or replaced, at

our option, free of charge. This warranty does not apply to those items which by their nature are

subject to deterioration or consumption in normal service, and which must be cleaned, repaired, or

replaced on a routine basis. Examples of such items are:

• Absorbent cartridges

•Fuses

• Pump diaphragms and valves

•Batteries

• Filter elements

Warranty is voided by abuse including mechanical damage, alteration, rough handling, or repair

procedures not in accordance with the operator’s manual. This warranty indicates the full extent

of our liability, and we are not responsible for removal or replacement costs, local repair costs,

transportation costs, or contingent expenses incurred without our prior approval.

THIS WARRANTY IS EXPRESSLY IN LIEU OF ANY AND ALL OTHER WARRANTIES AND

REPRESENTATIONS, EXPRESSED OR IMPLIED, AND ALL OTHER OBLIGATIONS OR

LIABILITIES ON THE PART OF RKI INSTRUMENTS, INC. INCLUDING BUT NOT LIMITED TO,

THE WARRANTY OF MERCHANTABILITY OR FITNESS FOR APARTICULAR PURPOSE. INNO

EVENT SHALL RKI INSTRUMENTS, INC. BE LIABLE FOR INDIRECT, INCIDENTAL, OR

CONSEQUENTIAL LOSS OR DAMAGE OF ANY KIND CONNECTED WITH THE USE OF ITS

PRODUCTS OR FAILURE OF ITS PRODUCTS TO FUNCTION OR OPERATE PROPERLY.

This warranty covers instruments and parts sold to users by authorized distributors, dealers, and

representatives as appointed by RKI Instruments, Inc.

We do not assume indemnification for any accident or damage caused by the operation of this gas

monitor, and our warranty is limited to the replacement of parts or our complete goods.

4• 65-2397-XX-04 CO2Transmitter Operator’s Manual

Table of Contents

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

CO2Detector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Amplifier. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Amplifier Junction Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Detector Junction Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Mounting the CO2Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Wiring the Detector to the Amplifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Wiring the Amplifier to a Controller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Startup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Introducing Incoming Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Setting the Zero Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Preventive Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Replacing Components of the CO2Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Calibration Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Preparing for Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Setting the Zero Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Setting the Response Reading. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Returning to Normal Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

65-2397-XX-04 CO2Transmitter Operator’s Manual Overview • 5

Overview

This manual describes the 65-2397-XX-04 CO2transmitter. This manual also describes how to

install, start up, configure, maintain, and calibrate the transmitter when it is used with a gas

monitoring controller. A parts list at the end of this manual lists replacement parts and accessories

for the CO2transmitter.

Specifications

Table 1 lists specifications for the 65-2397-XX-04 CO2transmitter.

WARNING: When using the 65-2397-XX-04, you must follow the instructions and warnings

in this manual to assure proper and safe operation of the 65-2397-XX-04 and to

minimize the risk of personal injury. Be sure to maintain and periodically

calibrate the 65-2397-XX-04 as described in this manual.

Table 1: Specifications

Target Gas Carbon Dioxide (CO2)

Sampling Method Diffusion

Signal Output 4 to 20 mA

Detection Range

65-2397-01-04: 0-9,000 ppm

65-2397-02-04: 0-5,000 ppm

65-2397-03-04: 0-5% Volume

65-2397-04-04: 0-20% Volume

65-2397-05-04: 0-50% Volume

65-2397-10-04: 0-100% Volume

Response Time 90% in 45 seconds

Operating Temperature -4°F to 122°F (-20°C to 50°C)

Accuracy ± 5% of reading or ± 2% of full scale (whichever is greater)

6• Description 65-2397-XX-04 CO2Transmitter Operator’s Manual

Description

This section describes the components of the CO2transmitter. The transmitter is a 4 - 20 mA type

detector head. It consists of the hydrogen detector, calibration cup/splash guard, amplifier, the

amplifier junction box, and the detector junction box. The two-junction-box configuration is

intended for situations where the detector needs to be installed at an inaccessible location. The

detector junction box can be installed at the inaccessible location and the amplifier junction box

can be installed in a more readily accessible area.

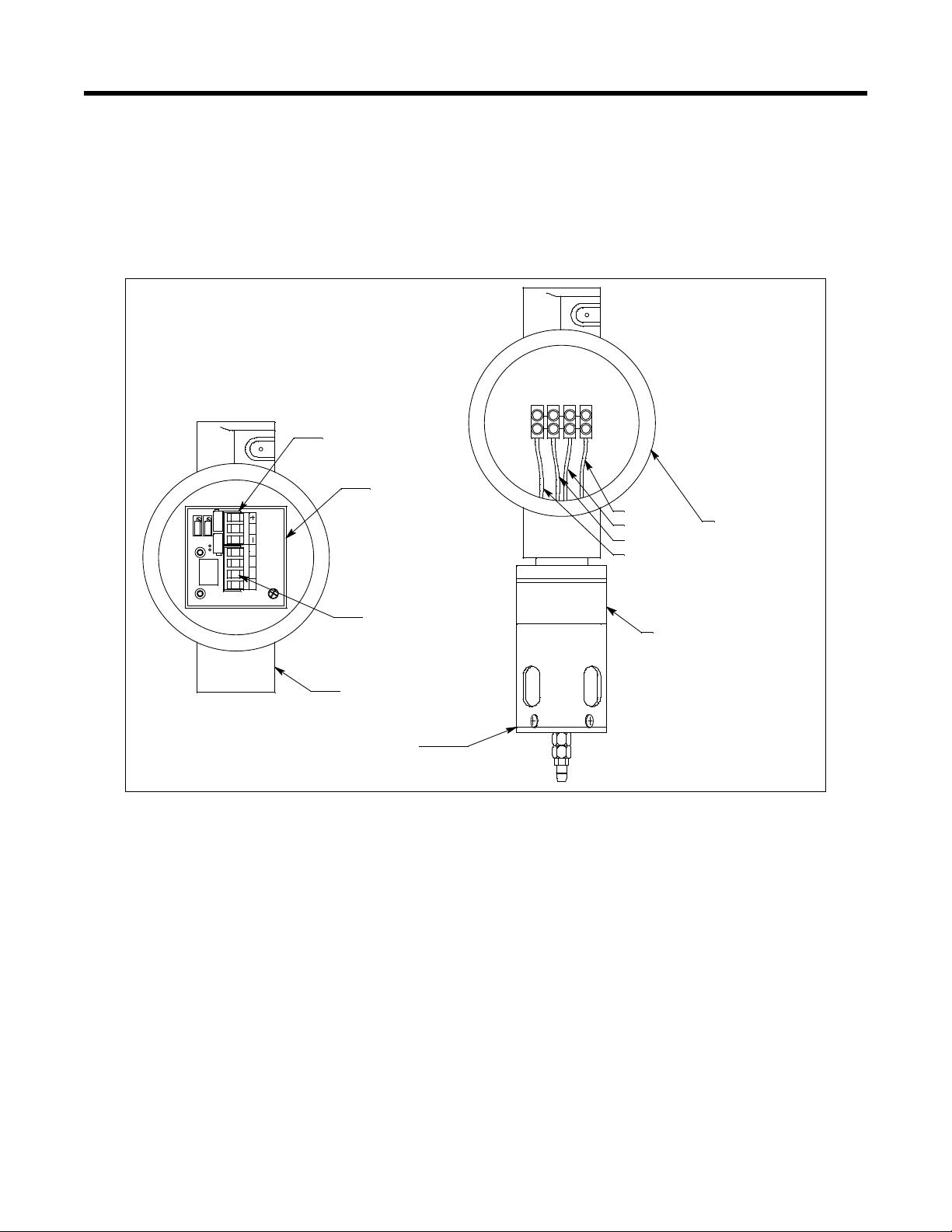

Figure 1: CO2Transmitter Component Location

Black Detector J-Box

White

Green

Amplifier

Controller Terminal Strip

PWR / SIG

IR CO2 Detector

Calibration Cup/Splash Guard

Amplifier J-Box

Detector Terminal

Strip

ZERO

SPAN

Red

LEL

Sensor

Current

65-2397-XX-04 CO2Transmitter Operator’s Manual Description • 7

Infrared CO2Detector

The CO2detector consists of the detector housing body, detector housing cap, cap gasket, and the

plug-in sensor.

Figure 2: CO2Detector Component Location

Detector Housing Body

The detector housing body protects the electronic components within the housing. Use the

mounting threads at the top of the housing to screw the CO2detector into the 3/4 NPT hub on the

bottom of the junction box. Four color coded leads, red, white, green, and black, extend from the

other end of the detector. The leads allow you to connect the detector to the amplifier.

The housing includes three sockets installed on a circuit board. These sockets accept the plug-in

sensor’s three pins to provide an electrical connection for the sensor. The circuit board with the

sockets conditions the sensor’s signal before the signal reaches the amplifier.

Housing Cap & Cap Gasket

The housing cap screws onto the detector housing. It retains the plug-in sensor and protects it

from damage. A foam gasket is installed inside the housing cap that seals against the sensor face.

A hydrophobic membrane on the outside of the cap face keeps water and particulates away from

the sensor face behind the cap. Unscrew the detector cap to access the plug-in sensor for

maintenance or replacement. A cap gasket seals the interface between the housing and cap.

Plug-In CO2Sensor

The plug-in sensor is secured in the detector assembly by the housing cap. The sensor produces a

millivolt output that corresponds to the detection range of the transmitter.

Hydrophobic

Membrane

Cap Gasket

Plug-In CO2 Sensor

Sensor Retainer

Detector Housing Cap

Detector Housing Body

8• Description 65-2397-XX-04 CO2Transmitter Operator’s Manual

Amplifier

The amplifier converts the electrical output from the detector to a 4 to 20 mA signal that

corresponds to the detection range and transmits the signal to a gas monitoring controller. A foam

gasket that orients the amplifier and keeps it from rotating is installed on the bottom of the

amplifier. The amplifier includes the controller terminal strip, detector terminal strip, span pot,

zero pot, and test points (see Figure 3).

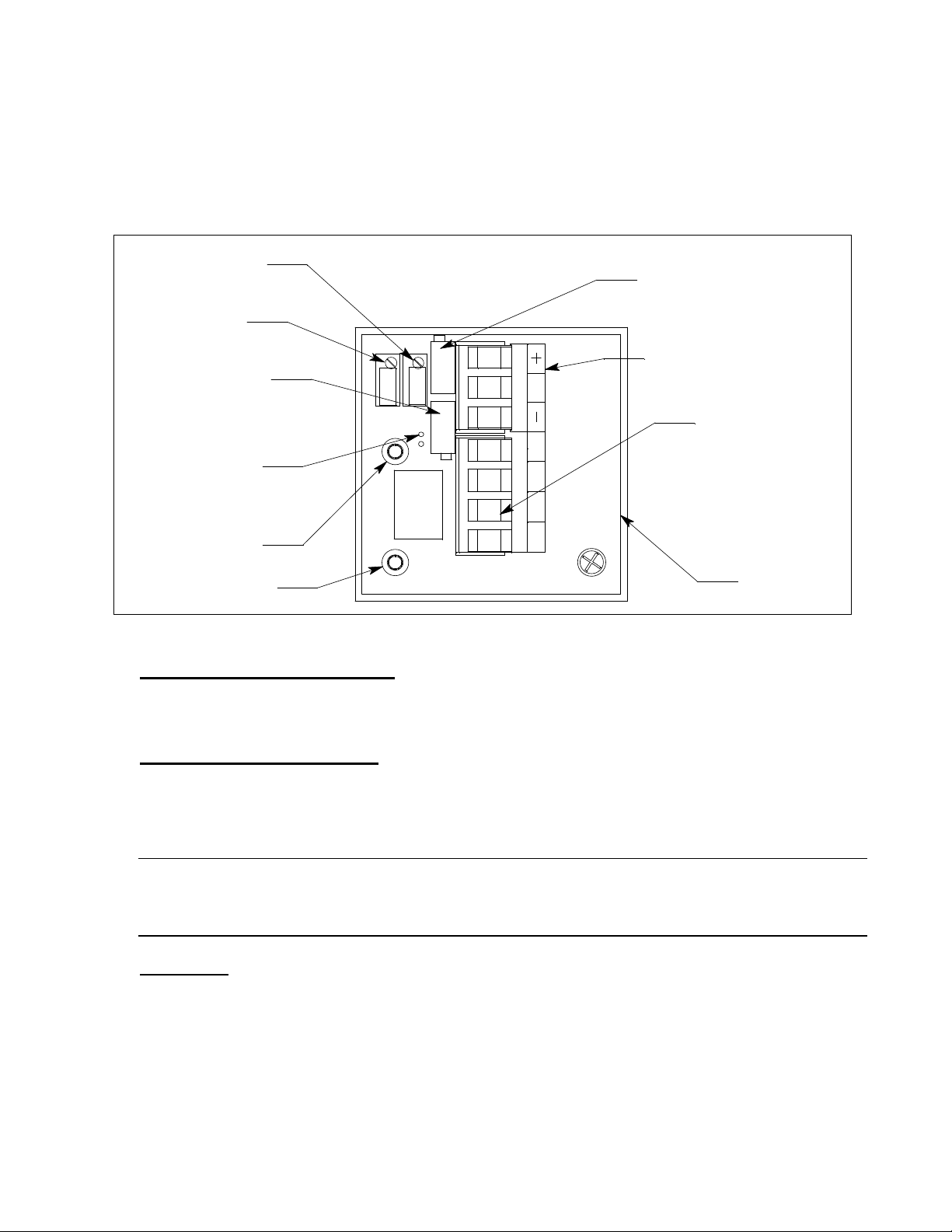

Figure 3: Amplifier Component Location

Controller Terminal Strip

The controller terminal strip is a three position plug-in style terminal strip located near the top of

the amplifier. Use the controller terminal strip to wire the CO2transmitter to a controller.

Detector Terminal Strip

The detector terminal strip is a four position plug-in style terminal strip located below the

controller terminal strip. Use the detector terminal strip to connect the CO2transmitter to the

amplifier.

NOTE: The IR CO2detector is factory-wired to the detector terminal strip. See “Wiring the

Amplifier to a Controller” on page 12 for all wiring procedures related to the

transmitter.

Zero Pot

The zero pot is located in the upper left corner of the amplifier (see Figure 3). Use a small flat

blade screwdriver to turn the zero pot’s adjustment screw and adjust the amplifier’s target gas-free

output during the start-up and calibration procedures. Turn the adjustment screw clockwise to

increase the zero output and counterclockwise to decrease the zero output.

Factory Adjust Pot

LEL BWR S

PWR / SIG

Detector Terminal

Strip

Span Pot

Amplifier

Controller Terminal Strip

ZERO

Sensor

Current

mA SPAN

Zero Pot

Factory Adjust Pot

Jumper Pins,

Factory Use Only

- Test Point

+ Test Point

65-2397-XX-04 CO2Transmitter Operator’s Manual Installation • 9

Span Pot

The span pot is located to the right of the zero pot (see Figure 3). Use a small flat blade

screwdriver to turn the span pot’s adjustment screw and adjust the amplifier’s gas response output

during the calibration procedure. Turn the adjustment screw clockwise to increase the gas

response and counterclockwise to decrease the gas response.

CAUTION: The amplifier includes two additional potentiometers. They are factory-set. Do not

adjust them.

Test Points

The test points are on the left side of the amplifier (see Figure 3). The test points produce a 100

mV to 500 mV output that corresponds to the transmitter’s 4 to 20 mA output. Use the test points

and a voltmeter to measure the amplifier’s output during the start-up and calibration procedures.

The black test point in the lower left corner is the negative (-) test point and the red test point

below the zero pot is the positive (+) test point.

Amplifier Junction Box

The amplifier junction box protects the amplifier and wiring connections made to the amplifier.

Use the top 3/4 NPT conduit hub to connect wiring from the amplifier to the controller. Use the

bottom 3/4 NPT conduit hub to wire the remotely installed CO2 detector. Use the cover on the

front of the junction box to access the interior of the junction box. The amplifier is factory

installed in the junction box. Three spacers installed on the back of the junction box controls the

distance of the junction box from a mounting surface.

Detector Junction Box

The detector junction box is intended to be installed remotely from the amplifier junction box.

The CO2detector is factory installed in the bottom 3/4 NPT conduit hub. A terminal strip is

provided for wiring connections and the detector is factory wired to one side of this terminal strip.

The other side of the terminal strip is for user-supplied wiring to the detector terminal strip located

in the amplifier junction box. This wiring should go through the top 3/4 NPT conduit hub. Three

spacers installed on the back of the junction box controls the distance of the junction box from a

mounting surface.

Installation

This section describes procedures to mount the CO2transmitter in the monitoring environment

and wire the transmitter to a controller.

Mounting the CO2Transmitter

1. Select a mounting site that is representative of the monitoring environment. Consider the

following when you select the mounting site:

10 • Installation 65-2397-XX-04 CO2Transmitter Operator’s Manual

• For the amplifier junction box, select a site where the junction box is not likely to be

bumped or disturbed. Make sure there is sufficient room to perform start-up, maintenance,

and calibration procedures. The site should be easily accessible.

• For the detector junction box, select a site where the target gas is likely to be found first.

For carbon dioxide, mount the remote detector at least six feet from the floor to minimize

the possibility of someone breathing on the unit. The exhaled CO2may cause an alarm.

• The junction boxes should be mounted no further than 200 feet from each other.

2. At the monitoring site you select, hang or mount the junction box with the detector facing

down (see Figure 2).

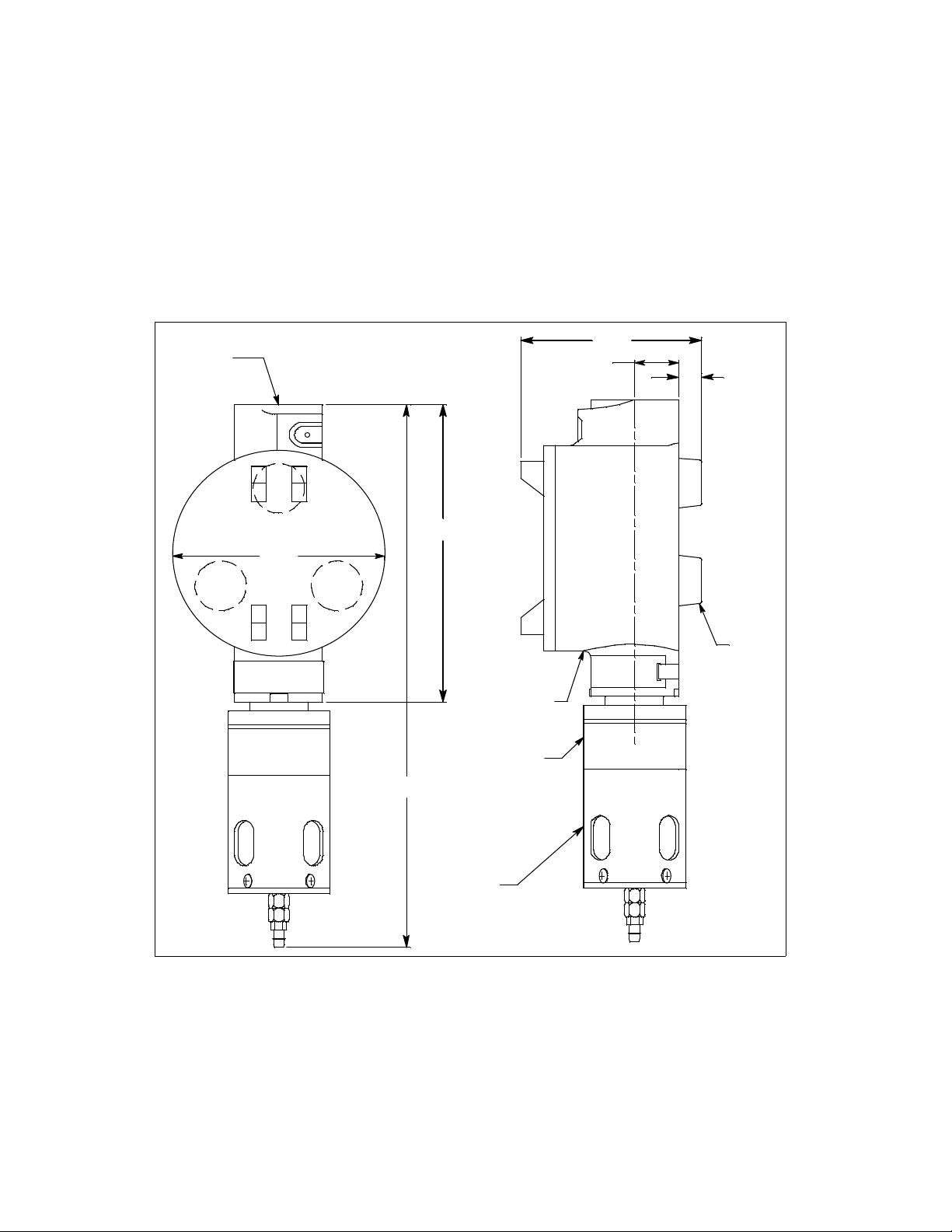

Figure 4: Mounting the CO2Transmitter

5.25 MAX

Rubber

Spacers,

3.65

3/4 NPT

Female

IRCO2

Detector

J-Box

3.10

.75 .38

9.80 MAX

Calibration

Cup/Splash

Guard

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali RKI Instruments Trasmettitore

RKI Instruments

RKI Instruments 65-2660RK-XX-04 Manuale utente

RKI Instruments

RKI Instruments 65-2645XL0504SS Manuale utente

RKI Instruments

RKI Instruments 65-2649RK-CH4-4 Manuale utente

RKI Instruments

RKI Instruments 65-2335RK Manuale utente

RKI Instruments

RKI Instruments 65-2391RK Manuale utente

RKI Instruments

RKI Instruments 65-2670-CL2-04 Manuale utente

RKI Instruments

RKI Instruments 65-2641RK-03 Manuale utente

RKI Instruments

RKI Instruments 65-2330RK Manuale utente

RKI Instruments

RKI Instruments 65-2330RK Manuale utente

RKI Instruments

RKI Instruments 65-2395RK-CH4-4 Manuale utente

RKI Instruments

RKI Instruments 65-2661RK-XX-04 Manuale utente

RKI Instruments

RKI Instruments 65-2434RK Manuale utente

RKI Instruments

RKI Instruments 65-2649RK-HC-04 Manuale utente

RKI Instruments

RKI Instruments 65-2335RK Manuale utente

RKI Instruments

RKI Instruments 65-2649SS-CH4-4 Manuale utente

RKI Instruments

RKI Instruments 65-2640RK-03 Manuale utente

RKI Instruments

RKI Instruments 65-2645XL-05-04 Manuale utente

RKI Instruments

RKI Instruments 65-2330RKSS Manuale utente

RKI Instruments

RKI Instruments 65-2640RKSS-04S Manuale utente

RKI Instruments

RKI Instruments 65-2641RK-05-04 Manuale utente

RKI Instruments

RKI Instruments 65-2619RK-CH4-4 Manuale utente

RKI Instruments

RKI Instruments 65-2670-XX-04 Manuale utente

RKI Instruments

RKI Instruments T2A Manuale utente

RKI Instruments

RKI Instruments 65-2658RK-CH4-4 Manuale utente

Manuali Trasmettitore popolari di altre marche

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manuale del proprietario

Honeywell

Honeywell 5816WMBR Manuale utente

Kamstrup

Kamstrup READy MTU Istruzioni operative

Omega

Omega ZW Series Manuale utente

ABB

ABB Field 264H Guida

Alinco

Alinco DJ-V17T Manuale utente

Dejero

Dejero EnGo 3x Manuale utente

Rosemount

Rosemount 4600 Manuale utente

Speaka Professional

Speaka Professional 2342740 Manuale utente

trubomat

trubomat GAB 1000 Manuale utente

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuale utente

Rondish

Rondish UT-11 Manuale utente

MG 10JRE Manuale utente

Burkert

Burkert 8177 Manuale utente

Firetide

Firetide HotPort 3203 Manuale

Tele Radio

Tele Radio T9-02 Manuale utente

Rotronic

Rotronic HygroFlex HF3 Series Manuale utente

Jamara

Jamara FCX6 Pro Tel Manuale utente
