rlon become Manuale utente
become
desk lamp
rlon
3
become is the geometry of an energetic system.
Both illuminant and interface are protagonists of a
geometric staging.
become tells one story of the journey to the center.
Of separation and oneness.
Of symmetry and tension.
become plays with gravitational ields.
It is a bridge from the outside to the inside.
5
congratulations
on your become desk lamp
This guide provides you with instructions on how to setup
and maintain your lamp as well as safety notes and legal
informations.
6
body
dimensions 270 x 290 x 240 mm
power supply
wattage < 36 w
voltage 220 v
cable length 2 m
illuminant
light ring T5 G10q
diameter of light ring 270 mm
wattage 32 w
light temperature 2700 k
luminous lux < 2400 lm
technical details
7
270 mm
290 mm
240 mm
8
instructions how to set up
and change the illuminant
The following instructions apply both for the irst setup of
the lamp and a later change of the illuminant.
Caution: Before installing and whenever changing
the illuminant, ensure that the power line is
disconnected!
9
10

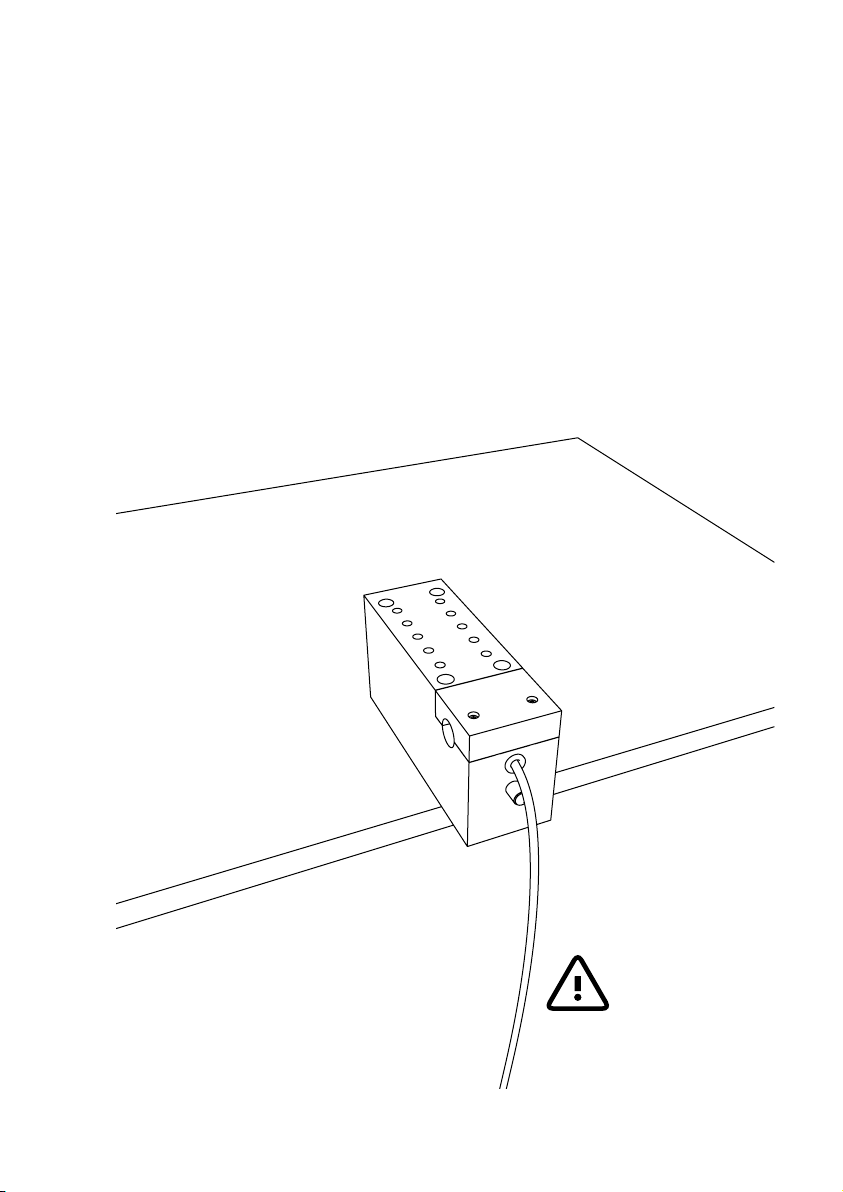

Remove the metal ball from the body and put it
aside.
Turn the body of the lamp upside down and place
it on the edge of a table. Make sure the body is
slightly over the edge, so that the light ring will
not touch the table.
To avoid possible scratches on the body, put a
soft fabric or paper underneath the body.
1
make sure the lamp
is unplugged!
