Rocket Fish RF-PRAC Manuale utente

Rocketfish AC Power Adapter

Adaptateur d’alimentation CA

Rocketfish

Adaptador de alimentación de

CA Rocketfish

RF-PRAC

User Guide Guide de l’utilisateur Guía del Usuario

Rocketfish RF-PRAC

Rocketfish AC Power

Adapter

Contents

Introduction ................................................................. 2

Safety information ..................................................... 3

Features ......................................................................... 4

Using the AC power adapter.................................. 4

Specifications............................................................... 6

Connector tip compatibility ................................... 7

Legal notices ................................................................ 8

Three-year limited warranty.................................11

Français........................................... 15

Español ........................................... 29

Introduction

Thank you for purchasing a Rocketfish universal laptop

power adapter. This adapter plugs into any AC power outlet

anywhere in the world, and provides a reliable power source

to run your laptop computer and charge its internal battery.

Rocketfish adapters are made using the highest quality

components and feature all of the necessary voltage and

heat protection circuits to ensure maximum levels of safety

and efficiency.

RF-PRAC

Note: A physical adapter plug may be necessary to plug

into some AC power outlets outside of the United States, but

no voltage converter is needed anywhere in the world.

This adapter comes with a variety of numbered tips which

connect to the output cable of the adapter and control the

output voltage. To ensure that the proper voltage is

delivered to your laptop, you must always make sure that

you are using the correct tip for your specific laptop model.

Read the following instructions and refer to “Connector tip

compatibility” on page 7 to make sure you select the correct

tip for your laptop.

Safety information

• Do not expose the power adapter to rain, moisture, or

excessive dust. It may cause shock hazards.

• Do not operate the adapter in direct sunlight.

• Operate the adapter in a well ventilated area. Maximum

ambient temperature around the power adapter must

not exceed 105° Fahrenheit (40° Celsius).

• Do not open the power adapter under any

circumstances. The power adapter is not intended to be

repaired in case of failure or component defect. There are

no internal serviceable parts.

• Discontinue use and contact our toll free help line for

assistance (800) 620-2790 if any of the following should

occur:

• The adapter shuts down when it is plugged into the

device (LED turns off).

• The adapter's LED light blinks when the adapter is

plugged into an AC power outlet.

• A cord or plug is damaged or frayed.

• Do not use with notebooks that require more than

90 watts of power.

• Make sure to use the correct tip for your notebook as

listed in “Connector tip compatibility” on page 7 and do

not use with any notebook model that is not listed.

• Keep away from children.

Features

Package contents

• 90 Watt universal laptop power adapter

•10tips

•ACcord

•UserGuide

Using the AC power adapter

To use the AC power adapter:

1Select your laptop manufacturer and model from

“Connector tip compatibility” on page 7 to determine

the correct tip number for your laptop.

Warning: Do not use this product if you cannot locate your

laptop model in the Tip Compatibility table. The use of an

incorrect tip may damage your laptop. Contact our toll free

help line for assistance (800) 620-2790.

RF-PRAC

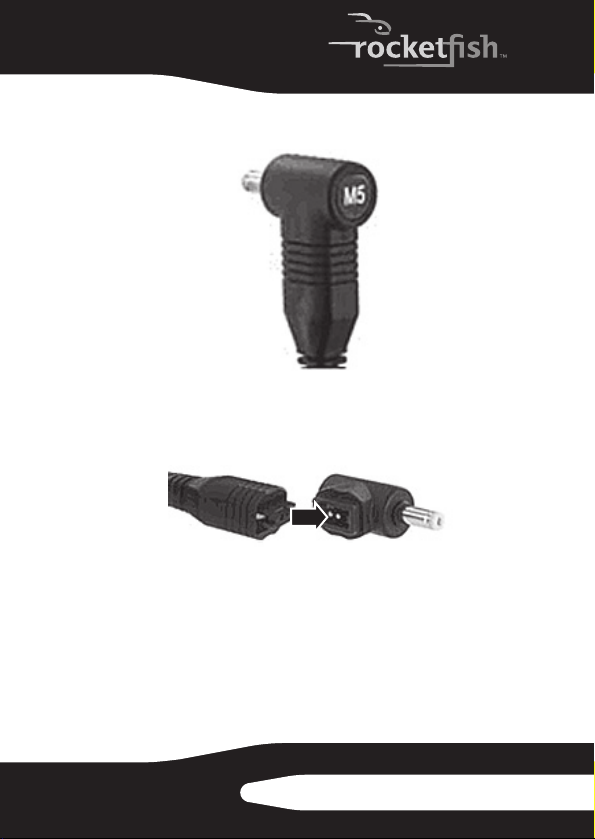

2Locate the specified tip from the tip bundle provided.

Each tip is clearly numbered.

3Connect the selected tip to the end of the output cable,

making sure that the pins on the tip are aligned with the

holes in the cable. Also make sure that the tip is pushed

all the way into the output cable's connector.

4Turn off your laptop or put it into Suspend or Standby

mode.

5Connect the AC cord to the socket on the AC adapter.

6Plug the AC cord into an AC power outlet. The LED on the

adapter turns green indicating that the adapter is

powered and ready.

Important: If the adapter's LED does not turn on, or if it

blinks, discontinue use and contact our toll free help line for

assistance (800) 620-2790.

7Plug the tip connected to the output cable into the

matching DC input jack on the side or back of your

laptop.

8Turn the laptop on or wake it up from Suspend/Standby

mode. The adapter powers the laptop and charges its

battery.

Specifications

Input voltage: 100 to 240 volts AC

Output power: 90 watts continuous power

Jack

Tip

Output cable

AC adapter

AC cord

RF-PRAC

Connector tip compatibility

Manufacturer Model Tip Number

15 V to 17 V

models 18 V to 20 V

models

Acer Aspire M5, M34, M41

Acer Ferrari M32, M41

Acer Travelmate M9 M32, M41

Asus All models M5

Averatec All models M41

Compaq Presario M5, M28, M41

Dell Inspiron M23, M41

Dell Latitude M3, M23, M41

Dell Precision M23

Dell Vostro M23

Dell XPS M23

e-Machines M Series M28, M41

Fujitsu All models M41

Gateway All models M28, M41

Hewlett Packard Pavilion M5, M28, M41

HP/Compaq Business Notebook M5, M41, M55

HP/Compaq Special Edition (LiveStrong) M5

HP/Compaq Tablet PC M5, M55

Lenovo/IBM 3000 Series M44

Lenovo/IBM ThinkPad M9, M49 M44

Panasonic ToughBook M9 M3

Sony VAIO M3

Toshiba Portege M49

Legal notices

FCC Part 15

This device complies with Part 15 of the FCC Rules. Operation

of this product is subject to the following two conditions: (1)

this device may not cause harmful interference, and (2) this

device must accept any interference received, including

interference that may cause undesired operation.

This equipment has been tested and found to comply within

the limits for a class B digital device, pursuant to Part 15 of

the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no

guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more

of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and

receiver.

Toshiba Qosmio M49

Toshiba Satellite M49 M41

Toshiba Tecra M49

Manufacturer Model Tip Number

15 V to 17 V

models 18 V to 20 V

models

RF-PRAC

• Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

• Consult the dealer or an experienced technician for help.

FCC warning

Changes or modifications not expressly approved by the

party responsible for compliance with the FCC Rules could

void the user’s authority to operate this equipment.

DHHS and FDA safety certification

This product is made and tested to meet safety standards of

the FCC, requirements and compliance with safety

performance of the U.S. Department of Health and Human

Services, and also with FDA Radiation Performance

Standards 21 CFR Subchapter J.

Canada ICES-003 statement

This Class B digital apparatus complies with Canadian

ICES-003.

RSS 310 statement

To reduce potential radio interference to other users, the

antenna type and its gain should be so chosen that the

equivalent isotropically radiated power (e.i.r.p.) is not more

than that permitted for successful communication.

trademarks of Best Buy Enterprise Services, Inc. Other brands

and product names are trademarks or registered trademarks

of their respective holders. Specifications and features are

subject to change without notice or obligation.

For service and support call (800) 620-2790.
