Introduction

Congratulations on your purchase of the Rocketboost™ Wireless HD

Audio Starter Kit. This system represents the state of the art in 2.4 GHz

wireless audio design, and lets you enjoy your music around the

house or home theater surround sound without the limitations of

cables.

With a maximum 150-foot broadcast range, this powerful system

transmits through walls, floors, and ceilings. The audio signal is

uncompressed digital audio so your audio is the highest quality and

is free from interference.

RF-RBKIT_10-1157_MAN_V4.fm Page 3 Friday, October 8, 2010 12:53 PM

The system can be used with any of your audio components, like your

CD/DVD player, home theater system, or even audio output from a

computer or mp3 player. By using other Rocketboost™ wireless audio

products, you can also configure multiple audio streams and listen to

any of those audio streams at any Rocketboost receiver.

This User Guide explains how to correctly install, operate, and get the

best performance from your Rocketboost Wireless HD Audio Starter

Kit. Read this guide carefully before installing your system, and then

keep it handy for quick reference.

Important safety instructions

1Read these instructions.

2Keep these instructions.

3Heed all warnings.

4Follow all instructions.

5Do not use this apparatus near water.

The exclamation point within an equilateral

triangle is intended to alert the user to the

presence of important operating and

maintenance (servicing) instructions in the

literature accompanying the appliance.

The lightning flash with arrowhead symbol,

within an equilateral triangle is intended to

alert the user to the presence of

uninsulated "dangerous voltage" within

the product's enclosure that may be of

sufficient magnitude to constitute a risk of

electric shock to persons.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK:

DO NOT REMOVE SCREWS, COVERS OR THE CABINET.

NO USER SERVICING PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

RF-RBKIT_10-1157_MAN_V4.fm Page 4 Friday, October 8, 2010 12:53 PM

RF-RBKIT

6Clean only with a dry cloth.

7Do not block any ventilation openings. Install in accordance with the

manufacturer's instructions.

8Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including amplifiers) that produce heat.

9Do not defeat the safety purpose of the polarized or grounding-type

plug. A polarized plug has two blades with one wider than the other. A

grounding type plug has two blades and a third grounding prong. The

wide blade or the third prong are provided for your safety. If the

provided plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10 Protect the power cord from being walked on or pinched particularly at

plugs, convenience receptacles, and the point where they exit from the

apparatus.

11 Only use attachments/accessories specified by the manufacturer.

12 Unplug this apparatus during lightning storms or when unused for long

periods of time.

13 Refer all servicing to qualified service personnel. Servicing is required

when the apparatus has been damaged in any way, such as

power-supply cord or plug is damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus has been exposed to rain or

moisture, does not operate normally, or has been dropped.

14 To reduce the risk of fire or electric shock, do not expose this device to

rain, moisture, dripping, or splashing, and no objects filled with liquids,

such as vases, shall be placed on it.

15 The wall plug is the disconnecting device. The plug must remain readily

operable.

16 Batteries should not be exposed to excessive heat such as sunshine, fire,

or the like.

Caution: Danger of explosion if battery is incorrectly replaced. Replace only with the

same or equivalent type.

Warning: Read the Rating Label on the bottom of the unit for power input and other

safety information.

Caution - Proper Installation

Install the system in a place which is level, dry and neither too hot nor too cold. The

appropriate temperature is between 5° C and 35° C.

Install the system in a location with adequate ventilation to prevent internal heat

from building up inside the unit.

RF-RBKIT_10-1157_MAN_V4.fm Page 5 Friday, October 8, 2010 12:53 PM

Proper ventilation

To avoid risk of electric shock and fire, and to prevent damage, locate

the apparatus as follows:

Front: No obstructions and open spacing.

Sides/Top/Back: No obstructions should be placed in the areas shown

by the dimensions below.

Bottom: Place on the level surface. Maintain an adequate air path for

ventilation by placing on a stand with a height of 3-15/16" (10 cm) or

more.

What is Rocketboost™?

Rocketboost™ is expandable wireless digital audio.

• Products with Rocketboost™ technology let you easily expand your

listening experience throughout your home.

• Rocketboost™ does not interfere with other wireless products in your

home.

(15 cm)

5-15/16"

(10 cm)

3-15/16"

(15 cm)

5-15/16"

(15 cm)

5-15/16"

(15 cm)

5-15/16"

Front view

Side view

Receiver ventilation requirements

RF-RBKIT_10-1157_MAN_V4.fm Page 6 Friday, October 8, 2010 12:53 PM

RF-RBKIT

• Rocketboost™ is uncompressed digital audio compatible with all audio

formats such as Dolby® TrueHD, and DTS-HD Master Audio used with

Blu-ray.

When you see the Rocketboost™ logo on any product,

it has been designed to work with other

Rocketboost™ products, no matter who manufactures

them.

How does Rocketboost™ work?

Rocketboost technology can connect all audio devices throughout

your home to form a home audio network.

Rocketboost products include “Senders,” which send or transmit

audio streams, and “Receivers,” which receive the audio. This lets you

listen to music from your Sender in other rooms using your Receiver.

Rocketboost is expandable. Each Rocketboost Receiver can select the

audio from any Sender in your Rocketboost audio network. The

following shows an example Rocketboost network. You can set up

your network to meet your specific needs.

We hope you enjoy your new Rocketboost system. Remember that

it’s designed to grow with your home entertainment needs, and that

it’s easy to add a new device to the network as you expand your

system.

RF-RBREC

(receiver)

RF-RBWS02

(receiver)

RF-RBKIT

(sender)

RF-RBAUX

(sender/receiver)

RF-RBKIT_10-1157_MAN_V4.fm Page 7 Friday, October 8, 2010 12:53 PM

Features

• High-Performance Audio - Uncompressed digital CD-quality sound,

adjustable volume control

• Strong Wireless Signal - 150 ft. wireless range (maximum, line of sight),

great sound, no static, won't interfere with your other wireless products

• Compatible with all Rocketboost products

• Easy to use - Easy to set up

• Support for CD and HD audio signals (including high-definition Dolby®

TrueHD and DTS-HD Master)

• Four channels of wireless audio enables:

• Wireless surround sound for 5.1 channel home theater

• Listening to music throughout your house wirelessly

• Wireless surround sound for 7.1 channel home theater (additional

RF-RBREC required, sold separately)

• Wireless surround sound for 5.1 channel home theater and listening

to music throughout your house wirelessly (additional RF-RBREC

required, sold separately)

Package contents:

The box should contain the following:

Wireless sender AC power adapter

for wireless sender

3.5 mm audio

cables (2)

Cable spool for

wireless receiver

3.5 mm to RCA

adapter cable (2)

(6 in, 0.15 m) for

wireless receiver

AC cable for

wireless receiver

Remote control

User Guide Quick Setup Guide

Wireless receiver

Speaker cable (4)

3 ft. (91.5 cm)

RF-RBKIT_10-1157_MAN_V4.fm Page 8 Friday, October 8, 2010 12:53 PM

RF-RBKIT

Sender front panel

#Feature Description

1Standby

indicator

Turns red when the sender is in standby mode.

Power/Join

button

Press to turn the sender on. Press and hold to initiate joining. Press again to go to

standby mode. When you connect the AC power adapter, the device turns on

automatically.

Power/Join

indicator Lights blue when the HUB STATUS switch is set to DISABLE.

Lights green when the HUB STATUS switch is set to ENABLE.

The indicator will turn solid when it is joined in a network, if the device is not in a

network, the indicator blinks slowly. When the device is put in joining mode, the

indicator blinks rapidly.

4 & 10 HD A/B indicator Lights when the high-definition function is activated.

5 & 9 HD A/B button Press repeatedly to toggle between CD and HD audio link modes for input A and

input B, respectively. When HD is activated, the audio quality is enhanced.

6 & 8 Source A/B

button

Press to enable the source to be transmitted onto the network, and press again to

disable the source. The status is shown on the indicator.

Source A/B

indicator

The indicator is illuminated steadily when a source is being transmitted.

The indicator is off when no source is enabled.

The indicator blinks for a short while when a receiver selects this source to listen to.

239

RF-RBKIT_10-1157_MAN_V4.fm Page 9 Friday, October 8, 2010 12:53 PM

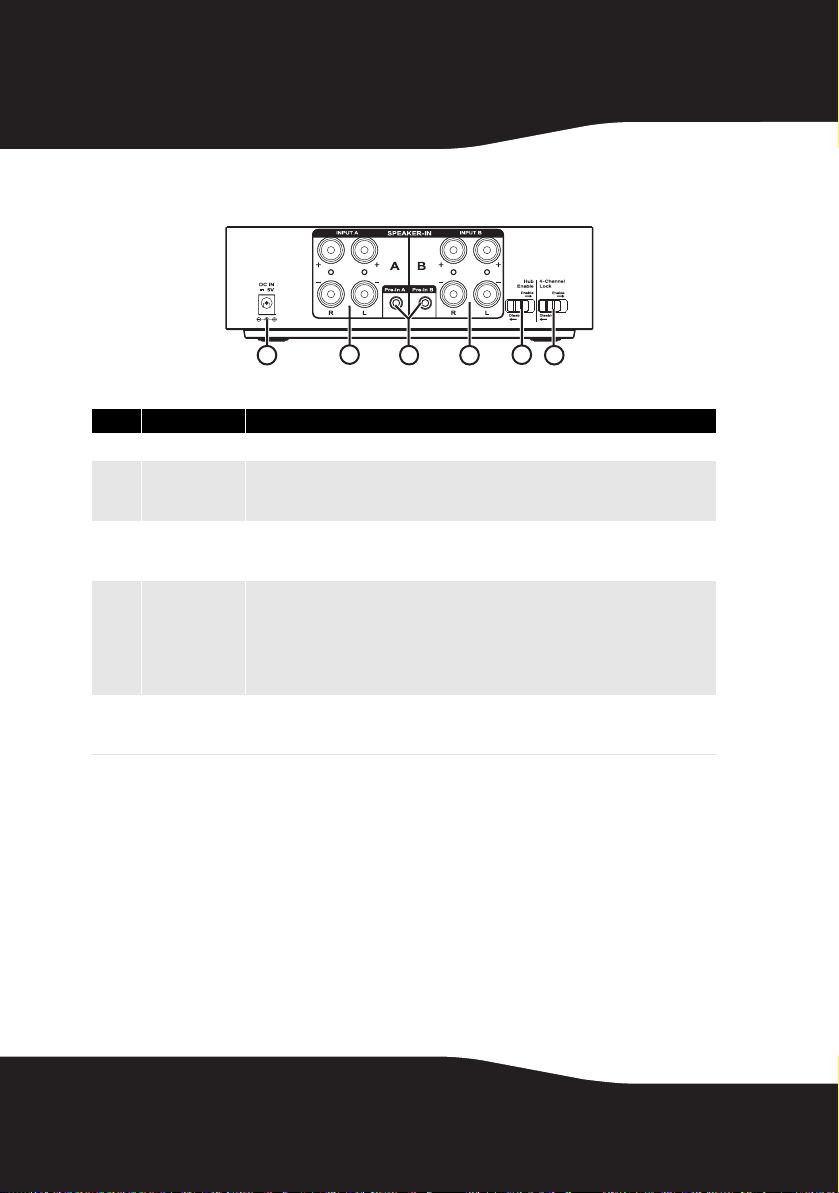

Sender back panel

Note: When four-channel lock is enabled, other Rocketboost receivers in your

network are not able to select the audio source from the four channels. This is by

design, as most people would not want to listen to surround sound audio sources in

other rooms besides the home theater. If you want other receivers to select the four

channel audio source, disable the four-channel lock.

#Feature Description

1DC IN jack Plug the AC power adapter into this jack.

2 & 4 SPEAKER IN A/B

Use for an amplified output such as that from a receiver or other home theater

system. Connect these inputs to your audio source's speaker out jacks just like you

would connect passive speakers.

3Pre-in A/B jack

Use for line level audio applications such as music output from an MP3 player or DVD

player. These devices typically have either a 3.5 mm connector or RCA jacks. Adapters

for both are included in the kit.

5Hub Enable

switch

Set switch to Enable for hub operation. Set switch to Disable to disable hub

operation.

Note: There should be only one hub in a network. Read “Establishing

communication” on page 25 for more information.

Set to Disable if you already have a working Rocketboost network, because a

Rocketboost device is already set as the hub.

64-channel lock

switch

Set to Enable to synchronize the volume levels of inputs A and B, allowing 7.1

surround sound systems to optimize speaker volume levels.

Set to Disable to allow separate control of the volume levels for Inputs A and B.

236

RF-RBKIT_10-1157_MAN_V4.fm Page 10 Friday, October 8, 2010 12:53 PM

Altri manuali per RF-RBKIT

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Rocket Fish Interruttore

Rocket Fish

Rocket Fish RF-CRDRD Manuale di installazione e funzionamento

Rocket Fish

Rocket Fish RF-G1501 Manuale utente

Rocket Fish

Rocket Fish SuperSpeed RF-30HUB7 Manuale utente

Rocket Fish

Rocket Fish RF-NBSKHBB Manuale di istruzioni

Rocket Fish

Rocket Fish RF-WHD200 Manuale utente

Rocket Fish

Rocket Fish RF-G1501 Manuale utente

Rocket Fish

Rocket Fish RF-G1185 Manuale utente

Rocket Fish

Rocket Fish RF-G1185 Manuale utente

Rocket Fish

Rocket Fish RF-CRDRD Manuale utente

Rocket Fish

Rocket Fish RF-GPS31301 Manuale elenco delle parti

Rocket Fish

Rocket Fish RF-G1182 Manuale utente

Rocket Fish

Rocket Fish RF-G1185 Manuale di installazione e funzionamento

Rocket Fish

Rocket Fish RF-GPS3019 Manuale utente

Rocket Fish

Rocket Fish RF-GPS3019 Guida rapida

Rocket Fish

Rocket Fish RF-HDMI4 Manuale utente

Rocket Fish

Rocket Fish RF-GPS31301 Manuale utente

Rocket Fish

Rocket Fish RF-G1185 Manuale elenco delle parti

Rocket Fish

Rocket Fish RF-NBSKHBGR Manuale utente

Rocket Fish

Rocket Fish RF-GPS31301 Manuale di installazione e funzionamento

Rocket Fish

Rocket Fish RF-WHD200 Manuale utente

Rocket Fish

Rocket Fish RF-30HUB7 Manuale utente

Rocket Fish

Rocket Fish RF-HTC4818 Manuale utente

Rocket Fish

Rocket Fish RF-GPS3019 Guida rapida

Rocket Fish

Rocket Fish RF-HDMI4 Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
