Hi!

Let’s get started.

®

What’s in the box

Roku 2 player Roku 2 enhanced

remote

2 x AA

batteries for

remote

A/V cable

(RCA) Power adapter

Headphones

D

E

Get to know your Roku 2

B

C

Front view

Back view

A

Did you notice? Your Roku 2 player has no on/o switch. It’s simpler that way

and draws very little power—less than a nightlight! Keep it plugged in so that

it can download the latest software updates automatically.

E

A/V port – Connects your Roku player to a TV with the included A/V

cable (RCA). Provides standard deﬁnition quality only.

Power port – Connects your Roku player to a 120V AC power source with

the included power adapter.

Reset button – Resets your Roku player to its original factory settings

when pressed and held for 10 seconds (a feature you’ll rarely, if ever, use).

HDMI port – Connects your Roku player to an HDTV with an HDMI cable

(not included).

D

AStatus light – Flashes slowly when the Roku player starts up. Glows when

it’s on. Flashes once with each press of the remote control.

C

B

What you need

Roku player

TV

(HD or standard deﬁnition)

Internet connectionWireless router

A/V cable

(included)

HDMI cable

(sold separately)

OR

What to do Step 1

Ready for the step-by-step? We’ve only got four…

Connect your player

Connect your Roku player to your TV in one of two ways:

High deﬁnition: If you have an HDTV and want the best picture quality, use an

HDMI cable (not included) to make the connection depicted in the diagram below:

Did you know?Because HDMI outputs digital video and audio, you don’t need

a separate audio cable. HDMI also supports 7.1 surround sound (where available).

Got a receiver? You can also use HDMI to route video and audio directly through

your receiver if it supports HDMI video pass-through with audio.

•Connect one end to the HDMI port on the back of your Roku player.

•Connect the other end to an open HDMI port on your TV.

™

What to do Step 1 (continued)

Standard deﬁnition: If you have a standard-deﬁnition TV, do not have an HDMI

cable or do not have a free HDMI port on your TV, use the included A/V cable to

make the connection depicted in the diagram below:

•Connect one end to the composite video and analog audio ports on the back

of your TV (look for Video IN, then match the Yellow/Red/White ports).

•Connect the other end to the A/V port on the back of your Roku player.

What to do Step 2

Power up key components

In this step, we’ll make sure all systems are GO!

First, power your Roku remote by inserting the included batteries:

•Turn the remote control over and locate the rectangular battery door on the

rear of the unit.

•Press the latch at the top of the battery door down while simultaneously

removing the battery door.

•Insert each battery negative (-) side ﬁrst, pushing it into the coil and then into

the compartment. Do NOT insert batteries positive (+) side ﬁrst. Place the

battery door back over the compartment and press it gently down until the

latch snaps securely into place.

Please note: Always replace dead batteries with two brand-new batteries

from the same manufacturer. Never use damaged batteries. If your remote

gets warm/hot during use, discontinue use and contact Roku Customer

Support immediately at support.roku.com

What to do Step 2 (continued)

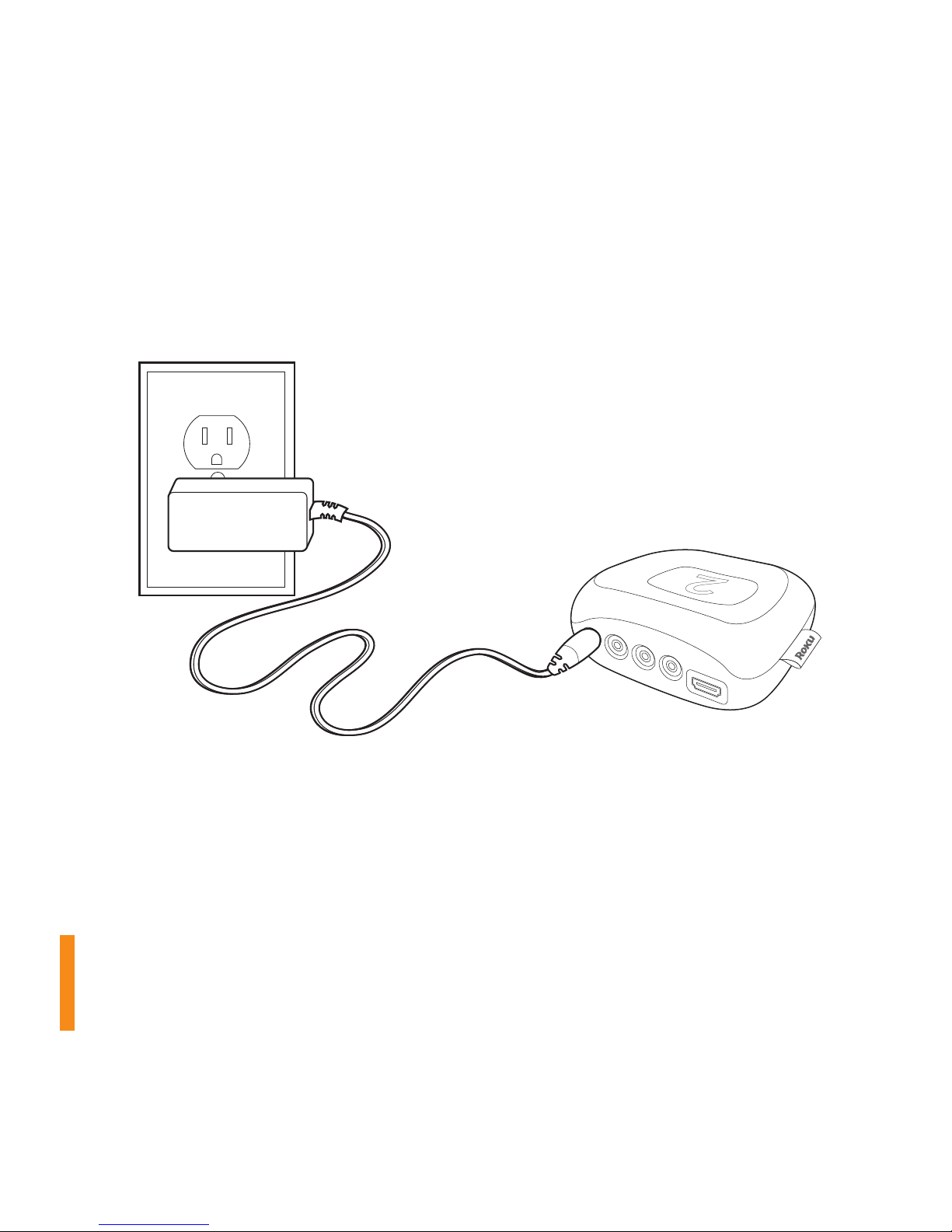

Next, power on your Roku player by connecting it to a wall outlet using the

included power adapter, like this:

Finally, power on your TV and look for a Roku message to ﬁll the screen.

Blank screen? If your TV does not display a Roku screen, make sure your TV

input matches the physical connection used to connect your Roku player. Press

the Input button (also called Source) on your TV or TV remote to cycle through

the various video inputs available until you see a Roku screen.
