Roku XS Manuale utente
Hi!
Let’s get started.
© 2009-2012 by Roku, Inc. All rights reserved. Roku and the Roku logo are registered trademarks of Roku, Inc. Other brand and
product names are trademarks or registered trademarks of their respective holders.
WHAT’S IN THE BOX
Roku player
Enhanced
remote control
2 x AA
batteries for
remote
A/V cable
RCA to 3.5mm Power adapter
G
F
GET TO KNOW YOUR ROKU
B
C
D
H
Front view
Back view
A
E
Power port – Connects your Roku player to a 120V AC power source with
the included power adapter.
H
EA/V port – Connects your Roku player to a TV with the included A/V
cable (3.5mm to RCA). Provides standard definition quality only.
Reset button – Resets your Roku player to its original factory settings
when pressed and held for 10 seconds (a feature you’ll rarely, if ever, use).
G
FEthernet port – Connects your Roku player to a wired network with an
Ethernet cable (not included).
HDMI port – Connects your Roku player to an HDTV with an HDMI cable
(not included).
D
AStatus light – Flashes slowly when the Roku player starts up. Glows when
it’s on. Flashes once with each press of the remote control.
Storage expansion slot – Lets you increase your storage capacity for
Roku apps with a microSD card (optional, not included).
C
BUSB port – Plays your home videos, movies, music and photos from
supported USB drives. For supported file types, visit roku.com/usb.
DID YOU NOTICE? Your Roku player has no on/o switch. It’s simpler that
way and draws very little power—less than a nightlight! Keep it plugged in so
that it can download the latest software updates automatically.
WHAT YOU NEED
Roku player
TV
(HD or standard definition)
High-speed Internet connection
(DSL or cable modem)
Router
A/V cable
(included)
HDMI cable
(sold separately)
OR
PSSST! Your router can be wireless (any Wi-Fi) or wired. For wired networks,
you’ll also need an Ethernet cable (not included).
WHAT TO DO STEP 1
Ready for the step-by-step? We’ve only got four…
CONNECT YOUR PLAYER
Connect your Roku player to your TV in one of two ways:
HIGH DEFINITION: If you have an HDTV and want the best picture quality, use an
HDMI cable (not included) to make the connection depicted in the diagram below:
DID YOU KNOW? Because HDMI outputs digital video and audio, you don’t
need a separate audio cable. HDMI also supports 5.1 surround sound (where
available). GOT A RECEIVER? You can also use HDMI to route video and
audio directly through your receiver if it supports HDMI video pass-through.
• Connect one end to the HDMI port on the back of your Roku player.
• Connect the other end to an open HDMI port on your TV.
WHAT TO DO STEP 1 (CONTINUED)
STANDARD DEFINITION:If you have a standard-definition TV, do not have an
HDMI cable or do not have a free HDMI port on your TV, use the included A/V
cable to make the connection depicted in the diagram below:
• Connect one end to the composite video and analog audio ports on the back
of your TV (look for Video IN, then match the Yellow/Red/White ports).
• Connect the other end to the A/V port on the back of your Roku player.
IT’S SPECIAL. The A/V cable included with your Roku player was custom-built
for Roku. Because the Roku 2 XS is so small, we use a single connector into the
Roku player to carry video and stereo audio.
WHAT TO DO STEP 2
POWER UP KEY COMPONENTS
In this step, we’ll make sure all systems are GO!
First, power your Roku remote by inserting the included batteries:
• Turn the remote control over and locate the rectangular battery door on the
rear of the unit.
• Press the latch at the top of the battery door down while simultaneously
removing the battery door.
• Insert the batteries into their slots, making sure to match the positive (+) and
negative (-) signs.
• Place the battery door back over the compartment and press it gently down
until the latch snaps securely into place.
WHAT TO DO STEP 2 (CONTINUED)

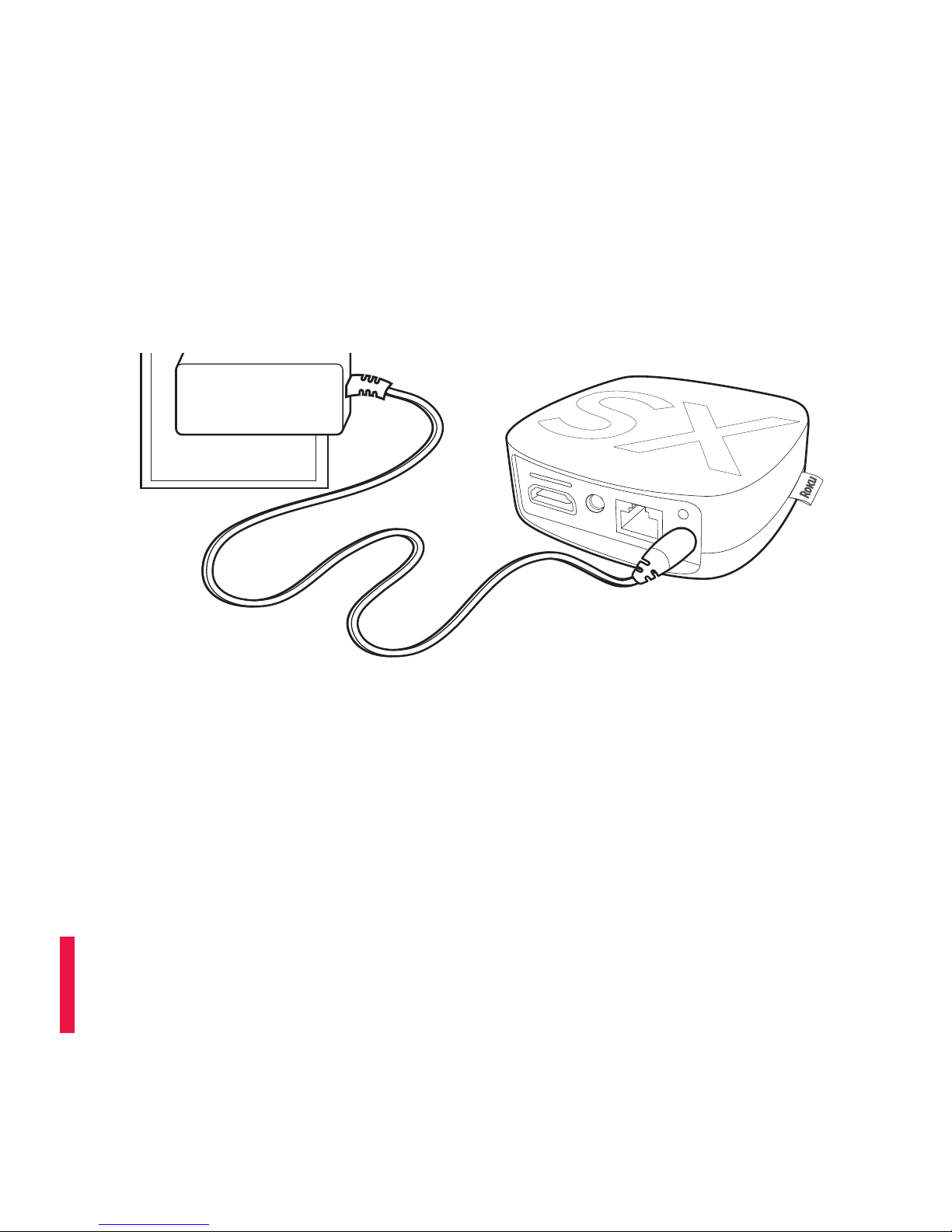

Next, power on your Roku player by connecting it to a wall outlet using the
included power adapter, like this:
Finally, power on your TV and look for a Roku message to fill the screen.
BLANK SCREEN? If your TV does not display a Roku screen, make sure your TV
input matches the physical connection used to connect your Roku player. Press
the Input button (also called Source) on your TV or TV remote to cycle through
the various video inputs available until you see a Roku screen.
