Roku player Scheda tecnica
Hi!
Let’s get started.
What’s in the box
Roku player Remote control
2 x AAA
batteries for
remote
A/V cable
RCA to 3.5mm Power adapter
E
G
F
Get to know your Roku
B
C
D
Front view
Back view
A
Did you notice? Your Roku player has no on/o switch. It’s simpler that way
and draws very little power—less than a nightlight! Keep it plugged in so that
it can download the latest software updates automatically.
EA/V port – Connects your Roku player to a TV with the included A/V
cable (3.5mm to RCA). Provides standard definition quality only.
Power port – Connects your Roku player to a 120V AC power source with
the included power adapter.
GReset button – Resets your Roku player to its original factory settings
when pressed and held for 10 seconds (a feature you’ll rarely, if ever, use).
F
HDMI port – Connects your Roku player to an HDTV with an HDMI cable
(not included).
D
AStatus light – Flashes slowly when the Roku player starts up. Glows when
it’s on. Flashes once with each press of the remote control.
Storage expansion slot – Lets you increase your storage capacity for
Roku apps with a microSD card (optional, not included).
C
BIR receiver – Receives signal from the included Roku remote.

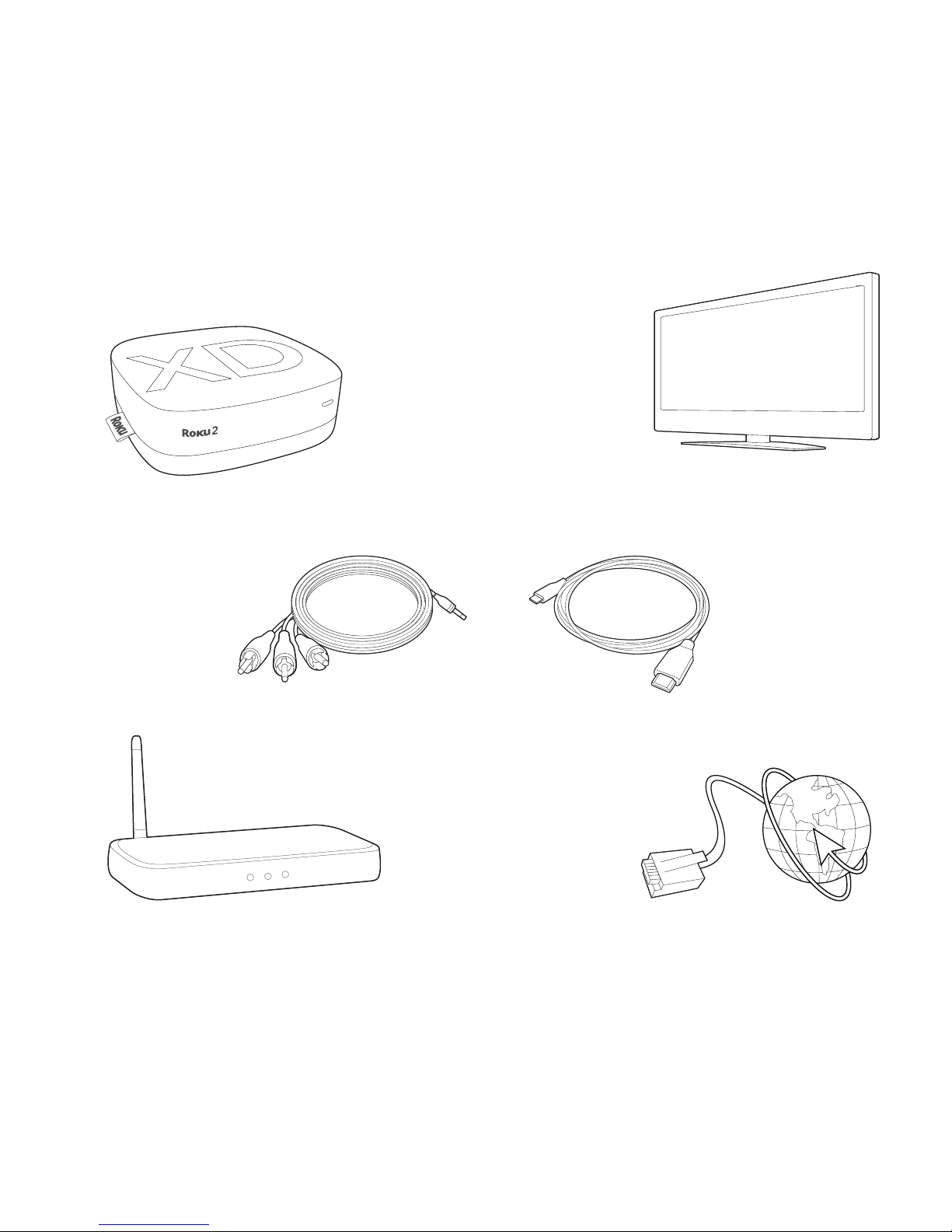

What you need
Roku
player
TV
(HD or standard definition)
High-speed Internet connection
(DSL or cable modem)
Wireless router
(any Wi-Fi)
A/V cable
(included)
HDMI cable
(sold separately)
OR
What to do Step 1
Ready for the step-by-step? We’ve only got four…
Connect your player
Connect your Roku player to your TV in one of two ways:
High definition: If you have an HDTV and want the best picture quality, use an
HDMI cable (not included) to make the connection depicted in the diagram below:
Did you know?Because HDMI outputs digital video and audio, you don’t
need a separate audio cable. HDMI also supports 5.1 surround sound (where
available). Got a receiver? You can also use HDMI to route video and audio
directly through your receiver if it supports HDMI video pass-through.
•Connect one end to the HDMI port on the back of your Roku player.
•Connect the other end to an open HDMI port on your TV.
What To Do Step 1 (continued)

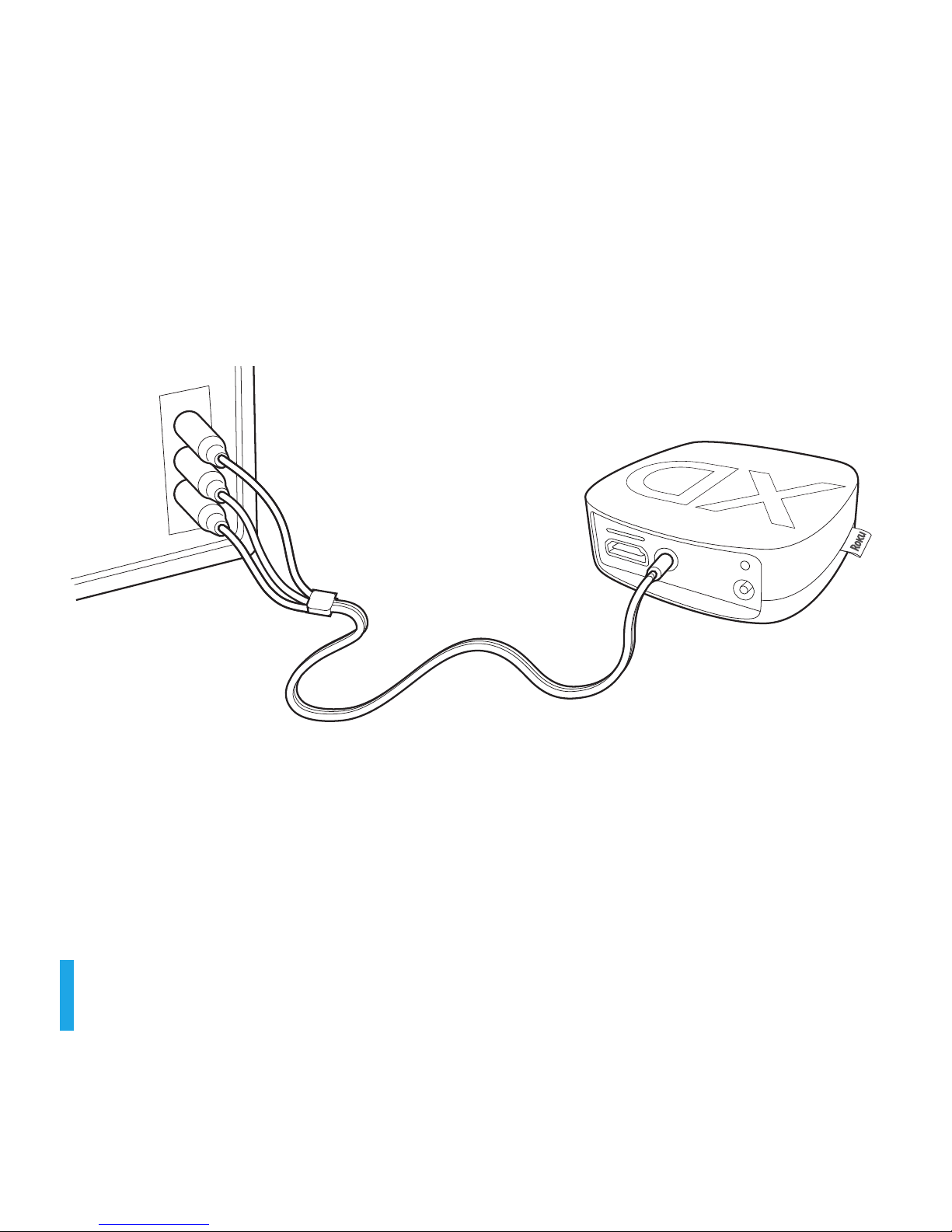

Standard definition: If you have a standard-definition TV, do not have an HDMI
cable or do not have a free HDMI port on your TV, use the included A/V cable to
make the connection depicted in the diagram below:
•Connect one end to the composite video and analog audio ports on the back
of your TV (look for Video IN, then match the Yellow/Red/White ports).
•Connect the other end to the A/V port on the back of your Roku player.
It’s Special. The A/V cable included with your Roku player was custom-built for
Roku. Because the Roku 2 is so small, we use a single connector into the Roku
player to carry video and stereo audio.
What To Do Step 2
Power up key components
In this step, we’ll make sure all systems are GO!

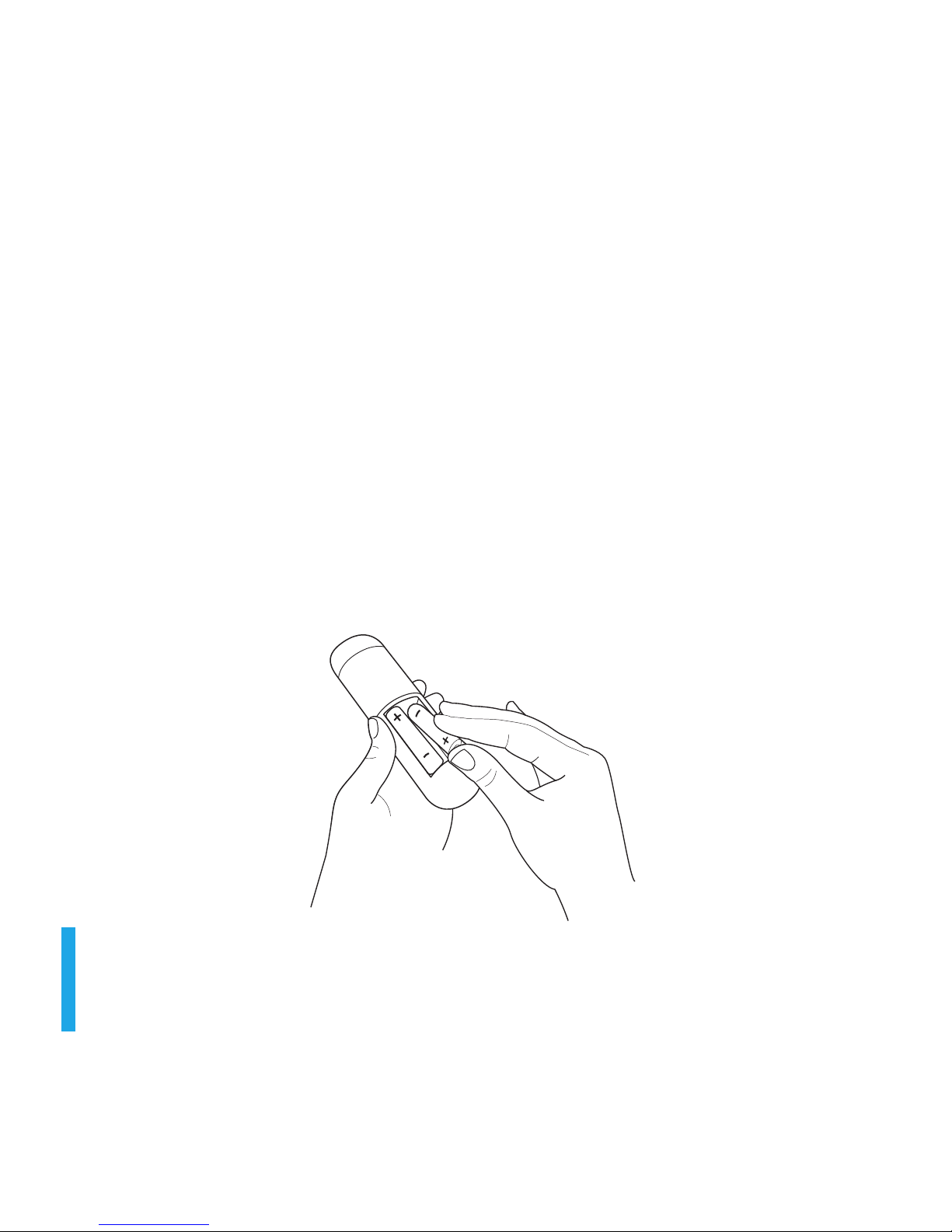

First, power your Roku remote by inserting the included batteries:
•Turn the remote control over and locate the rectangular battery door on the
rear of the unit.
•Press the latch at the top of the battery door down while simultaneously
removing the battery door.
•Insert each battery negative (-) side first, pushing it into the coil and then into
the compartment. Do NOT insert batteries positive (+) side first. Place the
battery door back over the compartment and press it gently down until the
latch snaps securely into place.
Power Tip! Always replace dead batteries with two brand-new batteries from
the same manufacturer. Never use damaged batteries. If your remote gets
warm/hot during use, discontinue use and contact Roku Customer Support
immediately at support.Roku.com
What to do Step 2 (continued)
Next, power on your Roku player by connecting it to a wall outlet using the
included power adapter, like this:
Finally, power on your TV and look for a Roku message to fill the screen.
Blank screen? If your TV does not display a Roku screen, make sure your TV
input matches the physical connection used to connect your Roku player. Press
the Input button (also called Source) on your TV or TV remote to cycle through
the various video inputs available until you see a Roku screen.
