Thank you for choosing this product, an excellent in-

dustrial computer board.

Based on the innovative Intel®Q67 chipsets for op-

timal system efciency, the board accommodates

the Intel®Core™i7 / i5 / i3 or Celeron® processor in

Socket 1155 and supports 4 DDR3 1066/1333 DIMM

slots to provide the maximum of 32GB memory ca-

pacity.

In the entry-level and mid-range market segment,

the product provides a high-performance solution for

today’s front-end and general purpose workstation, as

well as in the future.

Chapter 1

Overview

1-2

Overview

▍

Mainboard SpecificationS

CPU Intel®Core™i7 / i5 / i3 or Celeron®processor in

Socket 1155

■

Chipset Intel®Q67 Chipset■

Memory 2 unbuffered DDR3 1066/1333 DIMM slots

Supports the maximum of 32GB

■

LAN Intel®82579LM Gigabit Fast Ethernet controller

Intel®82574L Gigabit Fast Ethernet controller

■

SATA 4 SATA 3Gb/s ports

2 SATA 6Gb/s ports

■

USB 3.0 2 USB 3.0 ports (back panel)*

*Each port can provide 500mA output.

■

Audio Chip integrated by Realtek® ALC887

Supports 7.1 channels audio out

Compliant with Azalia 1.0 Spec

■

Graphics Onboard graphics integrated in Intel®2D/3D Graph-

ics controller

■

1-3

ROSCH-Q67-FVISA

Back

Panel I/O

& Connec-

tors/Pin-

headers

Back Panel I/O

2 COM ports

1 DVI-I port

1 Display port

10 USB 2.0 ports*

2 USB 3.0 ports*

2 Gigabit LAN jacks

*Each port can provide 500mA output.

■-

Onboard Connectors/Pinheaders

2 USB 2.0 pinheaders (4 ports)*

1 parallel port connector

4 serial port connectors

1 front panel pinheader

1 front panel audio pinheader

1 chassis intrusion connector

1 S/PDIF-in connector

1 LVDS connector

1 amplier pinheader

2 COM port power jumper

1 LVDS power jumper

*Each port can provide 500mA output.

■-

Slot 1 PCI Express x 16 slot

1 PCI Express x 4 slot

1 PCI Express x 1 slot

2 32-bit 33/66MHz 3.3v PCI slots

3 ISA slots

■

Form Fac-

tor

ATX: 24.5cm x 30.5cm■

1-4

Overview

▍

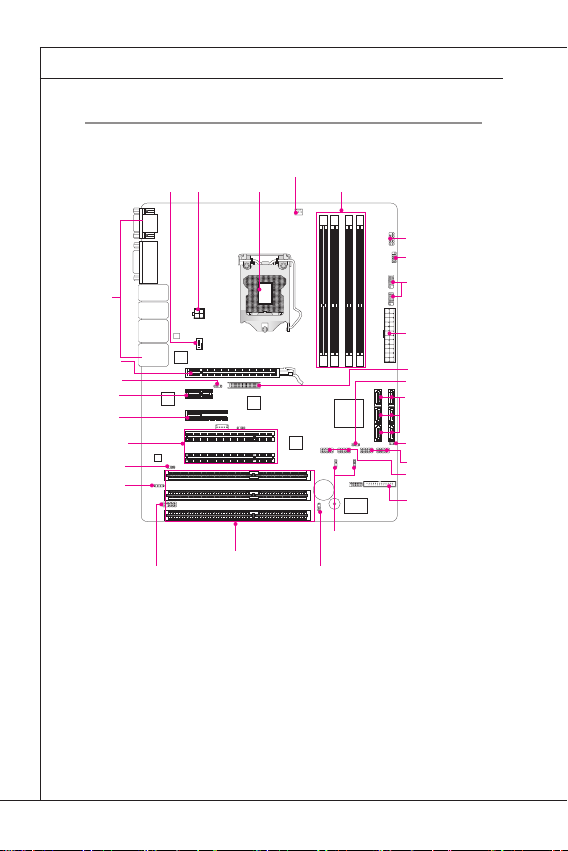

Mainboard Layout

Power

Connector

Serial Port Power

Connectors

LVDS Connector

SATA Connectors

DIMM Slots

Back Panel

Front Panel

Connector

CPU Fan

Connector

USB Connectors

Chassis Intrusion Connector

LVDS Power

Connector

Clear CMOS Jumper

Parallel Port Connector

System Fan

Connector

ISA Slots

CPU

Audio power

amplier

Connector

J4 Connector

Power

Connector

Serial Port Connectors

Front Panel Audio

Connector

S/PDIF-In

Connector

PCI Slots

PCIE x16 Slot

PCIE x4 Slot

PCIE x1 Slot

Serial Port

Connectors

ME Connector
