ROSE DISPLAYS ANOKIOSK-STACKABLE Manuale utente

The AnoKiosk™ is a trademark of Rose Displays, Ltd. Neither the

manufacturer nor any sales agent may be held liable for injury, loss or

damage resulting from the use of these products. Part

#02INAnoKioskRigidStackable

Incept-09.20.02

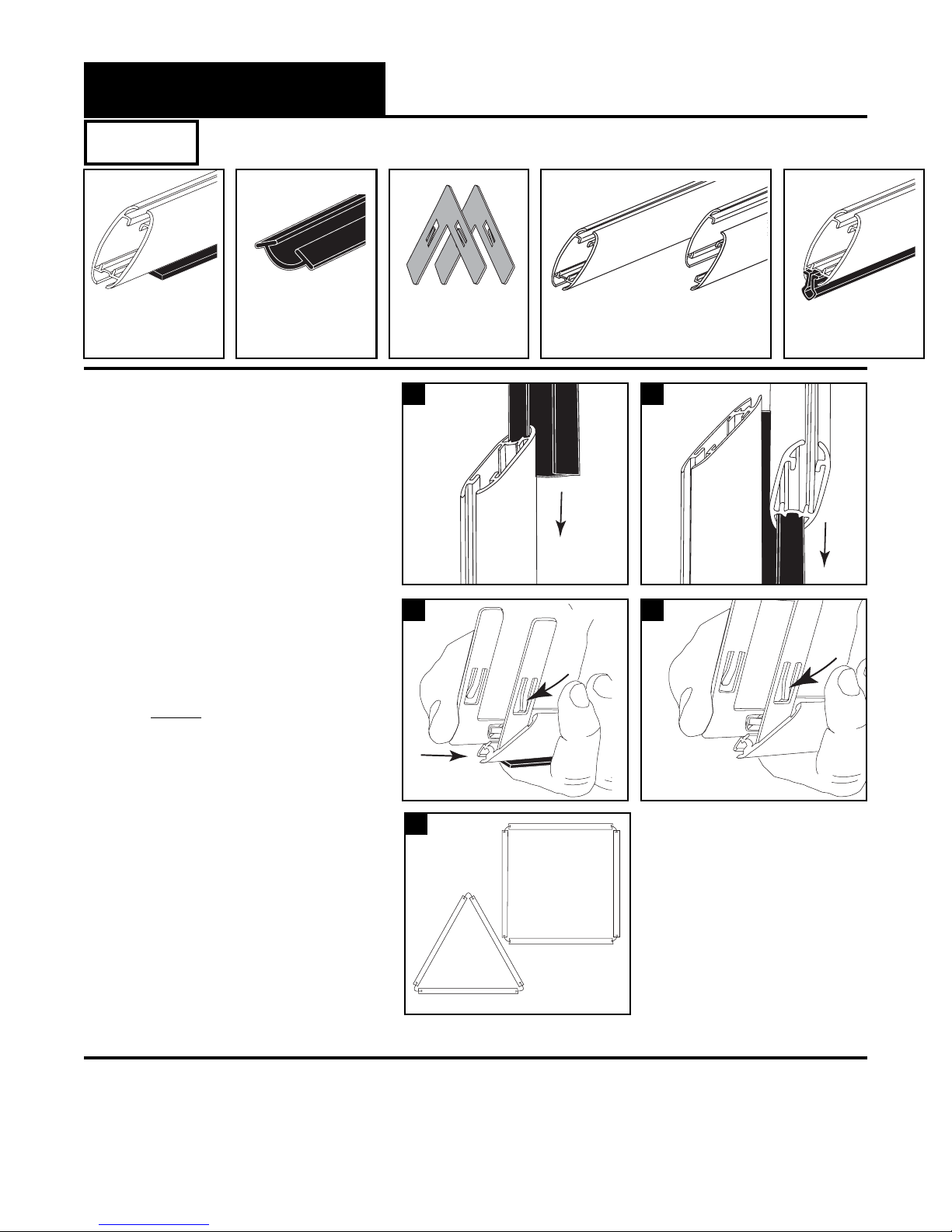

Instruction Sheet

Note:

We recommended that two people

assemble this kiosk.

Step 1a

Slide spine into vertical rail.

Step 1b

Slide another vertical rail onto the

other edge of spine. Repeat for all

vertical rails and spines.

Step 2

Carefully insert corner brackets into

ends of bottom rails, using thumb as

shown in illustration. Two brackets

per end of each rail. Bracket can

bend if forced.

Detail- It is important that the corner

bracket tension tab faces toward

outside of frame. (2b)

Step 3

Lay out parts as they will be configured

on the floor.

Note: One kiosk will have Base Rail

other(s) will have stacker bar.

AnoKiosk™

Instructions for Assembly

Kiosk spine Corner brackets

Parts

Single rails Split rails

(Continued on other side)

2a 2b

1a 1b

35 Congress Street, Salem, MA 01970

Tel# 1- 800 631-9707 Fax# 1-800-560-2890

e-mail:signware@rosedisplays.com

Bottom Rails

with Base Rail

3-Way

4-Way

Bottom Rails

with Stacker Bar

The AnoKiosk™ is a trademark of Rose Displays, Ltd. Neither the

manufacturer nor any sales agent may be held liable for injury, loss or

damage resulting from the use of these products. Part

#02INAnoKioskRigidStackable

Incept-09.20.02

Instruction Sheet (side 2)

Instructions for Assembly continued

AnoKiosk™

35 Congress Street, Salem, MA 01970

Tel# 1- 800 631-9707 Fax# 1-800-560-2890

e-mail:signware@rosedisplays.com

Step 4

Assemble the vertical rail assem-

blies onto the upward facing

corner brackets already inserted

into the bottom rails. All four

brackets should go into the

vertical rails at one time.

Note: (4 way only) The last

vertical rail will be tensioned.

This is normal.

Step 5

Insert corner brackets into ends

of split rails, 1 per end. Use thumb

as shown in illustration.

Step 6

Assemble split rails onto top ends

of vertical rails, one inside and

one outside of each side of the

AnoKiosk.

Step 7

Insert graphics into kiosk

with Base Rails.

Step 8

Place kiosk with stacker bar on

top of first kiosk. Line up stacker

bar with split rails on lower kiosk

and snap together.

Step 9

Load graphics into upper kiosk.

Step 10

If there are more kiosks to be

stacked repeat steps 8 and 9.

Figure 8 Figure 9

The AnoKiosk™ is a trademark of Rose Displays, Ltd. Neither the

manufacturer nor any sales agent may be held liable for injury, loss or

damage resulting from the use of these products. Part

#02INAnoKioskRigidStackable

Incept-09.20.02

Instruction Sheet

Note:

We recommended that two people

assemble this kiosk.

Step 1a

Slide spine into vertical rail.

Step 1b

Slide another vertical rail onto the

other edge of spine. Repeat for all

vertical rails and spines.

Step 2

Carefully insert corner brackets into

ends of bottom rails, using thumb as

shown in illustration. Two brackets

per end of each rail. Bracket can

bend if forced.

Detail- It is important that the corner

bracket tension tab faces toward

outside of frame. (2b)

Step 3

Lay out parts as they will be configured

on the floor.

Note: One kiosk will have Base Rail

other(s) will have stacker bar.

AnoKiosk™

Instructions for Assembly

Kiosk spine Corner brackets

Parts

Single rails Split rails

(Continued on other side)

2a 2b

1a 1b

Bottom Rails

with Base Rail

3-Way

4-Way

Bottom Rails

with Stacker Bar

The AnoKiosk™ is a trademark of Rose Displays, Ltd. Neither the

manufacturer nor any sales agent may be held liable for injury, loss or

damage resulting from the use of these products. Part

#02INAnoKioskRigidStackable

Incept-09.20.02

Instruction Sheet (side 2)

Instructions for Assembly continued

AnoKiosk™

35 Congress Street, Salem, MA 01970

Tel# 1- 800 631-9707 Fax# 1-800-560-2890

e-mail:signware@rosedisplays.com

Step 4

Assemble the vertical rail assem-

blies onto the upward facing

corner brackets already inserted

into the bottom rails. All four

brackets should go into the

vertical rails at one time.

Note: (4 way only) The last

vertical rail will be tensioned.

This is normal.

Step 5

Insert corner brackets into ends

of split rails, 1 per end. Use thumb

as shown in illustration.

Step 6

Assemble split rails onto top ends

of vertical rails, one inside and

one outside of each side of the

AnoKiosk.

Step 7

Insert graphics into kiosk

with Base Rails.

Step 8

Place kiosk with stacker bar on

top of first kiosk. Line up stacker

bar with split rails on lower kiosk

and snap together.

Step 9

Load graphics into upper kiosk.

Step 10

If there are more kiosks to be

stacked repeat steps 8 and 9.

Figure 8 Figure 9
