ROSE DISPLAYS QUICKGRIP WITH CABLE CLIP AND LOOP AND... Manuale utente

35 Congress Street, Salem, MA 01970

Tel# 1- 800-631-9707 Fax# 1-800-560-2890

e-mail:signware@rosedisplays.com

Parts

Instructions for Hanging

Instruction Sheet

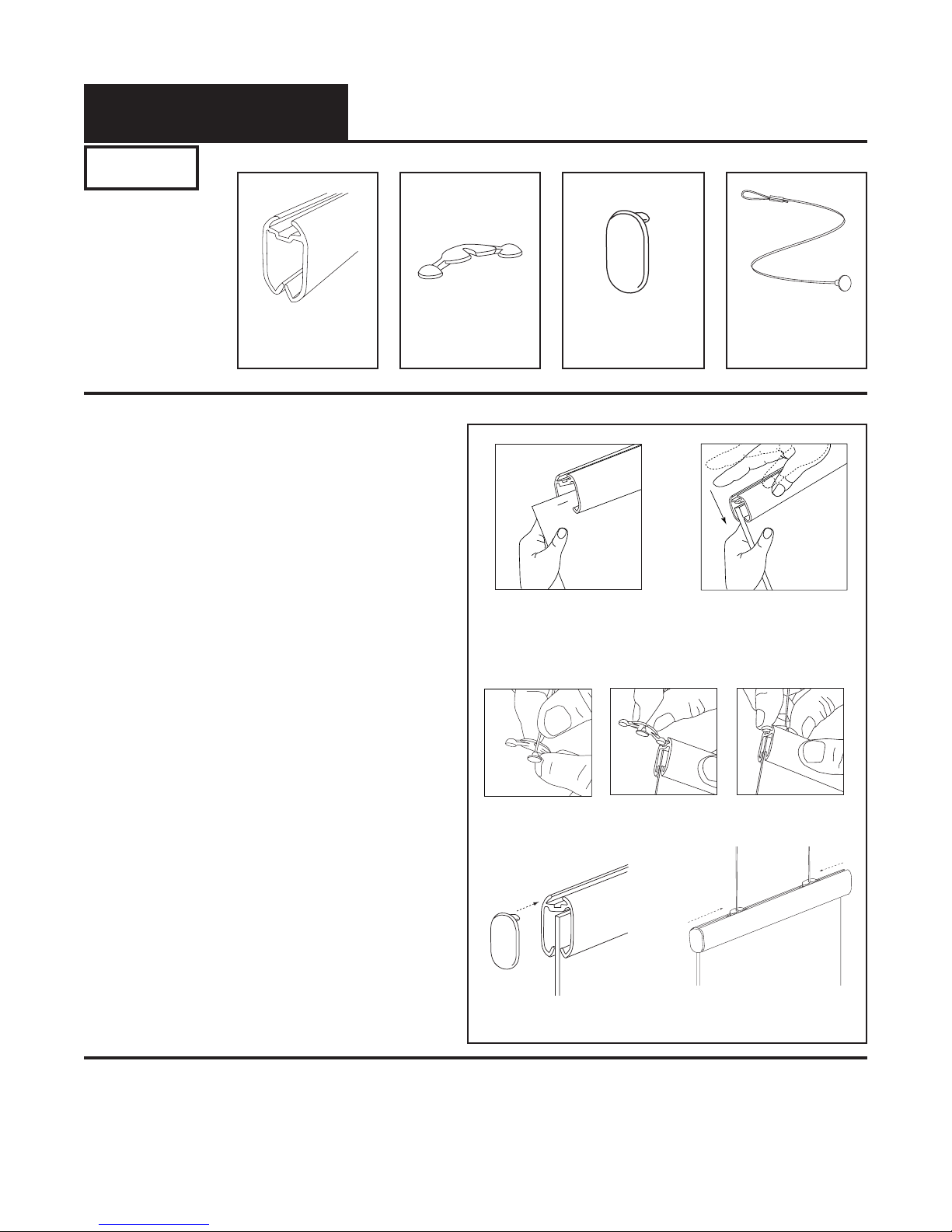

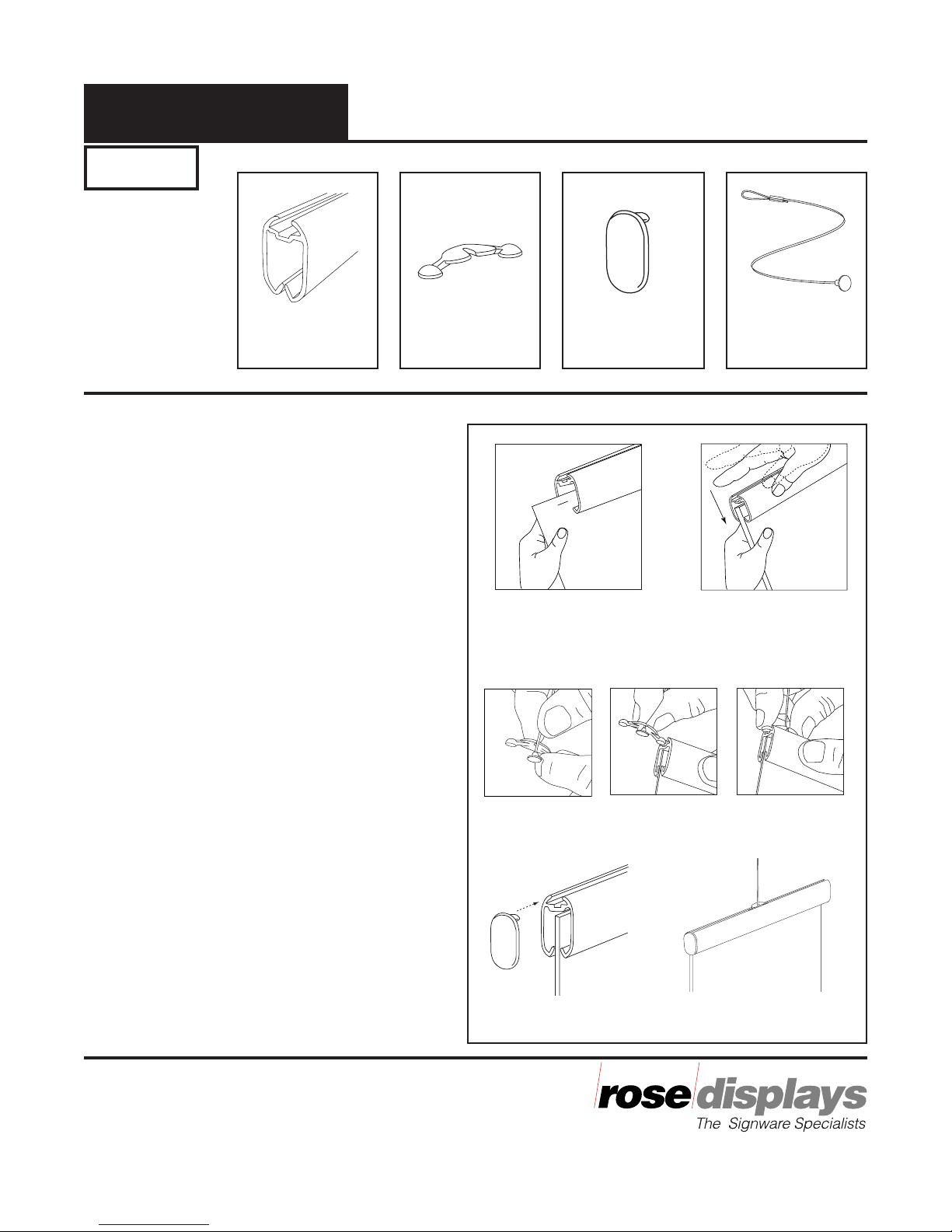

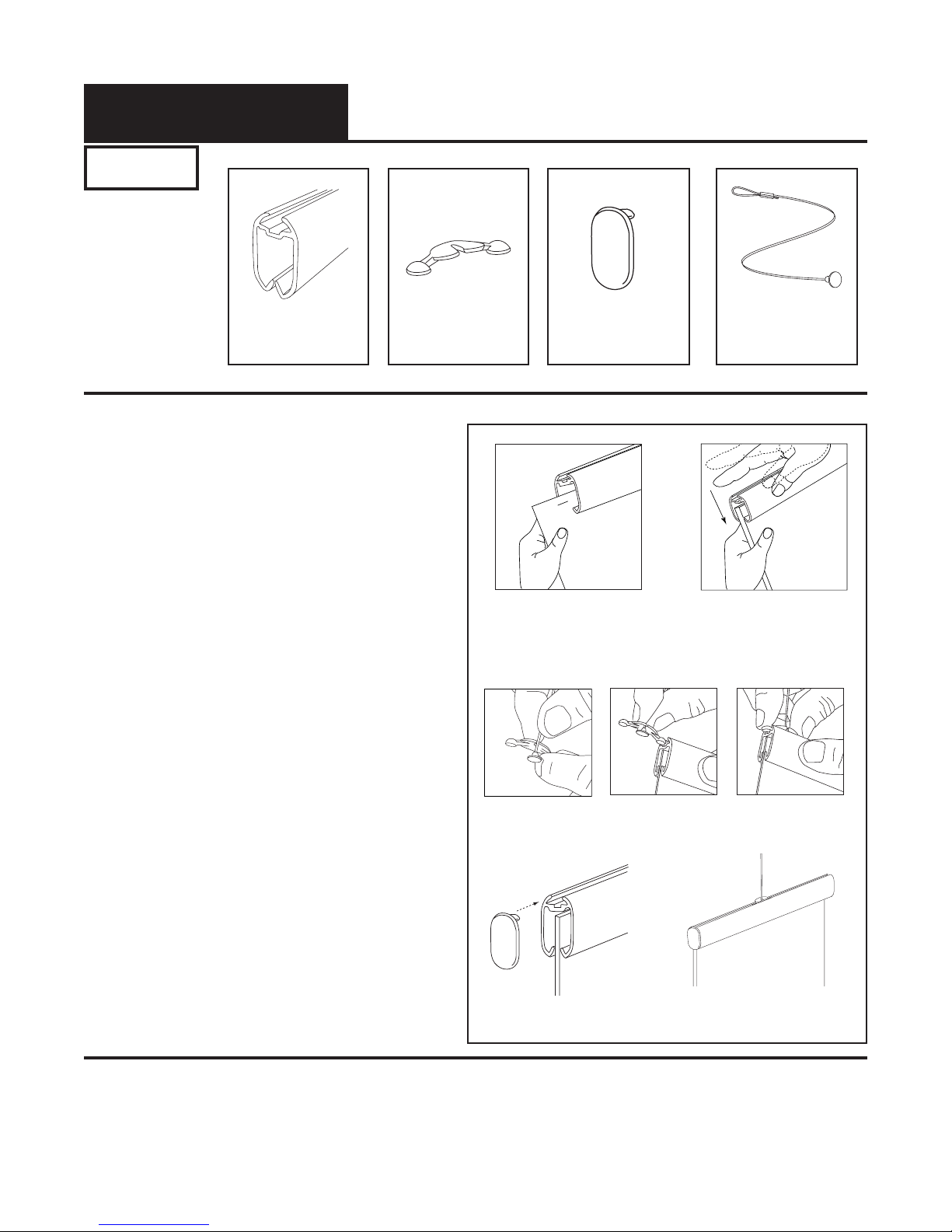

Step 1

For use with poster paper or thinner substrates.

Score and fold or staple poster edge and slide

into the QuickGrip Holder. When using staples,

place staples 1/4” from top and bottom edges of

poster. Fig. 1

For use with thicker graphics up to 2mm.

Starting at one corner push the QuickGrip

Holder onto the graphic. Work your way down

the holder tapping it firmly down to seat the

graphic fully. Fig. 2

Step 2

Place cable into inner channel of CableClip.

The cable should snap into place. Fig. 3

Step 3

Align one end of the CableClip with the top

channel of the plastic holder. Then insert one

round end, press down on the other round end

and slide CableClip into rail. Fig. 4 Repeat step

3 for second CableClip.

Step 4

Push end caps into place. Fig. 5

Suspend poster. Fig. 6

Important note:

Please save and reuse the QuickGrip

Holder, End Caps and CableClips

for future projects.

End Caps

06-5525

QuickGrip™

Incept-11.13.02

The QuickGrip is a registered trademark of Rose Displays, Ltd. Neither the

manufacturer nor any sales agent may be held liable for injury, loss or damage

resulting from the use of these products. Part #02INSQuickGCCLoop
