Ruijie RG-S5300-E Series Switches

Hardware Installation and Reference Guide

Document Version: V1.0

Date: 2022.05.19

All rights are reserved in this document and this statement.

Any reproduction, excerption, backup, modification, transmission, translation or commercial use of this document

or any portion of this document, in any form or by any means, without the prior written consent of Ruijie Networks

is prohibited.

Trademark and are owned by Ruijie Networks.

All other trademarks or registered trademarks mentioned in this document are owned by their respective owners.

Disclaimer

The products, services, or features you purchase are subject to commercial contracts and terms. Some or all of

the products, services or features described in this document may not be within the scope of your purchase or

use. Unless otherwise agreed in the contract, Ruijie Networks does not make any express or implied statement

or guarantee for the content of this document.

Due to product version upgrades or other reasons, the content of this document will be updated from time to

time. Ruijie Networks reserves the right to modify the content of the document without any notice or prompt.

This manual is for reference only. Ruijie Networks endeavors to ensure content accuracy and will not shoulder

any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.

Preface

Intended Audience

This document is intended for:

Network engineers

Technical support and servicing engineers

Network administrators

Technical Support

Ruijie Networks Website: https://www.ruijienetworks.com/

Technical Support Website: https://ruijienetworks.com/support

Case Portal: https://caseportal.ruijienetworks.com

Community: https://community.ruijienetworks.com

Technical Support Email: [email protected]

Skype: [email protected]

Conventions

1. Conversions

Convention

Description

Bold font

Commands, command options, and keywords are in bold font.

Italic font

Arguments for which you supply values are in italic font.

[ ]

Elements in square brackets are optional.

{ x | y | z }

Alternative keywords are grouped in braces and separated by vertical

bars.

[ x | y | z ]

Optional alternative keywords are grouped in brackets and separated

by vertical bars.

&<1-n>

The argument before the sign (&) can be input for consecutive 1- n

times.

Double slashes at the beginning of a line of code indicate a comment

line.

2. Signs

The signs used in this document are described as follows:

Warning

An alert that calls attention to important rules and information that if not understood or followed can result in

data loss or equipment damage.

Caution

An alert that calls attention to essential information that if not understood or followed can result in function

failure or performance degradation.

Note

An alert that contains additional or supplementary information that if not understood or followed will not lead to

serious consequences.

Specification

An alert that contains a description of product or version support.

3. Note

The manual offers configuration information (including model, port type and command line interface) for indicative

purpose only. In case of any discrepancy or inconsistency between the manual and the actual version, the actual

version prevails.

Hardware Installation and Reference Guide Product Overview

1 Product Overview

The RG-S5300-E series switches are new generation layer 3 switches, providing high performance, consolidated security

and multiple services. The switches are mainly applied to the access layer to provide line-rate switching and complete QoS

policies, prioritizing some traffic over others to ensure important data transmission without lantency. The switches also

support a wide variety of Ethernet interfaces with flexible media options for network construction.

There are 4 models available now.

Model

10/100/1000Base-T

Adaptive Ethernet

Port

SFP

Port

10GE

SFP+

Port

Management

Port

USB

Port

Console

Port

RPS

RG-S5300-24GT4XS-E

N/A

Fixed

Power

Supply

RG-S5300-48GT4XS-E

N/A

Fixed

Power

Supply

RG-S5310-24GT4XS-P-

24 (PoE+ Capable)

N/A

Dual

Power

Supplies

RG-S5310-48GT4XS-P-

48 (PoE+ Capable)

N/A

Dual

Power

Supplies

This is a Class A product. In a domestic environment this product may cause radio interference. In this case, users are

advised to take proper measures against the interference.

An SFP+ port supports both 10GBase-R and 1000Base-X.

The PoE+ port is backward compatible with the PoE standard.

Management port: The management port is a 10/100/1000Base-T Ethernet port that uses an RJ-45 connector. This

port is connected to an Ethernet port of a PC with an Ethernet cable for program downloading. You can manage and

maintain the switch remotely by connecting the management port to the Ethernet port of a PC with an Ethernet cable.

USB port: The USB port is the interface into which you plug your USB storage device for online upgrade or log storage.

Console port: The console port is an RS-232 port that uses an RJ45 connector. The console port is used to connect a

PC directly to the management system for debugging, configuration, maintenance, management and program loading.

1.1 RG-S5300-24GT4XS-E

Specifications

Model

RG-S5300-24GT4XS-E

CPU

Dual-core CPU with the clock speed of 1.2 GHz

Hardware Installation and Reference Guide Product Overview

BOOTROM

16 MB

Flash Memory

2 GB

SDRAM

1 GB

SFP Module Type

SFP+ Port:

SFP Modules and SFP BIDI Modules

SFP+ Modules, SFP+ Cables and SFP+ BIDI Modules.

See Chapter 7 for details.

The module types may update without prior notification. Please contact Ruijie Networks

for details.

Built-in Power Supply

AC Input

Rated Voltage Range: 100 V AC to 240 V AC

Maximum Voltage Range: 90 V AC to 264 V AC

Frequency: 50 Hz/60 Hz

Rated Current Per Circuit: 1.5 A

SFP+ Port

10GBase-R Capable

1000Base-X Capable

RTC

Supported

PoE

Not supported

Power Consumption

< 40 W

Operating

Temperature

0ºC to 45ºC (32ºF to 113 ºF ) at a height below 1800 m (1.12 miles) above the sea level

At a height ranging from 1800 m (1.12 miles) to 5000 m (3.11 miles) above the sea level, the

maximum operating temperature decreases by 1°C (1.8°F) every time the altitude increases

by 220 m (721.78 ft.).

Storage Temperature

-40ºC to 70ºC (-40ºF to 158ºF )

Operating Humidity

10% to 90% RH (non-condensing)

Operating Height

0 to 5000 m (3.11 miles) above the sea level

Storage Humidity

5% to 95% RH (non-condensing)

Fan

Fan Speed Control

Fan Fault Alarming

Temperature

Alarming

Supported

EMI Certification

GB9254-2008CLASS A

Safety Regulation

Compliance

GB4943-2011

Dimensions

(W x D x H)

442 mm x 220 mm x 43.6 mm (17.40 in. x 8.66 in. x 1.72 in.)

Weight

2.7 kg (5.95 lbs.)

Appearance

The front panel of the RG-S5300-24GT4XS-E switch provides 24 10/100/1000Base-T Ethernet ports, four 10GE SFP+ ports,

one management port, one Console port and one USB port. The back panel has an AC power plug.

Hardware Installation and Reference Guide Product Overview

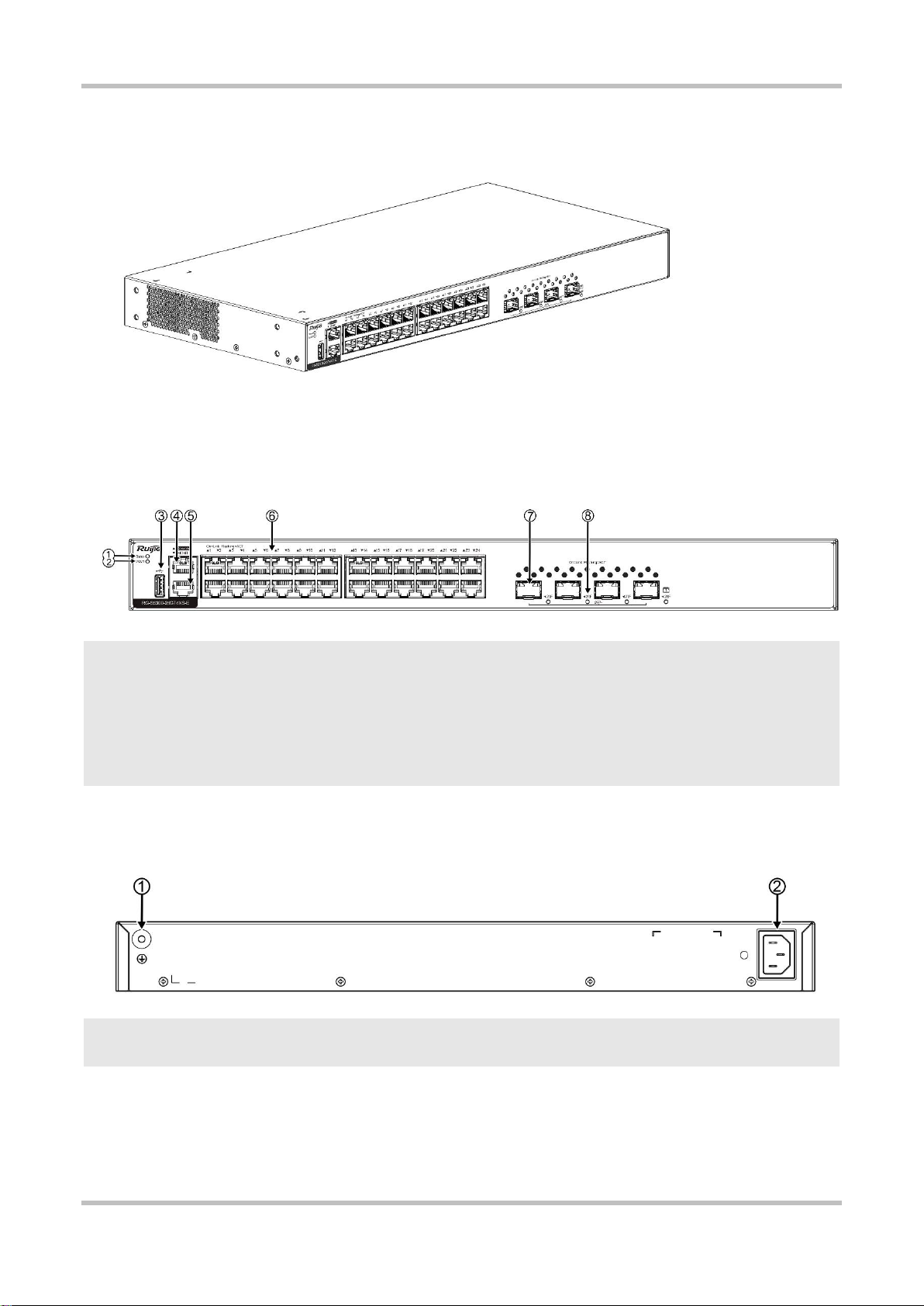

Figure 1-1 RG-S5300-24GT4XS-E Switch Appearance

Front Panel

Figure 1-2 Front Panel of RG-S5300-24GT4XS-E

1. System Status LED

2. Management Port LED

3. USB Port

4. Console Port

5. Management Port

6. 10/100/1000Base-T Ethernet Port

7. 10GE SFP+ Port

8. Port LED

Back Panel

Figure1-3 Back Panel of RG-S5300-24GT4XS-E

1. Grounding Stud

2. AC Power Plug

Power Supply

The RG-S5300-24GT4XS-E switch has a built-in power supply module. The back panel has an an AC power plug.

Cooling

Hardware Installation and Reference Guide Product Overview

The RG-S5300-24GT4XS-E switch adopts a left-to-right and front-to-right airflow to ensure normal operation. Maintain a

minimum clearance of 100 mm (3.94 in.) around the device for air circulation.

Figure 1-4 Airflow Direction

LED

Function

Panel ID

Color

Status

System Status LED

Status

Off

System is not powered on.

Blinking Green

(3 Hz)

System is being initialized. Continuous blinking

indicates a fault.

Blinking Green

(10 Hz)

System is being located.

Solid Green

System is operating normally.

Solid Yellow

The temperature at the air intake and exhaust

vents exceeds the threshold.

Solid Red

1. The temperature at the air intake and exhaust

vents well exceeds the threshold.

2. The system is not functioning properly.

Management Port LED

MGMT

Off

No link is detected for this port.

Solid Green

The port has made a successful 1000 Mbps link.

Blinking Green

The port is sending and receiving traffic at 1000

Mbps.

Solid Yellow

The port has made a successful 10/100 Mbps link.

Blinking Yellow

The port is sending and receiving traffic at 10/100

Mbps.

10GE SFP+ Port LED

25F to 28F

Off

No link is detected for this port.

Solid Green

The port has made a successful 1/10 Gbps link.

Blinking Green

The port is sending and receiving traffic at 1/10

Gbps.

10/100/1000Base-T

Ethernet Port LED

1F to 24F

Off

No link is detected for this port.

Solid Green

The port has made a successful 10/100/1000

Mbps link.

Blinking Green

The port is sending and receiving traffic at

10/100/1000 Mbps.

Hardware Installation and Reference Guide Product Overview

1.2 RG-S5300-48GT4XS-E

Specifications

Model

RG-S5300-48GT4XS-E

CPU

Dual-core CPU with the clock speed of 1.2 GHz

BOOTROM

16 MB

Flash Memory

2 GB

SDRAM

1 GB

SFP Module Type

SFP+ Port:

SFP Modules and SFP BIDI Modules

SFP+ Modules, SFP+ Cables and SFP+ BIDI Modules.

See Chapter 7 for details.

The module types may update without prior notification. Please contact Ruijie Networks

for details.

Built-in Power Supply

AC Input

Rated Voltage Range: 100 V AC to 240 V AC

Maximum Voltage Range: 90 V AC to 264 V AC

Frequency: 50 Hz/60 Hz

Rated Current Per Circuit: 2 A

SFP+ Port

10GBase-R Capable

1000Base-X Capable

RTC

Supported

PoE

Not Supported

Power Consumption

< 55 W

Operating

Temperature

0ºC to 45ºC (32ºF to 113 ºF ) at a height below 1800 m (1.12 miles) above the sea level

At a height ranging from 1800 m (1.12 miles) to 5000 m (3.11 miles) above the sea level, the

maximum operating temperature decreases by 1°C (1.8°F) every time the altitude increases

by 220 m (721.78 ft.).

Storage Temperature

-40ºC to 70ºC (-40ºF to 158ºF )

Operating Humidity

10% to 90% RH (non-condensing)

Operating Height

0 to 5000 m (3.11 miles) above the sea level

Storage Humidity

5% to 95% RH (non-condensing)

Fan

Fan Speed Control

Fan Fault Alarming

Temperature

Alarming

Supported

EMI Certification

GB9254-2008CLASS A

Safety Regulation

Compliance

GB4943-2011

Hardware Installation and Reference Guide Product Overview

Dimensions

(W x D x H)

442 mm x 220 mm x 43.6 mm (17.40 in. x 8.66 in. x 1.72 in.)

Weight

3 kg (6.61 lbs.)

Appearance

The front panel of the RG-S5300-48GT4XS-E switch provides 48 10/100/1000Base-T Ethernet ports, four 10GE SFP+ ports,

one management port, one Console port and one USB port. The back panel has an AC power plug.

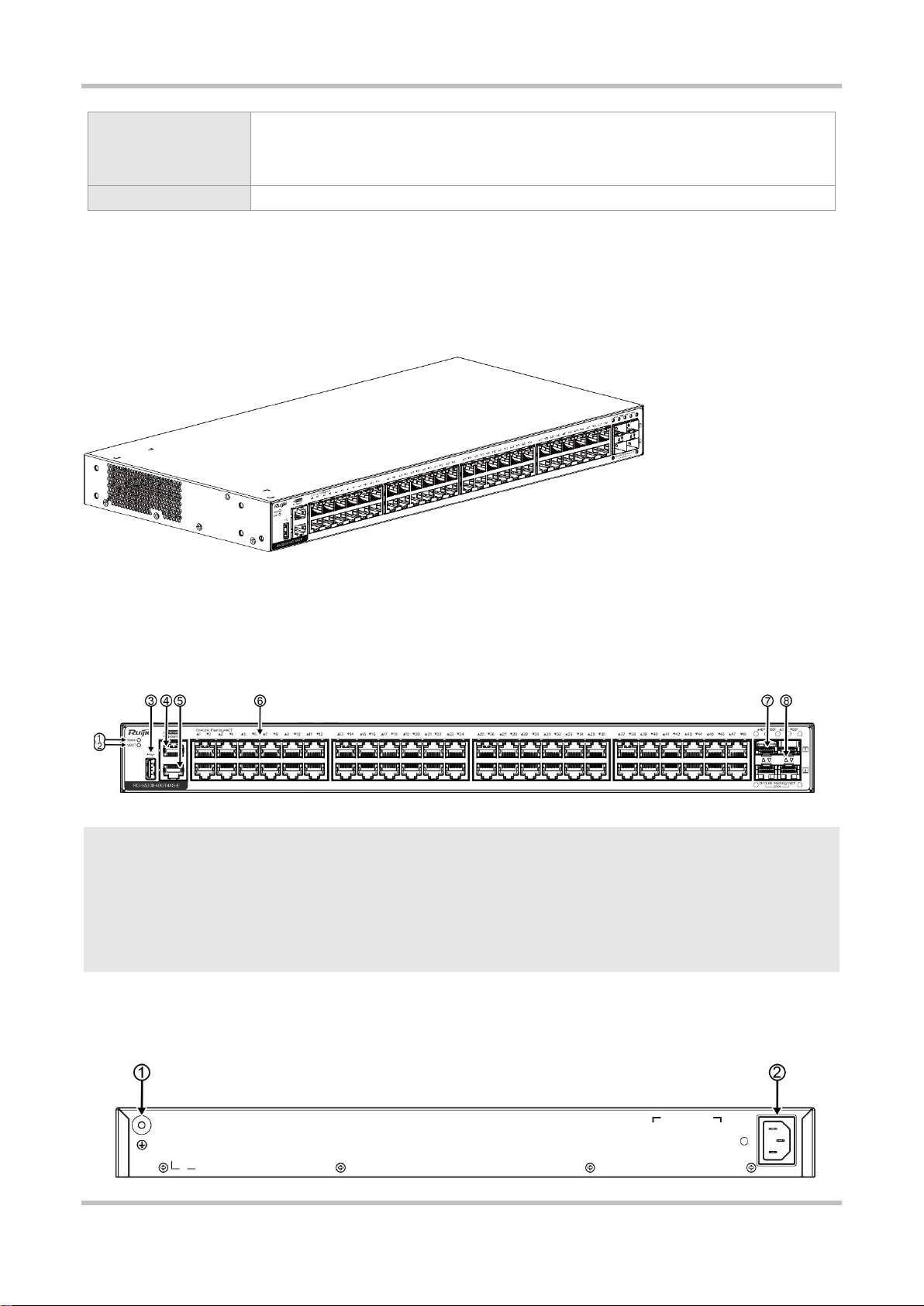

Figure 1-5 RG-S5300-48GT4XS-E Switch Appearance

Front Panel

Figure 1-6 Front Panel of RG-S5300-48GT4XS-E

1. System Status LED

2. Management Port LED

3. USB Port

4. Console Port

5. Management Port

6. 10/100/1000Base-T Ethernet Port

7. 10GE SFP+ Port

8. Port LED

Back Panel

Figure 1-7 Back Panel of RG-S5300-48GT4XS-E

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Ruijie Interruttore

Ruijie

Ruijie Reyee RG-NBS7003 Manuale di installazione e funzionamento

Ruijie

Ruijie RG-NIS3100 Series Manuale di installazione e funzionamento

Ruijie

Ruijie RG-S6150-X Series Come usare

Ruijie

Ruijie Reyee RG-NBS5200-48GT4XS-UP Manuale di installazione e funzionamento

Ruijie

Ruijie S8600E Series Istruzioni operative

Ruijie

Ruijie RG-ES08 Manuale utente

Ruijie

Ruijie RG-S6520 Series Manuale di installazione e funzionamento

Ruijie

Ruijie RG-ES05 Series Manuale utente

Ruijie

Ruijie RG-N18000-E Series Manuale di installazione e funzionamento

Ruijie

Ruijie Reyee RG-NBS7006 Manuale di installazione e funzionamento

Ruijie

Ruijie RG-S5760C-X Series Manuale di installazione e funzionamento

Ruijie

Ruijie RG-S6580-48CQ8QC Manuale di installazione e funzionamento

Ruijie

Ruijie RG-S6920-4C Series Manuale di installazione e funzionamento

Ruijie

Ruijie RG-CS85 Series Manuale di installazione e funzionamento

Ruijie

Ruijie RG-S2915-L Series Manuale di installazione e funzionamento

Ruijie

Ruijie Reyee RG-ES Series Manuale utente

Ruijie

Ruijie RG-S6580-24DC8QC Manuale di installazione e funzionamento

Ruijie

Ruijie RG-S3250E Series Manuale utente

Ruijie

Ruijie RG-S6580-48CQ8QC Manuale di installazione e funzionamento

Ruijie

Ruijie RG-S1808 Manuale di installazione e funzionamento

Ruijie

Ruijie Reyee RG-ES106D-P V2 Manuale di installazione e funzionamento

Ruijie

Ruijie RG-ES109DS Manuale utente

Ruijie

Ruijie Reyee RG-NBS5100-24GT4SFP-P Manuale di installazione e funzionamento

Ruijie

Ruijie RG-S6980-64QC Manuale di installazione e funzionamento

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente

Cabletron Systems

Cabletron Systems GIGAswitch GSR-16 Manuale utente
