Ruijie RG-AP110-L Manuale utente

Package Contents

1 Wireless Access Point

2 Faceplate Cover

3 Cross-head Screw

4 This Quick Start Guide

Before You Begin

Before you begin the installation, make sure that you have the following tools:

Common Tools

Phillips screwdriver, related copper and fiber cables, bolts, diagonal pliers, cable ties

Special Tools

Wire stripper, crimping pliers, RJ-45 crimping pliers, punch down tool

Meter

Multimeter, bit error rate tester (BERT)

The listed tools are customer supplied.

LED and Reset Button

LED/Button

Frequency

Meaning

System

(Blue)

Fast blinking (2.5Hz)

Initialization is in progress.

Solid

AP is operational and CAPWAP connection is established. No client

is associated.

Double blinking (1Hz)

Ethernet link is down.

Single blinking (1Hz)

Ethernet link is up. No CAPWAP connection is established.

Slow blinking (0.4Hz )

AP is operational and CAPWAP connection is established. At least

one client is associated.

Reset Button

Pressed for less than 1s

Restarts the device.

Pressed for more than 5s

Restores all default settings.

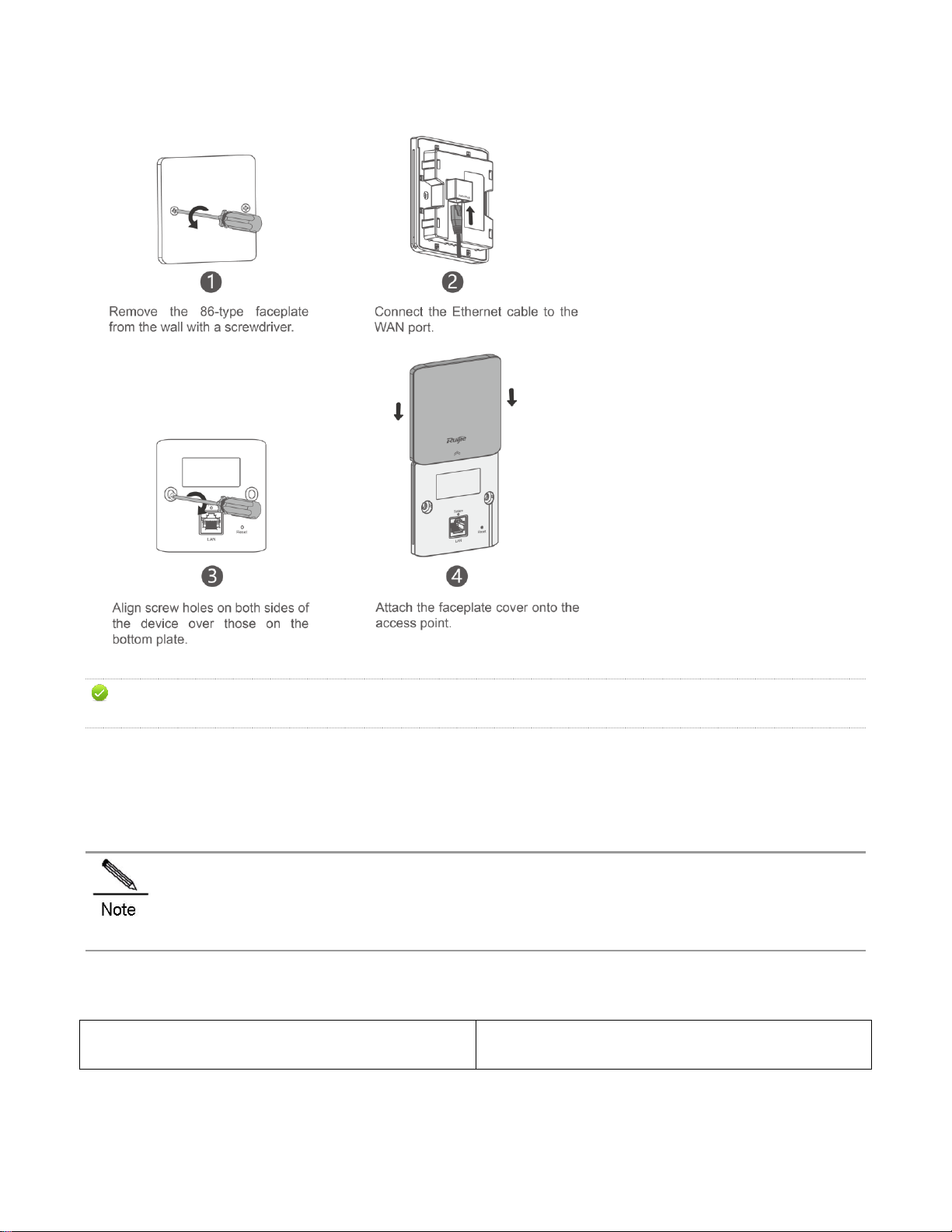

Mounting the Access Point

You need to buy the RG-AP100-MNT mounting bracket, if you mount the AP on an outlet box compliant with US or EU

standards.

Powering the Access Point

The access point supports two power supply modes. The following examples illustrate how to power on and connect to the

access point.

The device is not equipped with the power module upon delivery. You can select an appropriate power supply

mode based on the deployment requirements.

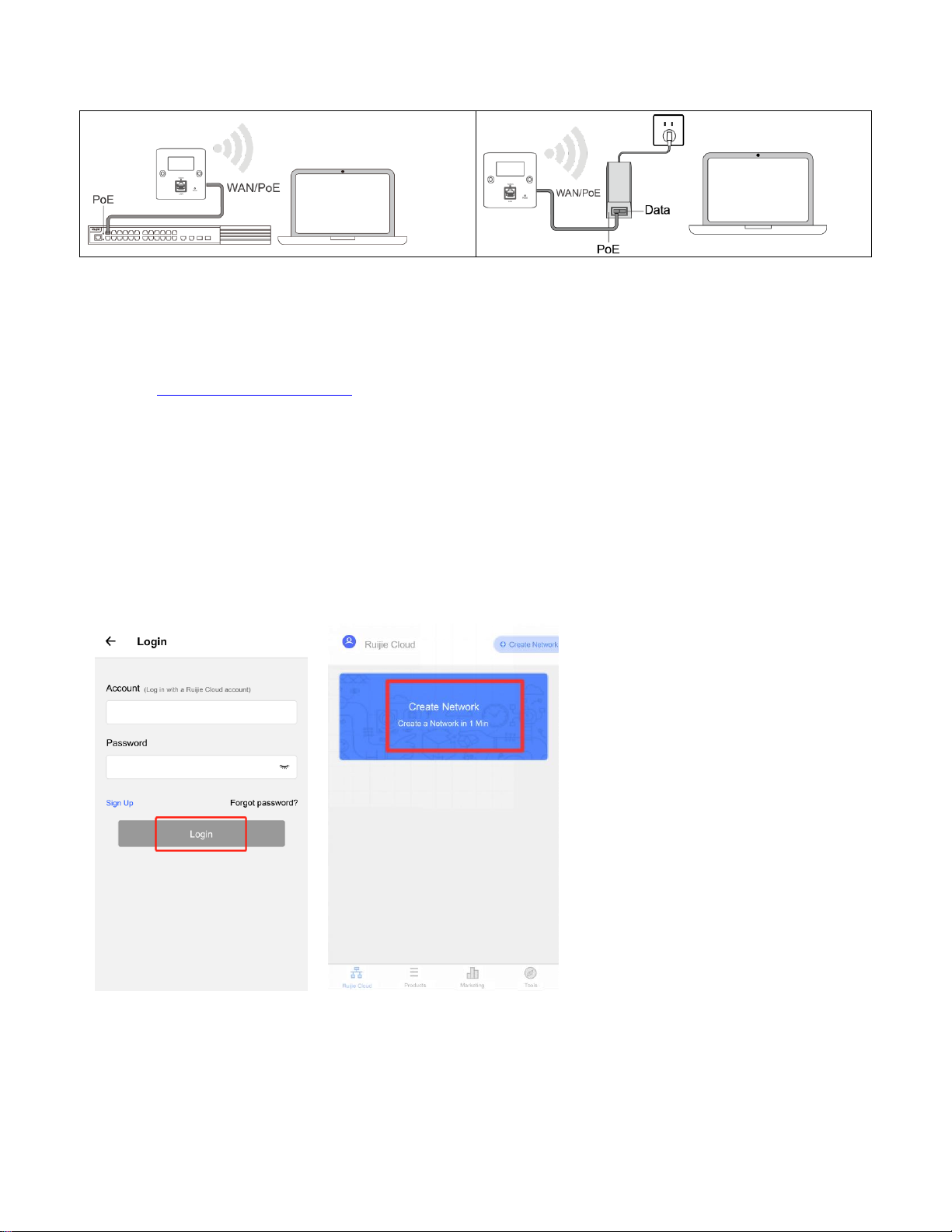

Option1. PoE Switch Power Supply Connection

(Recommended)

Option2. PoE Injector Power Supply Connection

Configuring the Access Point

Part1: Sign up your Ruijie Cloud account

Step1-1: If you do not have a Ruijie Cloud account, you can register on Ruijie Cloud App (download in Google Play) or

on https://cloud.ruijienetworks.com.

Step1-2: Tap Sign Up to register an account.

Step1-3: Fill out the form (valid Email address verification required). After registering an account, you can log in

immediately.

Part2: Set up your access point

Step2-1: Power on the access point, and make sure that the access point can obtain an IP from the DHCP server/ISP

modem.

Step2-2: Log in to Ruijie Cloud App.

Step2-3: Tap Create Network to create a new network and set an SSID.

Step2-4: Select the network you created, and tap Add Device >Scan QR-code to add the access point into the

network (QR code on the rear of the access point).

Step2-5: Now you can connect to the WiFi and log in to Ruijie Cloud (https://cloud.ruijienetworks.com) to complete

advanced configuration.

For more information, please scan the QR code or visit https://ruijienetworks.com/support/documents/wireless.

Obtaining Technical Assistance

◼Ruijie Networks Website: https://www.ruijienetworks.com/

◼Technical Support Website: https://ruijienetworks.com/support

◼Case Portal: https://case.ruijienetworks.com

◼Community: http://community.ruijienetworks.com

◼Technical Support Email: [email protected]

◼Skype: [email protected]

For further information, please visit our website: http://www.ruijienetworks.com.
