Ruijie RG-EAP602 Series Manuale di installazione e funzionamento

Ruijie RG-EAP602 Series Access Points

Hardware Installation and Reference Guide

Ruijie Networks reserves all copyrights of this document. Any reproduction, excerption, backup, modification,

transmission, translation or commercial use of this document or any portion of this document, in any form or by any means,

without the prior written consent of Ruijie Networks is prohibited.

Exemption statement

This document is provided “as is”. The contents of this document are subject to change without any notice. Please obtain

the latest information through the Ruijie Networks website. Ruijie Networks endeavors to ensure content accuracy and will

not shoulder any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.

Preface

Thank you for using our products. This manual will guide you through the installation of the access point.

Scope

It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it

is assumed that the users are already familiar with the related terms and concepts.

Obtaining Technical Assistance

Ruijie Networks Website: https://www.ruijienetworks.com/

Technical Support Website: https://ruijienetworks.com/support

Case Portal: https://caseportal.ruijienetworks.com

Community: https://community.ruijienetworks.com

Technical Support Email: [email protected]

Skype: [email protected]

Related Documents

Documents

Description

Configuration Guide

Describes network protocols and related mechanisms that supported by the

product, with configuration examples.

Command Reference

Describes the related configuration commands, including command modes,

parameter descriptions, usage guides, and related examples.

Documentation Conventions

The symbols used in this document are described as below:

This symbol brings your attention to some helpful suggestions and references.

This symbol means that you must be extremely careful not to do some things that may damage the device or cause

data loss.

Hardware Installation and Reference Guide Product Overview

1 Product Overview

The RG-EAP602, adhering to the latest 802.11ac Wave2 standard, delivers up to 866Mbps@5G + [email protected]

access rate. EAP602 supports security, radio frequency (RF) control, mobile access, Quality of Service (QoS) and

seamless roaming. Teaming up with Ruijie RG-WS Wireless Controller Series, wireless data forwarding, high

performance security and access control can be accomplished with ease. EAP602 supports PoE to take over challenges

in a wide variety of deployment scenarios, including large-scaled campuses, enterprises, hospitals and WIFI hotspots.

1.1 Technical Specifications

Table 1-1 RG-EAP602 Technical Specifications

Model

RG-EAP602

Dimensions

222 mm ×200 mm ×166 mm

Access Rate

Built-in antenna:1166Mbps

2.4GHz: up to 300Mbp

5GHz: up to 866Mbps

Operating

Frequency

802.11b/g/n: 2.4 GHz to 2.483 GHz

802.11a/n/ac: 5.150 GHz to 5.350 GHz, 5.47 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz

(Country-Specific)

Maximum Transmit

Power

500mW

Antenna Type

Built-in omnidirectional antenna

Antenna Gain

2.4 GHz: 3 dBi

5 GHz: 4 dBi

Coverage Angle

2.4G: E:30°; H:360°

5G: E:30°; H:360°

Ports

One 10/100/1000 Base-T uplink Ethernet port

One 10/100/1000 Base-T Ethernet port

FIT/FAT Mode

Not support

LED

System and port status indicators

PoE Power Supply

IEEE 802.3af

Power Consumption

Maximum: 12.95W

Temperature

Operating: -40°C to 65°C (-40°F to 149°F)

Storage: -40°C to 85°C (-40°F to 185°F)

Humidity

Operating: 0% to 100% (non-condensing)

Storage: 0% to 100% (non-condensing)

IP Rating

IP68

Weight

< 1kg (host)

Safety Standards

GB4943

EN60601-1-2

UL/CSA 60950-1

EN/IEC 60950-1

Hardware Installation and Reference Guide Product Overview

EN/IEC 60950-22

EMC Standards

GB9254-2008

EN301 489

EN 55022

FCC Part15

RSS-210

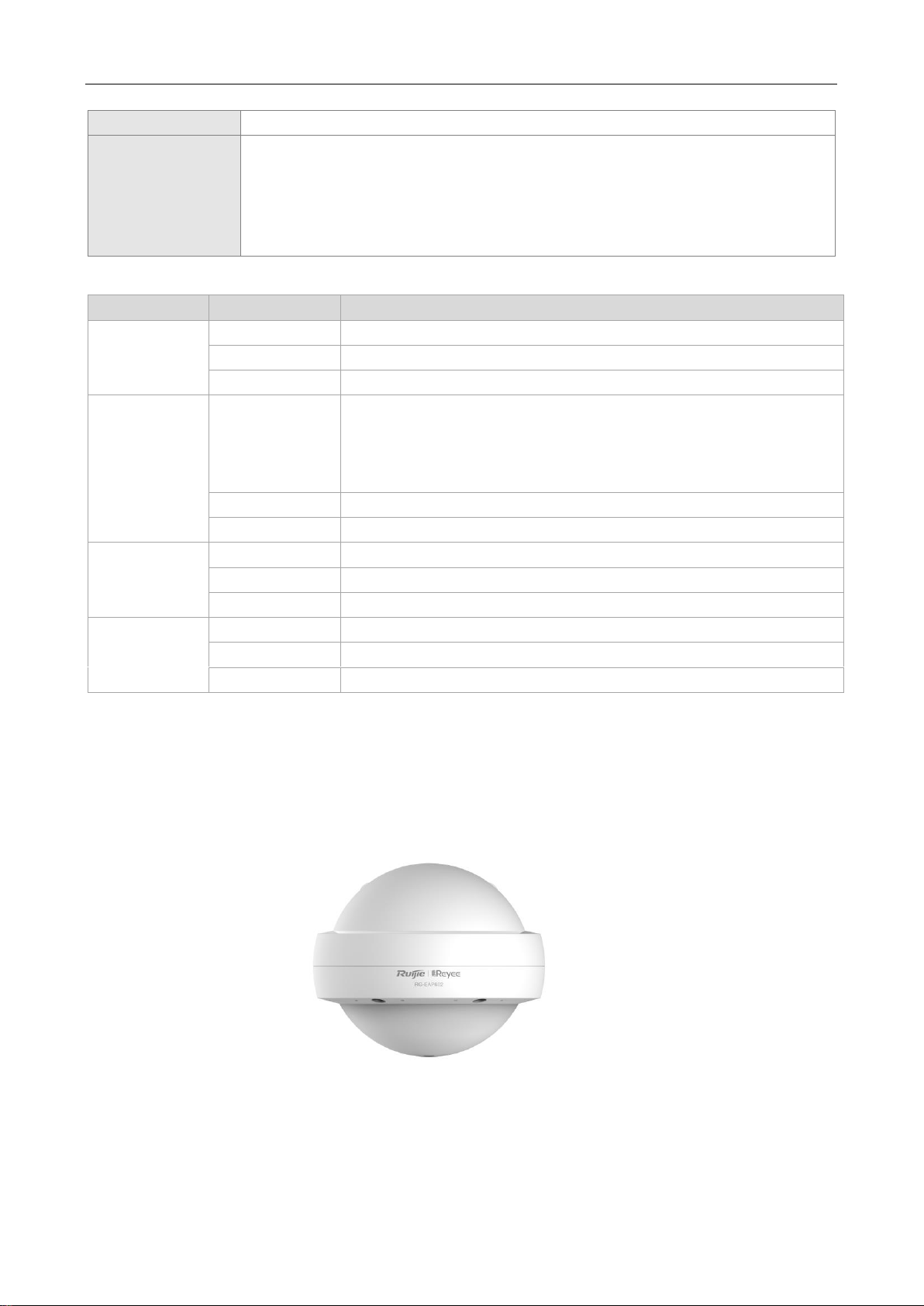

Table 1-2 LEDs of RG-EAP602

Indicator

Status

Meaning

WiFi (Blue)

Blinking

Data is transmitted by WiFi.

Solid on

WiFi is enabled and no data is transmitted.

Off

WiFi is disabled.

WARN(Red)

Blinking

Initialization: blinking at a rate of 1Hz (on for 505ms and off for 505ms).

Restore factory settings: blinking at a rate of 14Hz (on for 20ms and off for

50ms).

System upgrade: blinking at a rate of 10Hz (on for 40ms and off for 60ms).

Solid on

CWMP is not connected.

Off

Powered off or initialization test is normal.

LAN 1(Blue)

Blinking

The port is up and data is transmitted.

Solid on

The port is up and no data is transmitted.

Off

The port is not connected.

LAN 2(Blue)

Blinking

The port is up and data is transmitted.

Solid on

The port is up and no data is transmitted.

Off

The port is not connected.

1.2 Product Appearance

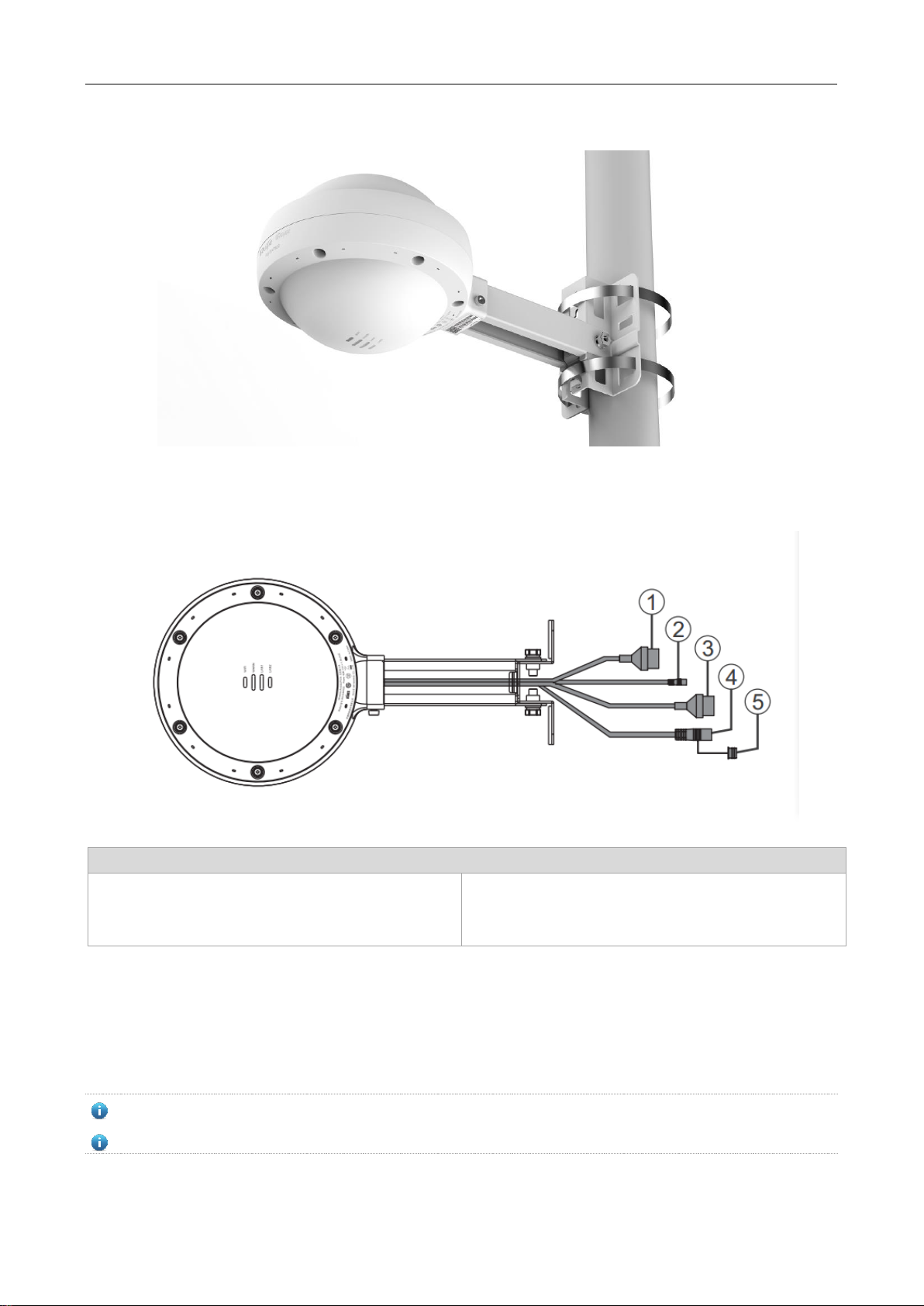

Figure 1-1 Product Appearance of the RG-EAP602

Hardware Installation and Reference Guide Product Overview

Figure 1-2 Ports of RG-EAP602

Note

1. 10/100/1000BASE-T Ethernet port

2. DC power supply port

3. 10/100/1000BASE-T Ethernet port/PoE port

4. Reset button

5. Waterproof cap

1.3 Power Supply

The AP supports 802.3af PoE or 12V DC power supply (If needed, you can buy the adapter from Ruijie).

When PoE power supply is adopted, please make sure the peer end support 802.3af too.

The lowest current output requirement for a DC power supply is 1.5A.

Hardware Installation and Reference Guide Preparing for Installation

2 Preparing for Installation

To prevent device damage and physical injury, please read carefully the safety recommendations described in this

chapter.

Recommendations do not cover all possible hazardous situations.

2.1 Grounding and Lightning Protection

Ensure that both the power-receiving end and the power-supplying end are well-grounded.

Keep the grounding connection within 30 m, and use a 40mm x 4mm or 50mm x 5mm ground bar of hot-dip

zinc-coated flat steel sheet.

When the connection cable between the main grounding conductor and local equipotential earthing terminal board

(LEB) on each floor is shorter than 2 meters, use a stranded copper wire with a sectional area not less than 1.318

mm2 (16 AWG) for the connection cable.

Use a shielded network cable if possible, ensure that devices connected to both ends of the shielded network cable

are reliably grounded, and make sure that the sheath of the shielded network cable is also grounded if possible. If no

shielded network cable is available, wire the network cable through a steel pipe and bury the steel pipe for lead-in,

and properly ground both ends of the steel pipe.

No additional lightning protector is required as a high-profile lightning protector is built in the RG-EAP602, and the

power port support 6kV lightning protection. If a lightning protector of a higher profile is available, configure the

lightning protector optionally. Before the configuration, connect the lightning protector to the ground cable.

Use a power cable with the PE end to ground the power supply (AC). Ensure that the PE end is properly grounded,

with a ground resistance less than 5 ohms. Do not use a two-wire power cable with only the live (L) wire and naught

(N) wire. Do not connect the N wire to the protection ground cable of other communication devices, and ensure that

the L wire and N wire are properly connected.

Ensure that the ground resistance is less than 5 ohms. In areas with high soil resistivity, reduce the soil resistivity via

measures such as spreading resistivity reduction mixture around the grounding conductor.

2.2 Preparing the Installation Site

Do not expose the AP to high temperature, dust, or harmful gases.

Do not install the AP in an area prone to fire or explosions.

Keep the AP away from EMI sources such as large radar stations, radio stations, and substations.

Do not subject the AP to unstable voltage, vibration, and noises.

Keep the AP at least 500 meters away from the ocean and do not face it towards the sea breeze.

The installation site should be protected from water and flooding, seepage, dripping, or condensation.

The installation site should be selected according to network planning, communications equipment features and

considerations such as climate, hydrology, geology, earthquake, electric power, and transportation.

Hardware Installation and Reference Guide Preparing for Installation

2.2.1 Temperature and Humidity

Table 2-1 Required Temperature and Humidity for the RG-EAP602 Series

Operating Temperature

-40°C to 65°C (-40°F to 149°F)

Operating Humidity

0% to 100% (non-condensing)

2.2.2 Outdoor Installation

The AP can be mounted on a wall or a pole.

2.2.3 Waterproof

Use a seal plug to seal the unused ports.

After using the reset button, please ensure that the cap is put back.

Use a waterproof plug to connect cables to the AP. For details, see Chapter 3 “Installing the Access Point”.

2.2.4 EMI

All interference sources (from outside or inside of the device or application system) affect the device by capacitive

coupling, inductive coupling, or electromagnetic waves.

Electromagnetic interference (EMI) occurs due to electromagnetic radiation or conduction, depending on the transmission

path.

Radiation interference occurs when energy (usually radio frequency energy) is emitted from a device and propagated

through space to disrupt other devices. The interference source can be part of disrupted system or a fully electrically

isolated unit. Conduction interference occurs when interference is transferred from one unit to another through cables,

which are usually electromagnetic wires or signal cables connected between the source and the device(s) experiencing

interference. Conduction interference often affects the power supply of the device. It is eliminated by using filters.

Radiation interference can influence the path of any signal from the device and is difficult to shield.

Take effective measures against interference from the power grid.

Keep the AP far away from the grounding or lightning protection devices for power equipment.

Keep the AP away from high-power radio stations, radar stations, and high-frequency high-current devices.

Take electrostatic shielding measures.

2.3 Installation Tools

Table 2-2 Installation Tools

Tools

Marker, Phillips (crosshead) screwdriver, slotted screwdriver, drill, paper knife, crimping pliers,

diagonal pliers, wire stripper, network cable tester, related power and fiber cables, wrench,

hammer, cable ties, ESD tools, multimeter, waterproof duct tape, waterproof plaster

The tool kit and cables are customer supplied.

Hardware Installation and Reference Guide Preparing for Installation

2.4 Checking before Installation

Please check your materials carefully against the package contents. If there are any errors, please contact your distributor.

Hardware Installation and Reference Guide Installing theAccess Point

3 Installing the Access Point

Before installing the AP, make sure you have carefully read the requirements described in Chapter 2.

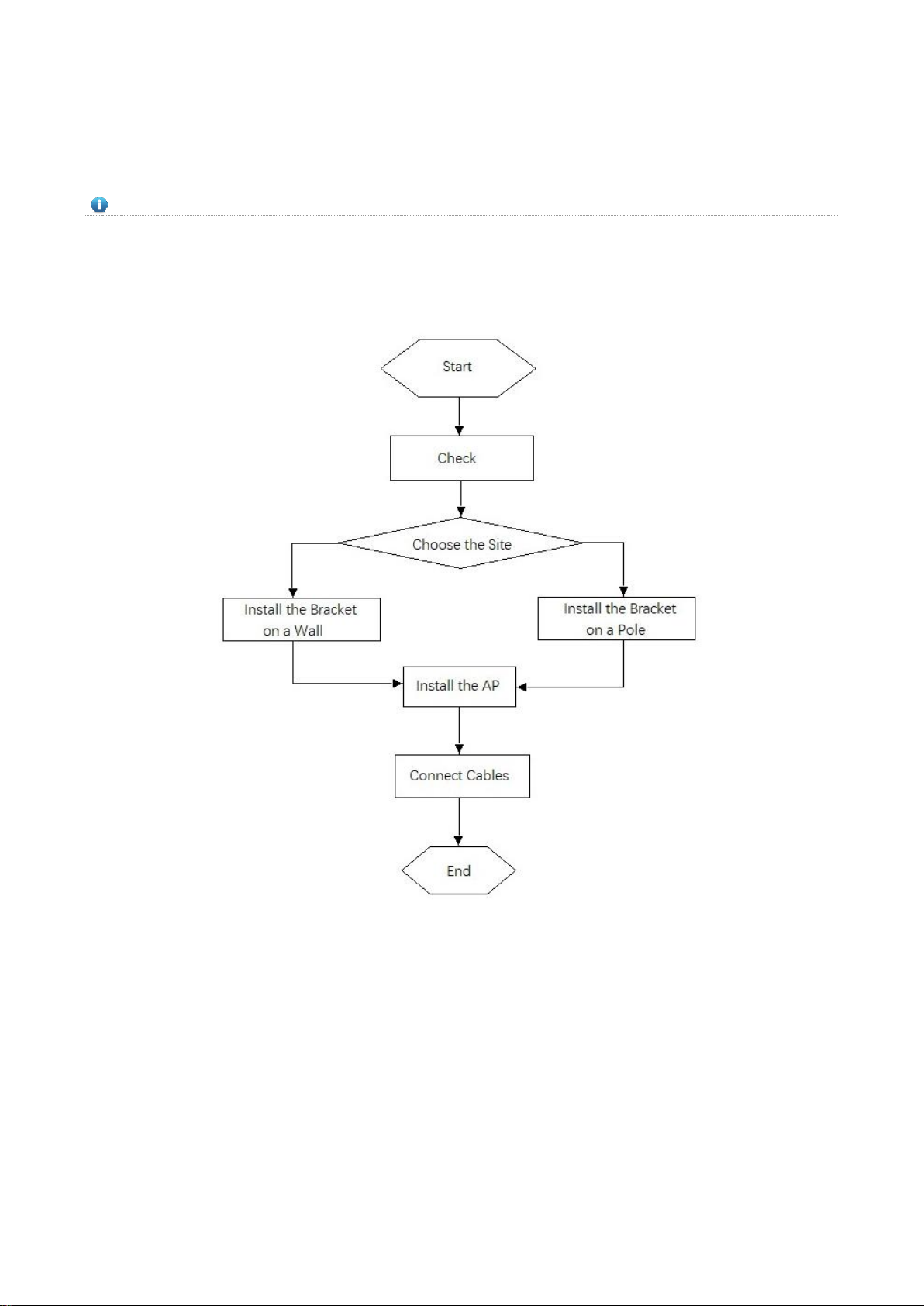

3.1 Installation Flowchart

3.2 Before You Begin

Before you install the AP, verify that all the parts in the package contents are there and make sure that:

The installation site meets temperature and humidity requirements.

The installation site is equipped with a proper power supply.

Network cables are in place.
