Saluki SAV2040X Manuale utente

SAV2040X Electronic Calibration Kit Module

User Manual

Saluki Technology Inc.

Tel: 886.909 602 109 Email: sales@salukitec.com

www.salukitec.com

Model No.

Saluki SAV2040X

GPIB Address

0-30

Interface

GPIB: GPIB address required

LAN: IP address required

Calibration Ports

1-4

Compatibility

The software is compatible with following VNA:



Keysight PNA



N5242A



N5244A



N5245A



N5247A



N5230C



Keysight ENA



E5071C



E5061B



R&S



ZVA



Saluki



All Bench top VNA

For other VNAs not listed above, may need to do a series of experiment to verify the compatibility

Tel: 886.909 602 109 Email: sales@salukitec.com

www.salukitec.com

Preface

Thanks for choosing SAV2040X electronic calibration kit produced by Saluki Technology Inc. Please read this user manual carefully for

your convenience.

We devote ourselves to meeting customers’ demands, providing high-quality measuring instrument and the best after-sales service. We

persist with “superior quality and considerate service”, and are committed to offering satisfactory products and service for our clients.

Manual No.

SAV2040X-03-01

Version

Rev02 2020.03

Saluki Technology

Manual Authorization

The information contained in this User Manual is subject to change without notice. The power to interpret the contents of and terms used

in this Manual rests with Saluki.

Saluki Tech owns the copyright of this User Manual which should not be modified or tampered by any organization or individual, or

reproduced or transmitted for the purpose of making profit without its prior permission, otherwise Saluki will reserve the right to

investigate and affix legal liability of infringement.

ProductQualityCertificate

The product meets the indicator requirements of the manual at the time of delivery. Calibration and measurement are completed by the

measuring organization with qualifications specified by the state, and relevant data are provided for reference.

Quality/Environment Management

Research, development, manufacturing and testing of the product comply with the requirements of the quality and environmental

management system.

Contacts

Service Tel: 886.909 602 109

Website: www.salukitec.com

Email: sales@salukitec.com

Address: No. 367 Fuxing N Road, Taipei 105, Taiwan (R.O.C.)

Tel: 886.909 602 109 Email: sales@salukitec.com

www.salukitec.com

Content

Installation....................................................................................................................................................5

1.1.

Software Installation

.............................................................................................................................. 5

1.2.

Ecal Kit USB Driver Installation

................................................................................................................ 8

Access Software......................................................................................................................................... 10

2.1.

Connection Window.......................................................................................................................... 10

2.2.

Measurement Window.......................................................................................................................10

Macro Embedded

......................................................................................................................................... 12

Software Operation..................................................................................................................................... 19

4.1.

User Interface...................................................................................................................................19

4.2.

Operation.........................................................................................................................................20

Troubleshooting..........................................................................................................................................23

5.1.

ConnectionFail

...................................................................................................................................23

5.2.

USB Connected Error

..........................................................................................................................23

5.3.

E-cal Module Error

............................................................................................................................. 24

5.4.

Ecaldll Failure

....................................................................................................................................24

5.5.

Connection Lost between Ecal and VNA

................................................................................................25

5.6.

Collection Lost between VNA and control computer

.................................................................................25

Tel: 886.909 602 109 Email: sales@salukitec.com

www.salukitec.com

Installation

1.1.

Software Installation

Please kindly follow the steps below to install Electronic Calibration software on a VNA or a computer

Double click the software installation file. A welcome page is shown, click [Next]

Select “ I agree to....” to accept the agreement, then click [Next]

Tel: 886.909 602 109 Email: sales@salukitec.com

www.salukitec.com

Enter the user name and the company name, then click [Next]

Select Installation directory, then click [Next]

Create a shortcut folder, then click [Next]

Tel: 886.909 602 109 Email: sales@salukitec.com

www.salukitec.com

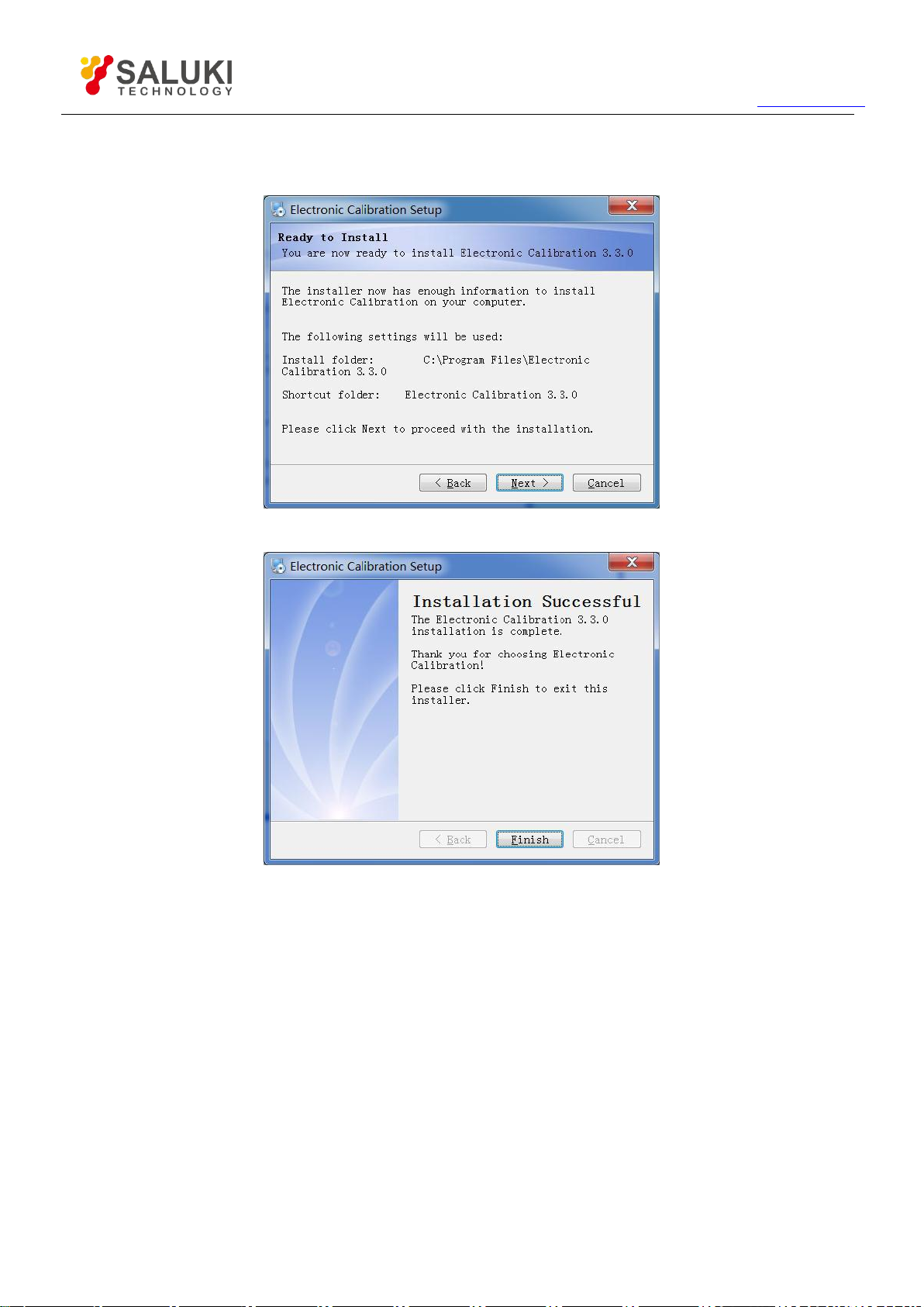

Check all installation information in the “Ready to install” box. If all information is OK, click [Next].

Click [Finish] to complete the installation

Tel: 886.909 602 109 Email: sales@salukitec.com

www.salukitec.com

1.2.

Ecal Kit USB Driver Installation

Open the computer manage window

Click on the Windows button

Right click on Computer

Left click on Manage

Find Ecal USB Driver in Computer Management, Right click and select “Update Driver Software...”

Tel: 886.909 602 109 Email: sales@salukitec.com

www.salukitec.com

Select “Browse my computer for driver software”

Select “Have Disk”, then click “Browse” in the popped out window.

Browse the Software installation directory mentioned in section 1.2. In it, there are 2 folders. [XP] folder contains the driver for

XP system. [Win 7] folder contains the driver for Win 7 system. Please select the driver of your OS. Driver name is “EcalDrv.inf”

Select the driver and Windows will install it automatically.

Tel: 886.909 602 109 Email: sales@salukitec.com

www.salukitec.com

Access Software

The software control the VNA and the Ecal kit to calibrate the VNA automatically. It can be used for VNAs from different manufacturers

and help to cut the cost.

2.1.Connection Window



Connection Options

User can choose LAN or GPIB connections. IP address or GIPB address should be provided.

If the controller computer is connected to VNA via LAN interface, please fill in the IP and port number. If the software is installed on

VNA itself, please use IP address 127.0.0.1. Port Number is provided by the VNA manufacturer. Keysight usually use 5025.

If the controller computer is connected to VNA via GPIB cable, please fill in the VNA GPIB address.

Click [Connect] button when the address is configured. Connection states will be shown in Information area.



Information

This area will show the connected VNA information such as manufacturer, model, software compatible or not,VNA connected or not.

[Add Support] check box will be available if the connected VNA is not in the supported VNA list. Select it and the Add Support area on

right will be activated.



Add Support

This area will only be activated when the connected VNA is not in supported VNA list and “Add Support” check-box is selected.

User can select the VNA series which the connected VNA belongs to and click [Add] button. The software will recognize this

connected VNA automatically next time.

Note: If the connected VNA does not belong to any VNA series listed in Add support area. Please do not add it and contact Saluki.

2.2.Measurement Window
