INSTALLATION
MANUAL
MIM-B16
DB98-32320A(1)E
PIM
(Pulse Input Module)
MIM-B16_PIM_IM_E 32320-1.indd 33 2010-05-20 ｿﾀﾈﾄ 7:19:08
E-2
Safety Precautions
Read carefully this installation manual before
installation and check if the PIM is installed correctly
after installation.
Do not attempt to install or repair this PIM by yourself.
This PIM contains no user-serviceable parts.
Always consult authorized service personnel for repairs.
When moving, consult authorized service personnel for
disconnection and installation of the PIM.
Ensure that the wall is strong enough to support the
weight of the PIM.
Must install the PIM with rated power supply.
The PIM must be installed according to
the national electrical rules by an installation specialist.
If you wish to uninstall the PIM, consult an authorized
installation center.
WARNING
CAUTION Do not use inflammable gases near the PIM.
Do not install the PIM in a location where
it will come into contact with combustible gases,
machine oil, sulphide gas, etc.
Avoid locations where acid/alkali solution or special
spray is used.
Choose a location that is dry and sunny, but not exposed
to direct sunlight. Suitable temperature is between
0°C(32°F) and 39°C(102.2°F).
Do not spill water into the PIM.
Do not apply tensile strength to the cable to avoid cable
damage.
Do not press the buttons with a sharp object.
Do not connect the power cable to the control terminal.
If the PIM is installed in a hospital or other special places,
it should not affect other electronic devices.
This installation manual describes how to install the PIM. For installation of other
optional accessories, refer to the appropriate installation manual.
MIM-B16_PIM_IM_E 32320-1.indd 2 2010-05-20 ｿﾀﾈﾄ 7:18:42
E-3
Contents
SAFETY PRECAUTIONS
.....................................................................
2
ACCESSORIES
.....................................................................................
4
VIEWING THE PARTS
........................................................................
5
PRODUCT DIMENSIONS
...................................................................
7
PIM SYSTEM ARCHITECTURE
.........................................................
8
INSTALLING THE PIM
.....................................................................
9
SETTING THE PIM
...........................................................................
16
PIM MENU DESCRIPTION
.............................................................
17
MIM-B16_PIM_IM_E 32320-1.indd 3 2010-05-20 ｿﾀﾈﾄ 7:18:42
E-4
Installation
manual Cable tie
1 1
Adapter Power cable M4x16 Screw
1
1 6
Make sure you have each item. Supplied items may vary depending on your
country or service provider.

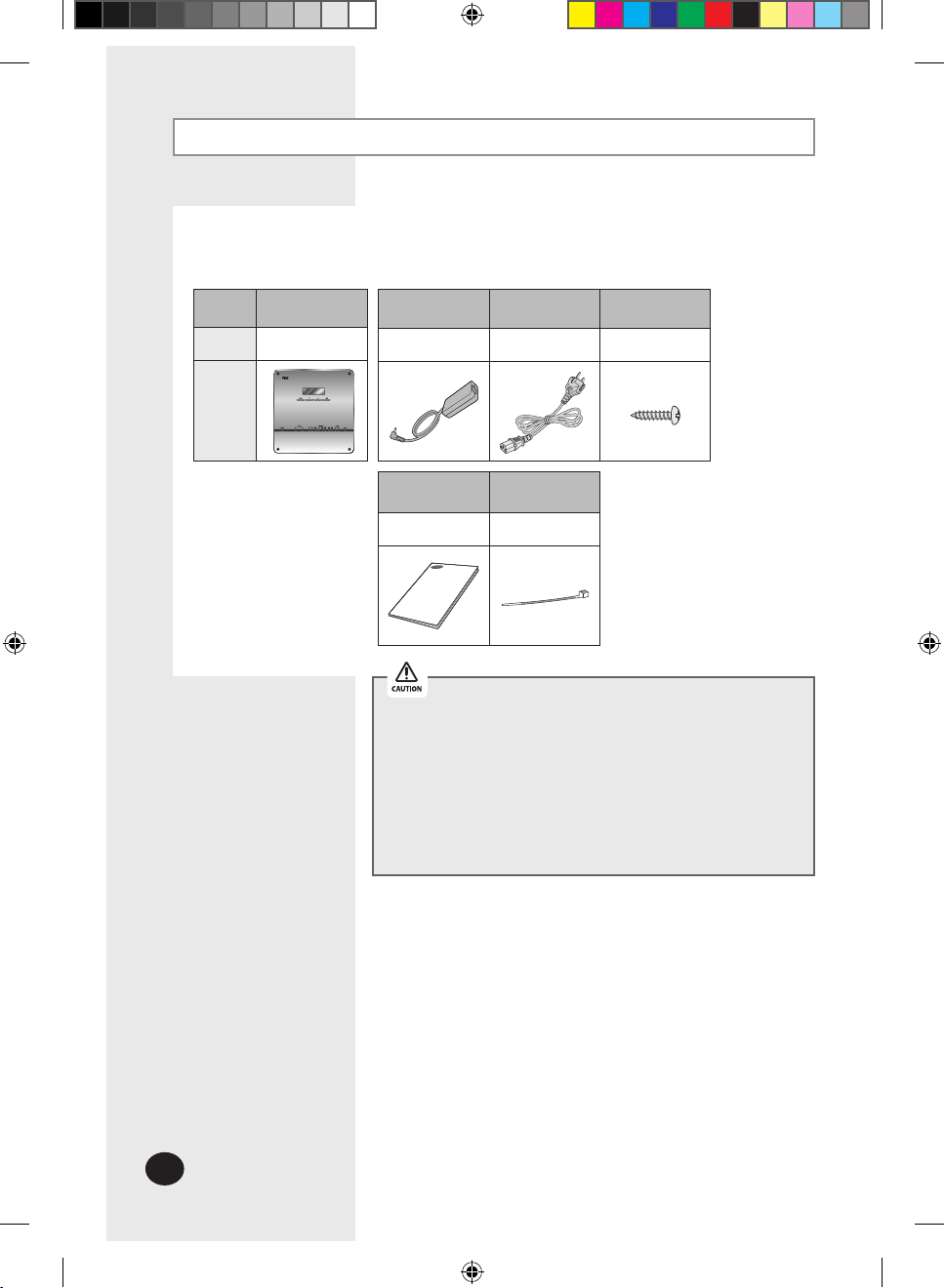

Accessories
The PIM must be installed by a trained installer.
Ensure the main power is turned off before installing
the PIM.
Be sure to use adapter and power cable we provide.
The power cable and the communication cable must
be installed according to the national electrical wiring
regulations.
(Use 2C x 0.75mm2 communication cable.)
Item PIM
Quantity 1
Shape
MIM-B16_PIM_IM_E 32320-1.indd 4 2010-05-20 ｿﾀﾈﾄ 7:18:43
E-5

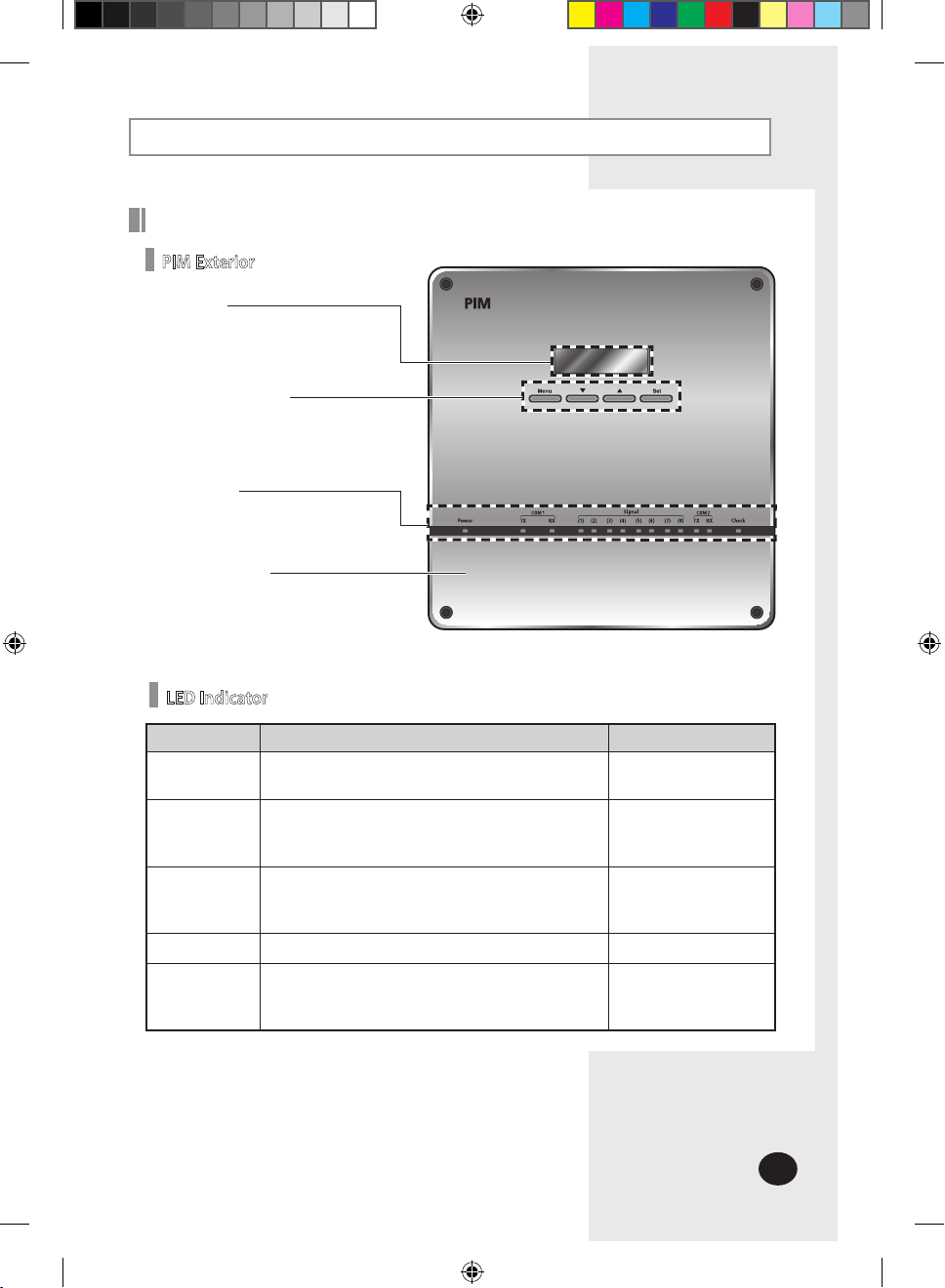

PIM Exterior
LCD Display
Shows current time and power
consumption by channel.
Various menus will be displayed
depending on button input.
LCD Operation button
There are 4 buttons [Menu, ▼(Down), ▲(Up),
Set] and you can access, move and
check the menu.
LED Indicator
Checks the status using 14 LEDs such as Power,
COM1 TX/RX, Signal, COM2 TX/RX and Check.
PIM Bottom cover
Unfasten 2 screws on the bottom and
separate the bottom cover from PIM.
Then check cable connection part.
Item Name Status
Power Power indicator Turns blue when the
power is supplied.
COM1 TX/RX Data transmission/reception with DMS indicator
Blinks in orange during
the normal transmission/
reception.
Signal (1)~(8) Power consumption pulse input indicator
Blinks in orange when
the normal pulse is input
from the watt-hour meter.
COM2 TX/RX Reserved Reserved
Check Error indicator
Blinks in orange when the
error occurs. (It will be off
when the error is cleared.)
LED Indicator
Viewing the Parts
Main Parts
MIM-B16_PIM_IM_E 32320-1.indd 5 2010-05-20 ｿﾀﾈﾄ 7:18:43
E-6
Name Description
Pulse input
terminal
(CH1~CH8)
Terminal that the pulse from watt-hour meter is inputted
(Channel1~Channel8)
Power terminal
Terminal to connect PIM adapter
Reset button
Button used to reset PIM
RS485
Communication
terminal
(COM1)
Connection terminal for RS485 communication with DMS or DMS2
COM2: Reserved
Cable tie groove Groove for arranging cables
Viewing the Parts (Continued)
PIM Cable Connection Part
Cable tie groove
Power terminal
Reset button
Pulse input terminal
(Channel 1~4)
RS485 communication terminal
(COM1, COM2)
Pulse input terminal
(Channel 5~8)
Main Parts
MIM-B16_PIM_IM_E 32320-1.indd 6 2010-05-20 ｿﾀﾈﾄ 7:18:43
E-7
Viewing the Parts (Continued)
240
255
64.80 (Unit : mm)
Display board
40-pin cable
20-pin cable
Main board
Sub board

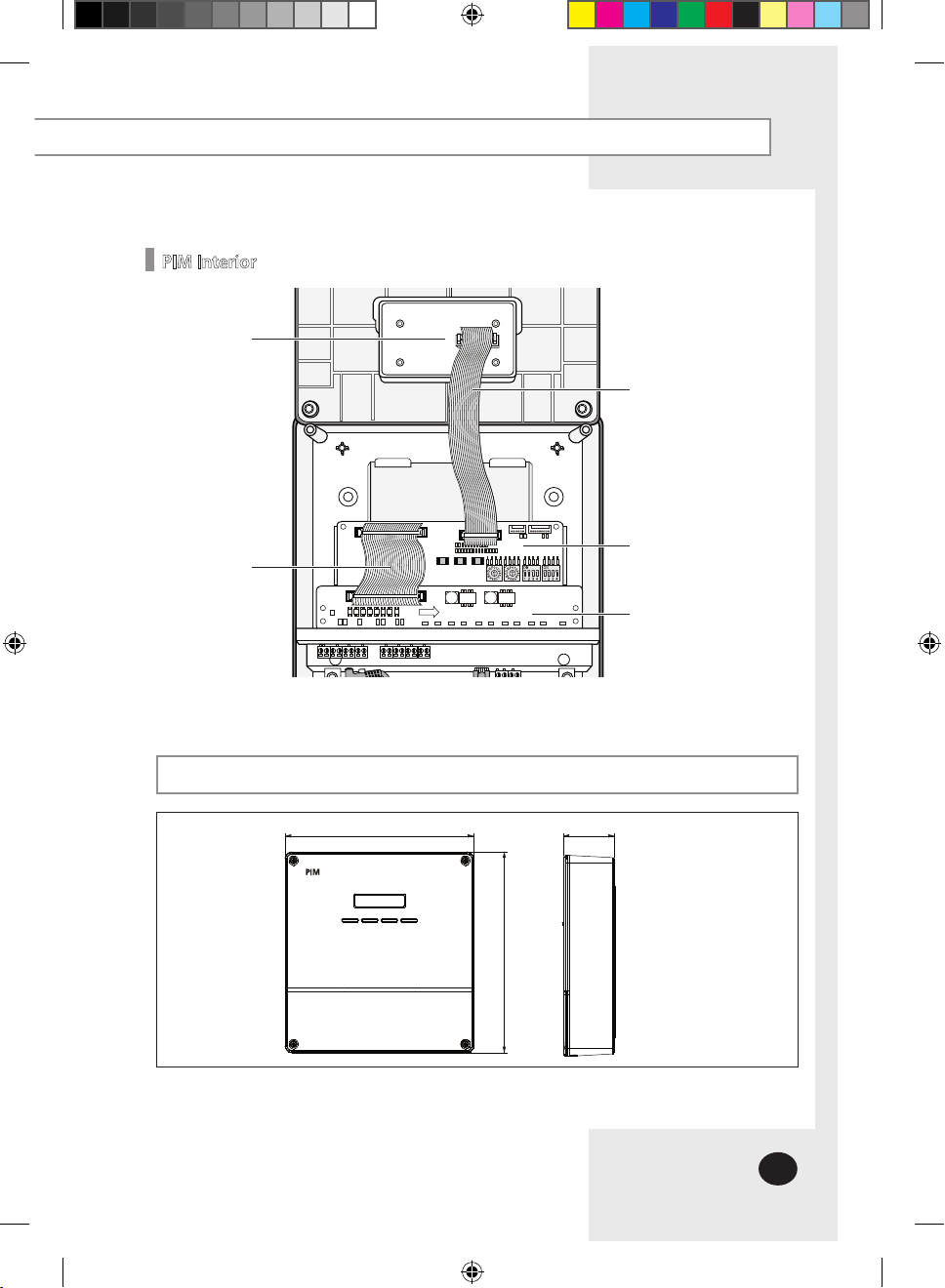

PIM Interior
Product Dimensions
MIM-B16_PIM_IM_E 32320-1.indd 7 2010-05-20 ｿﾀﾈﾄ 7:18:45
E-8
PIM System Architecture
Maximum 8 PIM units can be connected to DMS or DMS2.
Maximum 8 watt-hour meters can be connected to PIM.
R2 R1 R2 R1
R1 R2
R2 R1 R2 R1
R1 R2
R2 R1 R2 R1
R1 R2
R2 R1 R2 R1
R1 R2
DMS or DMS2
Centralized
controller
PIM
Watt-hour
meter
Watt-hour meter
(max. 8 units)
Interface
module
ROOM 0 ROOM 1 ROOM 2
Outdoor Unit
Pulse input
MIM-B16_PIM_IM_E 32320-1.indd 8 2010-05-20 ｿﾀﾈﾄ 7:18:46
E-9
Installing the PIM
Installation
plate
Assistant hole
Wiring groove
1
Separate the installation plate on the rear side of PIM.
2Fix the installation plate on the wall using 4 screws.
3
Hang the PIM on the groove which is on the top of the
installation plate.
4Open the bottom cover and fix the installation plate and
PIM using 2 screws.
Depending on the installation environment, open the top
cover and fix PIM using assistant holes.
( Screws for assistant hole are not provided.)
5
If you install PIM inside of the wall or wiring from the rear
side is needed, use wiring groove on the bottom of PIM.
Installing the PIM on the Wall
To prevent breakdown and damage of PIM and for safe usage,
it is recommended to install PIM on the wall.
MIM-B16_PIM_IM_E 32320-1.indd 9 2010-05-20 ｿﾀﾈﾄ 7:18:47
E-10
Installing the PIM (Continued)
1
Unfasten the 2 screws on the bottom of the PIM front
cover. Hold the bottom 2 sides of the PIM and push
downwards to slide open the cover.
2Connect the adapter to the power terminal.
Arrange the adapter as shown in the figure.
3
Connect PIM and watt-hour meter as many as you want.
In this step, use communication cable and 8 terminal
blocks which are attached to the pulse input terminal
of PIM.
For the communication cable connection instruction of
watt-hour meter or additional setting instruction, refer
to the installation manual of watt-hour meter.
Connect the communication cable considering the
polarity. [Left:(+), Right:(-)]
Maximum 8 watt-hour meters can be connected to 1 PIM.
Use 2Cx0.75mm2 communication cable.
Adapter
Connecting Watt-Hour meter and PIM
Connecting Watt-hour meter, PIM and DMS
Connect
communication
cable
Watt-hour meter
(+) (-)
MIM-B16_PIM_IM_E 32320-1.indd 10 2010-05-20 ｿﾀﾈﾄ 7:18:48
