Samsung EK-GN120 Manuale utente

www.samsung.com

User Manual

EK-GN120

About this manual

This device provides high quality mobile communication and entertainment using Samsung’s

high standards and technological expertise. This user manual is specially designed to detail

the device’s functions and features.

•

Please read this manual before using the device to ensure safe and proper use.

•

Descriptions are based on the device’s default settings.

•

Images and screenshots may differ in appearance from the actual product.

•

Content may differ from the final product, or from software provided by service providers

or carriers, and is subject to change without prior notice. For the latest version of the

manual, refer to the Samsung website,

www.samsung.com

•

Content (high quality content) that requires high CPU and RAM usage will affect the

overall performance of the device. Applications related to the content may not work

properly depending on the device’s specifications and the environment that it is used in.

•

Available features and additional services may vary by device, software, or service

provider.

•

Applications and their functions may vary by country, region, or hardware specifications.

Samsung is not liable for performance issues caused by applications from any provider

other than Samsung.

•

Samsung is not liable for performance issues or incompatibilities caused by edited

registry settings or modified operating system software. Attempting to customise the

operating system may cause the device or applications to work improperly.

•

Software, sound sources, wallpapers, images, and other media provided with this device

are licensed for limited use. Extracting and using these materials for commercial or other

purposes is an infringement of copyright laws. Users are entirely responsible for illegal

use of media.

•

You may incur additional charges for data services, such as messaging, uploading and

downloading, auto-syncing, or using location services. To avoid additional charges, select

an appropriate data tariff plan. For details, contact your service provider.

About this manual

•

Default applications that come with the device are subject to updates and may no longer

be supported without prior notice. If you have questions about an application provided

with the device, contact a Samsung Service Centre. For user-installed applications,

contact service providers.

•

Modifying the device’s operating system or installing softwares from unofficial sources

may result in device malfunctions and data corruption or loss. These actions are violations

of your Samsung licence agreement and will void your warranty.

Instructional icons

Warning: situations that could cause injury to yourself or others

Caution: situations that could cause damage to your device or other equipment

Note: notes, usage tips, or additional information

This guide is protected under international copyright laws.

No part of this guide may be reproduced, distributed, translated, or transmitted in any form or

by any means, electronic or mechanical, including photocopying, recording, or storing in any

information storage and retrieval system, without the prior written permission of Samsung

Electronics.

About this manual

Trademarks

•

SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics.

•

The Android logo, Google™, Google Maps™, Google Mail™, YouTube™, Google Play™

Store, and Google Talk™are trademarks of Google, Inc.

•

Adobe, the Adobe logo, Photoshop and Lightroom are either registered trademarks or

trademarks of Adobe Systems Incorporated in the United States and/or other countries.

•

Bluetooth®is a registered trademark of Bluetooth SIG, Inc. worldwide.

•

HDMI, the HDMI logo and the term“High Definition

Multimedia Interface” are trademarks or registered

trademarks of HDMI Licensing LLC.

•

Wi-Fi®, Wi-Fi Protected Setup™, Wi-Fi Direct™, Wi-Fi CERTIFIED™, and the Wi-Fi logo are

registered trademarks of the Wi-Fi Alliance.

•

All other trademarks and copyrights are the property of their respective owners.

Table of Contents

Getting started

8 Device layout

10 Buttons

10 Dioptre adjustment dial

11 Command dial

12 Lens layout

13 Package contents

15 Installing the SIM or USIM card and

battery

18 Charging the battery

20 Inserting a memory card

22 Attaching a strap

23 Attaching and removing a lens

25 Turning the device on and off

26 Adjusting the volume

26 Switching to silent mode

Basics

27 Indicator icons

28 Using the touch screen

30 Control motions

32 Palm motions

33 Notifications

33 Quick setting panel

34 Home screen

36 Using applications

37 Applications screen

38 Help

39 Entering text

41 Connecting to a Wi-Fi network

42 Setting up accounts

43 Transferring files

44 Securing the device

45 Upgrading the device

Camera: Basic functions

47 Launching Camera

49 Selecting the operation type

49 Taking photos

50 Taking videos

51 Viewing photos and videos

51 Taking photos or videos with voice

commands

51 Taking photos or videos with filter

effects

52 Changing shooting options quickly

53 Reducing camera shake

53 Tips for taking clearer photos

Table of Contents

93 OIS (anti-shake)

94 Bracket set

94 ISO customisation

95 DMF

95 Noise reduction

95 Distortions correct

95 Colour space

96 Dynamic range

96 Overexposure guide

97 Video recording options

97 Sharing options

98 Camera settings

Media

100 Gallery

105 Video

106 Music

107 YouTube

109 Photo Suggest

Communication

110 Contacts

113 Messaging

115 Email

117 Google Mail

118 Talk

118 Google+

119 Messenger

119 ChatON

Camera: Shooting modes

57 Auto

58 Expert

63 Smart

77 My mode

77 3D mode

Camera: Shooting options

and settings

79 Customising shooting options

79 EV (brightness)

80 ISO (sensitivity)

81 WB (light source)

83 Metering

84 Drive

85 Display

86 Save as User mode

86 Flash

88 AF mode

89 AF Area

90 AF size

90 Photo size

91 Quality

91 Adjust image

92 Timer

92 MF assist

92 Focus peaking

93 Link AE to AF Point

93 Framing mode

Table of Contents

Travel & local

141 Maps

142 Local

143 Navigation

Settings

144 About Settings

144 Connections

147 My device

155 Accounts

155 More

159 Google Settings

Optional applications

Troubleshooting

Cleaning the device

Concepts in Photography

Web & network

120 Internet

121 Chrome

122 Bluetooth

123 Screen Mirroring

123 Group Play

Application & media stores

125 Play Store

126 Samsung Apps

126 Play Books

127 Play Movies

127 Play Music

127 Play Magazines

Utilities

128 S Memo

130 S Planner

133 Dropbox

133 Cloud

134 Clock

136 Calculator

136 S Translator

137 S Voice

138 Google

139 Voice Search

139 My Files

140 Downloads

140 TripAdvisor

Getting started

Device layout

Microphone

Power button

Shutter button

AF-assist light

Lens mount index

Video recording

button

Flash

Flash release

button

Microphone

Lens contacts

Lens release

button

Speaker

Image sensor

Lens mount

Dioptre

adjustment dial

Viewfinder

Proximity/Light

sensor

Touch screen

Hot-shoe

Command dial

GPS antenna

Eyelet for strap

Main antenna

Notification light

Eyelet for strap

Getting started

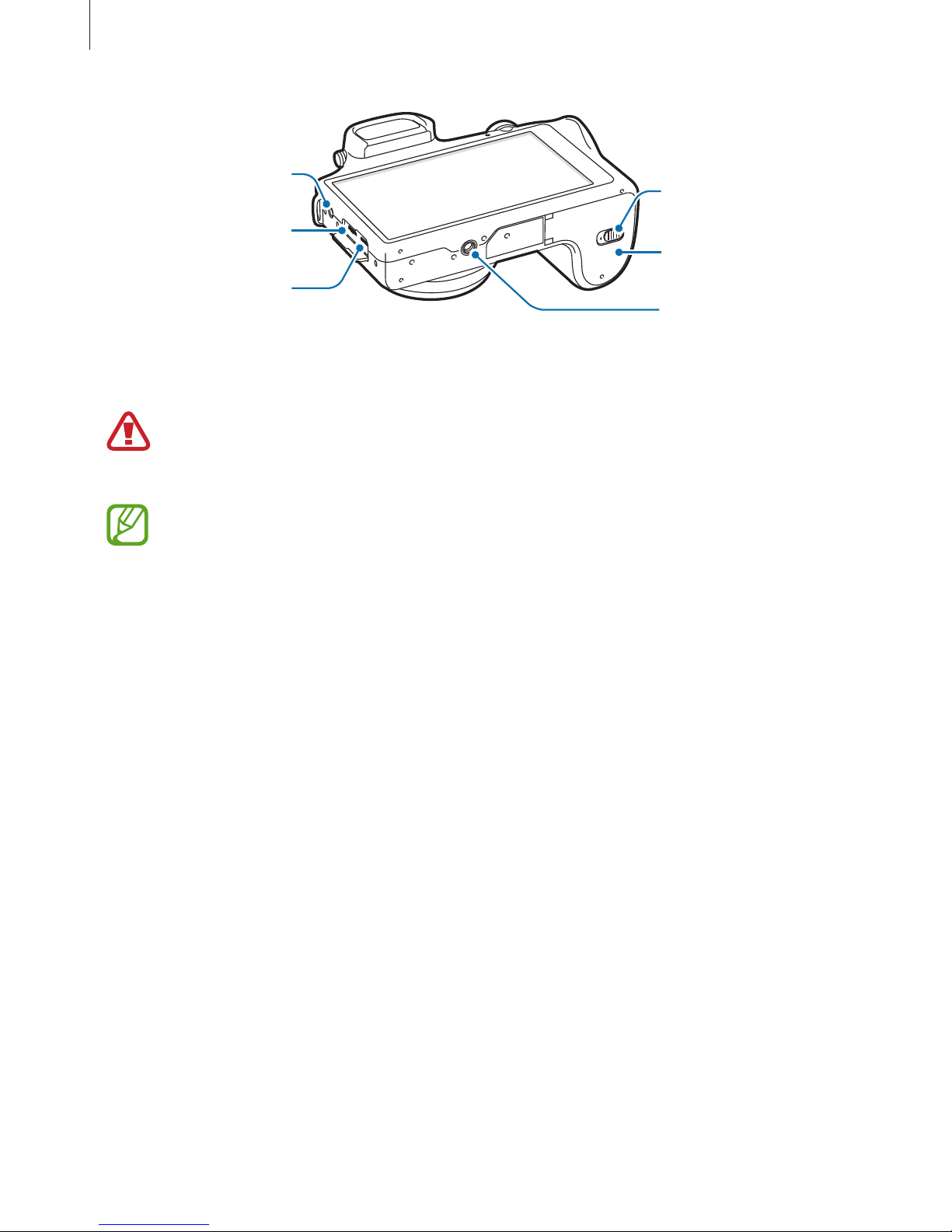

Headset jack

Multipurpose jack

HDMI port

Flap

Latch

Tripod mount

You can attach Samsung-approved, optional accessories to the hot-shoe, such as an external

flash.

Do not use the device if it is cracked or broken. Broken glass or acrylic could cause

injury to your hands and face. Take the device to a Samsung Service Centre to have it

repaired.

•

Do not cover the antenna area with your hands or other objects, except when you

are taking photos or videos. This may cause connectivity problems or drain the

battery.

•

Do not use a screen protector. This causes sensor malfunctions.

•

Do not allow water to contact the touch screen. The touch screen may malfunction

in humid conditions or when exposed to water.

Getting started

Buttons

Button Function

Power

•

Press and hold to turn the device on or off.

•

Press and hold for 6-8 seconds to reset the device if it has

fatal errors or hang-ups, or freezes.

•

Press to lock or unlock the device. The device goes into lock

mode when the touch screen turns off.

Shutter

•

On the Home screen, press to turn the camera on.

•

In the camera application, half-press to focus on the subject.

When the subject is in focus, the focus frame turns green.

•

In the camera application, press to take the photo.

Video

recording

•

On the Home screen, press to turn the camera on.

•

In the camera application, press to start or stop taking a

video.

Flash release

•

Press to pop the flash up.

Dioptre adjustment dial

If the image is not shown clearly through the viewﬁnder, rotate the Dioptre adjustment dial

to improve the view.
