Part Names

Display

• Without opening the cover of your Wired Remote Controller, you can turn the air-conditioner

power On/O or set the desired temperature.

③

①

②

⑰

⑯

⑮

⑭

⑱

Operation On/Off button

LED Indicator

(Green : Normal / Red : Need to be checked)

Temperature Setting Button

④ ⑤ ⑨ ⑩ ⑪ ⑫ ⑬

⑥

⑧    ⑲⑳⑦

MWR-WE10_E_IB_32810-2.indd 6 2011-01-24 오전 9:41:31

ENGLISH

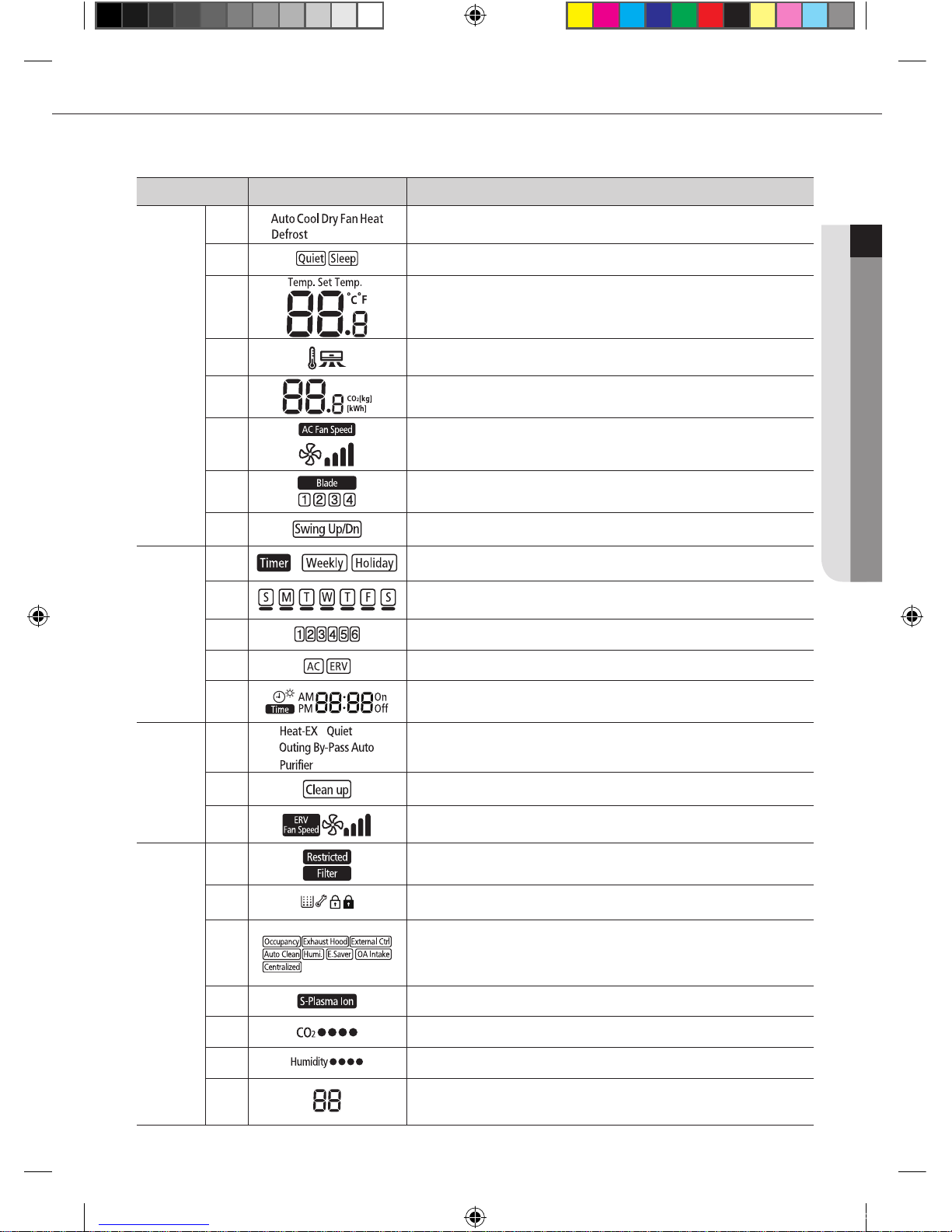

Classication Indication Function

Air

Conditioner

Information

①

Displays Air conditioner operation

②

Displays Quiet/Sleep operation

③

Displays Indoor temperature/Set temperature

④

Displays discharge temperature control

⑤

Displays CO2 /power consumption

⑥

Displays AC fan speed

⑦

Displays Blade selection

⑧

Displays Air swing(Up/Dn)

Schedule

information

⑨

Weekly schedule/Holiday setting displays

⑩

Displays Current day() or scheduled day(_)

⑪

Displays Schedule number

⑫

Displays Scheduled device selection

⑬

Displays Current time/summer time/scheduled time

Ventilator

(ERV)

information

⑭

Displays Ventilator(ERV) operation

⑮

Displays Clean up

⑯

Displays Ventilator(ERV) fan speed

Commom

function

information

⑰

Displays Invalid operation /Filter cleaning (filter cleaning period)

⑱

Displays Dust box cleaning alert/check/partial locking/full locking

⑲

Displays

occupancy detection/Exhaust hood/External interconnection

control/Auto clean/ Humidifying/Energy saving/Outdoor air supply intake/

Centralized control

⑳

Displays S-Plasma Ion



Displays Indoor CO2 density



Displays Indoor humidity



Displays remaining time of the auto stop time/ERV delay time

- Solid : Hour unit, Blinking : Minute unit

MWR-WE10_E_IB_32810-2.indd 7 2011-01-24 오전 9:41:35

ENGLISH

Quiet / Sleep Operation

Press the Quiet/Sleep button to select the desired operation.

Quiet operation reduces noise of the operation and with sleeping operation you can have the air conditioner turn o

automatically after six hours without stopping the operation in the middle of the night.

If the air conditioner has both quiet and sleep operation function.

Auto Quiet  Cancel is repeated.

Cool Quiet  Sleep  Quiet/Sleep  Cancel is repeated.

Dry Quiet  Cancel is repeated.

Fan Restricted lamp will appear.

Heat Quiet  Sleep  Quiet/Sleep  Cancel is repeated.

If the air conditioner has quiet operation function only.

Auto Quiet  Cancel is repeated.

Cool Quiet  Cancel is repeated.

Dry Quiet  Cancel is repeated.

Fan Restricted lamp will appear.

Heat Quiet  Cancel is repeated.

If the air conditioner has sleep operation function only.

Auto Restricted lamp will appear.

Cool Sleep  Cancel is repeated.

Dry Restricted lamp will appear.

Fan Restricted lamp will appear.

Heat Sleep  Cancel is repeated.

• If the air conditioner does not support the quiet and sleep

operation,

will appear when you press Quiet/Sleep

button.

MWR-WE10_E_IB_32810-2.indd 13 2011-01-24 오전 9:41:36

ENGLISH

Press the

button to begin the Ventilator(ERV) operation.

Press the

button to select the desired operation.

• The following operation can only take place if all the options for your Ventilator(ERV) are selected.

(When you install the Wired Remote Controller, the setting is available.)

Press the button to change the fan speed.

Heat-EX (High)

▷

(Turbo)

▷

(Medium)

Quiet Can’t change the fan speed.

Outing (Medium)

By-Pass (High)

▷

(Turbo)

▷

(Medium)

Auto (High)

▷

(Turbo)

▷

(Medium)

Purier (High)

▷

(Turbo)

▷

(Auto)

▷

(Medium)

Heat-EX/Purier (High)

▷

(Turbo)

▷

(Medium)

By-Pass/Purier (High)

▷

(Turbo)

▷

(Medium)

Auto/Purier (High)

▷

(Turbo)

▷

(Medium)

※

After installing a CO2 sensor in your Ventilator(ERV), you can select from (High)

▹

(Turbo)

▹

(Auto)▹

(Medium).

(Exception : Quiet Operation, Outing Operation)

MWR-WE10_E_IB_32810-2.indd 19 2011-01-24 오전 9:41:40

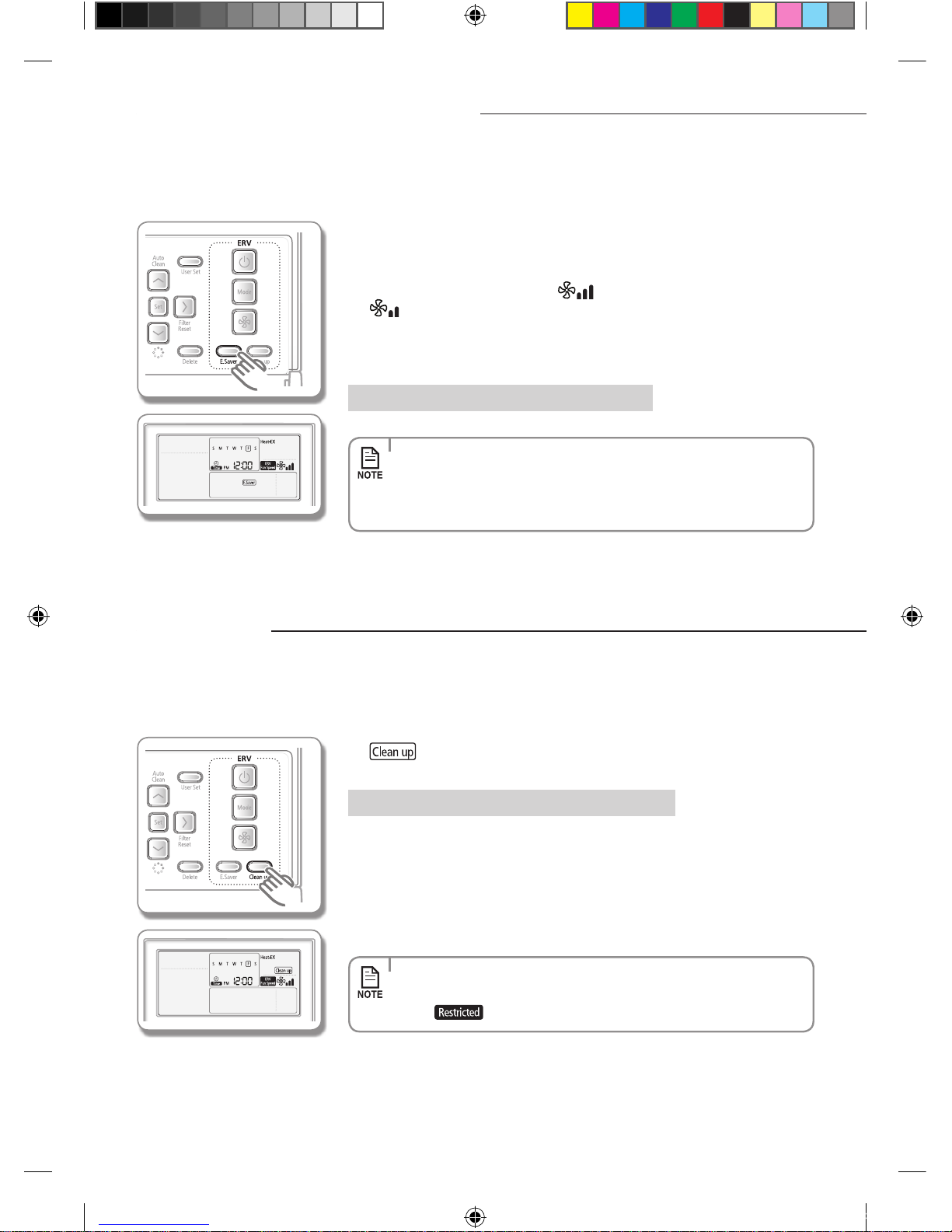

Energy Saving Operation

Clean Up

Reduce your power consumption and save money on your electric bill.

Prevent odor and dust from getting into the area where you are by making the airow output bigger than the airow intake.

Press the E.Saver button to select Power Saving Operation.

When the ventilator(ERV) is on, press the Clean Up button to select the clean up function.

 is displayed and the clean up function is activated.

Press the E.Saver button one more time.Cancel

Press the Clean Up button one more time.Cancel

• Energy Saving Operation may not activate when central

control, external control, or a exhaust hood is used.

• When the Air conditioner is connected individually,

Energy Saving Operation is not available.

• If the ventilator(ERV) is on or the clean up function is not

supported, and you have pressed the Clean Up button, then

the

lamp will appear.

When the ventilator (ERV) and the air conditioner is connected together

 This function compares the outdoor and indoor temperatures, and then

automatically selects Heat-EX operation or By-Pass operation.

 The ventilator (ERV) will operate in

(High) in Heat-EX operation and

(Low) in By-pass operation.

When the ventilator (ERV) is installed individually

 The ventilator (ERV) will turn On and O in Quiet (Low) mode every 30 minutes.

MWR-WE10_E_IB_32810-2.indd 20 2011-01-24 오전 9:41:42

Weekly Schedule Setting

You can select a day and time to start and stop operation.

1. Press the Schedule button.

  (weekly) will be displayed. At that time, press the [

∧

]/[

∨

] buttons to select

‘weekly’ from the option of ‘weekly’ and ‘holiday’.

2. Press the [

＞

] button and select the 'Day' for your schedule.

  You can press the [

∧

]/[

∨

] buttons to select a scheduled day (Sun~Sat).

3. Until your reservation number is displayed, press the [

＞

] button to select a

“Schedule Number.”

  Press the [

∧

]/[

∨

] buttons to select a Schedule Number (1~6).

  If no schedule is chosen, then the edge of the box for the schedule number

and the schedule number will blink.

4. Press the [

＞

] button and select 'Schedule Device.'

  Press the [

∧

]/[

∨

] buttons repeatedly to select a device setting from among

Air Conditioner + Ventilator(ERV), Air Conditioner, or Ventilator(ERV).

  You can only select a Schedule Device that is connected.

5. After pressing the [

＞

] button, select 'AM/PM.'

  Press the [

∧

]/[

∨

] buttons to select AM or PM for the time.

•

You can select many days for multiple schedules. In this case,

you should directly move to “Schedule Device” selection without

selecting a schedule number.

• If the schedule is already set , then the square boxes

surrounding the schedule number will blink. If you want to

change it, then select a schedule number.

Classification Setting order

Air-conditioner + Ventilator(ERV)

56...15

Air-conditioner

56...111415

Ventilator(ERV)

5...812...15

Refer to the table below for the setting order according to the option of schedule device.

ADVANCED INSTRUCTION

MWR-WE10_E_IB_32810-2.indd 22 2011-01-24 오전 9:41:45

ENGLISH

6. After pressing the [

＞

] button, select the 'Hour.'

  Press the [

∧

]/[

∨

] button to select the hour setting for the time.

7. After pressing the [

＞

] button, select the 'Minute.'

  Press the [

∧

]/[

∨

] button to select the minute setting for the time.

8. After pressing the [

＞

] button, select the “On/O” schedule.

  Press the [

∧

]/[

∨

] buttons repeatedly to select either On or O.

  If you select ’O’, follow 1415.

After pressing the

[

＞

]

button, select the Air Conditioner Related Operation Mode.

  You can only use this for air conditioner on-operation scheduling.

  Press the [

∧

]/[

∨

] buttons repeatedly to select from (Auto)(Cool)

(Dry)(Fan)(Heat) operation. Depending on the option setting, automatic

or heating operation sometimes cannot be selected.

(When you install the Wired Remote Controller, the setting is available.)

10. Press the [

＞

] button and select the desired temperature.

  You can only use this for air conditioner on-operation scheduling.

  Press the [

∧

]/[

∨

] buttons repeatedly to set the temperature by 1°C(1°F).

If fan operation is selected, you can’t set the desired temperature.

MWR-WE10_E_IB_32810-2.indd 23 2011-01-24 오전 9:41:48

• If you want to cancel your weekly schedules while you are

setting them, then press the Esc button.

• If “centralize control” is set, then you can still set a weekly

schedule, but it won’t be actually executed.

11. After pressing the [

＞

] button, select a fan speed.

  You can only use this for air conditioner on-operation scheduling or when

the operational mode is in Cool/Fan/Heat.

 

Press the

[

∧

]/[

∨

]

buttons repeatedly to toggle the fan speed in order of

(Low )(Medium)(High)(Auto). If Auto operation or Dry operation is

selected, then you can’t set the fan speed.

12.

After pressing the [＞] button, select the ventilator(ERV) related operation mode.

  You can only use this for Heat-Ex on-operation scheduling.

  Press the [

∧

]/[

∨

] button, select the ERV related operation mode:

(Heat EX)



(Quiet)



(Outing)



(Bypass)



(Auto)



(Purier)



(Heat-Ex / Purier)



(By-Pass / Purier)



(Auto / Purier)

13. After pressing the [

＞

] button, select a fan speed for ventilator(ERV).

  You can only use this for Heat-Ex on-operation scheduling.

  Press the [

∧

]/[

∨

] buttons repeatedly to set the fan speed, in order of

(High)



(Turbo)



(Medium).

14. Press the Set button to complete the weekly schedules.

  '_' is displayed for the selected day, and it will be saved in three seconds.

[e.g. when Monday is reserved ( ) ]

  If you need to make additional schedules, start again from the weekly and

holiday screen.

15. Press the Esc button to exit to By-Pass mode.

Weekly Schedule Setting

MWR-WE10_E_IB_32810-2.indd 24 2011-01-24 오전 9:41:50

Altri manuali per MWR-WE10

Indice

Altri manuali Samsung Telecomando

Samsung

Samsung MWR-SH00N Manuale utente

Samsung

Samsung BN68-03092A-02 Manuale utente

Samsung

Samsung SolarCell Remote Manuale utente

Samsung

Samsung MWR-WE13N Manuale utente

Samsung

Samsung MWR-WW10JN Manuale utente

Samsung

Samsung VG-TM2360E Manuale utente

Samsung

Samsung BN68-11568A Manuale utente

Samsung

Samsung SolarCell Remote Manuale utente

Samsung

Samsung MWR-WG00JN Manuale utente

Samsung

Samsung 6 series Manuale utente

Samsung

Samsung AR-KH03E Manuale utente

Samsung

Samsung MWR-TH00 Manuale utente

Samsung

Samsung MWR-WE10 Manuale utente

Samsung

Samsung SolarCell SE-GL-2002861 Manuale utente

Samsung

Samsung MWR-WG00UN Manuale utente

Samsung

Samsung MWR-SH00 Manuale utente

Samsung

Samsung TM2180E/F Manuale utente

Samsung

Samsung RMCSPA1EP1 Manuale utente

Samsung

Samsung SWPZ01-RX Manuale utente

Samsung

Samsung SolarCell Remote Manuale utente

Samsung

Samsung SolarCell Remote Manuale utente

Samsung

Samsung SPC-300 Manuale utente

Samsung

Samsung EIRC200 Manuale utente

Samsung

Samsung MWR-WE10N Manuale utente

Manuali Telecomando popolari di altre marche

Panasonic

Panasonic EUR7622KB0 Manuale utente

Bang & Olufsen

Bang & Olufsen Beo4 Manuale utente

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuale utente

Multiplex

Multiplex PROFI TX 9 Manuale utente

One Remote

One Remote RMB4 Manuale utente

FUTABA

FUTABA 9ZAP - PART2 Manuale utente

HR Matic

HR Matic HR MULTI 3 Manuale utente

Yamaha

Yamaha ACC-GNRST-30-20 Manuale utente

EisSound

EisSound KBSOUND Manuale utente

Marantz

Marantz RC101 Manuale utente

Conrad

Conrad FS20 TC6 Manuale utente

Anritsu

Anritsu MP1777A Manuale utente

Niles

Niles WVC100 Guida alla risoluzione dei problemi

RCA

RCA RCU1300 Manuale utente

Bang & Olufsen

Bang & Olufsen BEO6 Manuale utente

GE 94901 Manuale utente

Onbon

Onbon YQ1-75 Manuale utente

FUTABA

FUTABA R7108SB Istruzioni per l'installazione
