SAMSUNG

DCS-VIP

INTERNET

KEYPHONE

QUICK GUIDE

INSTALLATION &

CONFIGURATION

Publication Information

Samsung Telecoms reserves the right without prior notice to revise information in

this publication for any reason.

Samsung Telecoms also reserves the right without prior notice to make changes in

design or components of equipment as engineering and manufacturing may warrant.

Disclaimer

Samsung Telecoms is not responsible for errors or problems arising from customers

not installing, programming or operating their Samsung systems as described in this

manual.

Samsung Telecoms (U.K.) Limited

means –graphic, electronic or mechanical, including recording, taping, photocopy or

information retrieval system –without express written permission of the publisher of

this material.

Part No.: 16106 Version 3.0

EU Declaration ofConformity(RTTE)

SamsungElectronics Co.,Ltd.

259 Gongdan-Dong, Gumi-CityKyungbuk,Korea,730-030

(factoryname,address)

declareunderoursoleresponsibilitythat theproduct

DigitalKeyphoneSystem"DCSVIP"

towhichthisdeclarationrelates isinconformitywith

RTTEDirective 1999/5/EC(AnnexII )

LowVoltageDirective 73/23/EEC

EMC Directive 89/336/EEC:92/31/EEC

By applicationof thefollowingstandards

EN55022 :1998 IncA1:2000*

.........................................................................................

EN61000-3-2:1995 Inc.A1/A2:1998

.........................................................................................

EN61000-3-3:1995,EN61000-4-2:1995 Inc.A1:1998,EN61000-4-3:1996 Inc.A1:1998

.........................................................................................

EN61000-4-4:1995,EN61000-4-5:1995,EN61000-4-6:1996,EN61000-4-8:1993

.........................................................................................

EN61000-4-11:1994,AS/NZS3548:1995

.........................................................................................

EN60950 ;1992+A1+A2+A3+A4+A11

.........................................................................................

(Manufacturer)

SamsungElectronics Co., Ltd

259,Gongdan-Dong,Gumi-City

Kyungbuk,Korea, 730-030

Tae-eokJang/GeneralManager

................................................. .................................................................................

(placeanddateofissue)(nameandsignatureofauthorizedperson)

(Representative intheEU)

SamsungElectronics EuroQALab.

BlackbusheBusiness Park

SaxonyWay,Yateley,Hampshire

GU46 6GG, UKIn-Seop Lee /Manager

................................................. ...............................................................................

(place and date ofissue) (name andsignature ofauthorized person)

TEJang

2001-03-31

ISLee

2001-04-03

Intended Use

This apparatus provides a number of Samsung proprietary digital extensions, analogue exten-

sions, 10/100 Base-T LAN connections, an integral Router and an integral CTI Telephony

Server. It is intended to connect only to ISDN Basic Rate circuits provided by a public net-

work operator. The apparatus is mains powered.

It is not intended for any other use. Please read the provided user instructions carefully.

DCS-VIP Internet Keyphone Quick Guide

—i—

ContentsContents

1 Introduction.......................................................................................................................1

About This Guide ...................................................................................................................1

Before You Start .....................................................................................................................1

Information Required ..............................................................................................................1

Product Specifications ............................................................................................................2

Environmental Requirements ..................................................................................................3

2 Installing Your DCS-VIP ................................................................................................4

Grounding the VIP Router .......................................................................................................4

Connecting the ISDN Line(s) ...................................................................................................5

Connecting a PC or Hub .........................................................................................................5

Connecting Digital or Analogue Telephones.............................................................................6

Connecting the Power Cord ....................................................................................................6

Connecting an Expansion Unit ................................................................................................7

3 Configuring Your DCS-VIP ..........................................................................................8

Switching On the System ........................................................................................................8

Clearing the Memory ..............................................................................................................8

Connecting to the Web Management Screen ...........................................................................8

Running the Wizard Setup ......................................................................................................9

Configuring the Keyphone Functions........................................................................................ 10

Configuring the Router Functions ............................................................................................ 13

Configuring the VoIP Functions.............................................................................................. 16

Changing the System IP Address .......................................................................................... 19

4 Saving System Configuration Information ..........................................................20

5 Restoring System Configuration Information .....................................................22

Restoring Router Configuration Information from Flash Memory ............................................... 22

Restoring Configuration Information from PC Hard Disk ........................................................... 23

6 DCS-VIP Remote Programming ..............................................................................25

Assumptions.......................................................................................................................... 25

Remote Programming Procedure on Slave Site ..................................................................... 25

Remote Programming Procedure on Master Site .................................................................... 27

Appendix: Installing & Programming Voice Over IP (VoIP)

on the DCS-VIP ..................................................................................................................30

DCS-VIP Internet Keyphone Quick Guide

—1—

11 IntroductionIntroduction

About This GuideAbout This Guide

This guide provides the basic information required for installing the DCS-VIP router (called sim-

ply the DCS-VIP) and connecting to your Internet Service Provider (ISP) for Internet navigation.

You should refer to the Samsung DCS-VIP User Guide for detailed specifications of the DCS-VIP,

including the names and functions of components, how to use the system and how to solve

problems.

Before You StartBefore You Start

Before installing and setting up the DCS-VIP:

lCall your ISDN service provider and apply for an ISDN BRI line (ISDN 2).

lYou should have a network card installed in the PC to be connected to the DCS-VIP Ethernet

port. Check that the TCP/IP protocol is also installed.

lIf you want to connect network equipment such as a hub or router to the Ethernet port of

the DCS-VIP, you will need a category-5 crossover cable.

WARNING

DCS-VIP is a network routing device and will make a telephone call in response to a valid

request from a client PC; for example, from an email program running on that PC. This

can result in significant telephone traffic and higher than expected bills. It is the respon-

sibility of the user to ensure that PCs on the network are configured appropriately. Sam-

sung cannot accept responsibility for issues arising from inappropriate network configu-

ration. Contact your dealer if you require more information.

InformationInformation RequiredRequired

To set up the DCS-VIP system you will need the following information.

lThe IP address and subnet mask of your PC

lThe IP address and subnet mask of the DCS-VIP

lThe ISDN phone number of your ISP

lThe Account ID name (host name) and password of your ISP account

lThe DNS Server IP addresses of your ISP

DCS-VIP Internet Keyphone Quick Guide

—2—

Product SpecificationsProduct Specifications

Hardware Specifications

Router Module Motorola MC68EN360

CPU Keyphone Module Motorola MC68EN302

Router Module 16MbDRAM

2MbFlash

Memory Keyphone Module 8MbDRAM

2MbFlash

Main System

2 ISDN BRI Interfaces : S/T type

1 VoIP port : RJ-45

1 SIO port : RJ-45

7Ethernet ports : 10/100Base-T, RJ-45

1 Ethernet port: 10Base-T

6 Digital Phone ports : RJ-11

4 Analogue Phone ports : RJ-11

1 Expansion port : RS-232C

1 BATT port

1 MOH port

Port Interface

Expansion System

2 ISDN BRI Interfaces : S/T type

8 Ethernet ports : 10/100Base-T, RJ-45

2 Digital Phone ports : RJ-11

4 Hybrid ports : RJ-11

4 Analogue Phone ports : RJ-11

1 Expansion port : RS-232C

Dimensions 426.79(W) x 278.4(D) x 49.9(H) (mm)

Router Software Specifications

Routing IP (Static Routing)

IPX (SAP, WAN)

WAN Service PPP, ML-PPP

Management SNMP, Web based, Telnet

Security PAP, CHAP, Caller ID, Callback, Filtering (Access List)

Compression Stac LZS, Predictor

Option NAT (Network Address Translation), DHCP Server, DHCP Relay

Agent, Bandwidth on demand, Dial on demand

Keyphone Software Specifications

System Features Attendant Group, Barge-in, Call Waiting, Class Of Service,

Conference, In Group/Out of Group, Least Cost Routing, Music

On Hold, Page, SMDR, Call Transfer

Station Features Alarm Reminder, Answer Mode, Boss/Secretary, Call Forward-

ing, Hold, Camp-on, Do Not Disturb, Message Waiting, Redial,

Speaker Phone, Speed Dial, Trunk Callback

Optional Features CTI, ISDN AOC, ISDN COLP/COLR, ISDN DDI, ISDN MSN,

ISDN Sub-address, Voice Mail System

DCS-VIP Internet Keyphone Quick Guide

—3—

VoIP Software Specifications

Basic Features Incoming Call, Outgoing Call, Call Forward, Call Transfer,

Call Wait, Redial

System Features Set µ/A-Law, Translation Tel No. to IP Address, Web-based

Management

VoIP Features Trunk Account, IP Conversion Table, Remote Download

Environmental RequirementsEnvironmental Requirements

lInput Voltage : 120-240 VAC (Free Volt)

lFrequency : 50–60Hz

lPower Consumption : 70 Watts

lOperating Temperature : 0°C –40°C

lRelative Humidity : 10% –90% (Non-condensing)

Caution

When installing the DCS-VIP main router you must ensure a free space of at least

100mm above the unit.

DCS-VIP Internet Keyphone Quick Guide

—4—

22 Installing Your DCSInstalling Your DCS--VIPVIP

Refer to the following network connection diagram, and then connect each cable to the appro-

priate port on the rear panel of the DCS-VIP as described.

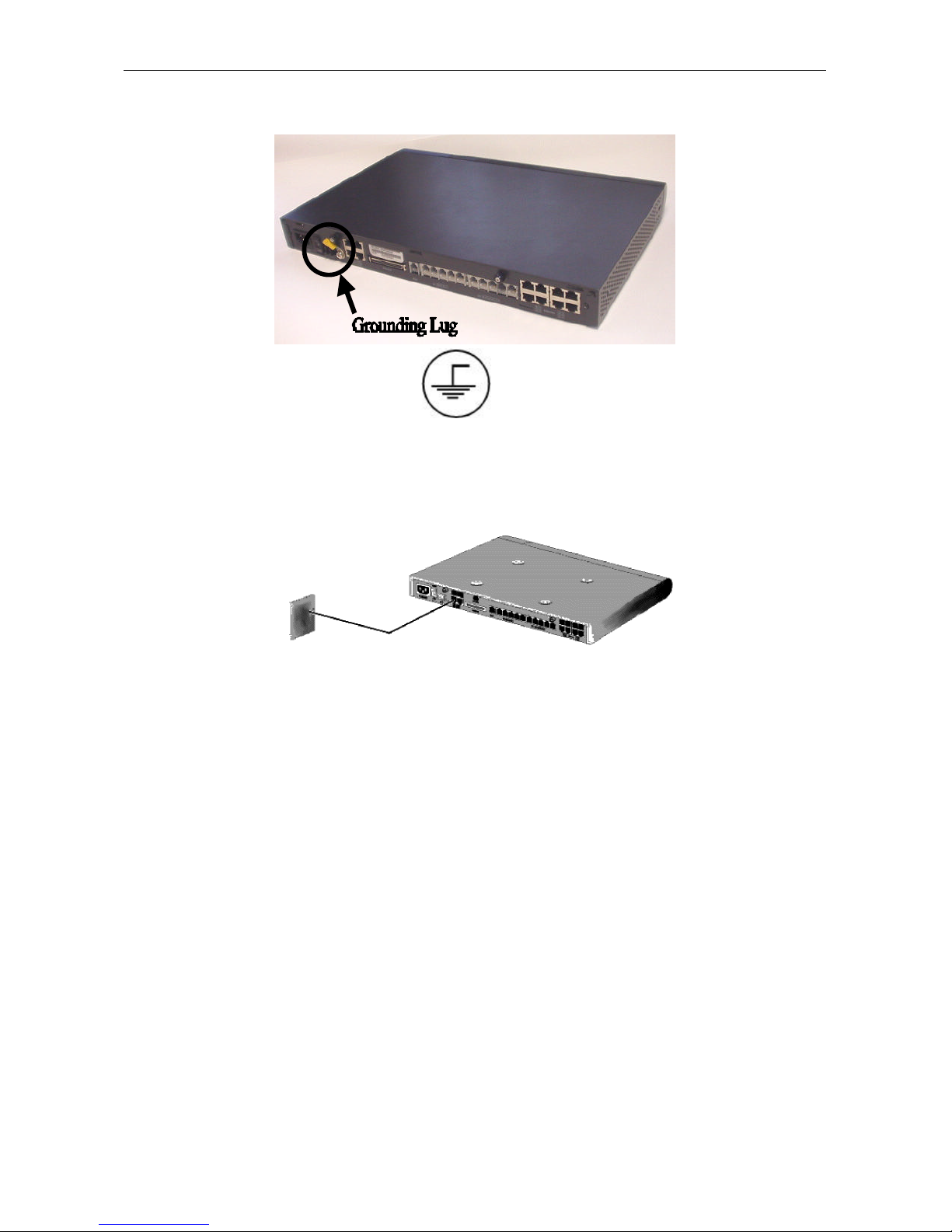

¶Grounding the VIP Router

The DCS-VIP base unit is provided with a third-wire AC ground through the power cord, which is

adequate for most applications. However, if it is suspected that there is a problem with the

ground provided at the AC outlet, or local codes require a solid earth ground to be connected to

the router, the existing third-wire ground must be disconnected and a new ground connected to

the grounding lug on the rear of the unit (see illustration below). Contact your dealer or Techni-

cal Support for advice and read the ‘Warning’ notice below.

Failure to provide an adequate ground may cause unpredictable operation or even cir-

cuit failure.

Warning

Unplug the power cord from the AC outlet before attempting to connect a new ground.

Hazardous voltage may cause death or injury. Observe extreme caution when working with

AC power.

Power

Internet Service Provider

Internet

ISDN connection box

Analogue Phone

Digital Phone

DCS-VIP router

Ethernet hub

Power

DCS-VIP Internet Keyphone Quick Guide

—5—

·Connecting the ISDN Line(s)

1. Connect the ISDN cable to the port labelled ‘BRI1’on the rear panel of the DCS-VIP.

2. Connect the other end of the ISDN cable to the ISDN connection box.

3. If a second ISDN line is required, connect the second ISDN cable to the port labelled ‘BRI2’

on the rear panel of the DCS-VIP, and connect the other end to the ISDN connection box.

¸Connecting a PC or Hub

Connecting a PCConnecting a PC

There are eight Ethernet ports on the rear panel of the DCS-VIP. You can connect a PC to each

Ethernet port (a maximum of eight PCs).

1. Connect an Ethernet cable to any of the Ethernet ports on the rear panel of the DCS-VIP.

2. Connect the other end of the Ethernet cable to the connector on your PC.

Connecting a HubConnecting a Hub

If you want to set up the network for more users, you can extend the number of ports by con-

necting another hub, switch or router.

ISDN connection box

ISDN cable

DCS-VIP router

Altri manuali per DCS-VIP

Indice

Altri manuali Samsung Telefono

Samsung

Samsung SPH-N255 Manuale utente

Samsung

Samsung DS 24S Manuale utente

Samsung

Samsung aio Galaxy Amp Manuale utente

Samsung

Samsung OfficeServ ITP-5121D Manuale utente

Samsung

Samsung GT-E2232 Manuale utente

Samsung

Samsung DCS Manuale utente

Samsung

Samsung OfficeServ 7200-S Manuale utente

Samsung

Samsung GT-P3110 Manuale utente

Samsung

Samsung OfficeServ 7030 Manuale utente

Samsung

Samsung OFFICESERV ITP-5021D Manuale utente

Samsung

Samsung Galaxy S III Manuale utente

Samsung

Samsung OfficeServ DS-5038S Manuale utente

Samsung

Samsung OfficeServ DS-5012L Manuale utente

Samsung

Samsung GT-M3710L Manuale utente

Samsung

Samsung Vodafone SGH-L810V Manuale utente

Samsung

Samsung SM-A315G/L Manuale utente

Samsung

Samsung OfficeServ 7000iDCS Manuale utente

Samsung

Samsung SCH-A130 Manuale utente

Samsung

Samsung GT-B2710 Manuale utente

Samsung

Samsung SCW-R500 Manuale utente

Samsung

Samsung SCH-i600 Series Manuale utente

Samsung

Samsung GT-M2710L Manuale utente

Samsung

Samsung SP-C700R Manuale utente

Samsung

Samsung OfficeServ 7000 Series Manuale del proprietario

Manuali Telefono popolari di altre marche

GE 2-9480 Manuale utente

Geemarc

Geemarc PHOTOPHONE 155 Manuale utente

D-Link

D-Link DWR-720/PW Manuale utente

Interquartz

Interquartz Gemini IQ333 Manuale utente

SSS Siedle

SSS Siedle HT 840-0 Manuale utente

Motorola

Motorola TITANIUM Manuale utente

Panasonic

Panasonic ICX Manuale utente

LG H870DS Manuale utente

AT&T

AT&T Trimline 205 Manuale utente

Selta

Selta zenyth 600 Manuale utente

Doro

Doro AFTI 20 Manuale utente

UNIQCELL

UNIQCELL A1 Manuale utente

Panasonic

Panasonic KX Series Manuale utente

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Manuale utente

BT Decor 425 Manuale utente

NEC

NEC SV8500 Manuale utente

Teledex

Teledex PEARL Manuale utente

Ericsson

Ericsson Dialog 3213 Manuale utente
