WR-11 Wooden cabinet AM/FM 2 bands radio
Instruction Manual
Features
AM/FM 2 bands
Wooden cabinet made of MDF in real cherry or walnut or other optional
wood veneer .
Soft and precision tuning
Rotary tuning and volume control
Tuning LED indicator
Detachable power cord
Headphone socket
REC out socket can be used as a separate tuner to the Hi-Fi amplifier or
record the radio program by using the output .
Aux in. socket to connect stereo/mono audio source like CD walkman
3 inches 7W full range heavy-duty magnet speaker
Dynamic Bass compensation for rich bass
External AM antenna terminal to connect outdoors AM antenna ( USA
version only )
External F type FM antenna terminal to connect outdoors FM antenna
Internal/External FM antenna switch to select built-in or external antenna
9-14 voltages power adaptor socket for AC adaptor or vehicle/boat power

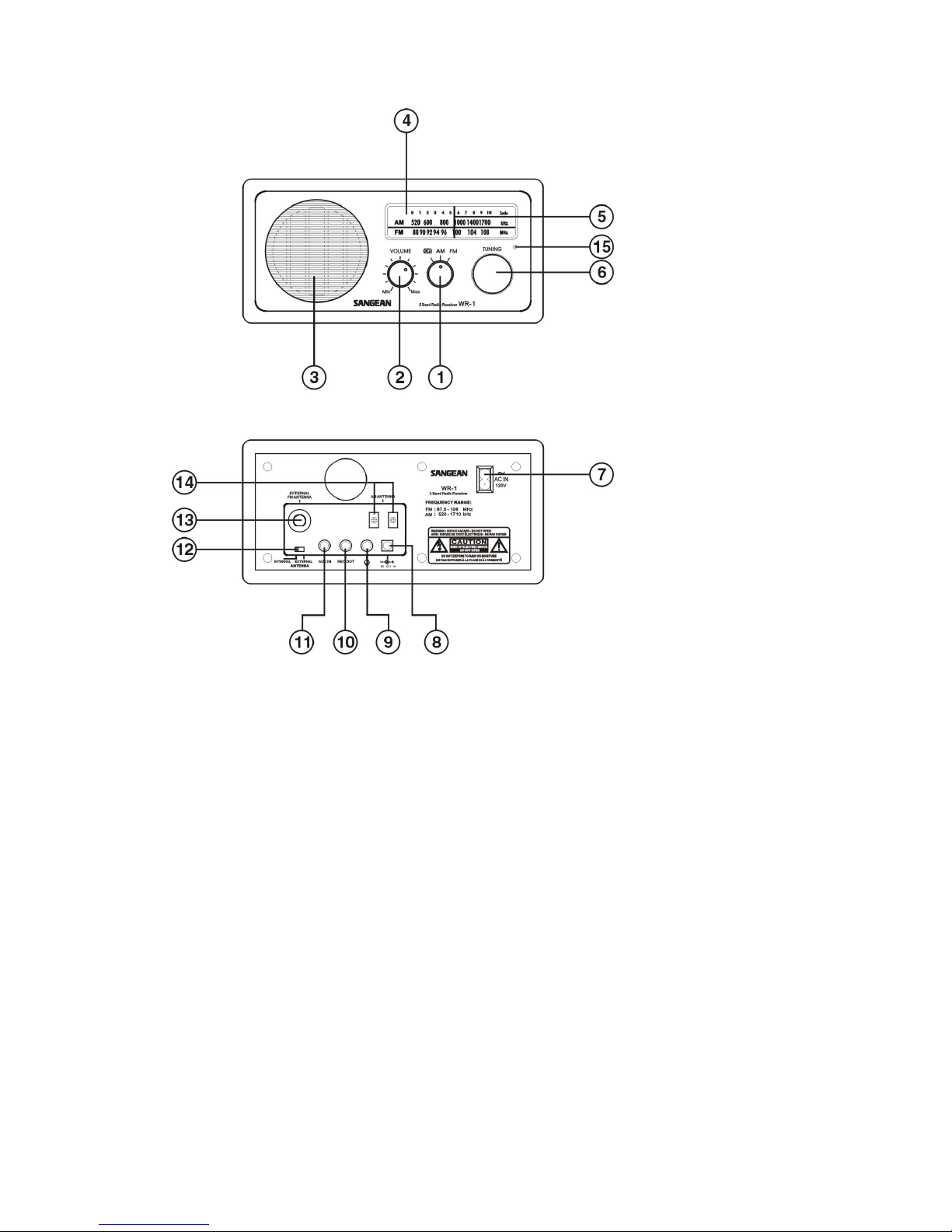

Controls
1. Power and AM/FM band switch
2. Volume Control
3. Speaker
4. Dial scale
5. Dial indicator
6. Tuning Control
7. AC power cord socket
8. 12V DC input socket ( ideal for vehicles/boats )
9. Headphone socket
10.REC out socket
11.Aux in socket
12.External/Internal antenna switch
13.F-type external antenna terminal
14.AM external antenna terminal (USA version only )
15.Tuning LED indicator
Power your radio
AC operation
Before you plug the AC cord into the radio , be sure the AC voltage is
correct . Insert the plug on the end of the supplied power cord into the AC
power socket on the back of the radio .
DC operation
For outdoors use , you can power the radio by using 12V DC input socket
from a DC power supply ( example , from the power supply of vehicles or
boats ) . An AC power adaptor with 1 Ampere and center positive in
polarity can also power the radio in house .
Operating your radio FM
1. Connect the Antenna
The radio comes with built-in AM/FM antenna . To improve FM
reception , insert the end of the supplied FM wire antenna into the F-type
antenna terminal and adjust the wire for best reception . A 75 ohm coaxial
Cable of outdoor antenna may also be attached to the terminal . Be sure to
switch external/internal antenna switch to external position while using
the supplied wire antenna or connect the outdoor antenna . In some of the
European countries , you may have to connect the supplied antenna
terminal adaptor to connect with the outdoor antenna .
2. Turn on your radio by switching the Power knob to FM position.
3. Rotate the Tuning Control to select the desired station . On FM , the
tuning scale is marked in MHz (Megahertz) . The tuning LED indicator
will appear brightest when best tuning has been achieved .
4. Adjust the Volume Control for comfortable listening .
5. To switch off the radio , turn the Power knob to OFF position .
Operating your radio AM
1. Connecting the antenna
The radio comes with built-in AM antenna which should be enough for
normal listening . To improve the AM reception , you may connect the
outdoor AM antenna with AM antenna terminal ( USA version only ).
2. Turn on your radio by switching the Power knob to AM position .
3. Rotate the Tuning Control to select the desired station . On AM , the
tuning scale is marked in kHz (Kilohertz) . The tuning LED will appear
brightest when best tuning has been achieved .
4. Rotate your radio for best reception .
5. Adjust the Volume Control for comfortable listening .
6. To switch off your radio , turn the power knob to OFF position .
Headphone use
Headphone use with this radio should be fitted with a 3.5 mm jack plug .
Insert the headphones plug into the socket marked
On the rear side of the radio . When the headphones are plugged in , the
loudspeaker is automatically disconnected .
AUX IN socket
Connect a stereo or mono audio source ( like CD walkman ) to this input
to listen the audio program via the speaker .
REC out socket
The radio can be used as a separate tuner by connecting this input to Hi-Fi
system ( amplifier ) or using this input to make recording in mono from
audio program .
Specifications
Frequency Coverage ; FM 87.50-108 MHz
AM 520-1710 kHz
Power : AC 120 V/60 Hz/25W or AC 230 V/50 Hz/25W
Internal Antenna System : AM Built-in ferrite aerial
FM Built-in wire aerial
External antenna terminal : AM antenna terminal ( USA version only )
FM F-type antenna terminal
Output Power : 7W 10% T.H.D. @100Hz
Headphones socket : 3.5 mm dia. Stereo jack monaural output
Output : 5mW + 5mW
Aux in socket : 3.5 mm dia. Stereo jack .
Input sensitivity : IN 150mV Output 7W @100Hz
Input impedance :47 Kohm
REC OUT : output impedance : 2.2Kohm
DC IN : 12V/1A center pin positive (operational voltage 9-14V)
Accessories : FM F-terminal antenna wire
AC power Cord
F to PAL terminal adapter ( European version only )
Dimension : 240(W) x 114 (H) x 169.5 (D) mm
Weight : 2.35 KG.
